Grinding table 2000 mm, with fixed height

Grinding table 2000 mm with fixed height

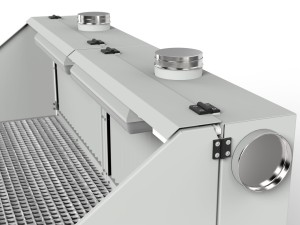

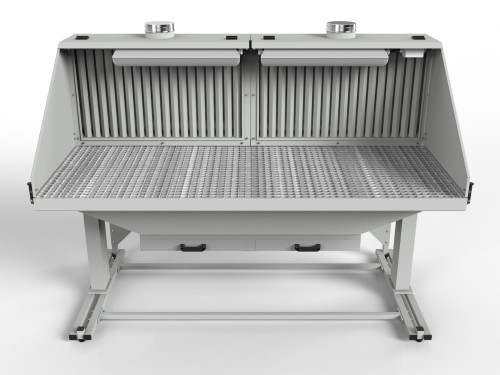

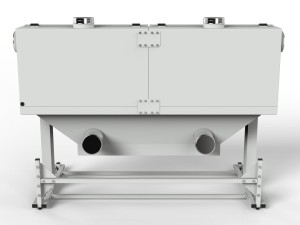

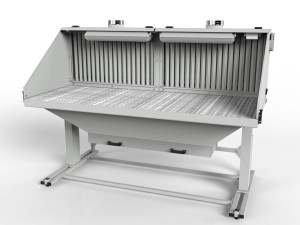

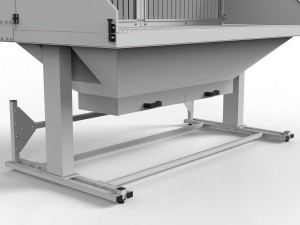

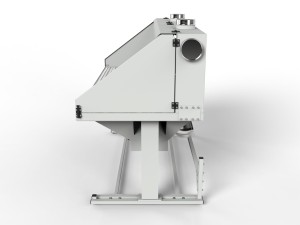

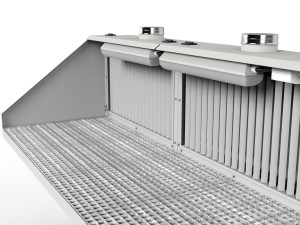

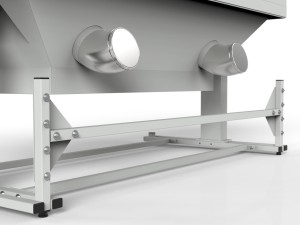

Grinding table with a fixed tabletop height of 850 mm. It is designed for grinding and cutting metal parts and also, after adding an optional perforated plywood top, for grinding wooden parts.  The grinding table has a large work surface made of galvanized steel grille and, optionally, an additional top made of perforated plywood. Dust extraction is carried out from the chute under the worktop and (if included) from the rear extraction walls. The chute is equipped with two dust and filings drawers. The grinding table requires a tubing connection to an extraction and filtration unit or to a larger filter-ventilation unit in multi-station extraction systems. This table requires a connection in four places (2x bottom chute + 2x extraction walls on the tabletop). The load capacity of the tabletop is 200 kg distributed evenly.

Features of the grinding table 2000 mm with fixed height

• Work surface height fixed at 850 mm
• Large extraction area: dust extraction from the bottom and from the rear extraction walls
• Large work surface with total dimensions of 2000x985 mm, extraction walls mounted on the tabletop have a depth of 220 mm
• The tabletop is formed by two grilles: the larger grille can be removed without removing the tabletop extraction walls
• Additional top made of perforated plywood for an extra charge
• Two extraction walls with a total length of 2000 mm, the dimensions of a single wall are 1000x600x220 mm (length x height x depth)
• Possibility to connect the extraction walls from the top or from the side with a pipe fi 160 mm (the unused connection is plugged),  bottom chute connected from the back with a pipe fi 160 mm in two places
• Each extraction wall has its own 15W, 4000K LED lighting
• Openable side walls allow processing of larger parts
• Two removable dust and filings drawers
• Tabletop load capacity: 200 kg evenly distributed
• Grinding tables are not EX approved. They do not have air filters or a fan in the extraction system, so they must be connected to a suitable extraction and filtration device

 Recommended suction capacities for each size
