How to Choose a Workbench for Control and Electrical Cabinet Assembly?

Assembling electrical cabinets entails long hours of manual work that requires high precision, focus, and exemplary organization. Tasks related to switchgear assembly are often performed in a bent position when access to the mounting plate or cabinet is hampered by the growing number of installed devices and cable connections. Prolonged repetitive work in this posture is uncomfortable for the technician, increases injury risk, and significantly slows down productivity. That’s why selecting suitable workplace equipment and proper organization of the workspace is critical to the assembly process. Simply put, a makeshift workstation built from pallets is not enough.

Equipment Element	Function
Workbench with extendable frame and tilt/height adjustment	Convenient switchgear assembly in horizontal and angled positions, top ergonomics and flexibility
Cabinet assembly and transport frame with adjustable shelves (A-frame)	Angled assembly, storage, and transport of cabinets
Wire organizer cart	Cable transport/management, preventing tangles, convenient cabinet wiring
Cable feeding system (wire reel stand)	Managing wire reels, tangle prevention, easier wiring
Workbench with tilting tabletop	Assembling switchgears horizontally or at an angle
Tool trolley	Convenient storage and organization of tools/components
Mobile rack for mounting plates and housing elements	Storage and transport of lengthy switchgear elements
Workshop table with accessories	Preparation for switchgear prefabrication: cutting, drilling, organizing tools
Mobile perforated tool board	Tool organization and storage
Storage racks	Storing reels, boxes, and switchgear assembly components

Table listing the components of equipment for assembling wardrobes, prepared by Jabama

What is a Control or Electrical Cabinet?

Control and electrical cabinets are specialized enclosures that:

Enable the organization of all electrical, electronic, and pneumatic devices (e.g., automation components and control systems)
Protect all elements from mechanical damage and negative environmental factors such as contamination, extreme temperatures, or humidity. Properly designed cabinets also prevent unauthorized access by third parties.

Control cabinets are essential in industrial automation systems. They allow for precise management of machines and devices or their subsystems, facilitate data acquisition, and thus enable both process control (maximizing efficiency/safety) and production line supervision. They house automation elements like PLCs, inverters, relays, controllers.

Electrical cabinets focus on power distribution and circuit protection against overloads and short circuits, including components such as breakers, fuses, or ground fault relays. Their applications span industry, public infrastructure, and residential buildings—covering a wider spectrum than strictly control cabinets.

What Are the Key Cabinet Components?

In simplified terms, a cabinet comprises a robust steel frame, enclosure with lockable doors, mounting plate for devices and components, and a control panel equipped with relevant buttons, indicators, and displays. DIN rails and tailored wire ducts are attached to the mounting plate for installing PLCs, inverters, relays, switches, wiring, fuses, and various other devices.

How to Prepare for Cabinet Assembly?

Production begins with proper design and component selection, followed by mechanical works that require different equipment and dedicated workspace. These tasks include making openings in enclosures/doors and cutting elements such as wire ducts and mounting rails to length. These generate a lot of debris and require power tools - it's effective to separate a workshop-like space for this phase. The best solution is to equip such a workshop zone with a sturdy workbench featuring good lighting, tool containers, and a perforated board. The tabletop should be protected with rubber to prevent potential damage to enclosure panels.

Cabinet Prefabrication - Precision Component Joining

All previously prepared and selected elements are assembled in the prefabrication process - colloquially called "sewing" cabinets (due, among other reasons, to the multitude of wires used). The technician installs requested elements onto the mounting plate, makes connections, and appropriately labels both devices and wires. The finished mounting plate is fitted into a chosen enclosure and tested through connection checks and functional testing.

Choosing a Suitable Workbench or Frame for Cabinet Prefabrication

Installing, connecting, and wiring all elements is manual precision work, clearly requiring a specialized assembly workbench or frame tailored to the unique nature of cabinet assembly. What should you consider?

Ergonomics: Select a workbench or frame dedicated for the type of work (cabinet prefabrication) and suited to the user (electrical technician), ensuring comfort and minimizing occupational strain or injuries.
Tilt and Height Adjustment: This supports ergonomics and is especially valuable during assembly, making it easier to position the mounting plate for work.
Adaptability: Ability to accommodate different sizes of mounting plates and enclosures on the workstation for universal use and operational flexibility.
Mobility: Easy repositioning and rotation of the table or frame.
Accessory Installation: Options for lighting, monitor/document holders, tool shelves.
Integration: Compatibility with other equipment, such as tool trolleys and cable feeder systems.
Reliability: Choose proven, high-quality solutions from reputable manufacturers.

A workstation meeting these criteria will greatly accelerate cabinet assembly, facilitate precise work, and support workplace order.

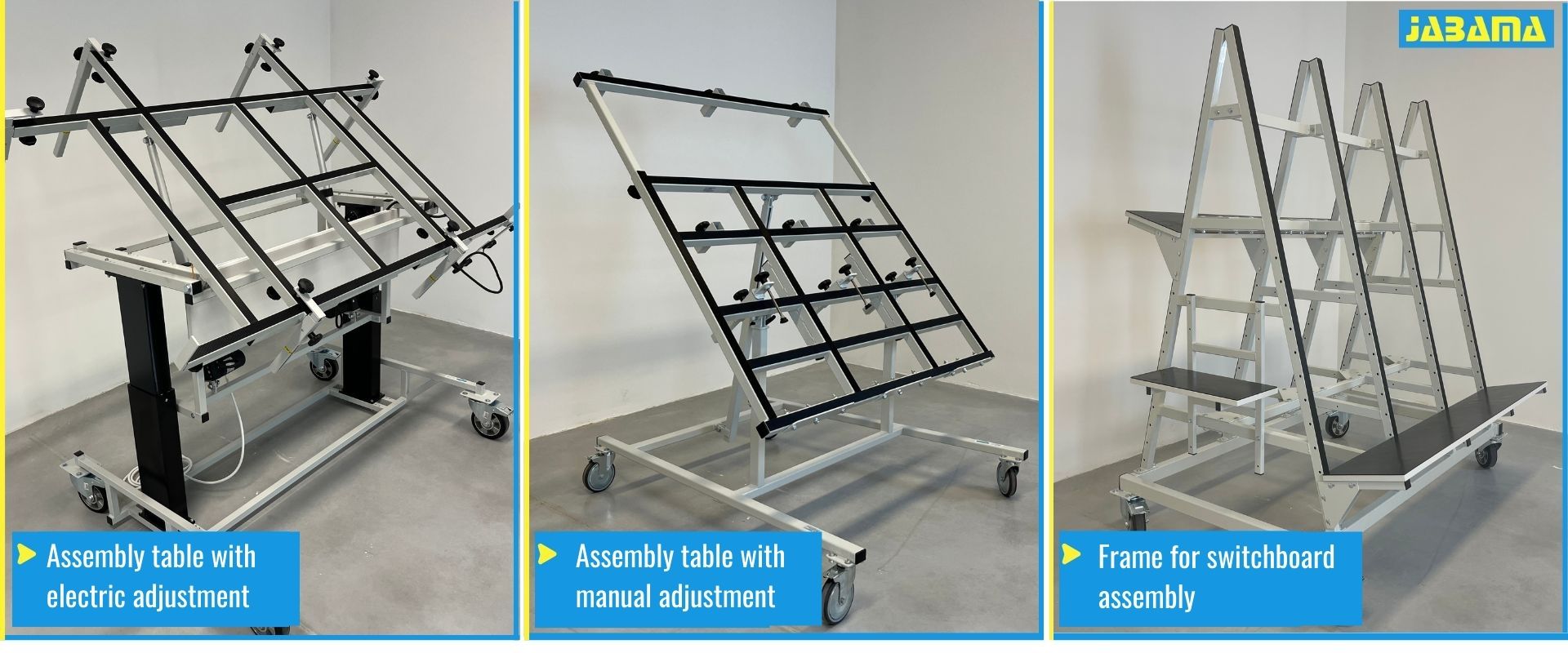

Workbench for Cabinet Assembly with Extendable Frame

A specialized assembly workbench designed for ergonomic cabinet prefabrication is often built on a sturdy steel frame with a working frame (not a flat tabletop) protected by rubber or similar material. The mounting plate or cabinet is fixed to the frame with adjustable clamps. Angle adjustment of the frame allows work either horizontally or at an angle (up to 60/80/90 degrees, depending on the version). Some models, such as innovative control cabinet assembly workbenches by Jabama, developed in collaboration with cabinet technicians, feature electric or manual adjustment. The workbench offers smooth height and tilt adjustments plus extendable arms on movable profiles to adapt the workspace to varying sizes and depths of mounting plates or cabinets. Equipped with caster wheels, the workbench can be easily moved and rotated, improving access and space organization.

Accessories for Effective Cabinet Assembly

These modular workbenches allow for customizations such as:

Overhead lighting (for insufficient ceiling lighting or distance from windows)
Power strips or integrated electrical/pneumatic installations
Monitor/document holders for viewing cabinet designs and schematics
Extra shelves for tool organization

Accessories help prepare the station efficiently, save time finding components and tools, and reduce workplace disarray.

Electric Adjustment in Workbenches with Tilting Frame

Highest work comfort comes from tables with electric height and tilt adjustment, critical for frequent position changes during prefabrication. Easy height adjustment allows work while sitting, ensuring ergonomic guidelines. A button or remote controls adjustment -on robust electric columns (height) and dedicated actuators (tilt).

Which Workbench Version to Choose?

If cabinet prefabrication is an important part of your business, investing in a specialized workbench with a sliding frame and manual tilt/height regulation provides great value at a reasonable price, quickly repaying itself through increased technician efficiency and satisfaction. For higher budgets, consider electric regulation, which is faster and enables more dynamic work, with many add-ons to optimize organization, cleanliness, and storage. This is ideal for maximizing productivity.

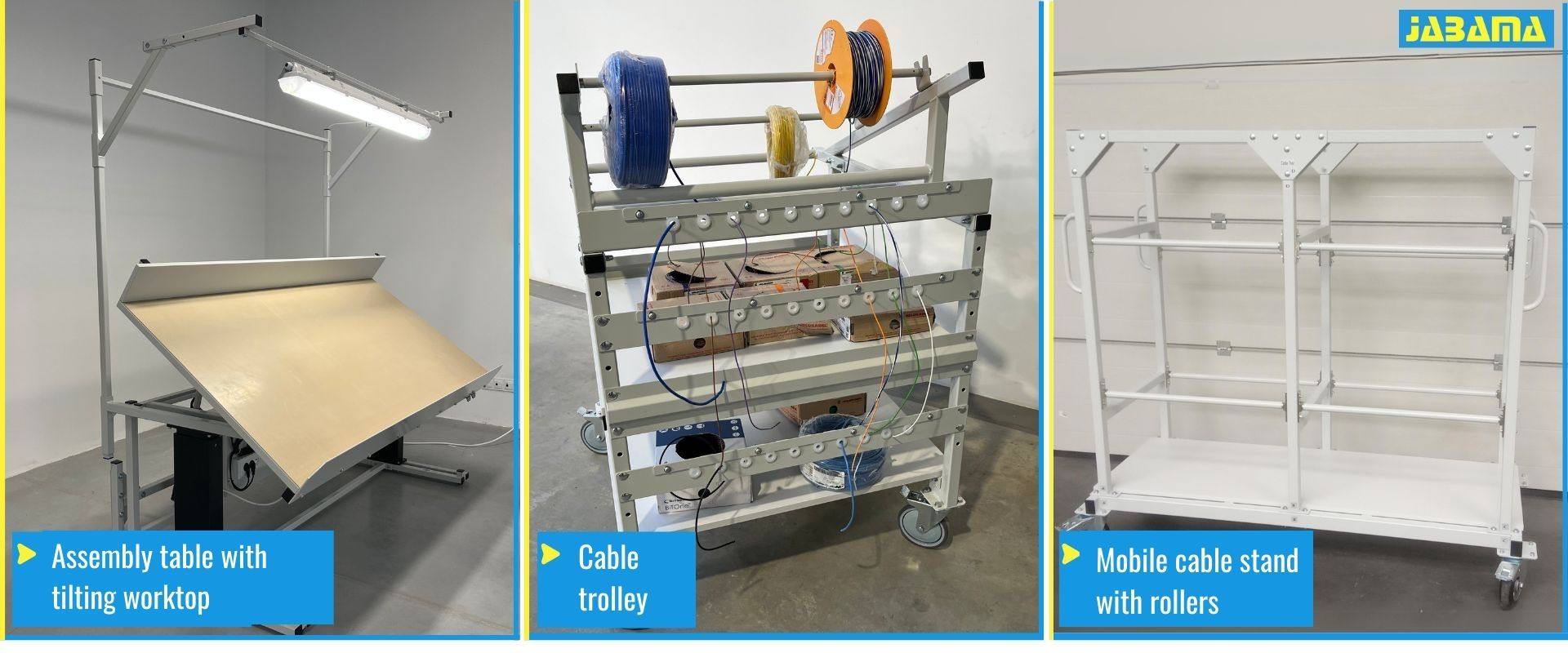

Standard Tilting Tabletop Workbenches - An Alternative

For less specialized needs or dual-function workshop/cabinet assembly use, standard workbenches with tilting tabletops are a worthy option. These offer a rectangular laminated tabletop with various available accessories, supporting universal tasks and adjustment for easier assembly. The front edge can be protected with an angle bracket, gum, or sheet metal-preventing slipping and mechanical damage to both table and components. Jabama offers such workbenches in multiple sizes/configurations, cheaper manual adjustment and advanced electric models.

Assembly Frames for Electrical Cabinets

Another alternative is an assembly frame-specialized mobile equipment with an A-shaped metal profile construction. Adjustable shelves of various lengths, protected with rubber, are installed at different heights and angles, offering comfortable standing assembly. These mobile stations can also function as storage/transport carts for cabinets, streamlining both production and shop organization. Purchasing such a frame alongside a flat-top workbench gives you both horizontal and angled workspace flexibility.

How to Simplify Cable Organization During Prefabrication?

Organizing wires and efficient cable feeding are essential, whether packed in foil, boxes, or wound on reels. Jabama supplies dedicated wire carts with dispensers and adjustable rollers for reel mounting - boxes or foil packs can be placed on shelves. Mobile wire stands, compatible with extendable-frame workbenches, support cable reels above the workstation, allowing easy payout and minimizing tangling - a clear advantage for wiring and component placement.

Key Equipment for Maintaining Order

Outfitting your workspace with a solid tool trolley with enough drawers is important. Some Jabama carts feature a worktop for temporary component storage. Adding workshop cabinets with shelves/drawers and storage racks for reels/boxes helps maintain order. Perforated tool board carts for hanging frequently used tools (like your favorite screwdriver) are valuable additions. Consider also carts and stands for larger cabinet elements - mounting plates, enclosure walls, doors - for safe storage/transport.

If standard solutions aren’t ideal for your workspace, inquire about customizations -reputable manufacturers can redesign projects or create entirely new ones tailored to specific user needs.

Summary: The Ideal Cabinet Assembly Workstation

Prefab assembly of control and electrical cabinets is a vital part of production for companies in automation and switchgear manufacturing. Efficient work requires good organization and ergonomic equipment selection. The best solution is a sliding-frame workbench with tilt and height adjustment; economic and premium versions are available, fitting various needs and budgets - all significantly enhancing workshop efficiency. Tool trolleys and mobile racks simplify workplace order, cable carts and wire feeder systems make wiring much easier. All these solutions are in Jabama’s comprehensive offer, developed in cooperation with control cabinet technicians and compliant with ergonomic, functional, and quality standards.
