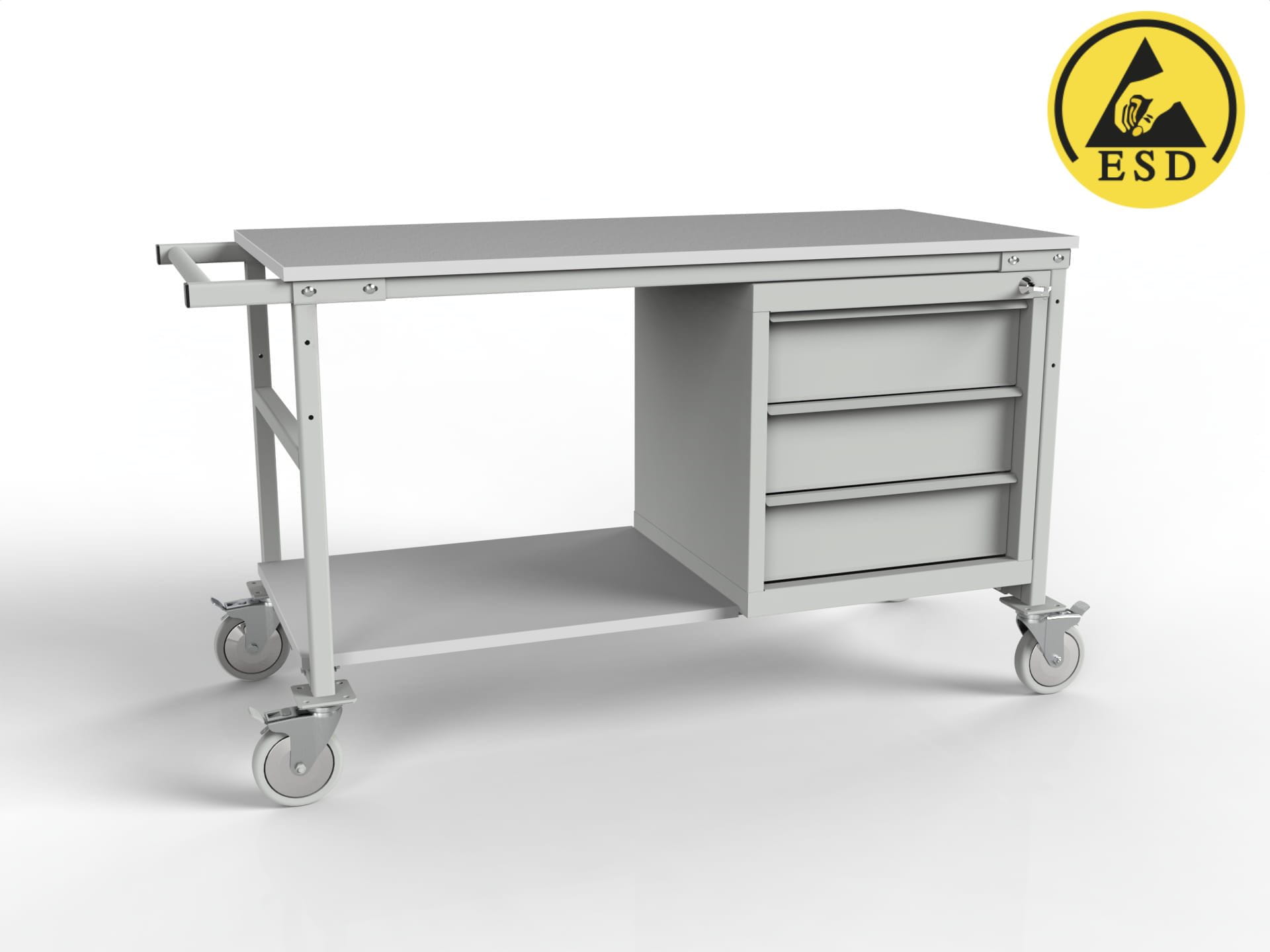

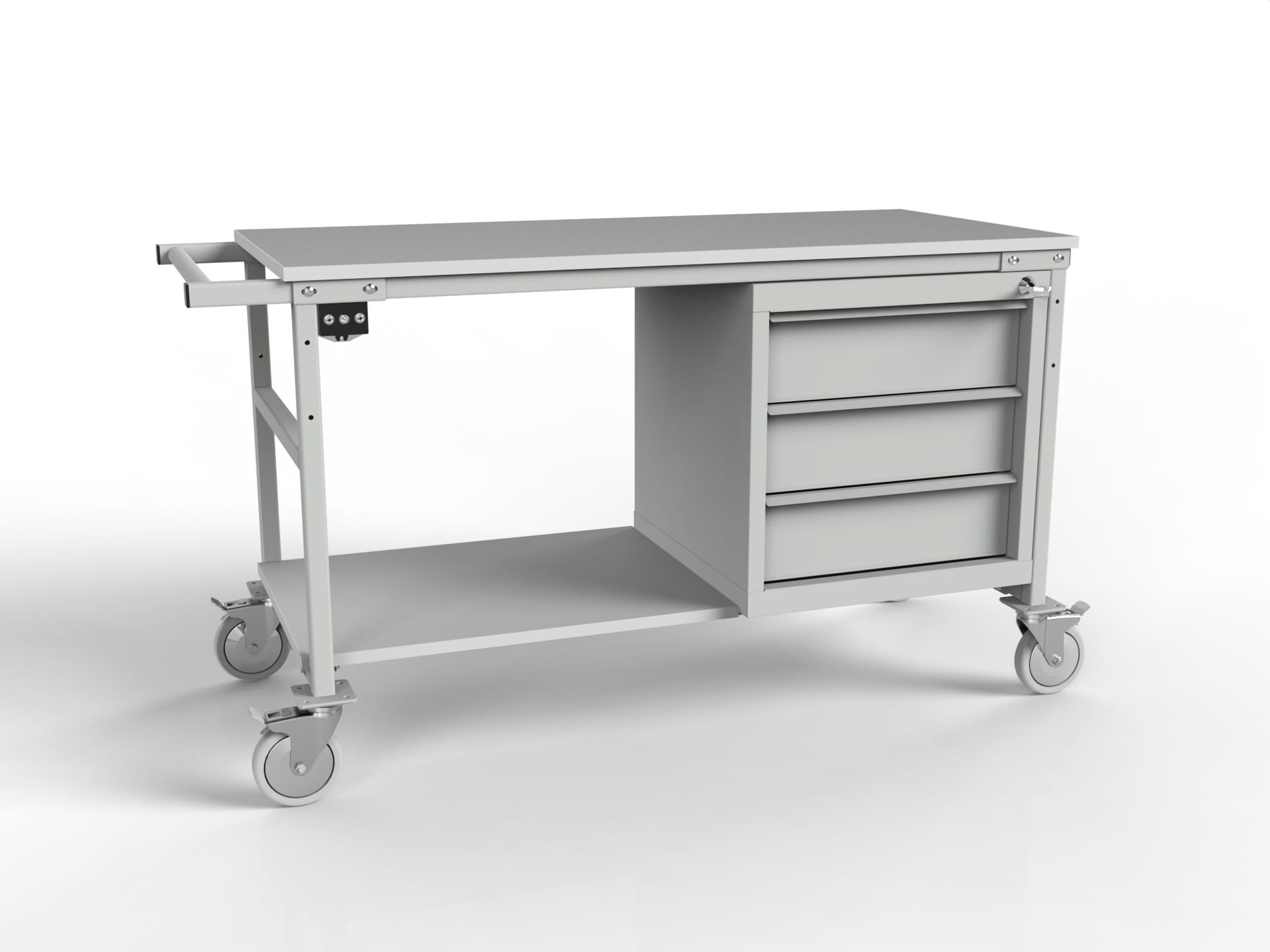

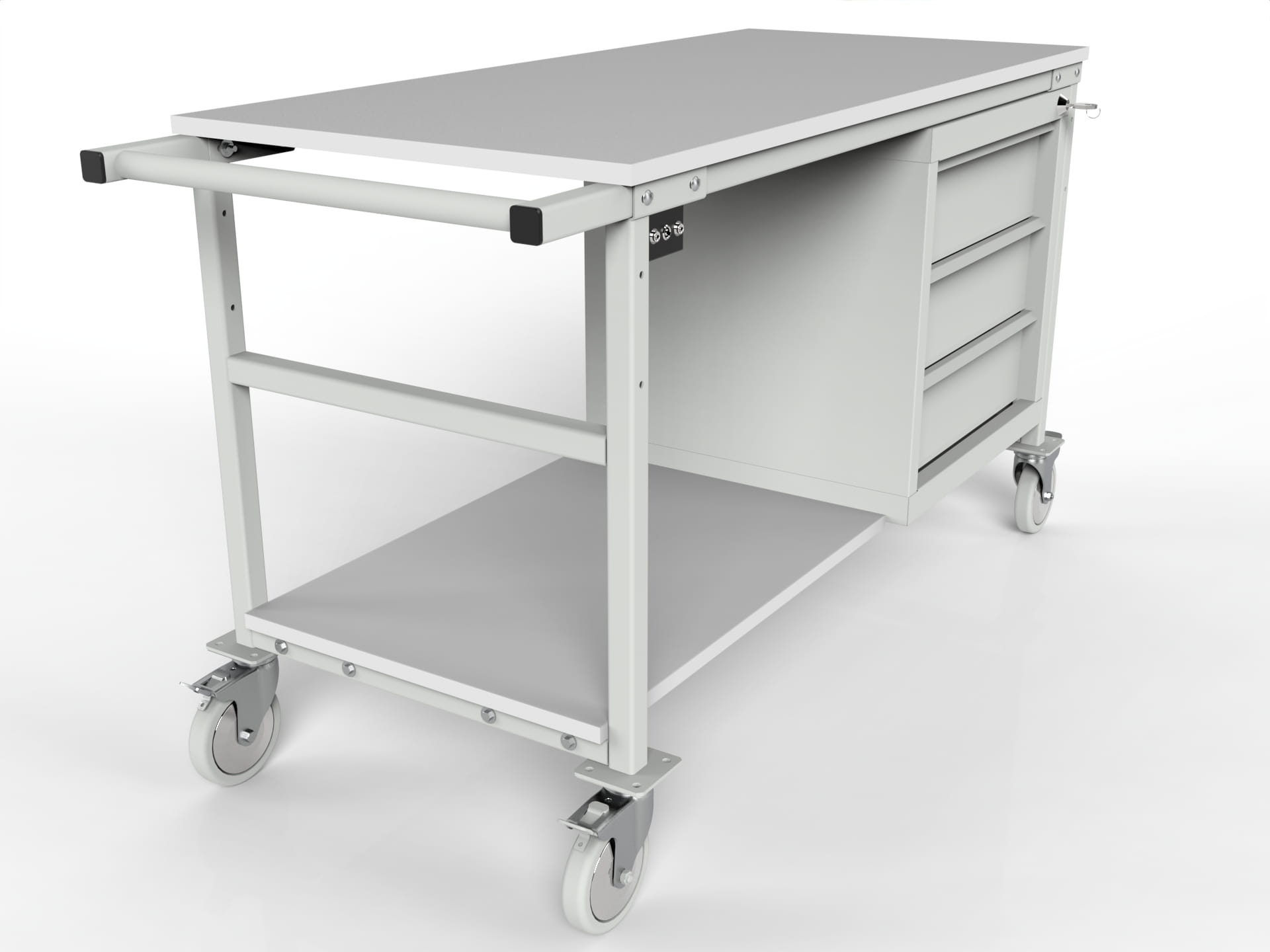

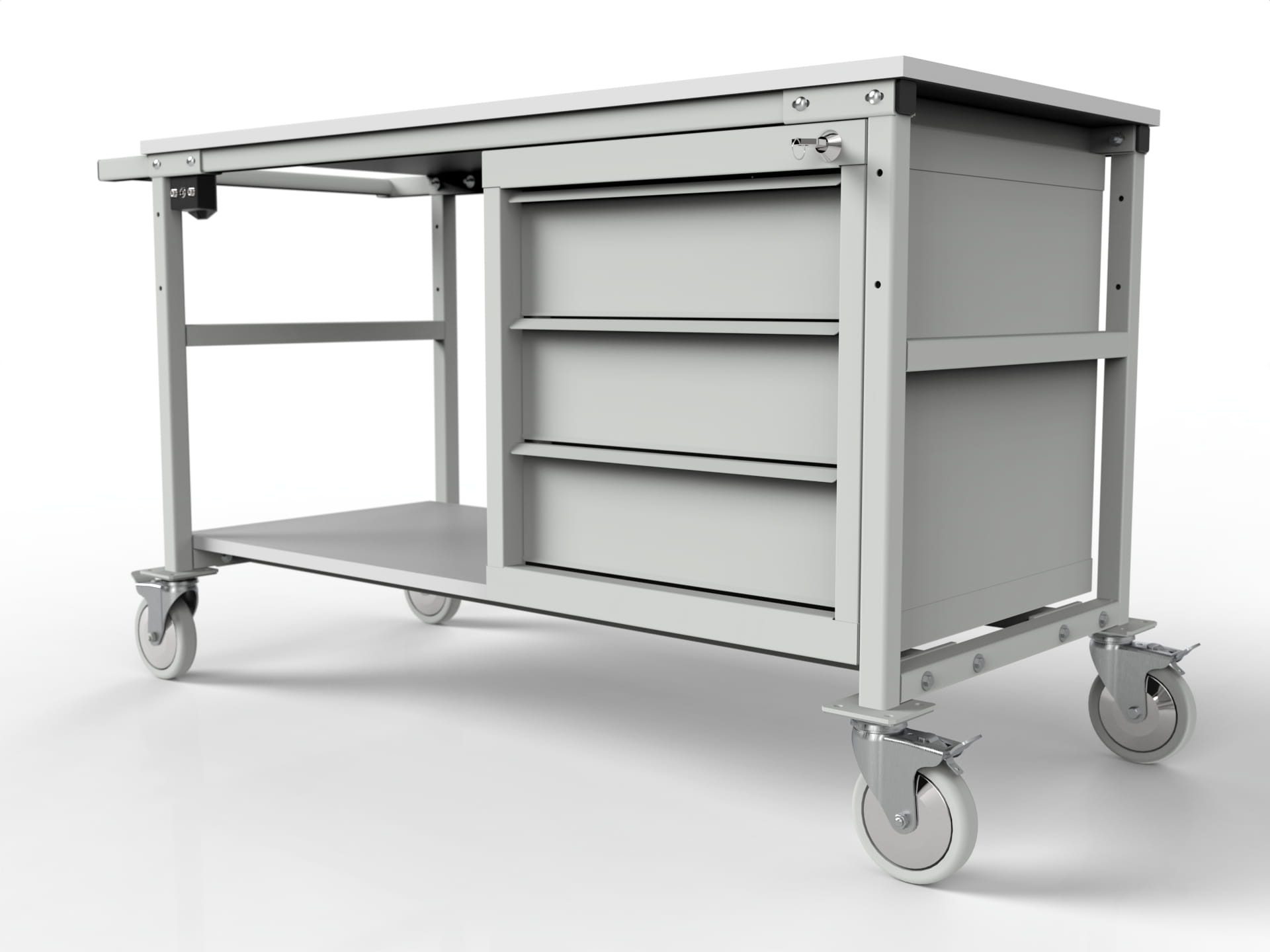

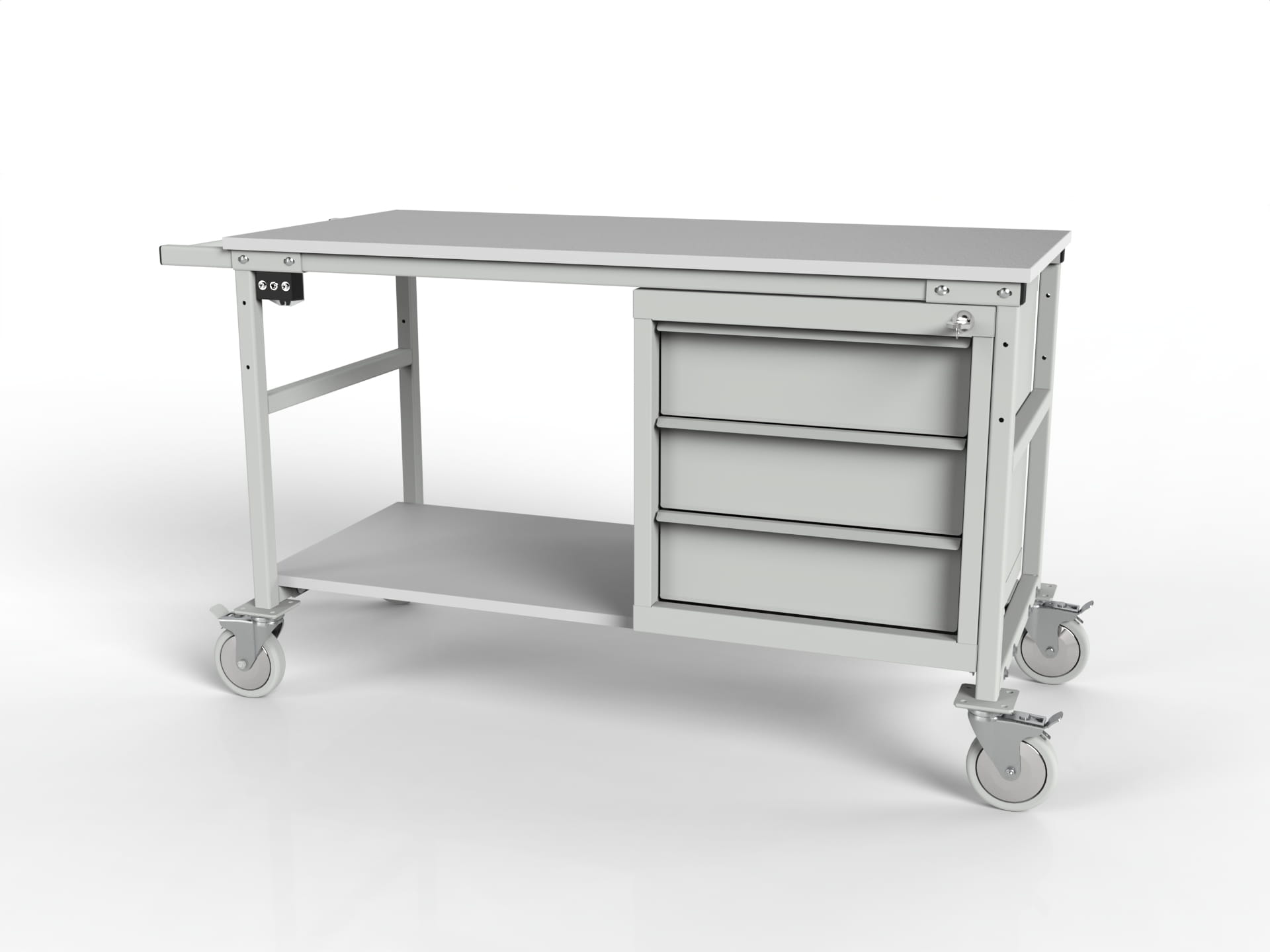

Antistatic workshop trolley WN-02-ESD

Workshop trolley WN-02-ESD

Antistatic tool trolley, suitable for working with ESD-sensitive components. It has a top and bottom shelf made of a special conductive melamine board. There is also a pedestal with ball-bearing drawers that are fully extendable, lockable with a central lock. The structure is made of steel profiles, welded and bolted; the metal parts (including the container housing) are painted with conductive powder paint in light grey. The entire unit is supported on four antistatic swivel castors with brakes. The WN-02-ESD can be used in production facilities, assembly plants or warehouses for electronic and electrical components.

Characteristics of the WN-02-ESD tool trolley

• overall dimensions: 1340x590x760 mm (length x width x height)
• construction made of steel profiles, welded and screwed, painted with conductive powder paint in light gray RAL 7035
• tabletop with dimensions of 1200x550x18 mm made of conductive melamine board
• lower shelf with dimensions 660x478x18 mm, made of melamine-coated conductive board
• total load capacity 200 kg, evenly distributed
• 500x500x500 mm container with three 100% extension drawers, central locking
• four antistatic, swivel wheels with brakes
• optional: grounding assembly with two 10mm latches and one 4mm banana socket, 1.8m grounding wire included

ESD equipment from the manufacturer Jabama

The trolleys manufactured by Jabama are a specialist equipment that will be just as well suited for large EPA zones in industrial halls as they are to smaller electronics plants. Made of solid, specially painted steel profiles and damage-resistant, conductive melamine board, combined with antistatic wheels and an optional grounding unit, the equipment manufactured and offered by Jabama stands out in terms of quality and ergonomics on the market. Check also our offer for ESD workstations, control cabinet prefabrication racks and wire trolleys.
