Assembly table with cabinet and shelf
5
Description
The basic, universal SM assembly table, which is an excellent base for further modifications by installing accessories from our assortment. Highly modular, ergonomic, durable and available in various sizes (check the table below). In order to find the right table model, please contact our expirienced technical and sales consultants (email: marketing@jabama.pl).

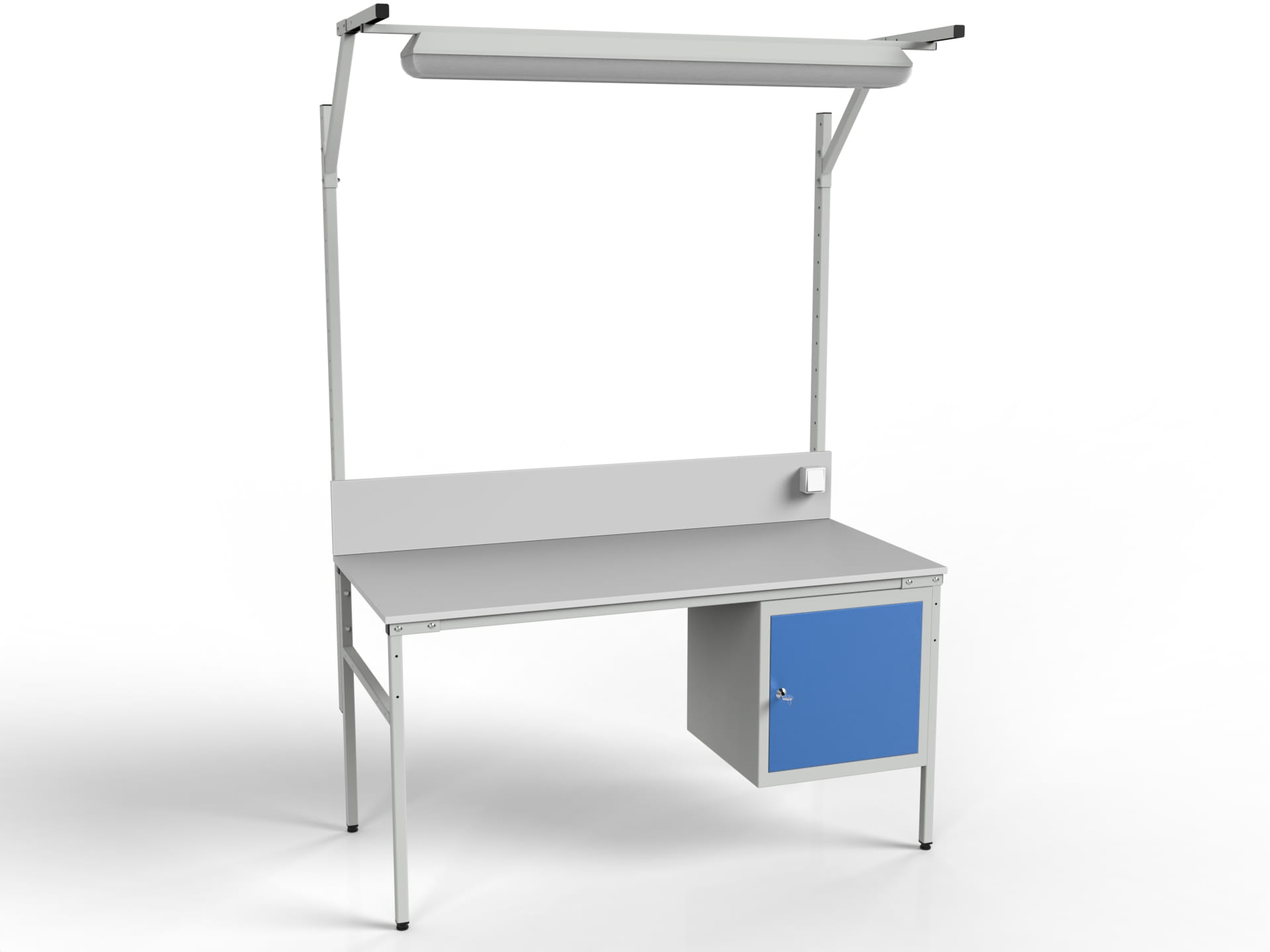

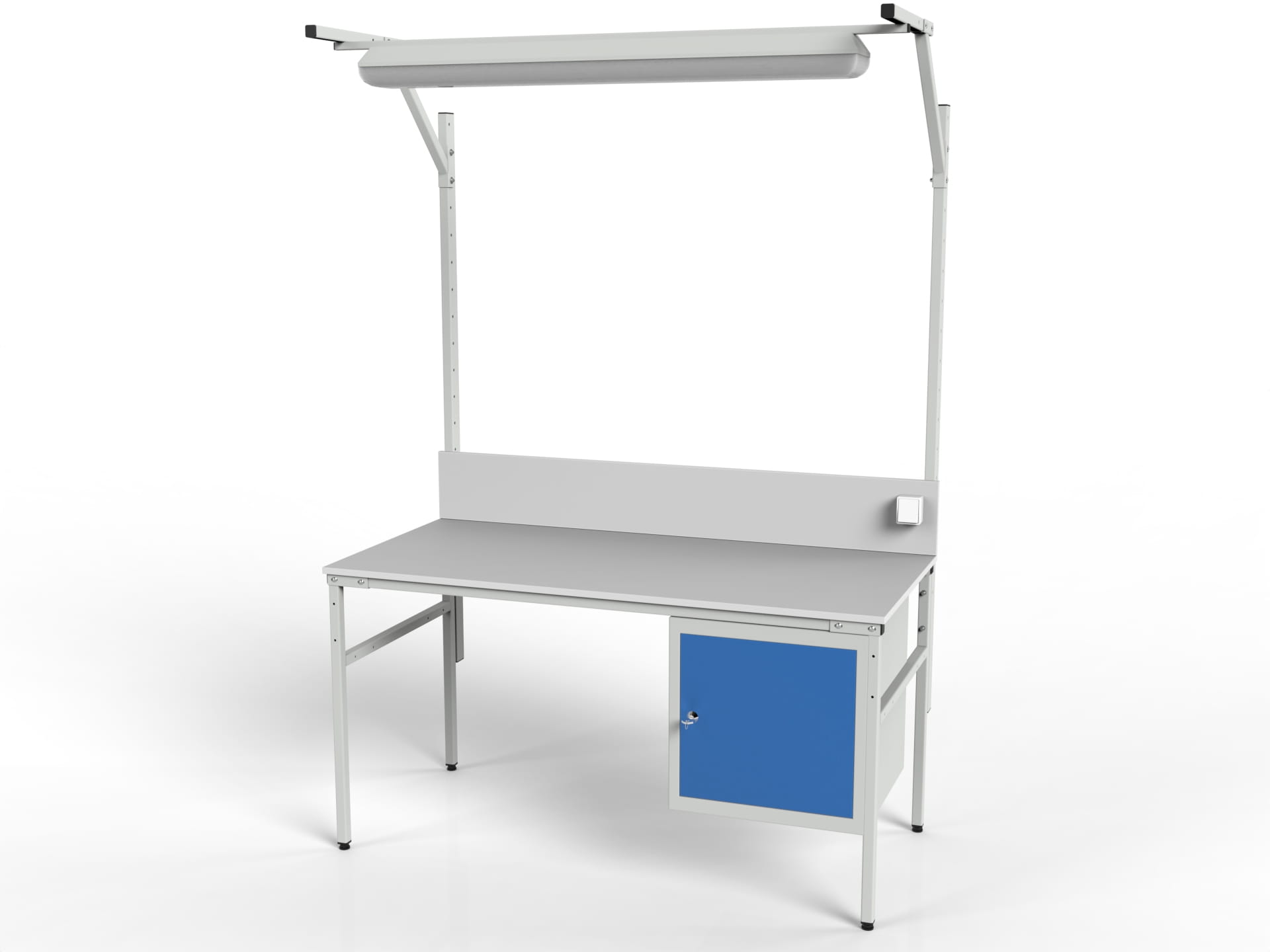

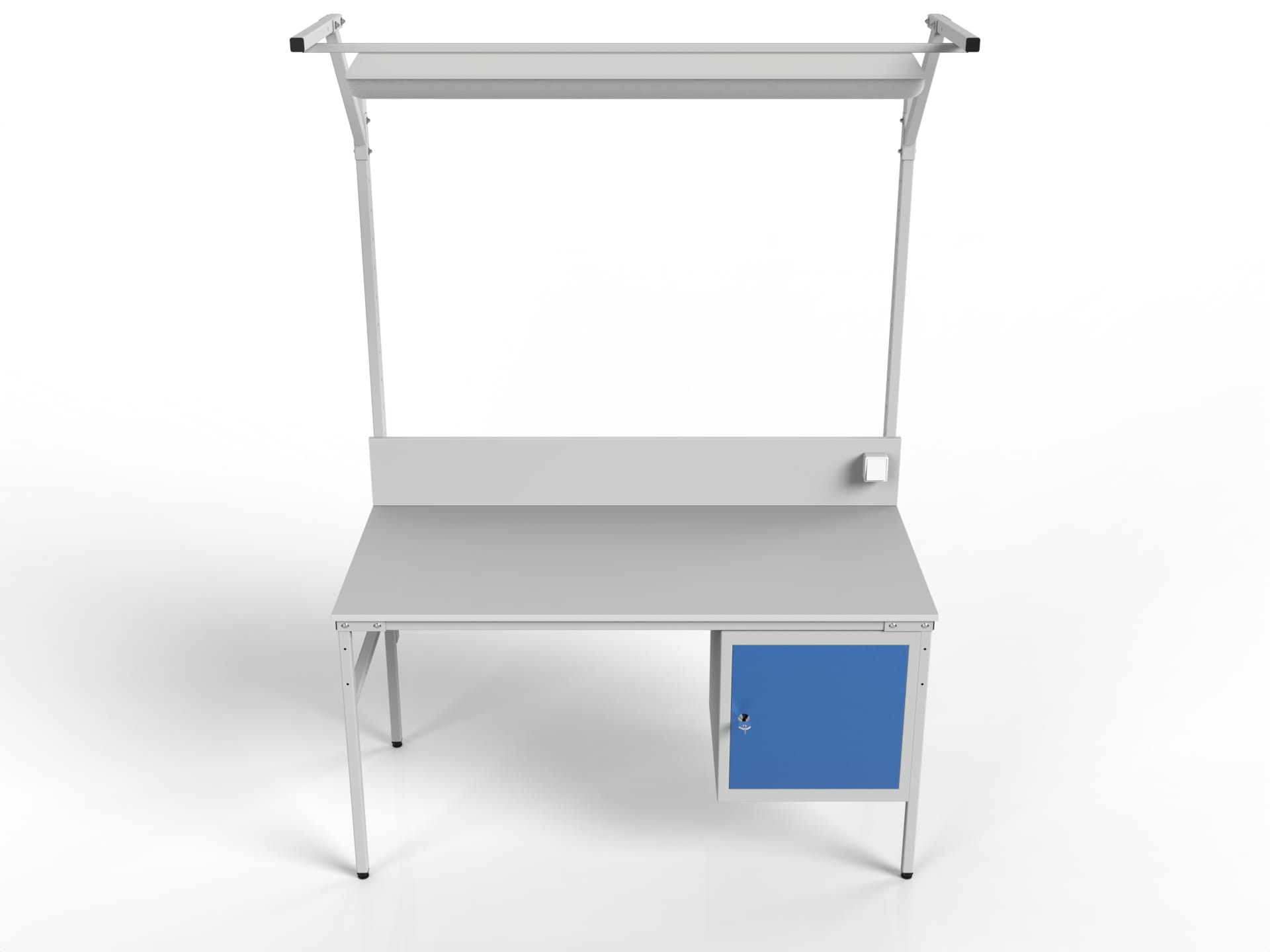

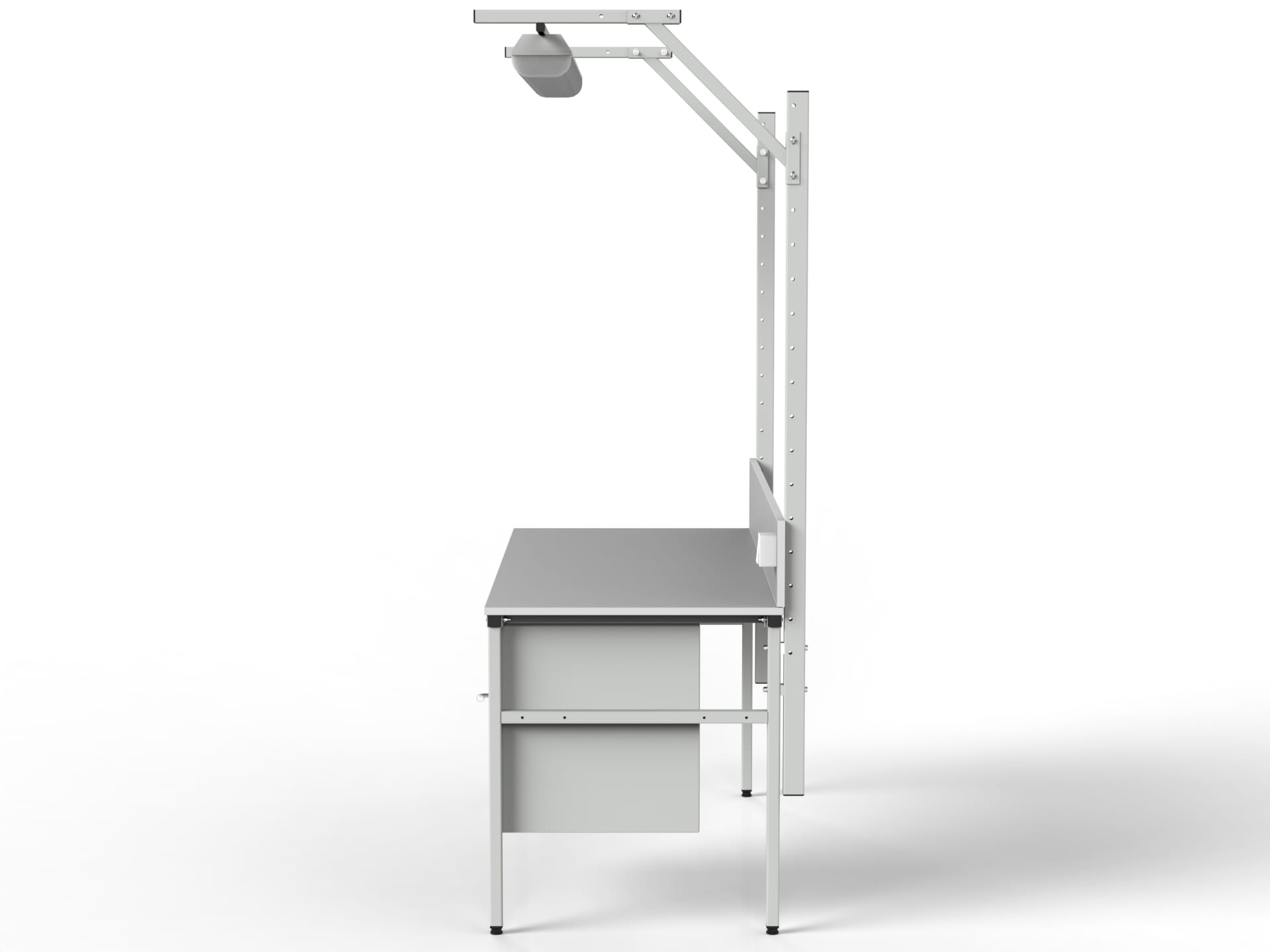

SMCK ASSEMBLY TABLE
1) Workbench on solid and durable steel construction, powder coated in light grey colour RAL7035. Maximum load capacity is 300 kg,
2) Table top made of 18 or 25 mm thick laminated chipboard depending on size,

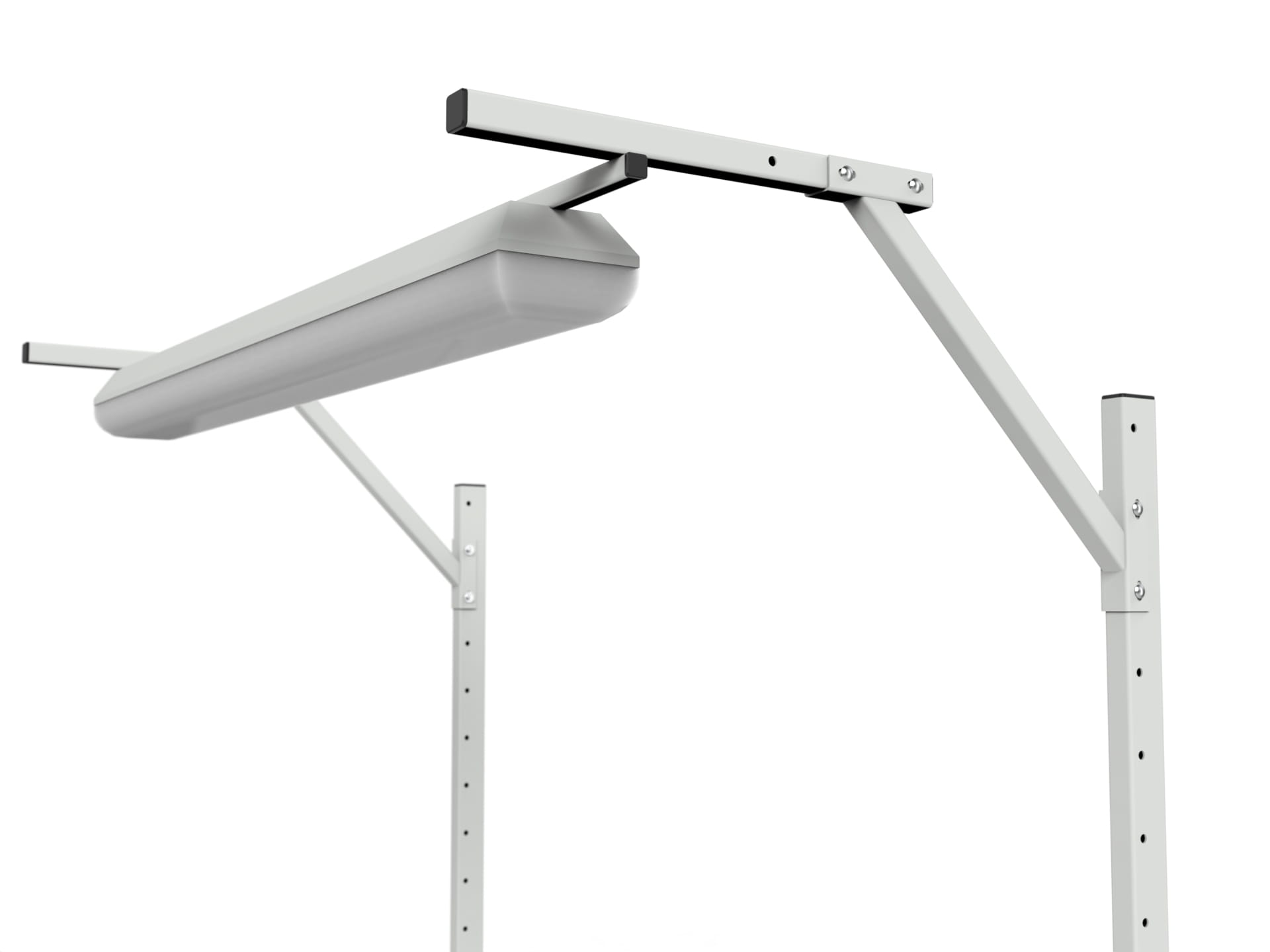

3) Central LED 30W lighting. Polycarbonate, dustproof and hardbreaking difuser on steel construction.

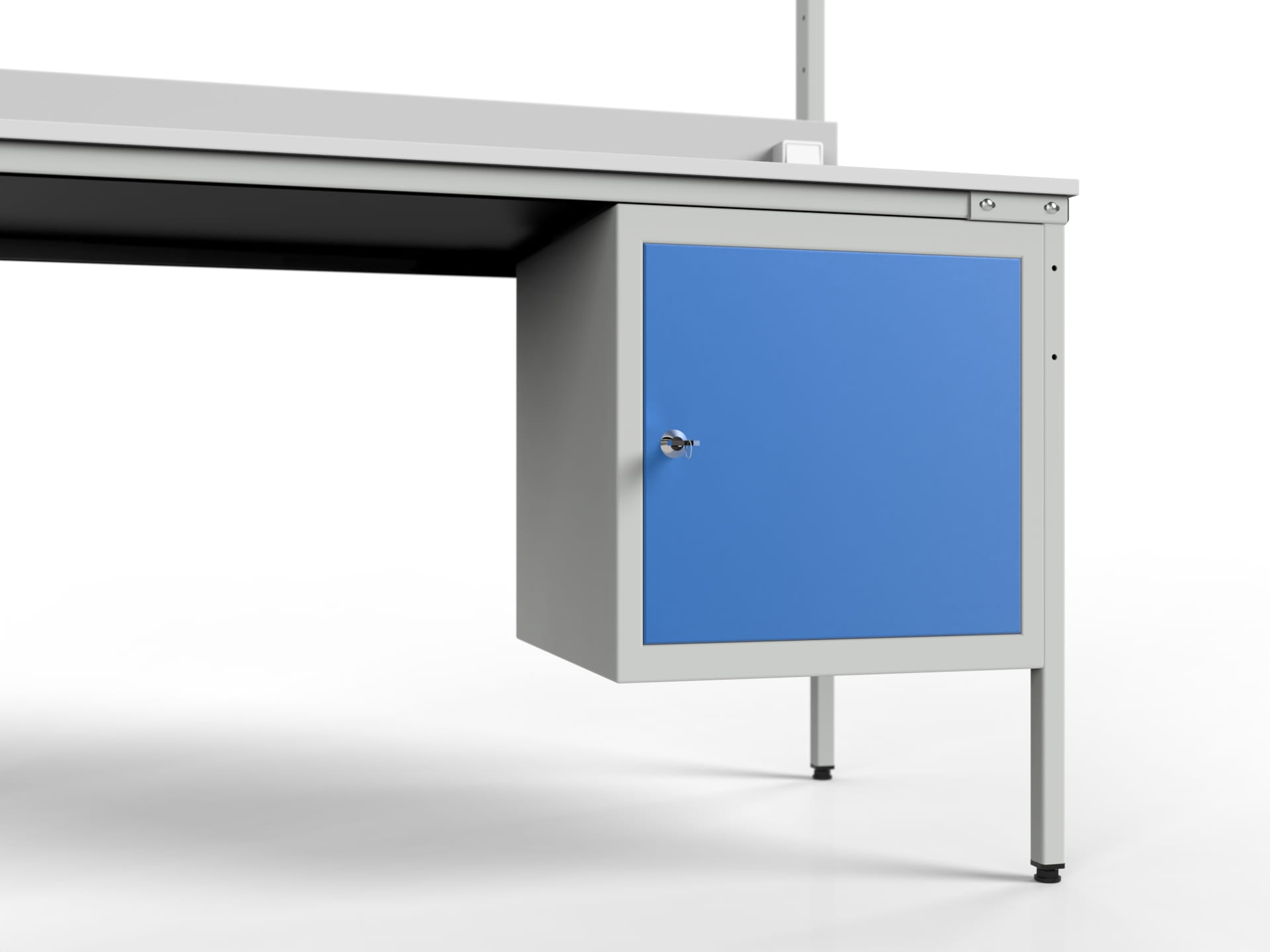

4) Cabinet with dimensions 500x500x500 mm with a shelf inside, closed with a lock. Cabinet powder coated in light grey colour RAL7035. Can be placed on the left or right side of the workbench,

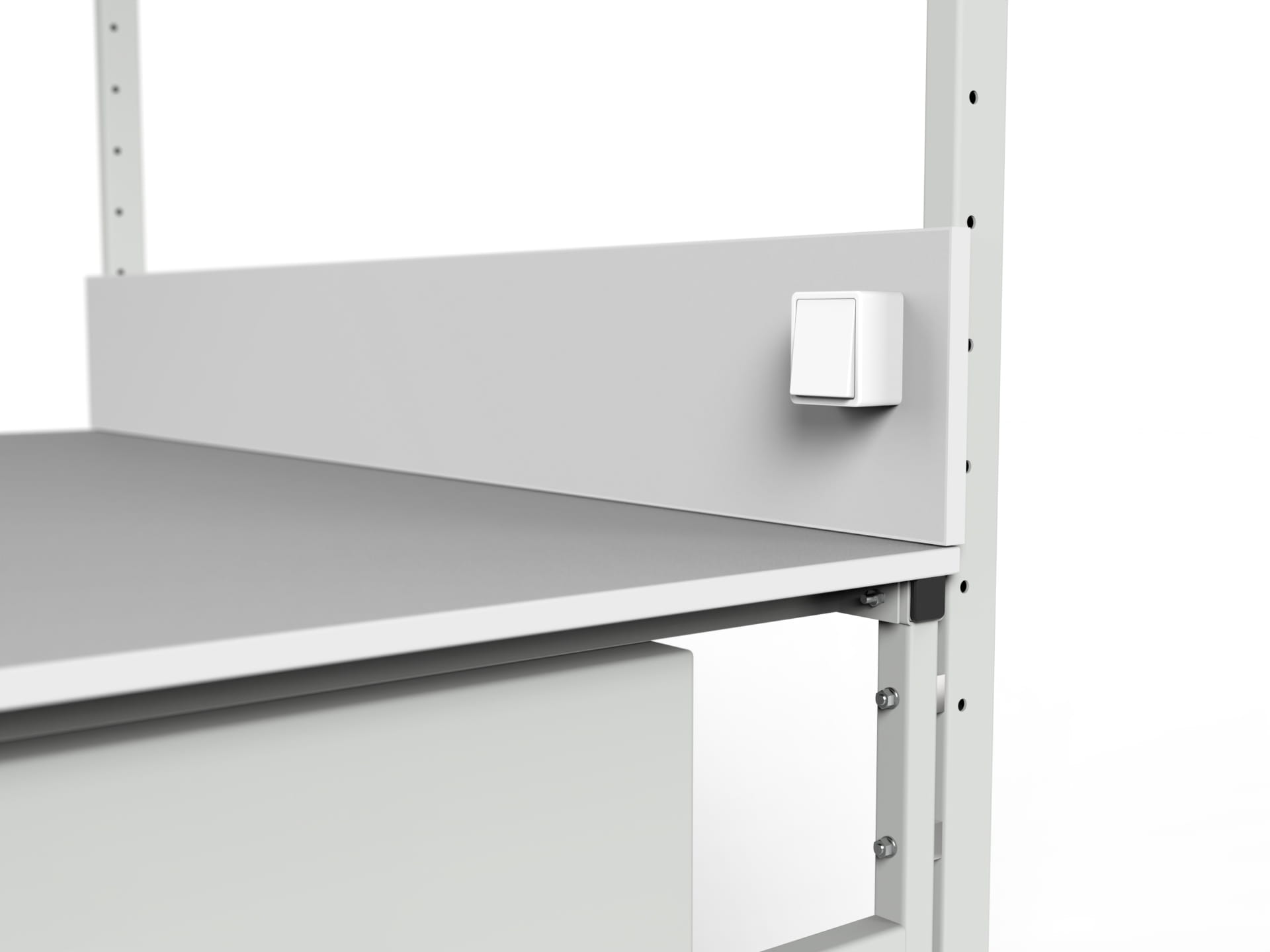

5) Rear wall (200 mm high) with adjustable height,
6) Leveling feet with adjustment range 30 mm,
7) Can be expanded into the workbench with lighting and shelf.
ADDITIONAL EQUIPMENT
We want our products to be as modular as possible. Hence the possibility of chosing a wide range of additional equipment for the workbenches. If the table model does not have an element that you need (e.g. additional shelf), we are able to include your needs in the project. In case of any doubts, we encourage you to contact our sales department. Below is a list of an exemplary additional equipment.
1. ACAR power strips with surge suppressor on five sockets.
2. ZPAS aluminium power strips.
3. Computer shelf 300 mm wide.
4. Keyboard drawer 300x700 mm.
5. Central LED lighting
6. Balancer holder.
7. Monitor holder.
WIDE CHOICE OF SIZES (personalised sizes available on request)
| Model | Length | Width | Height | Top thickness |
| SMCK-0712 | 1200 | 700 | 800 | 18 |
| SMCK-0715 | 1500 | 700 | 800 | 18 |
| SMCK-0718 | 1800 | 700 | 800 | 25 |
| SMCK-0912 | 1200 | 900 | 800 | 25 |
| SMCK-0915 | 1500 | 900 | 800 | 25 |
| SMCK-0918 | 1800 | 900 | 800 | 25 |
