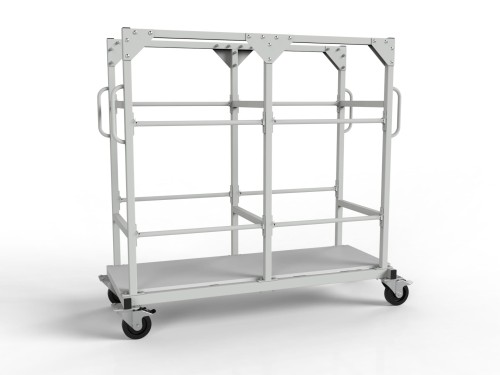

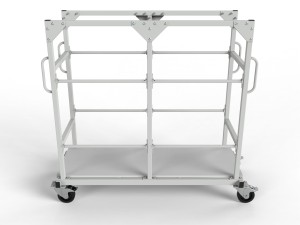

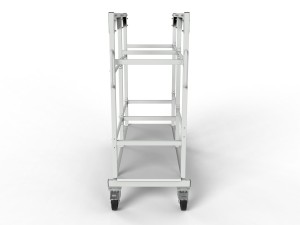

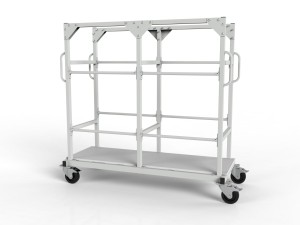

Cable reel trolley WE-0717-08826 with 600 kg load capacity
0
Description
Cable reel trolley WE-0717-08826
WE-0717-08826 is a specialised piece of equipment designed to carry cable drums in industrial environments. Each of the eight swivel rollers (made from 3/4-inch tube) has a maximum load capacity of 65 kg. This allows for the simultaneous transport of large quantities of cable materials, and the lower shelf with a load capacity of 50 kg further increases the capacity and ergonomics of the trolley, allowing for the movement of additional materials or tools. This trolley is ideal for use in conjunction with prefabrication racks for electrical panels and switch cabinets.
Important characteristics of the WE-0717-08826 cable trolley
- ergonomic dimensions of 1678x1810x725 mm - height x width x depth (dimensions do not include swivel castors)

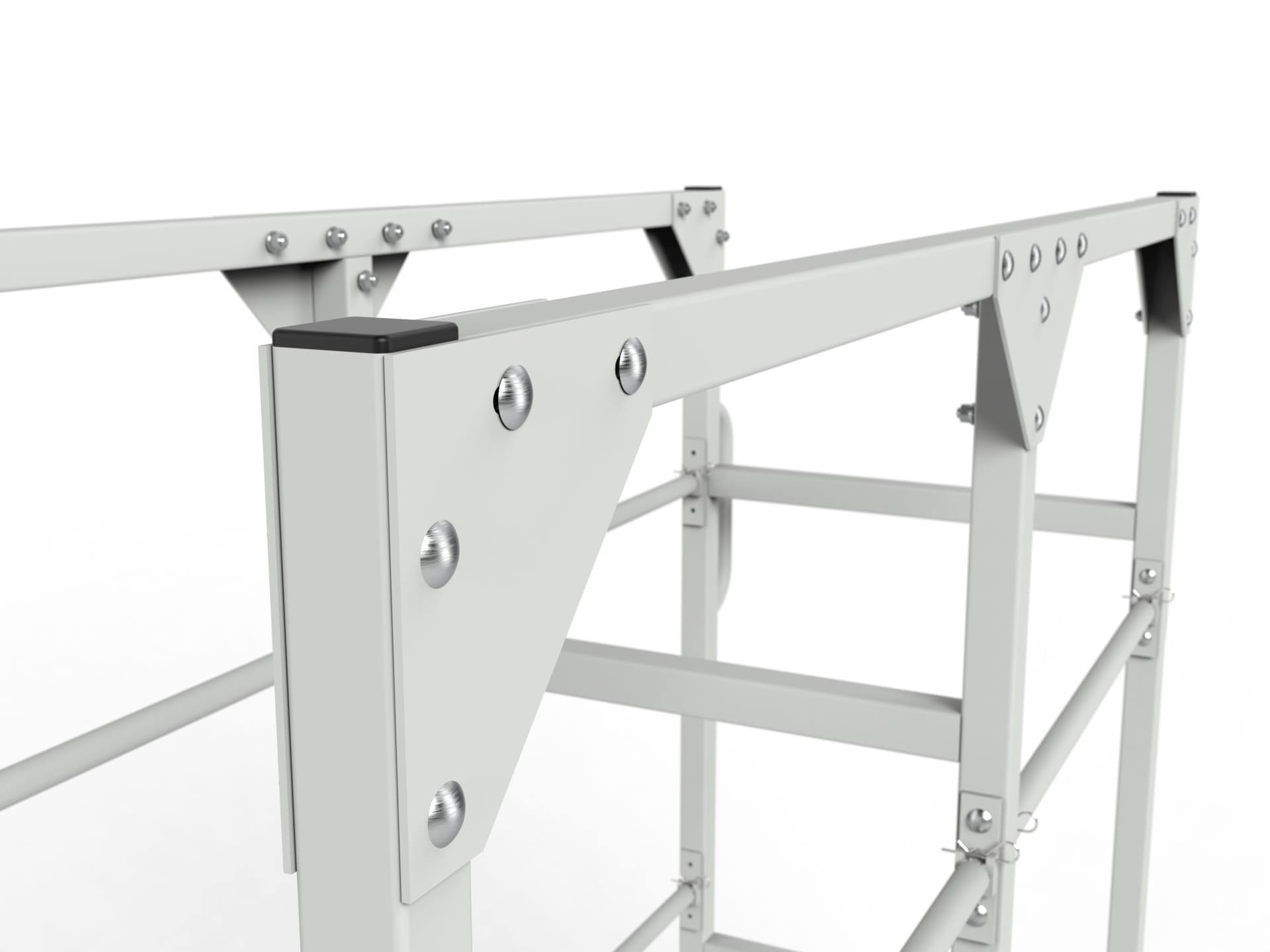

- sturdy frame made of profiles: 60x40 mm (base) and 40x40 mm (superstructure)
- total load capacity 600 kg when uniformly distributed

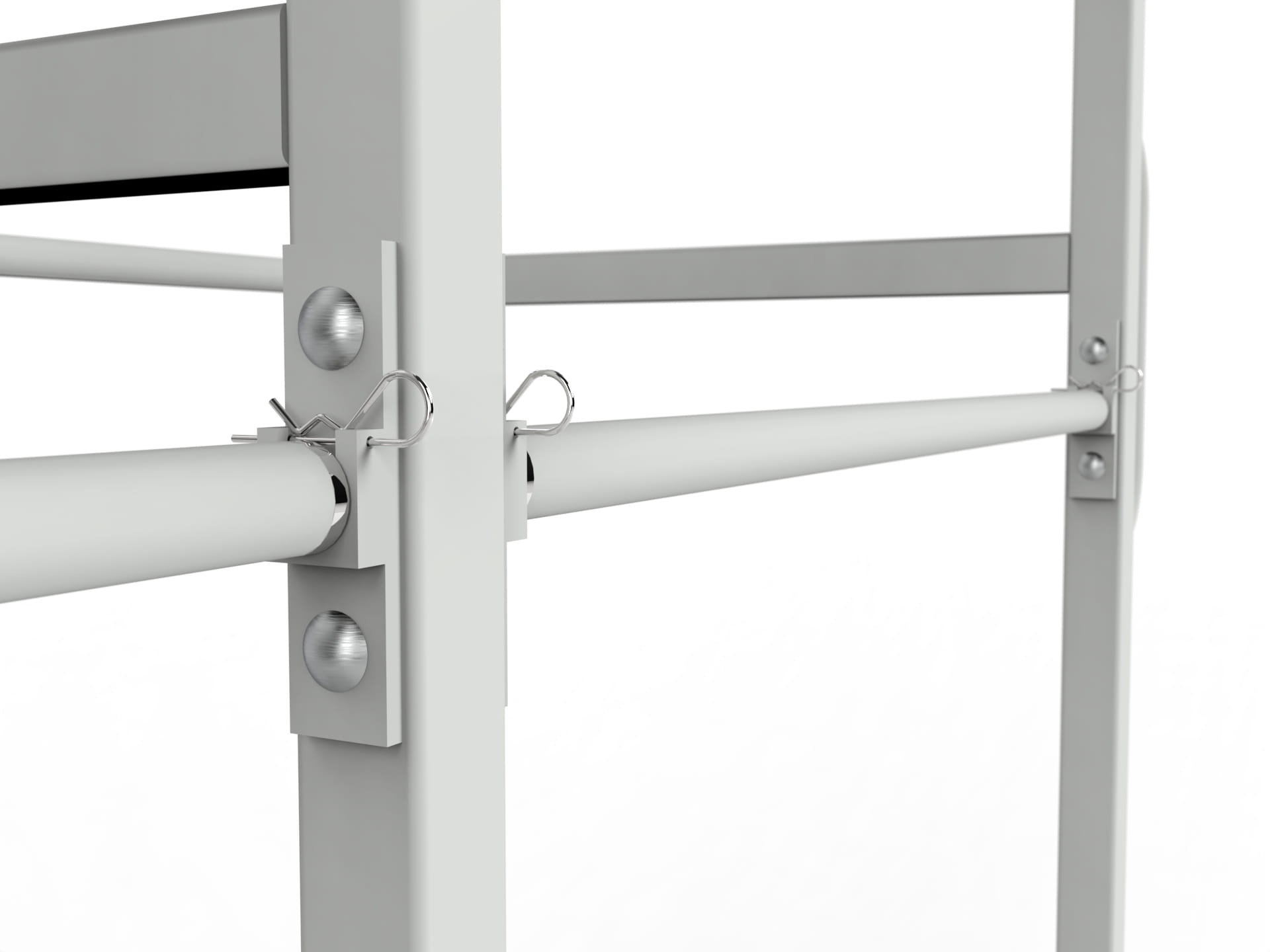

- eight rollers made of 3/4 inch tube, suitable for drums up to 500 mm in diameter and length, load capacity per roller up to 65 kg
- powder-coated in light grey RAL 7035

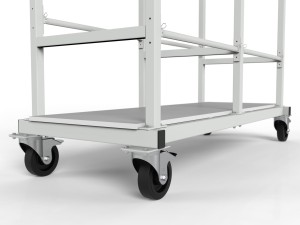

- four 160 mm diameter swivel castors with brakes
- melamine board shelf on base, load capacity 50 kg evenly distributed
Ergonomics and efficiency from Jabama
Cable and wire trolleys are only part of our range for prefabrication and assembly of switchgear and electrical panels offered in our store. You will also find assembly tables (including ESD versions), specialised racks and other trolleys. With a wide range of products, you can make a comprehensive purchase that takes into account many different needs, and if you don't find the perfect piece of furniture for you, you can also contact our expert team to design a custom model.
