Door trolley WD-2
5
Description

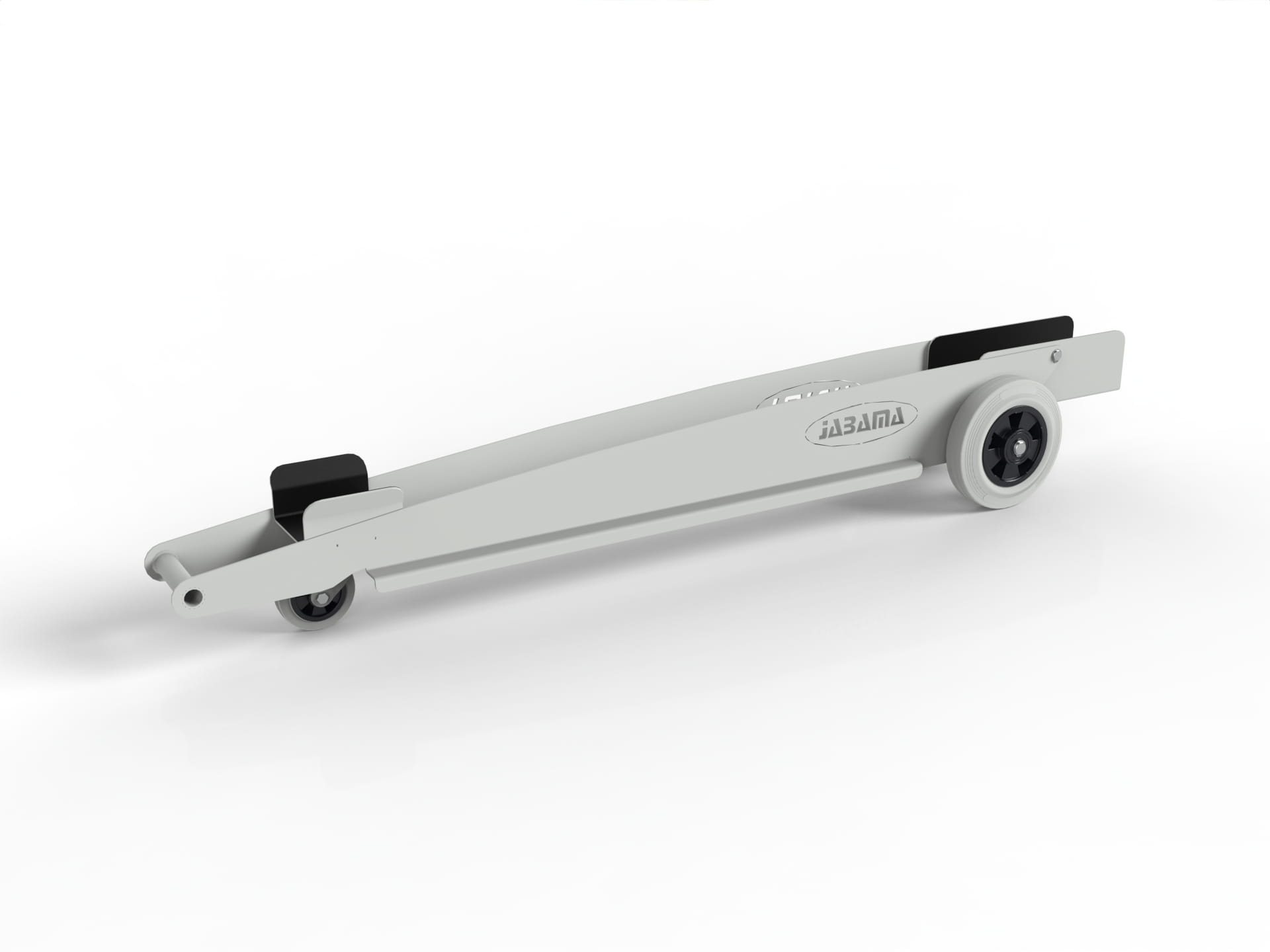

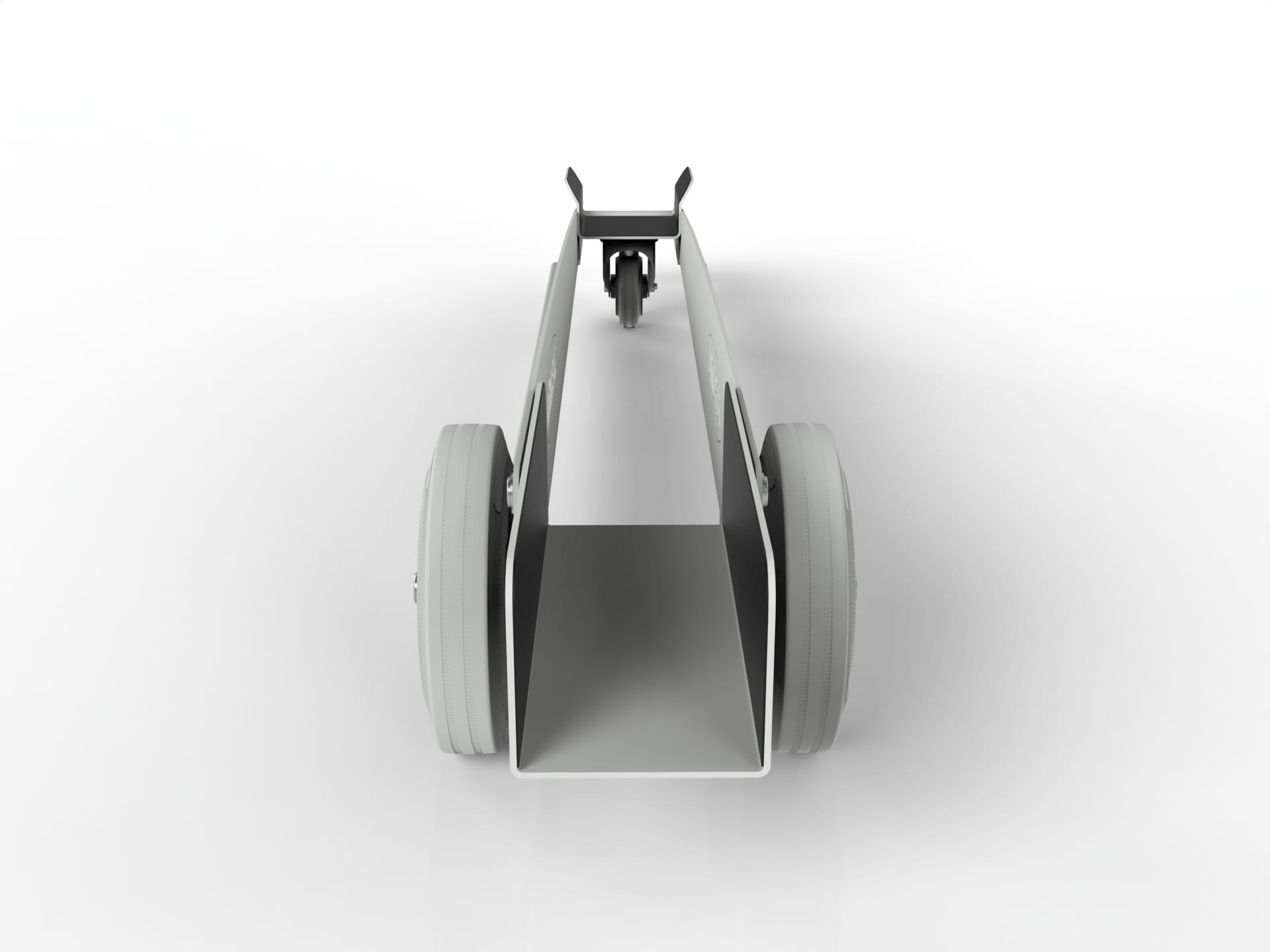

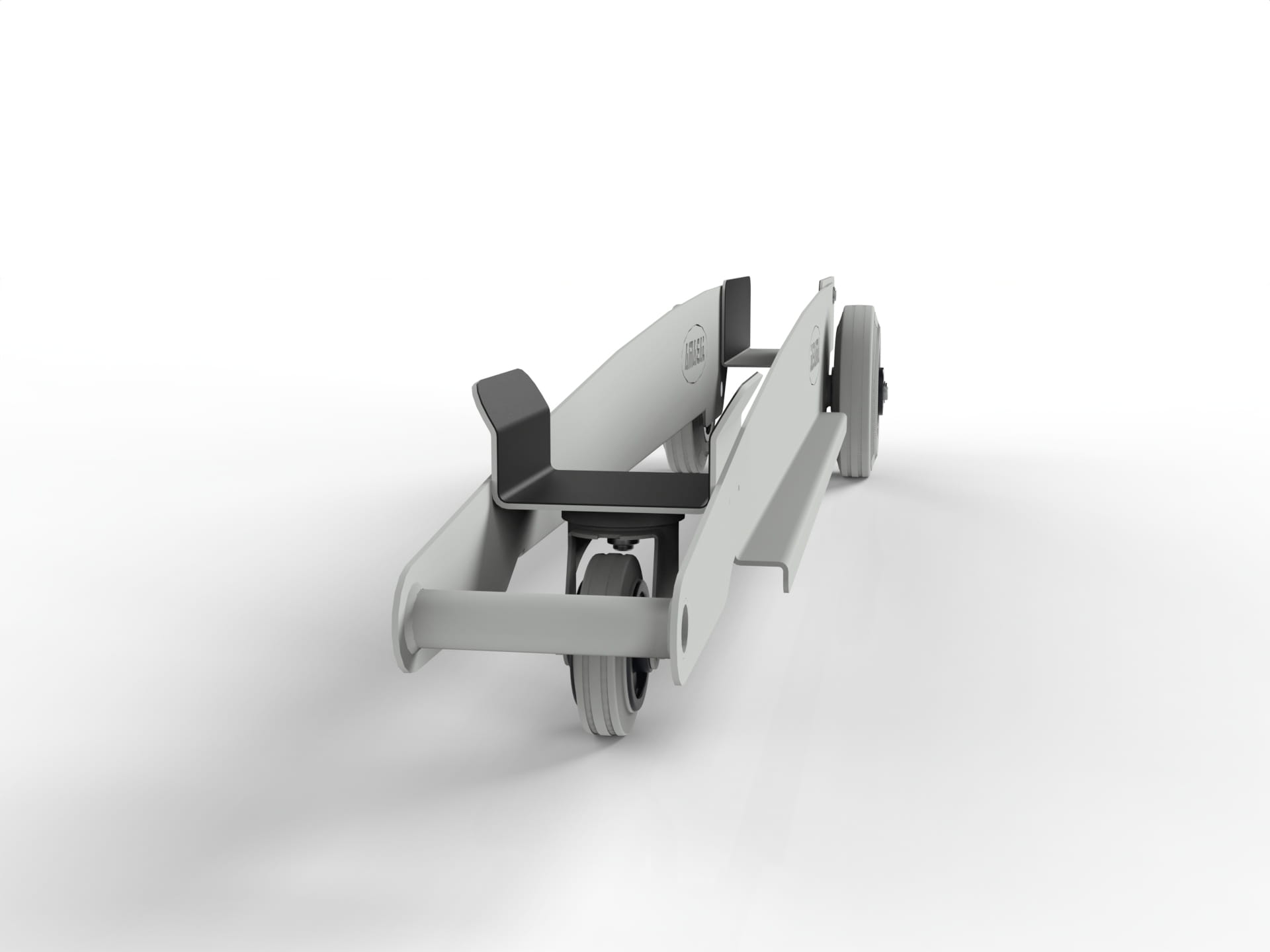

Door trolley WD-2

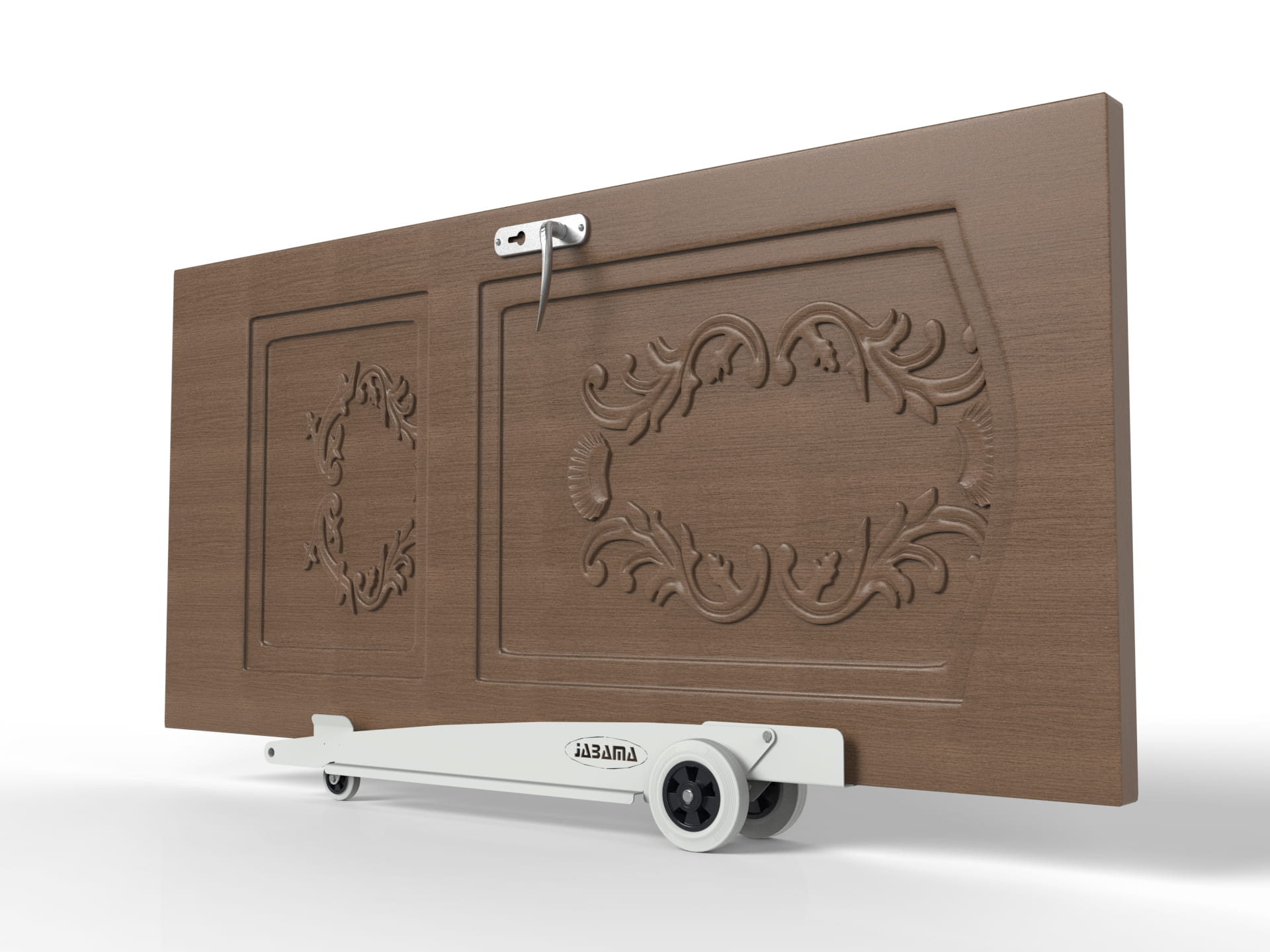

The WD-2 has been designed for easy and comfortable transport and fixing of doors even by a single person, but it will also be suitable for carrying items of similar dimensions - sheet metal, plywood (e.g. countertops) or wood. The two supports on which the items placed in the trolley rest are partially covered with rubber to prevent scratching. Mobility is ensured by three wheels, two with a diameter of 200 mm at the front and one with a diameter of 100 mm at the rear. The trolley itself can be folded for convenient horizontal transport and then set up vertically in readiness for installation or storage. The steel construction provides a load capacity of 150 kg when evenly distributed.
Characteristics of the WD-2 door trolley
- overall dimensions (in horizontal position): 1500x268x228 mm (length x width x height)
- heavy-duty sheet steel construction powder-coated in light grey RAL7035
- two supports rubber-coated on the inside (front one with coated side walls only), clearance: 105 mm, length of front support: 300 mm, rear: 125 mm, distance between supports: 910 mm

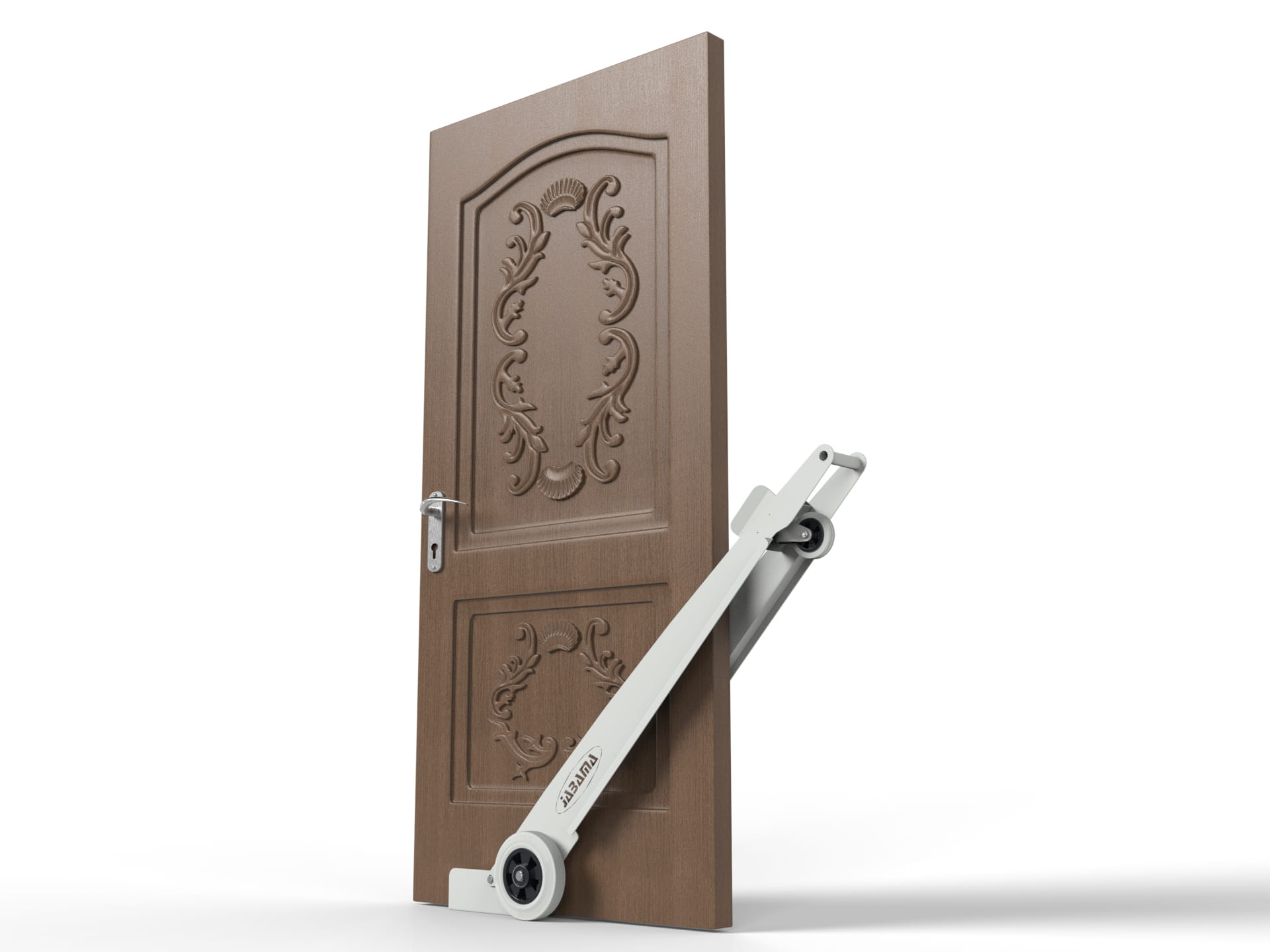

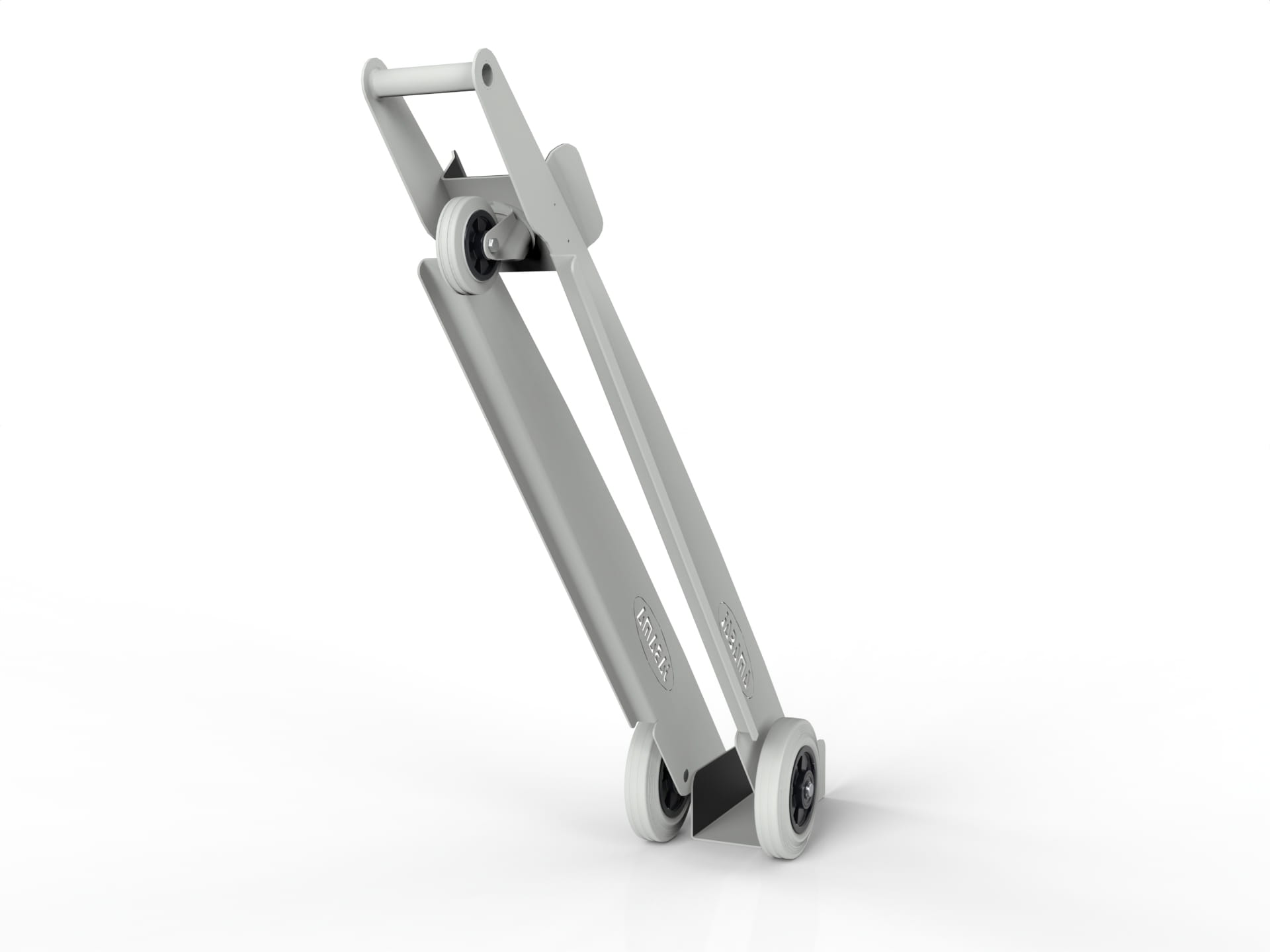

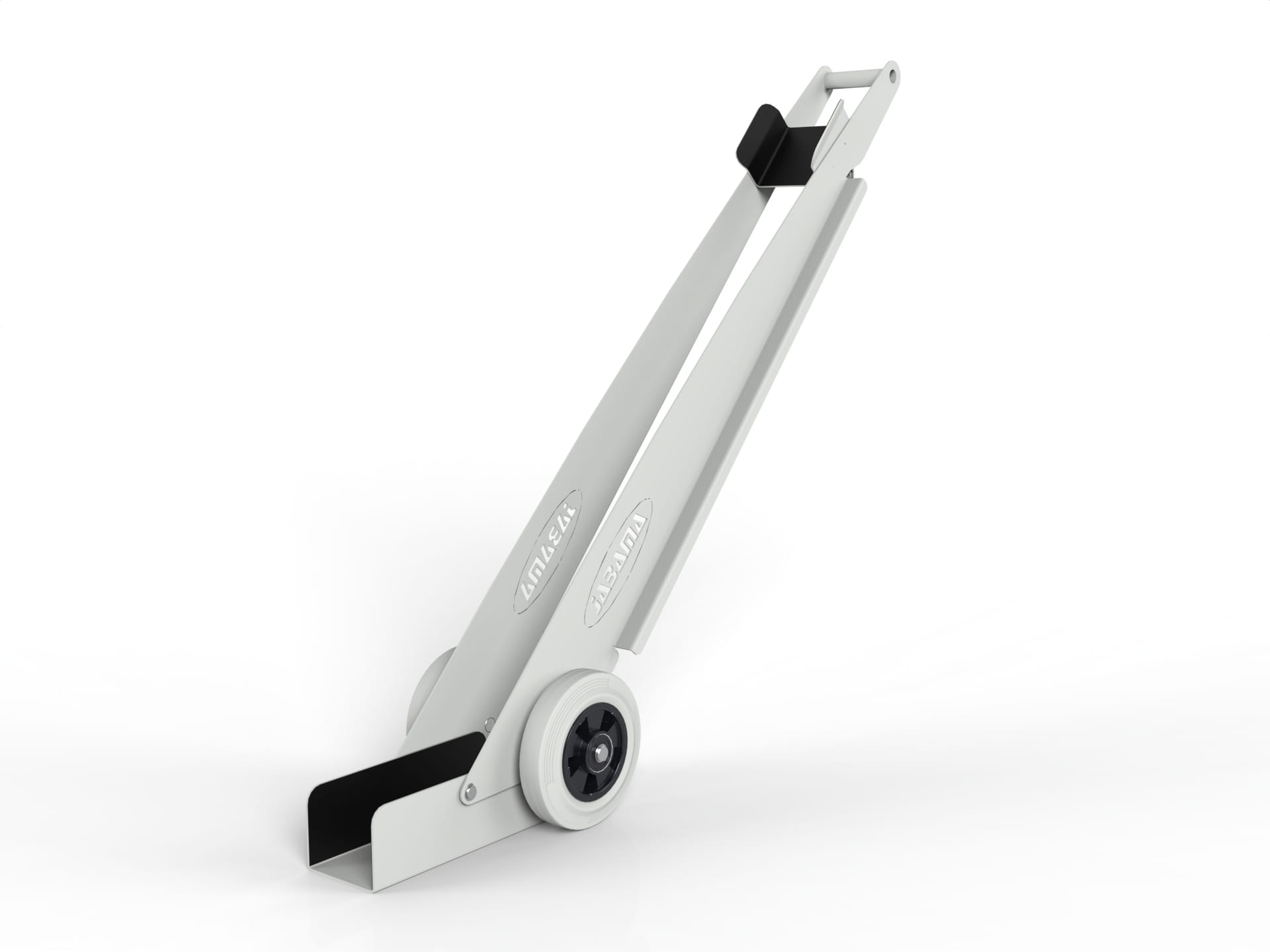

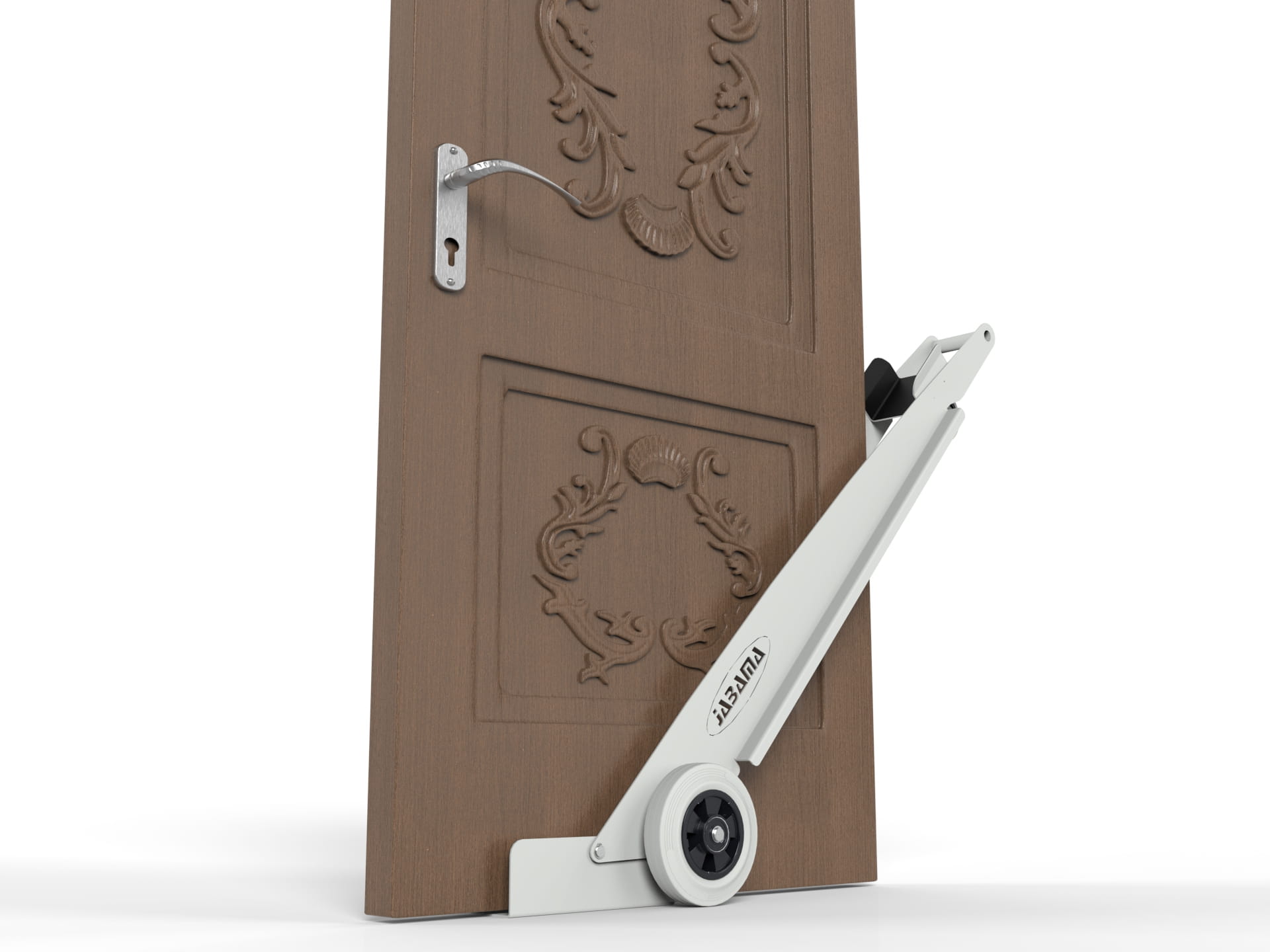

- can be used horizontally and vertically, quick folding
- three wheels: two fixed with a diameter of 200 mm and one swivel with a diameter of 100 mm
- load capacity up to 150 kg
Reliability and mobility - trolleys from Jabama
Every trolley model manufactured by Jabama is a guarantee of stability, excellent workmanship and ergonomics. This is made possible by the use of high-quality materials, meticulous design and a rigorous production process - so our products are reliable and can last for years. All trolleys are suitable for use in industry, logistics and workshop environments They are also the perfect complement to packing tables, workbenches or metal shelving.
