ESD antistatic mat 1200x600 mm with wrist strap and grounding cords
Availability:
average amount
Dispatched within:
5 days
Description

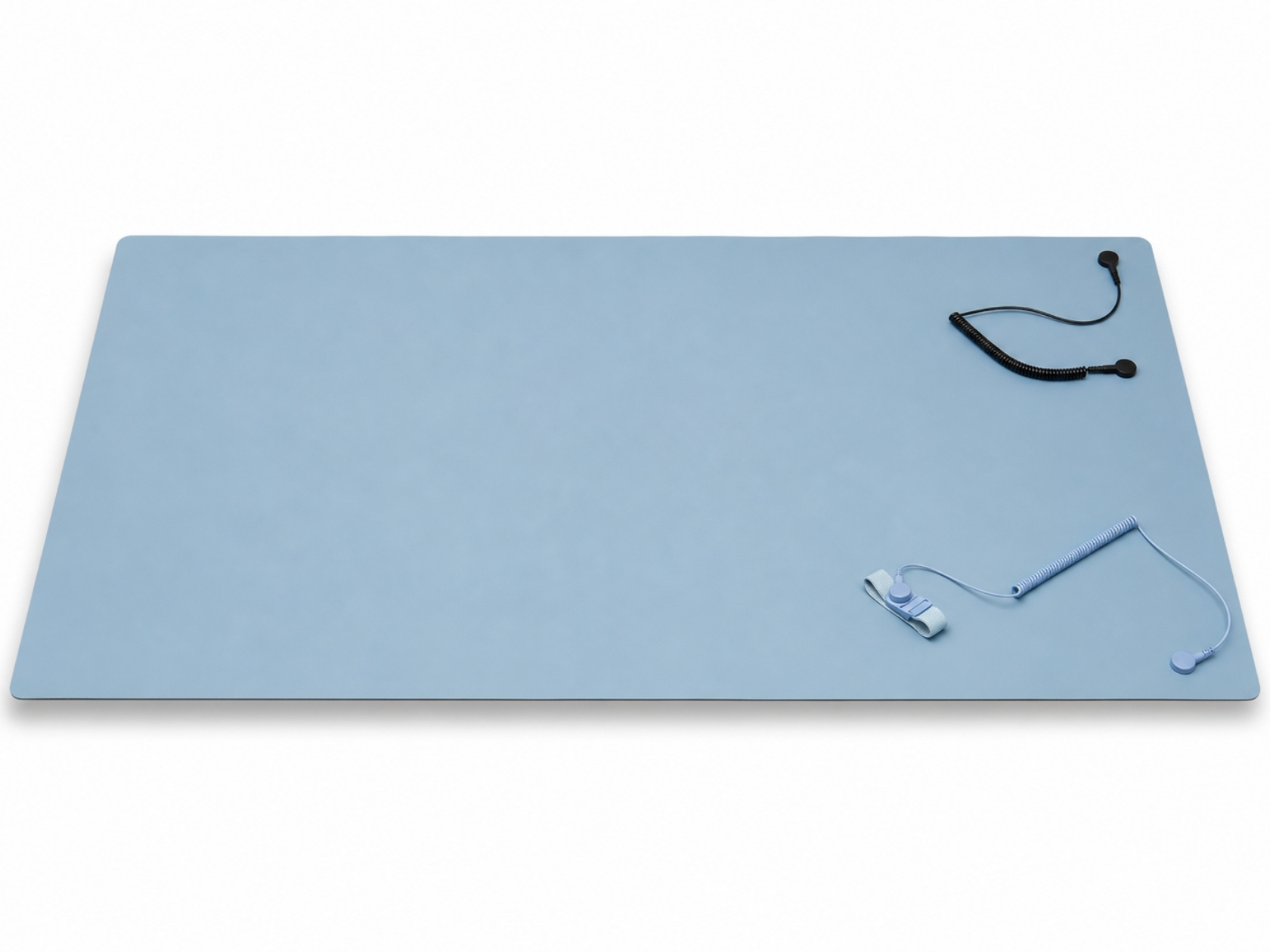

ESD antistatic mat 1200x600x2 mm – complete set with wrist strap and grounding cords.
SafeGuard ESD 1200x600 is a high-quality antistatic ESD mat in light blue with dimensions 1200x600x2 mm.
SafeGuard ESD mats are heat resistant and have an anti-reflective surface. In addition, the ESD mats are equipped with two 10 mm male snap fasteners, and the mat also has rounded corners.
Characteristics of the ESD mat 1200x600x2 mm
- Resistance to chemical agents and oil
- Permanently elastic product, resistant to abrasion and comfortable to use.
- High quality: material 100% free from PVC and phthalates
- Anti-reflective surface makes work easier
- Double-layer ESD table covering (dissipative/conductive)
- Leakage resistance from 10⁶ to 10⁹ ohms
- Resistance to high temperature and soldering tin
Contents of the set:
- antistatic mat
- wrist strap with 4 mm male snap
- coiled cord with 4 mm and 10 mm female snaps
- grounding cord with 10 mm female snap and Ø5.3 mm ring terminal
Technical data
| Model | SafeGuard ESD 1200x600 WL34499 |
| Dimensions (length x width x thickness) | 1200x600x2 mm |
| Colour | Light blue |
| Connection | 2x 10 mm male snap fasteners |
| Typical resistance | 10^6 - 10^9 ohm |
| Type | Table mat |
| Manufacturer | SAFEGUARD |
