ESD rack with six shelves
Availability:
average amount
Dispatched within:
4 weeks
Rating:
5
5
Vendor:
Product code:
330 WK236_23
Description

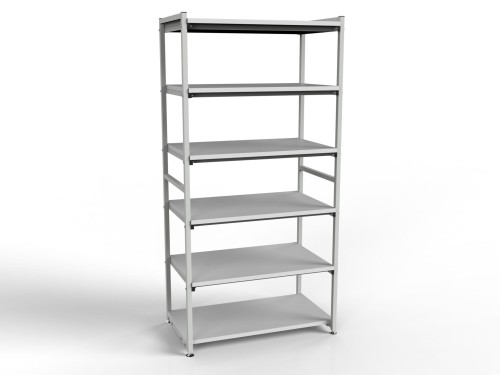

ESD shelving unit with six shelves RAESD-0610SPEC-02767
Universal shelf made in ESD version intended for, among others, electronics industry. All used elements provide protection against electrostatic discharge. The shelf is made of metal frame covered with conductive ESD paint, shelves made of high quality ESD board with thickness of 25mm. Possibility of making the shelf in other sizes. In order to find the right model, please contact our experienced technical and sales consultants.
Characteristics of ESD rack with 6 shelves RAESD-0610SPEC-02767
- Shelf unit with 6 shelves 935x596 mm, shelves made of conductive P2 ESA ESD (IEC 61340-5-1) melamine coated chipboard in RAL 7035 (light grey), 25 mm thick with 2 mm PVC/ABS edge banding
- Shelves supported on a steel frame, the clearance between the bottom shelf structure and the ground is 30 mm and the clearance between the shelves (measured from the shelf top to the shelf support above it) is 325 mm
- All metal parts of the shelving unit powder-coated with ESD conductive paint in RAL 7035
- Rack has metal levelling feet with plus 30 mm adjustment range
- Rack with 1.8 m earthing cable and 1 Ohm resistor protection
- Load capacity of the 3 lower shelves is 45 kg per shelf, evenly distributed, load capacity of the 3 upper shelves is 30 kg per shelf, evenly distributed
