Electric actuator Jabama JS02-40030, 3000 N, 24 V, 400 mm

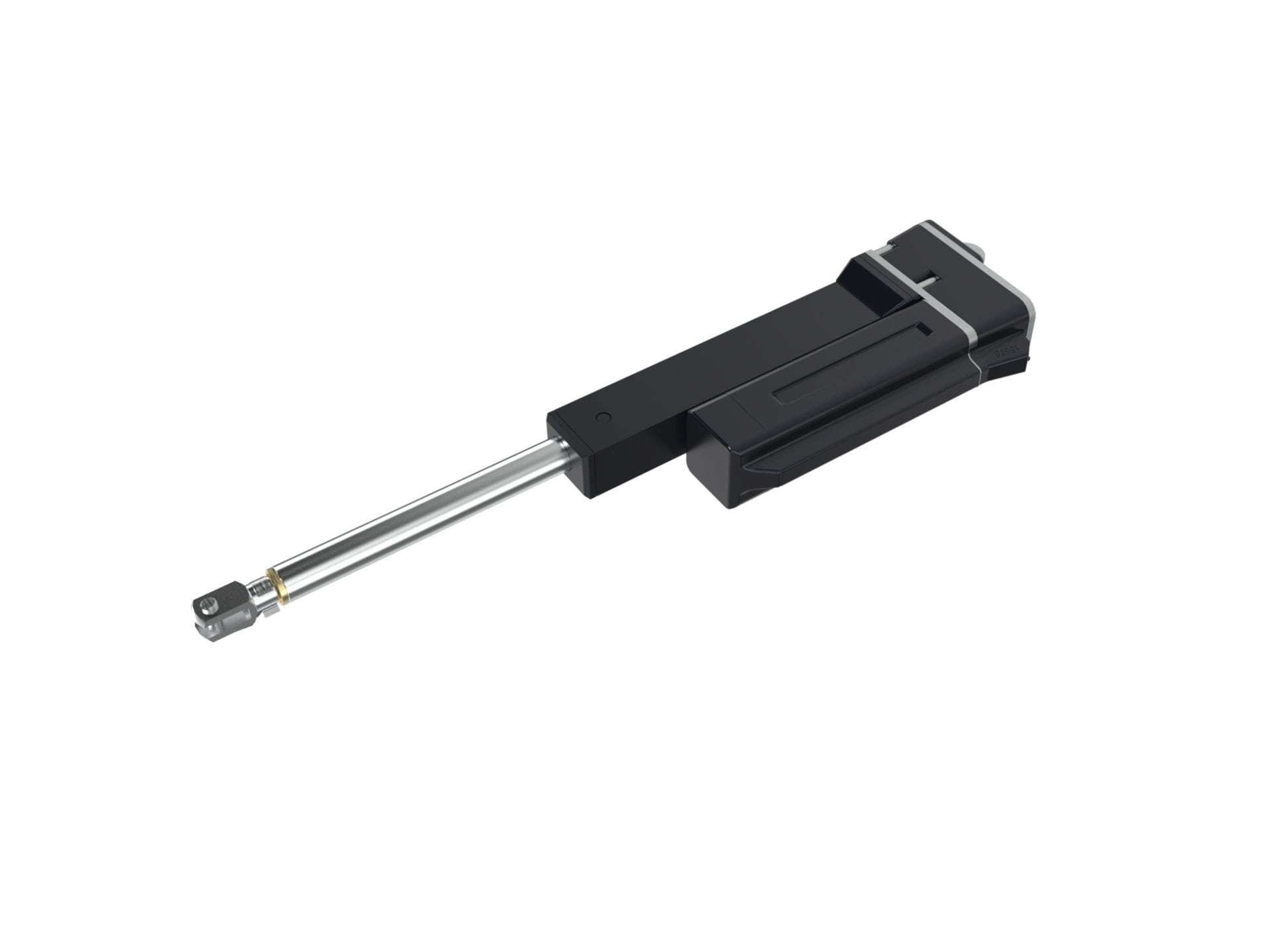

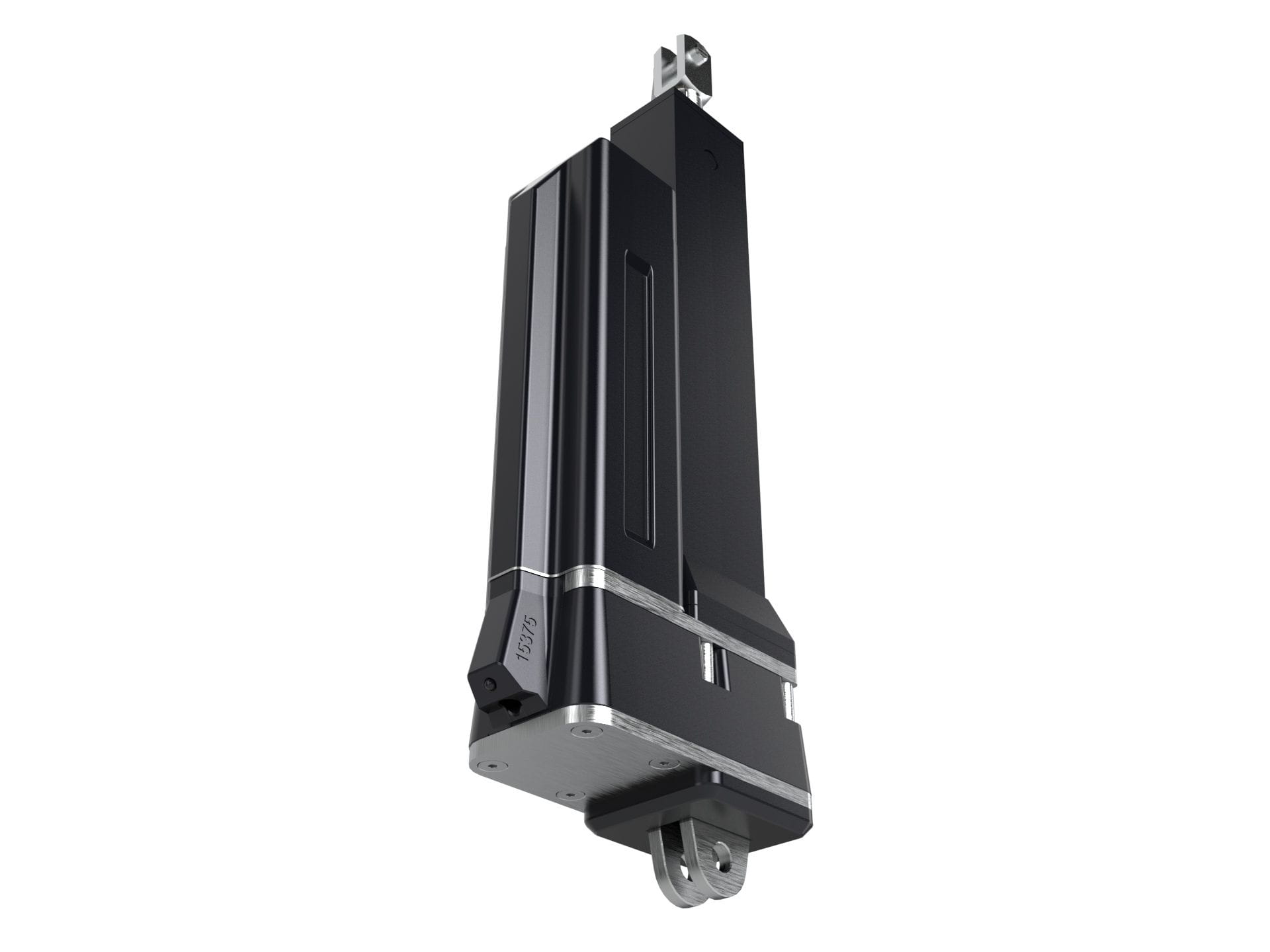

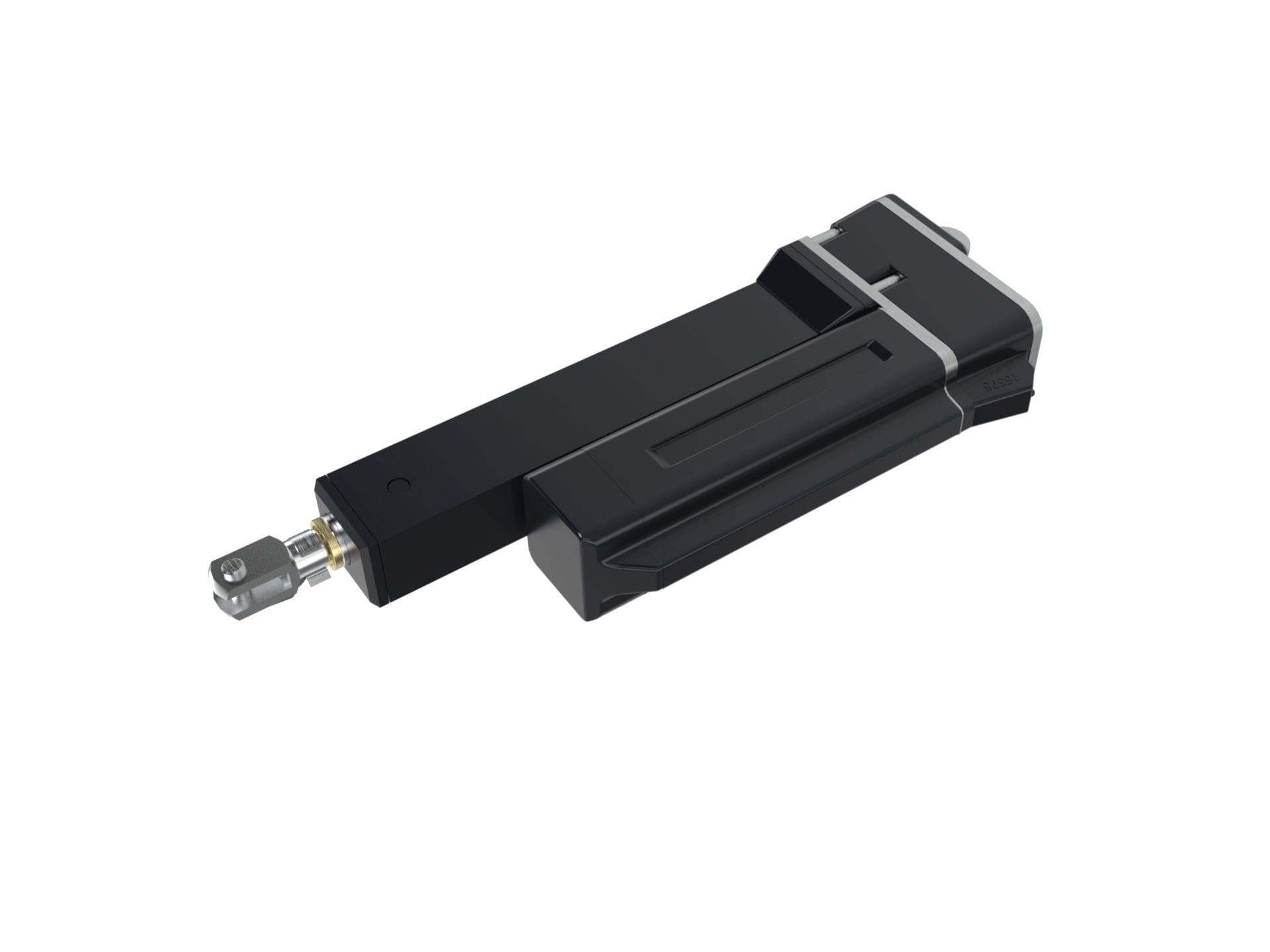

Electric Actuator Jabama JS02-40030

The JS02-40030 linear actuator is a durable actuator suitable for versatile use in both industrial applications and home automation. It was designed and manufactured by Jabama Polska, a Polish manufacturer of industrial equipment, based on many years of practical application experience. This allowed us to create a reliable solution built on a solid construction. The actuator has a maximum load capacity of 300 kg (3000 N). It is equipped with a trapezoidal screw, which in the JS02-40030 version provides 400 mm of stroke at a speed of 6 mm/s.

Technical specifications of the actuator

• Manufacturer: JABAMA
• Supply voltage: 24 V
• Maximum pulling force: 3000 N
• Maximum pushing force: 3000 N
• Duty cycle: 20%
• Maximum no-load speed: 6.0 mm/s
• Operating temperature range: from 5°C to 40°C
• No-load current: 0.7 A
• Current at nominal load: 3.5 A
• Gear ratio: 20.5:1
• Stroke: 400 mm
• Protection class: IP54
• Spindle type: trapezoidal screw
• Protection features: limit switches
• Application: for indoor use only
• Hall sensor: yes
• Material: aluminium housing and rod, ABS gearbox housing
• Weight: 4.5 kg
• Length: 1002 mm (extended); 602 mm (retracted)

Applications of JS02-40030 Electric Actuators

The JS09-40030 actuator has been designed for versatile use in industrial applications and home automation in indoor environments, for example:

• as a component for precise motion control in machinery and industrial automation systems, such as production and packaging lines,
• in industrial robotics for controlling arms or manipulators,
• for opening and closing windows, skylights, doors, flaps, and hatches,
• for controlling roller shutters,
• for opening and closing valves and dampers,
• as part of lifting mechanisms for heavy components in production lines and warehouses,
• as a component for smooth position/height adjustment in chairs and seats,
• as a component for smooth position adjustment (height and tilt) in medical furniture, such as hospital beds, dental chairs, and treatment tables.

Actuators designed and manufactured in Poland

The JS02-40030 actuator is a Polish-made product manufactured by Jabama. Every stage of its development was carried out by our team — from the initial concept, through design and the first tested prototypes, to the refined final product available for sale. We conducted numerous tests, including under extreme operating conditions, to ensure reliable performance.

As an established manufacturer of industrial solutions, we developed this linear actuator based on many years of experience using such systems in industrial applications, including the production of worktables and automation assembly stations, where they are used for height and tilt adjustment of structural elements. We decided to introduce our own solution to the market - one that combines high quality with precise operation and offers versatile application possibilities. Our actuators are available in many versions with different specifications, allowing them to be matched to specific tasks.

Choose the right variant: match the actuator stroke to your needs.

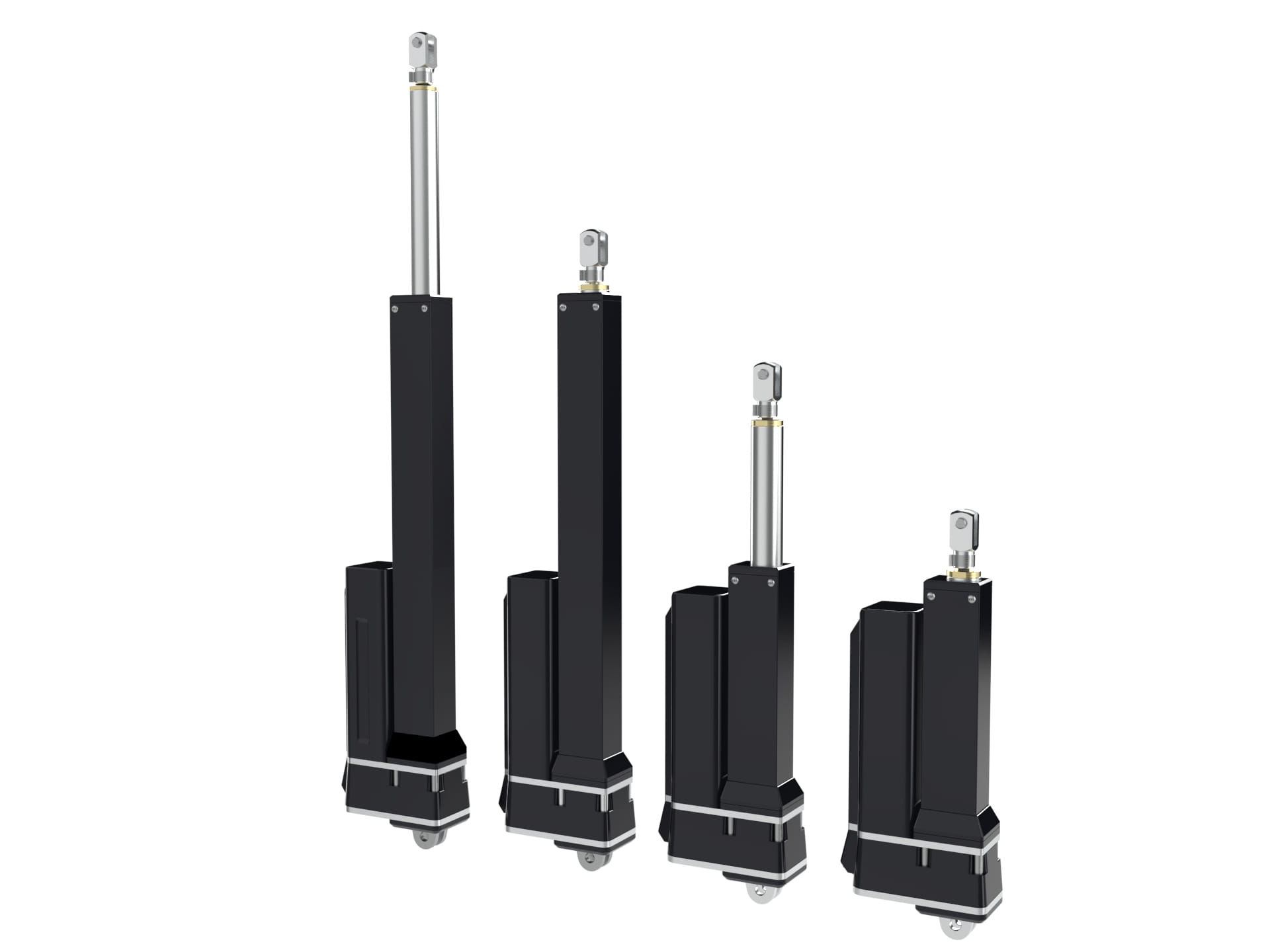

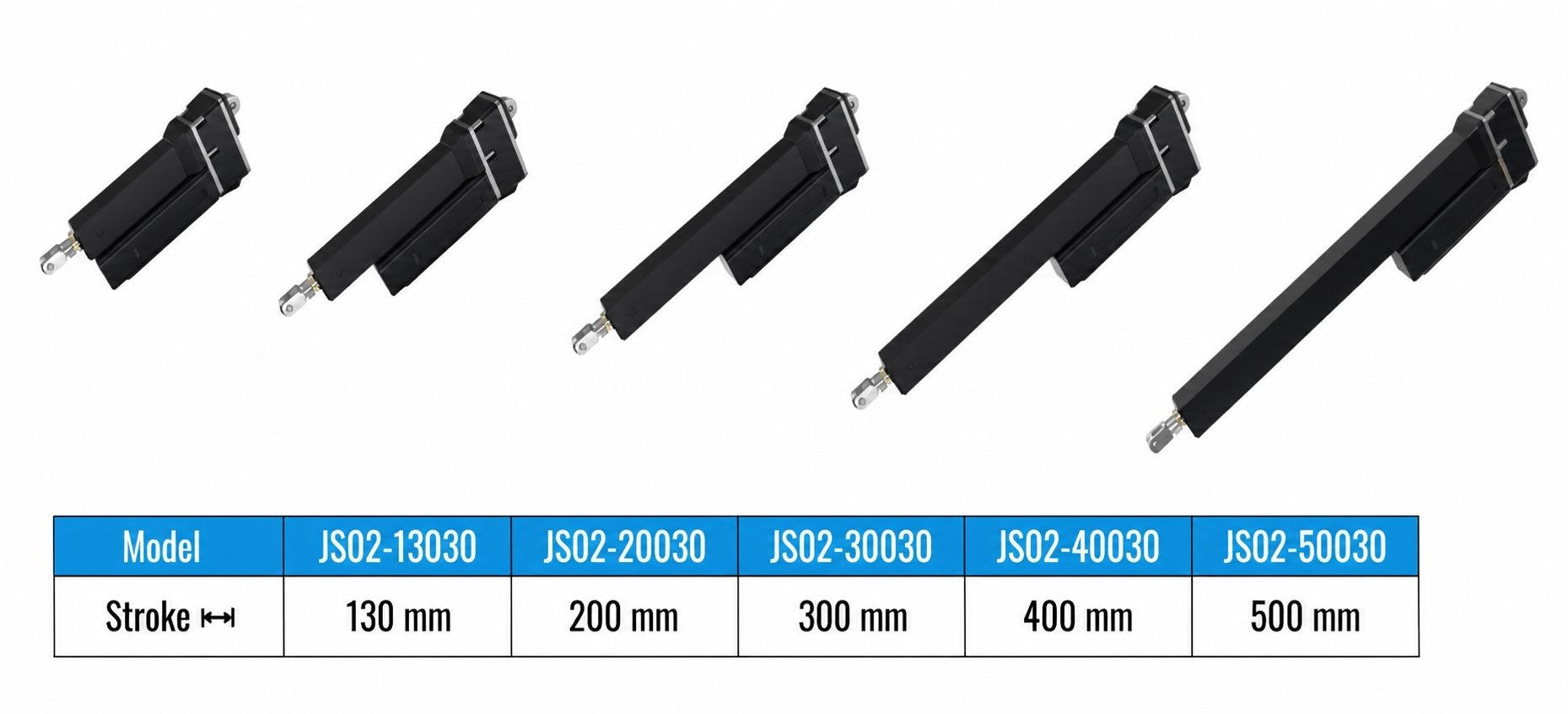

The JS02 series actuators manufactured by Jabama are available in several versions, which differ in actuator stroke:

• JS02-13030 (130 mm stroke)
• JS02-20030 (200 mm stroke)
• JS02-30030 (300 mm stroke)
• JS02-40030 (400 mm stroke)
• JS02-50030 (500 mm stroke)

At the same time, as a manufacturer, we can design and produce a series of actuators with parameters such as load capacity, stroke, and speed adapted to specific needs and applications. In the future, we also plan to introduce other types of actuators, which will make our offer more diverse.
