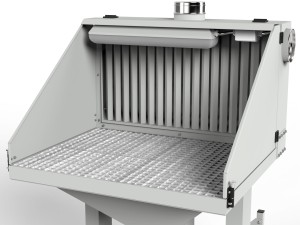

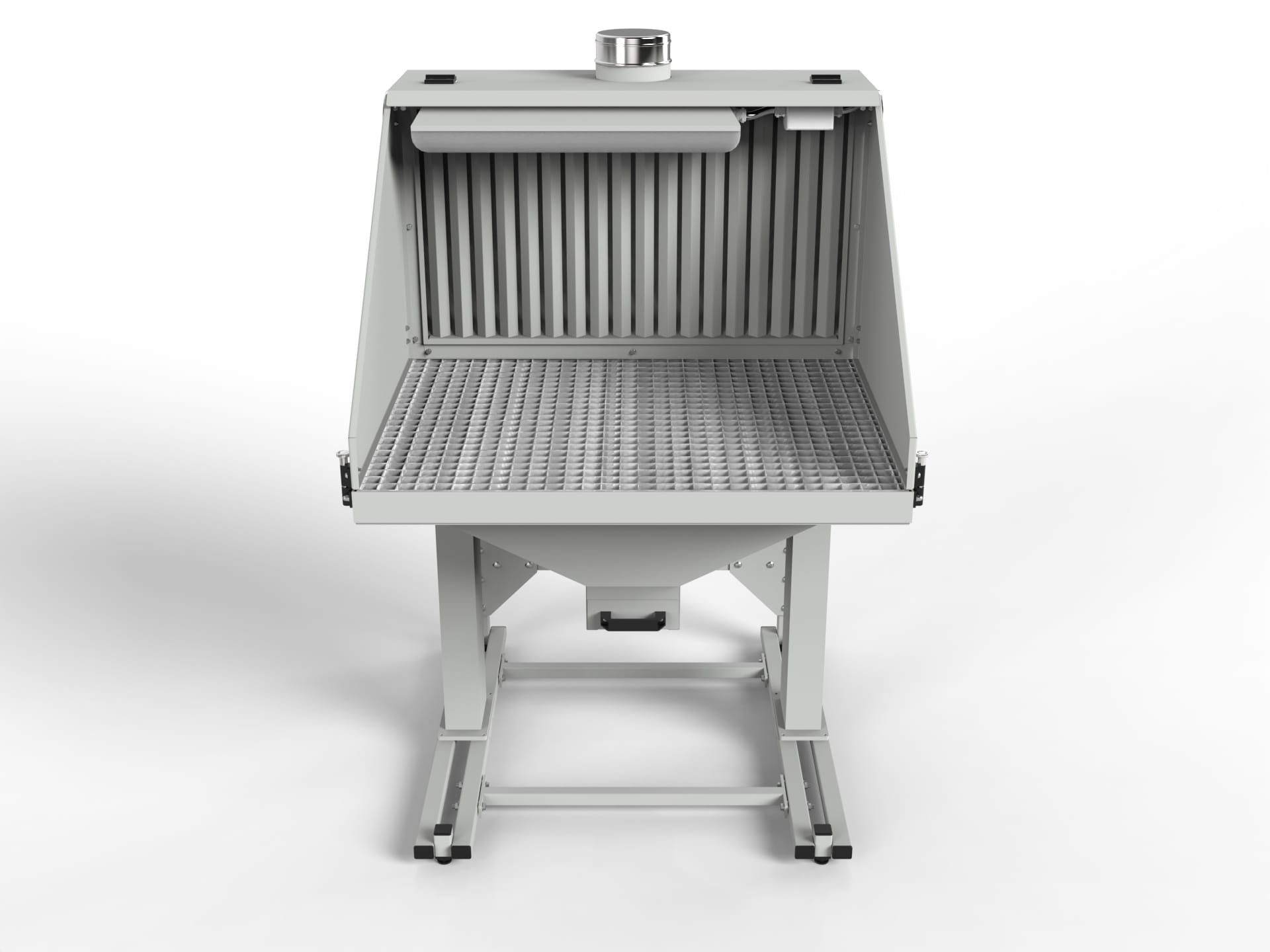

Grinding table 1000 mm, with fixed height

Grinding table 1000 mm with fixed height

The grinding table with electric height adjustment of the worktop is a complete novelty on the market. It is designed for grinding and cutting metal elements, and, after adding an additional top made of perforated plywood, for grinding wooden elements. The height adjustment of these grinding tables is achieved by means of two electric columns, protected with special folding covers that prevent dust from getting inside. The grinding table has a worktop made of a steel, galvanized lattice and, for an additional fee, a layer of perforated plywood. Dust extraction takes place from the chute under the worktop and (if they are present) from the rear extraction walls. The chute is equipped with a drawer for dust and filings. The table needs to be connected via piping to an extraction and filtering unit or to a large filter and ventilation unit in multi-station extraction systems. The presented grinding table requires connection in two places (1x lower chute + 1x extraction wall). The load capacity of the table top is 200 kg if evenly distributed.

Features of the grinding table 1000 mm with fixed height

• Height of the worktop is 850 mm
• Large extraction area: dust extraction from the bottom and from the rear extraction walls.
• Work surface with total dimensions of 1000x985 mm, depth of the extraction walls on the tabletop is 220 mm
• The tabletop is formed by two grilles: the larger grille can be removed without removing the tabletop extraction walls
• Additional top made of perforated plywood for an extra charge

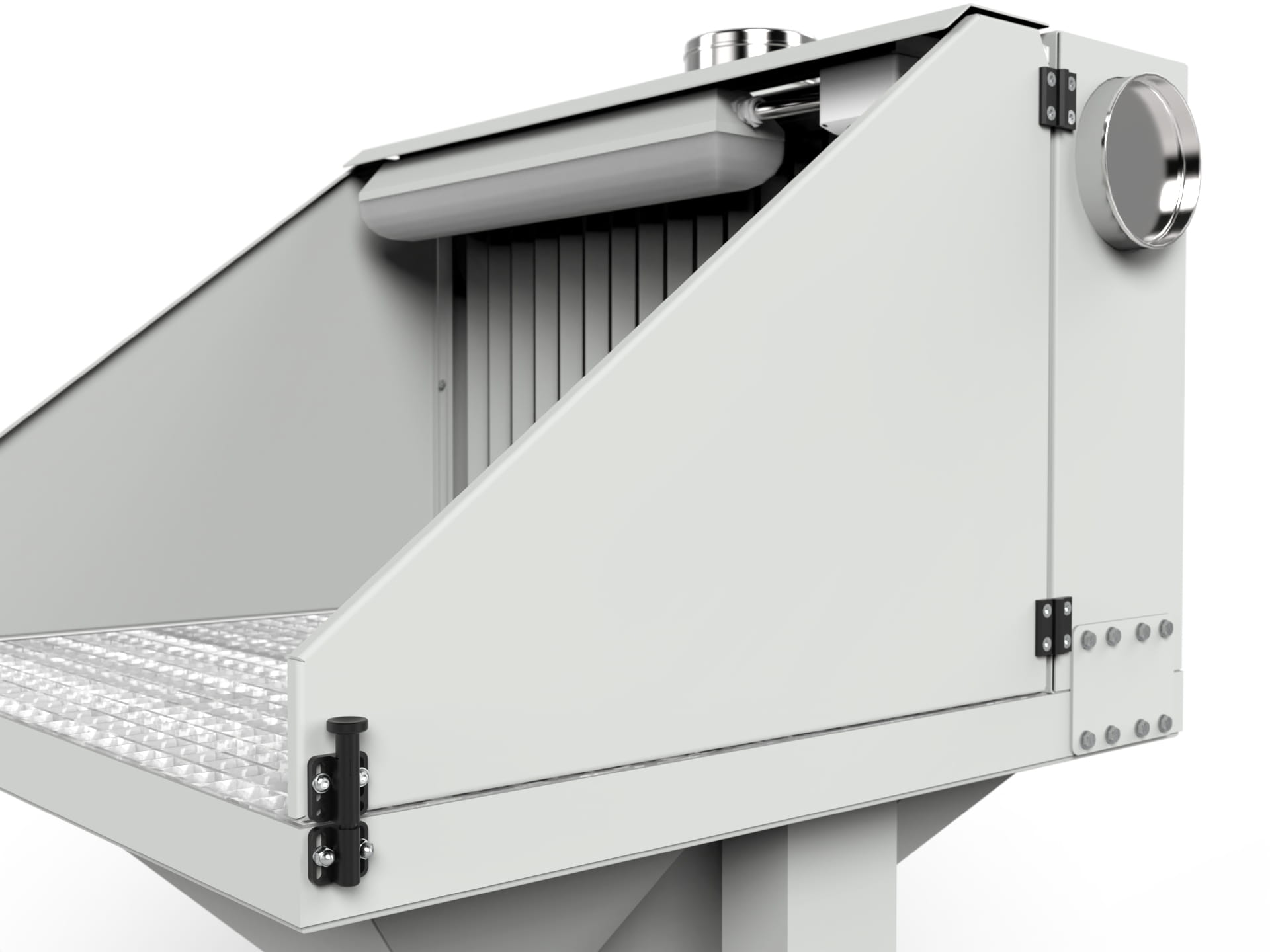

• Extraction wall with a length of 1000 mm. Dimensions of the wall: 1000x600x220 mm (length x height x depth).

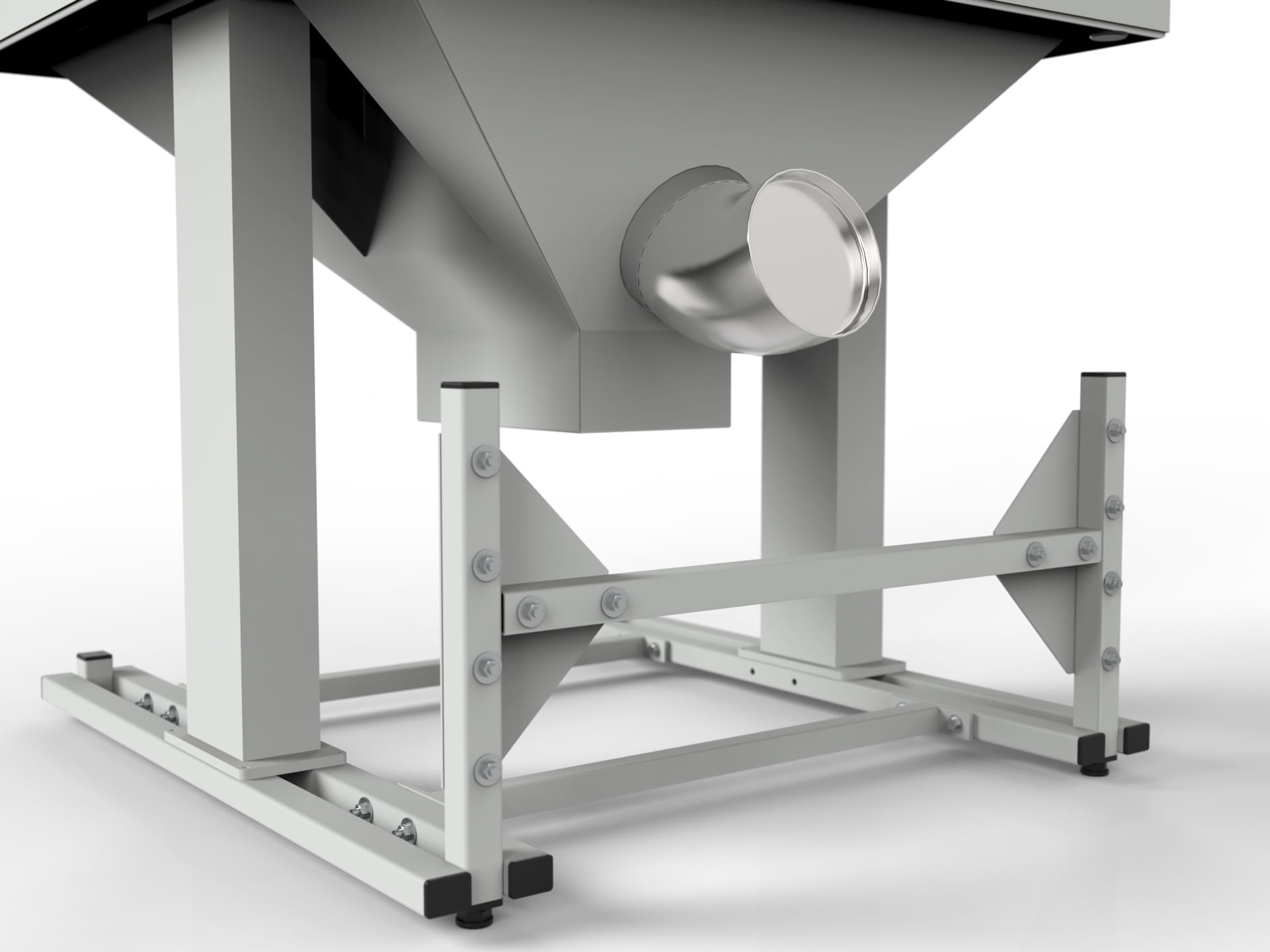

• Possibility to connect the extraction wall from the top or from the side with a pipe fi 160 mm (the unused connection is plugged), lower chute connected from the back with a pipe fi 160 mm
• The grinding table has a 15W, 4000k LED lighting

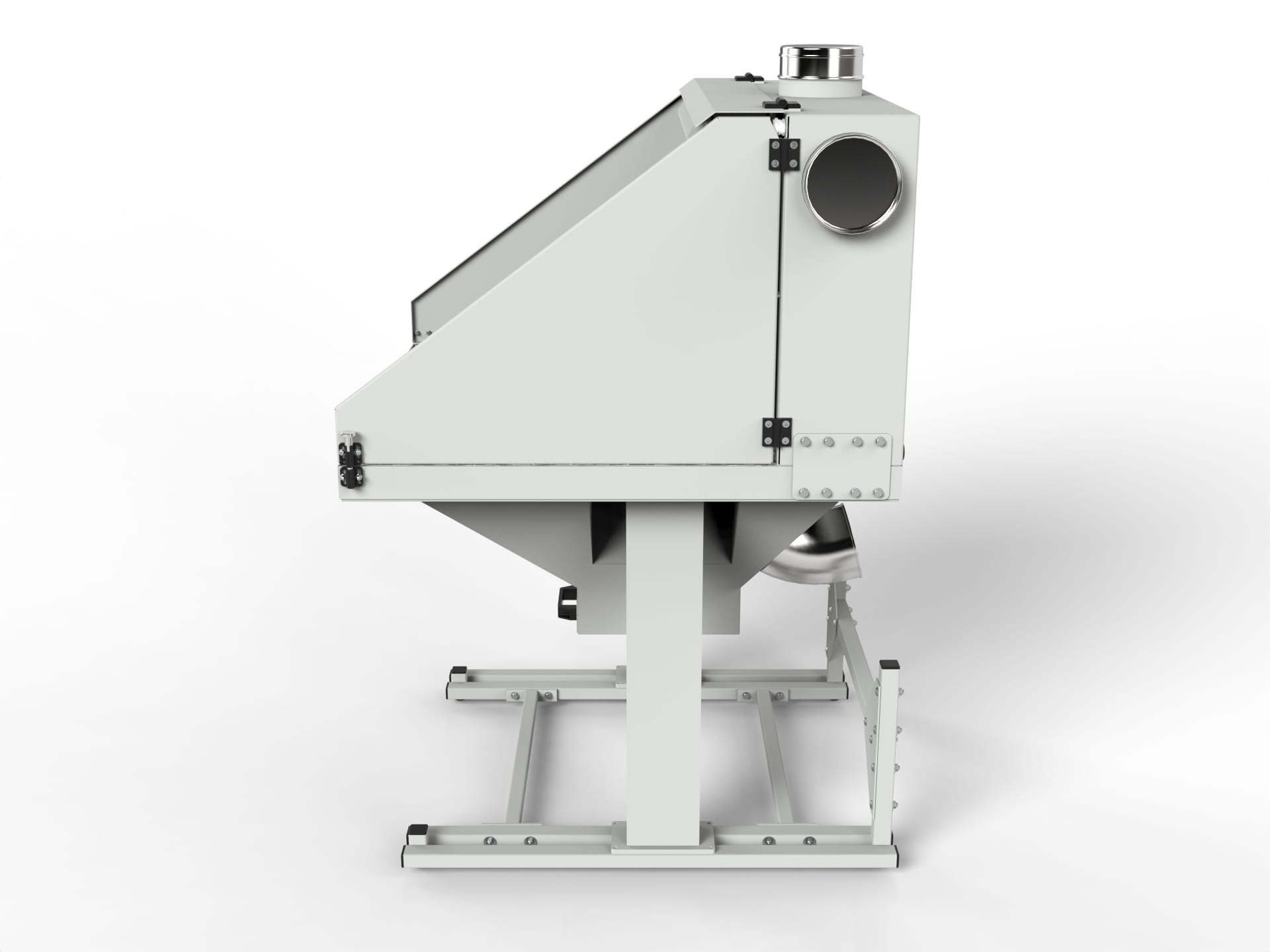

• Openable side walls allow processing of larger workpieces
• Removable drawer for dust and filings
• Tabletop load capacity: 200 kg evenly distributed
• Grinding tables do not have EX certificates. They do not have air filters or a fan in the extraction system, so they must be connected to a suitable extraction and filtering device.

 Recommended suction capacities for each size
