Grinding table 1000 mm with electric height adjustment

Grinding table 1000 mm with electric height adjustment

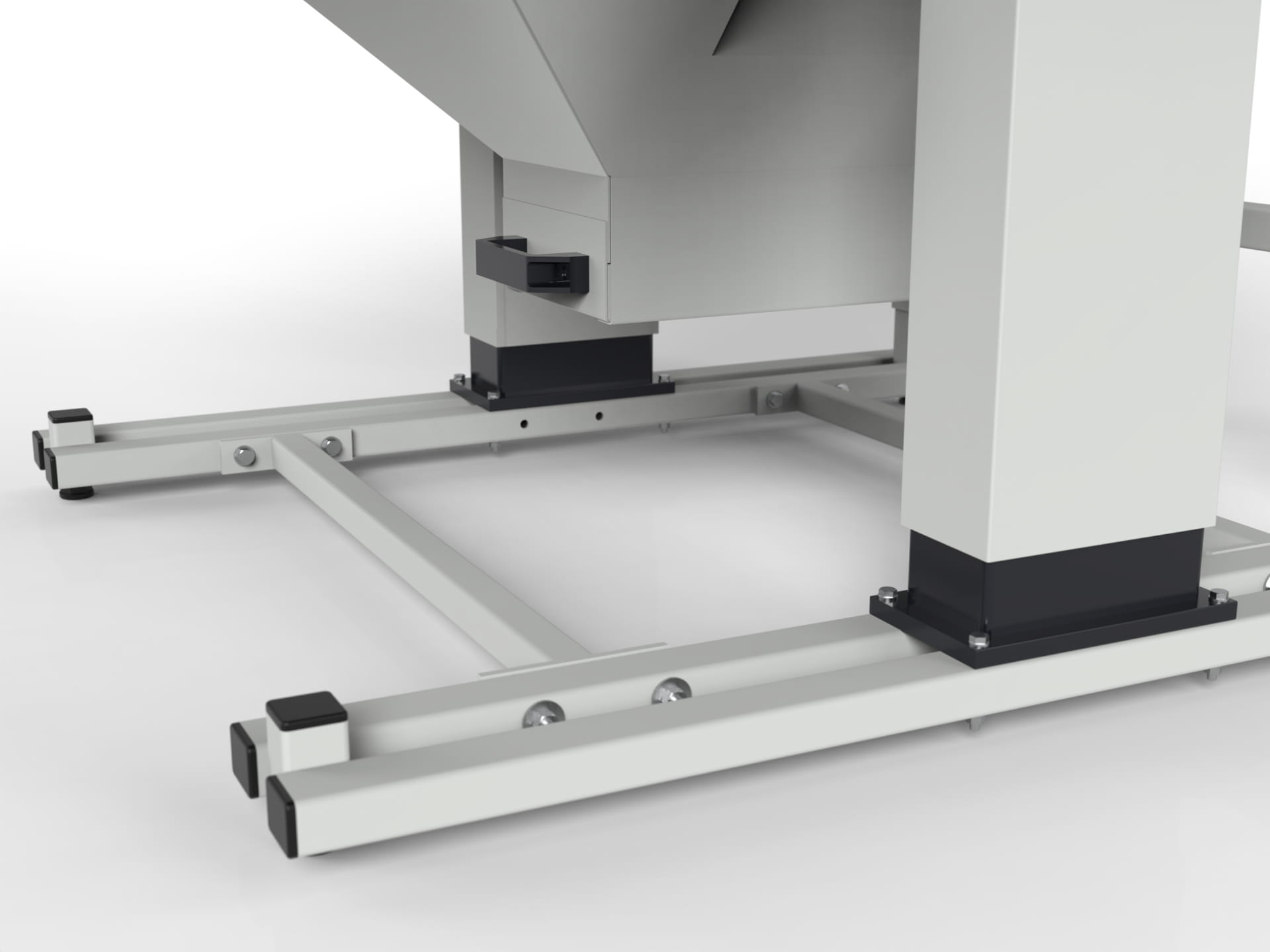

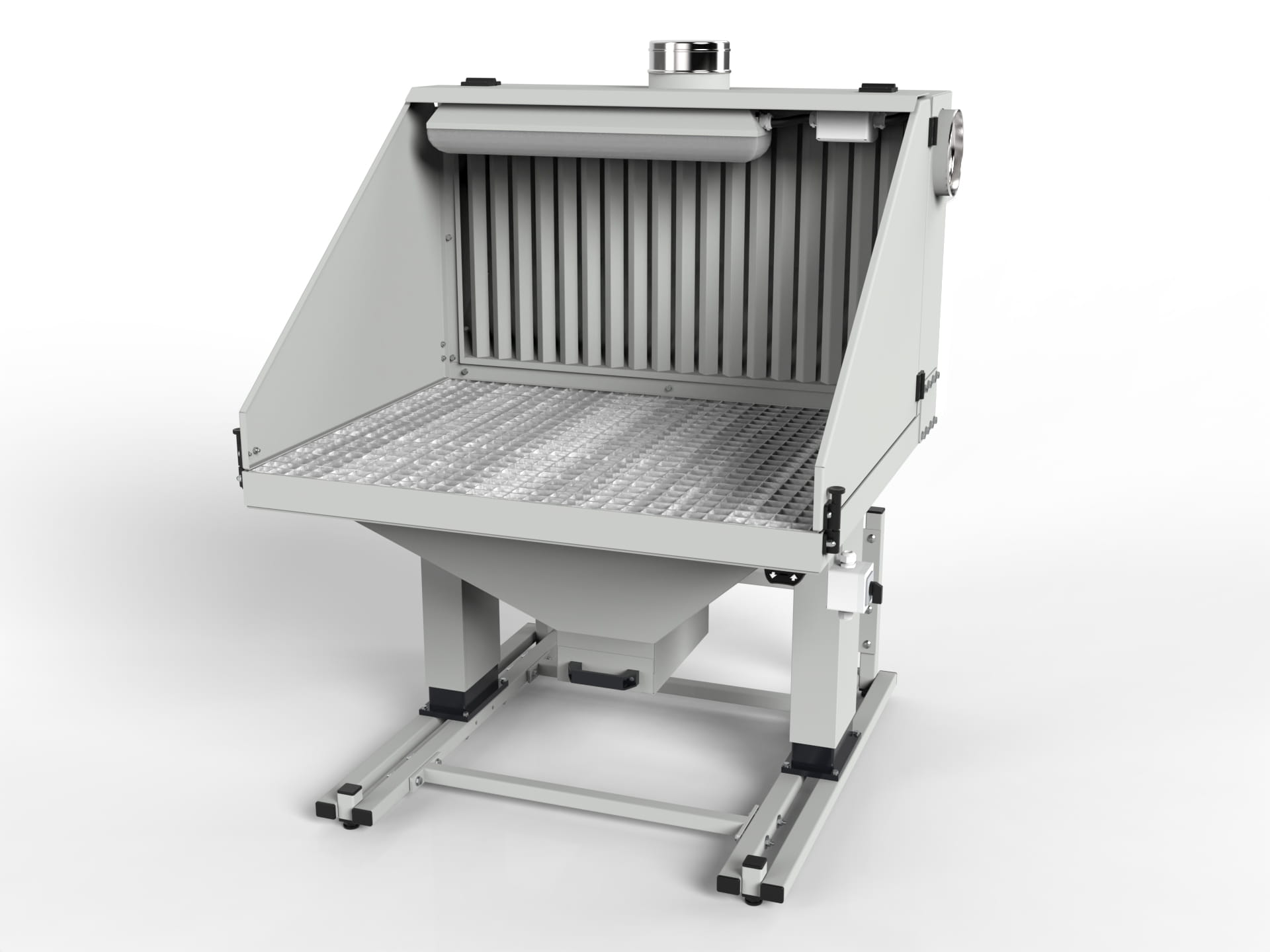

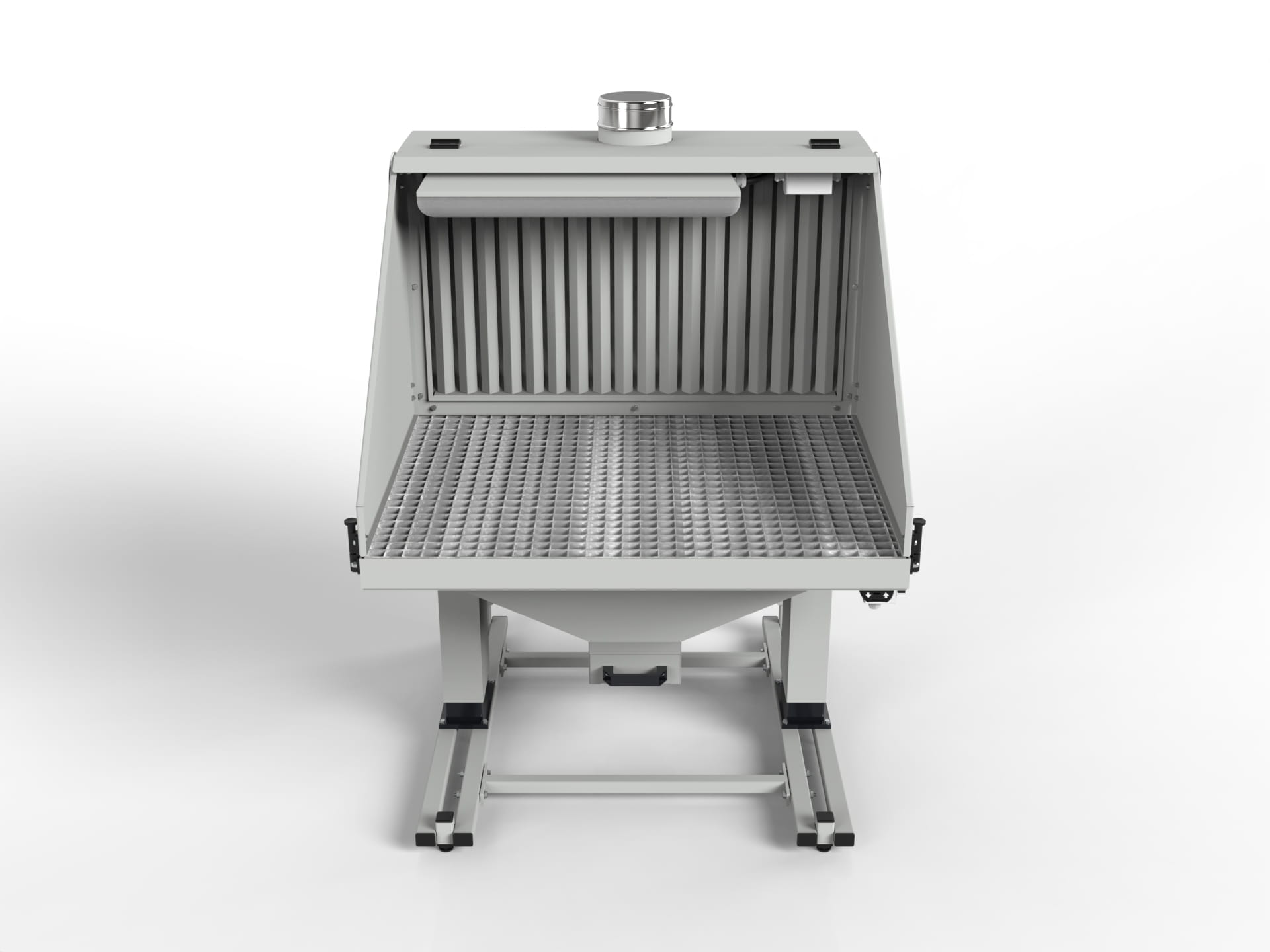

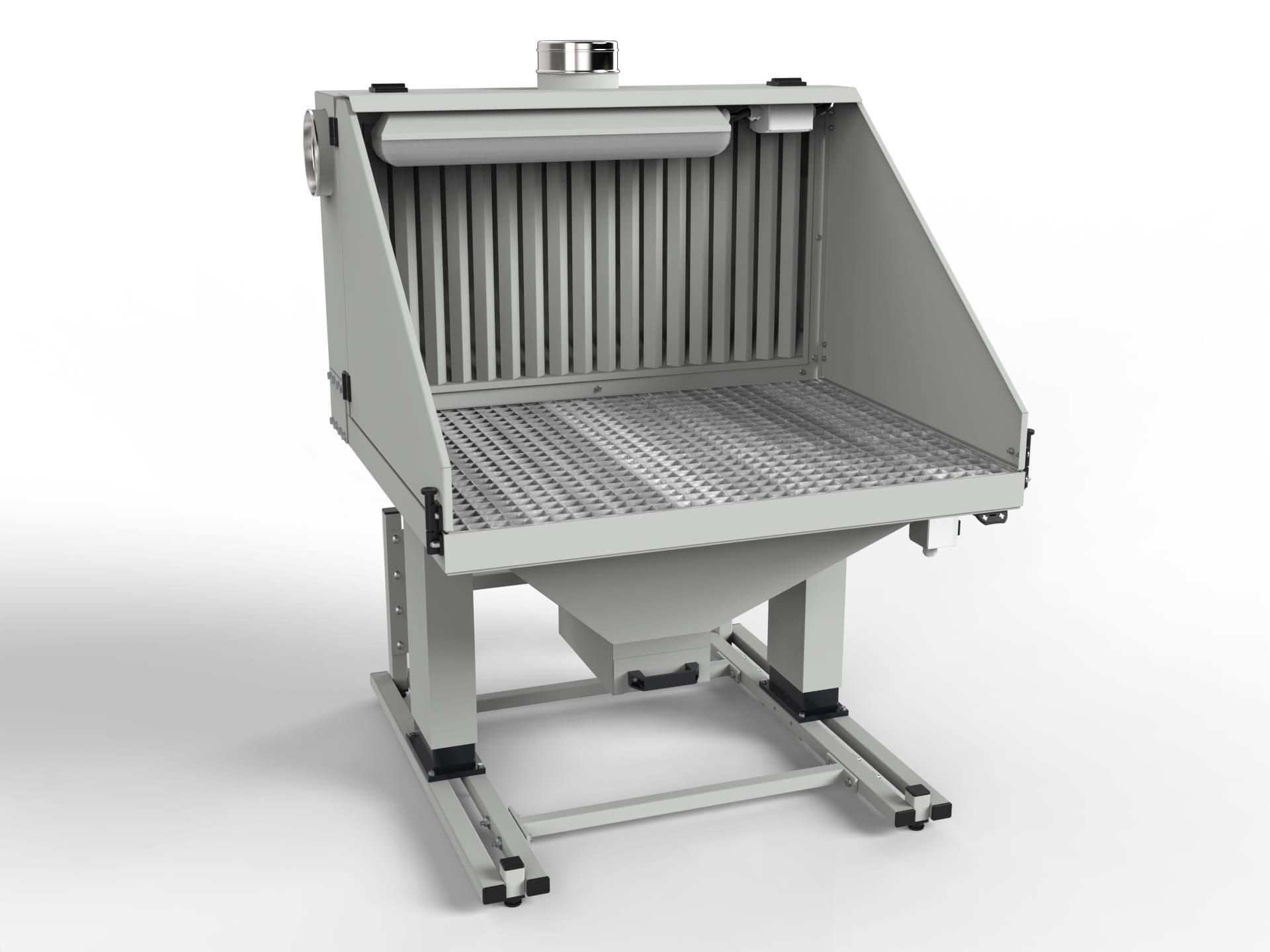

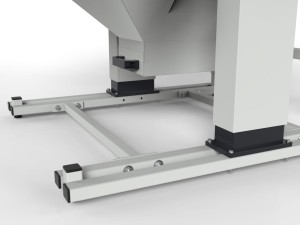

Grinding table with electric height adjustment of the working top is a novelty on the market. It is designed for grinding and cutting metal parts, and also - after adding an additional top made of perforated plywood - for grinding wooden parts. Height adjustment is achieved by means of two electric columns, protected by special folding covers that prevent dust from getting inside. The grinding table has a work surface made of a galvanized steel grille and optionally - an additional perforated plywood. Dust extraction is carried out by a chute under the worktop and from the rear extraction walls. The chute is equipped with a drawer for dust and swarf. The table requires a tubing connection to an extraction and filtration unit or to a larger filter-ventilation unit in multi-station extraction systems. The presented grinding table also requires connection in two places (1x bottom chute + 1x extraction wall on the tabletop). The load capacity of the tabletop is 200kg distributed evenly.

Features of 1000 mm grinding table with electric height adjustment

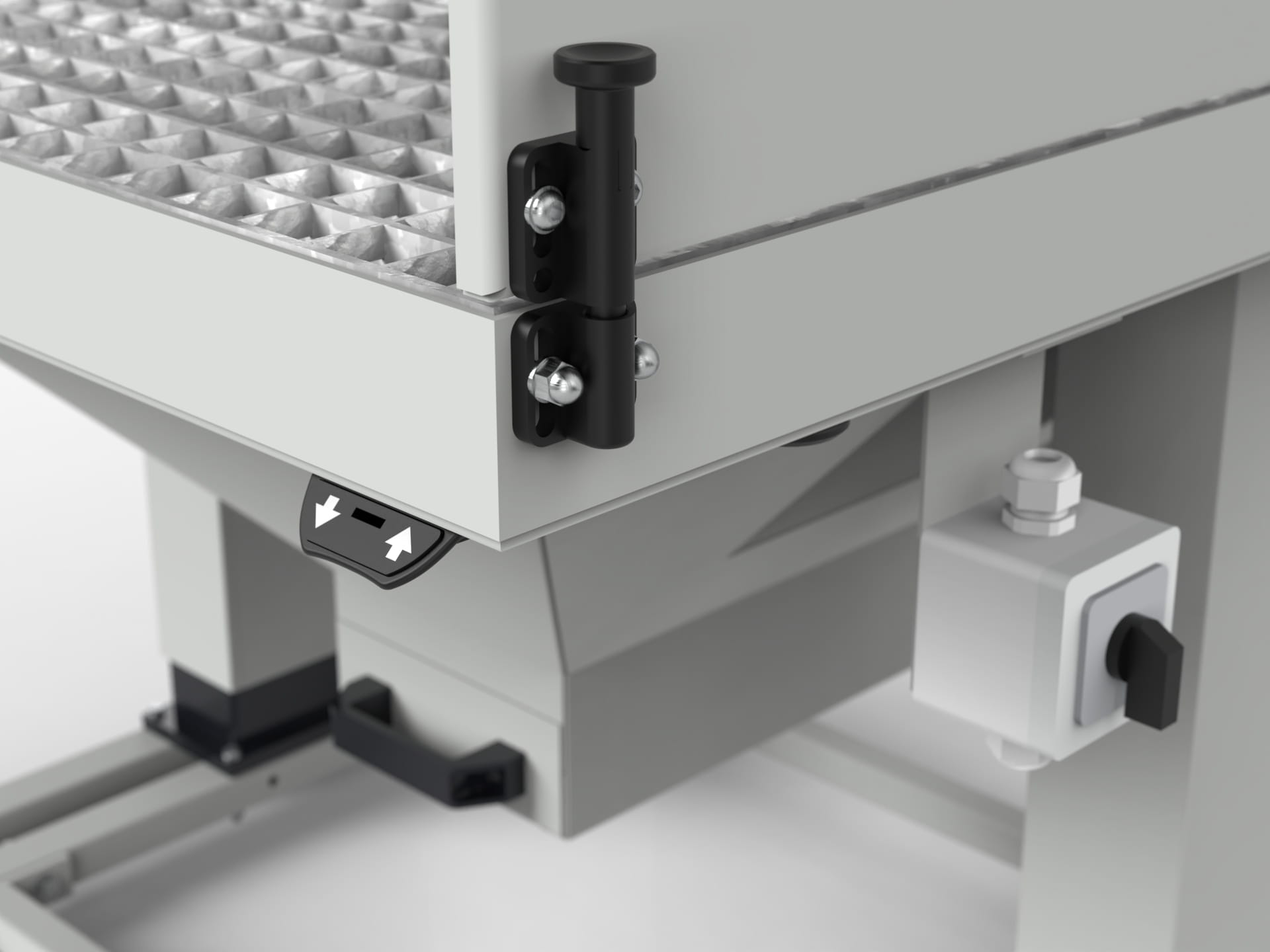

• Height of the worktop is electrically adjustable, by means of electric columns and a control located under the worktop, in the range of 690-1090 mm
• Large extraction area: dust extraction from underneath and from the rear extraction wall
• Worktop with total dimensions of 1000x985 mm, extraction walls set on top with a depth of 220mm
• The tabletop is formed by two grilles: the larger one can be removed without taking off the tabletop extraction wall
• Additional perforated plywood top at extra charge

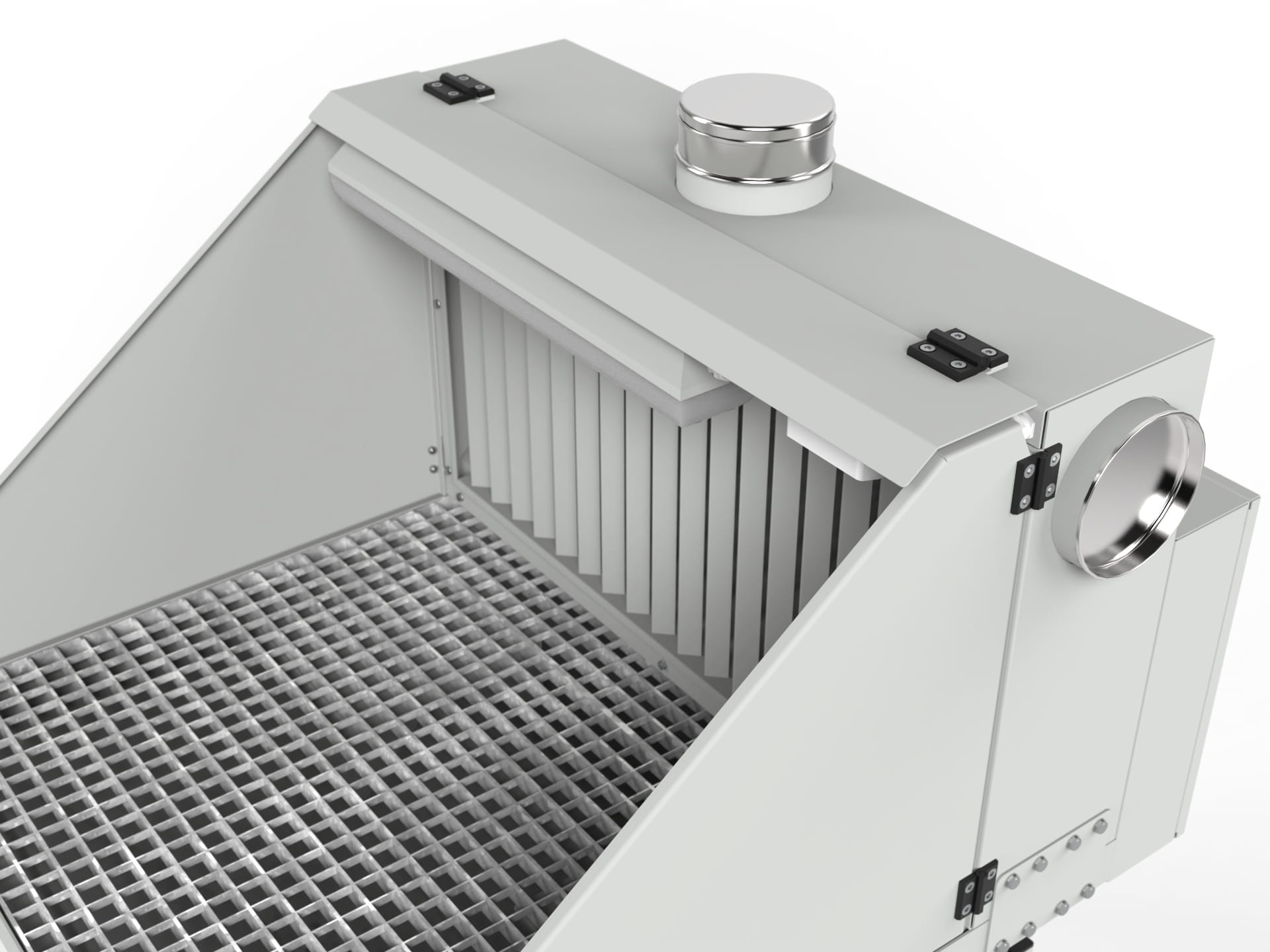

• Extraction wall with a length of 1000 mm, dimensions of a single wall: 1000x600x220 mm (length x height x depth)

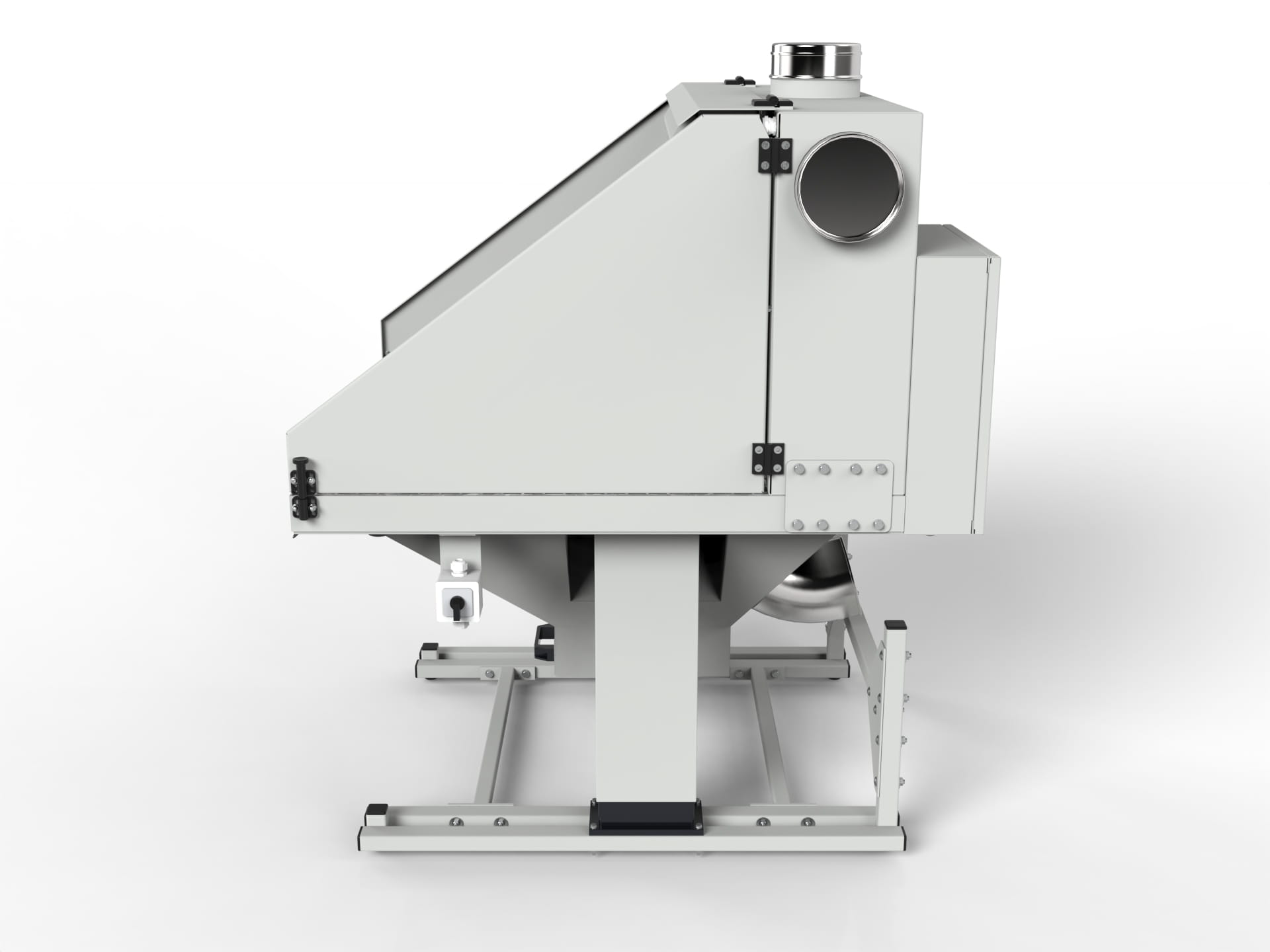

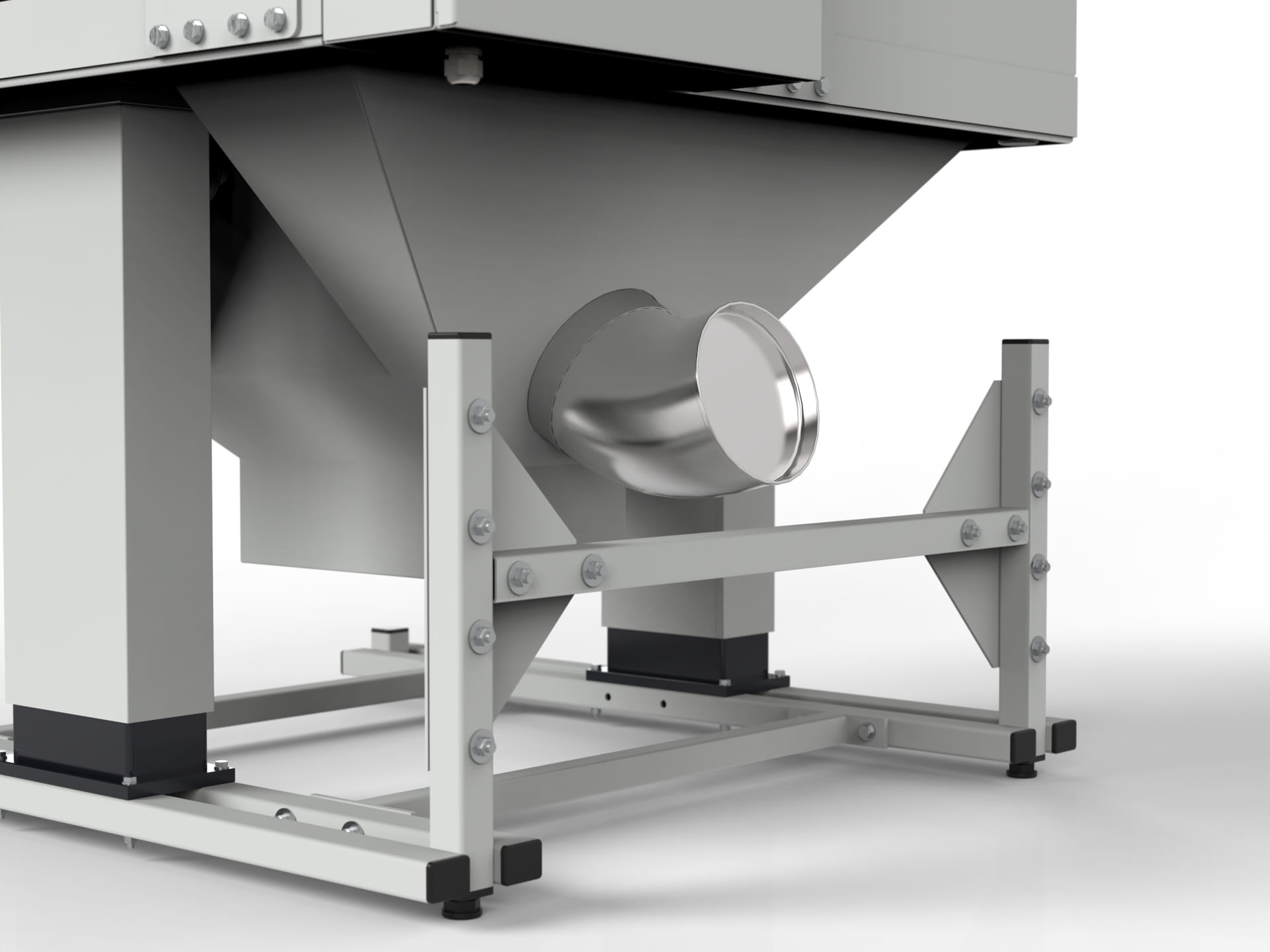

• Possibility to connect the extraction wall from the top or from the side with a pipe fi 160 mm (unused connection is sealed), the bottom chute connected from the back with a pipe fi 160 mm
• The table has 15W LED 4000K lighting
• Openable side walls allow for processing of larger items
• One removable drawer for dust and filings
• Tabletop load capacity: 200 kg evenly distributed
• Grinding tables are not EX approved. They do not have air filters or a fan in the extraction system, so they must be connected to a suitable extraction and filtration device

Recommended suction capacities for each size
