JABAMA DPR-19014 Cable Dispenser

  • new
Availability: average amount
Dispatched within: 4 weeks
Price: €184.19 184.19
Net price: €149.75
quantity szt.
add to wish list
Rating: 5
Vendor: JABAMA
Product code: AE3D-2674A

Description

JABAMA DPR-19014 Wire Dispenser is an ergonomic workstation organiser designed to optimise assembly, servicing and cable harness pre-assembly processes. It enables smooth unwinding and precise cutting of wires directly at the workstation.

Key design advantages:
  • 10 internal positions for spools with a maximum diameter of 110 mm
  • Top shelf with 3 positions for wire coils up to 200 × 200 mm
  • 13 wire outlet holes
  • Levelling feet for precise positioning on the worktop
  • Ergonomic side cut-outs for easy carrying
Industrial applications:
  • Electronics and electrical assembly workstations
  • Cable harness and control cabinet pre-assembly
  • R&D departments, testing laboratories and quality control areas
  • Industrial equipment and automotive service departments
  • JABAMA assembly and workshop benches

How are the wires stored?

The DPR-19014 dispenser was designed to provide maximum capacity while maintaining a compact footprint on the worktop. Inside, there are 10 support rods for wire spools (each with a maximum diameter of 110 mm).

The wires are conveniently routed outside through front outlet holes. This allows the operator to unwind and cut the required cable lengths smoothly, without the risk of tangling.

In addition, the top shelf provides storage space for 3 additional cable coils (up to 200 × 200 mm) or the most frequently used hand tools.

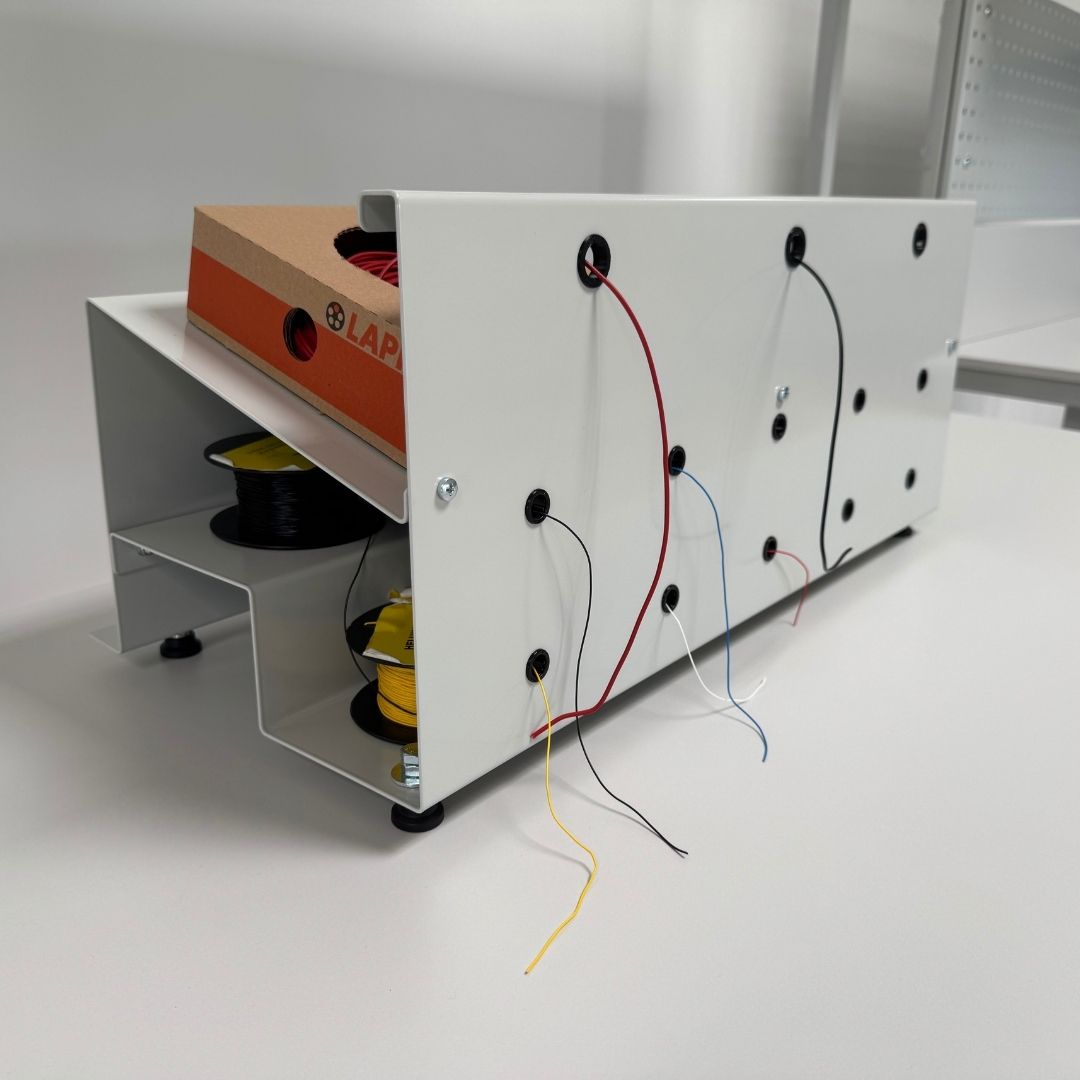

JABAMA DPR-19014 cable dispenser fitted with 10 wire spools – side view Dispenser loaded with spools at the workstation

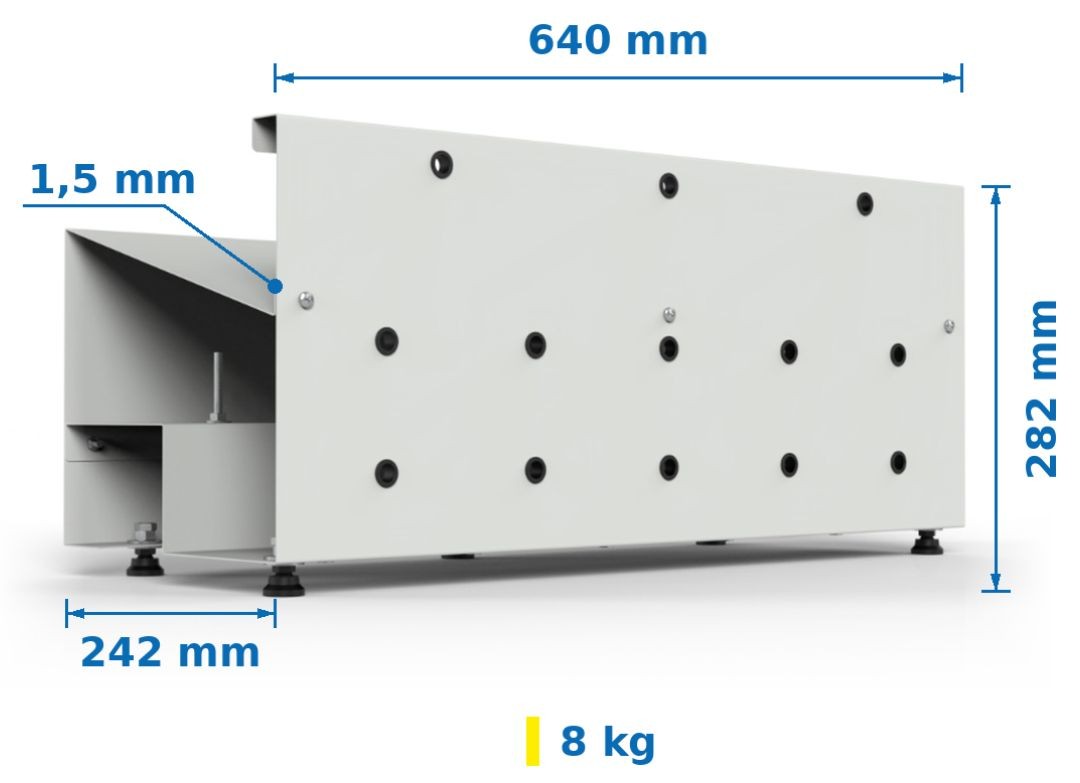

Technical dimensions of the JABAMA DPR-19014 cable dispenser – 640 × 242 × 282 mm

Optimised use of workspace

The compact 640 × 242 mm base saves valuable bench space by organising wires of different cross-sections in one convenient dispensing point.

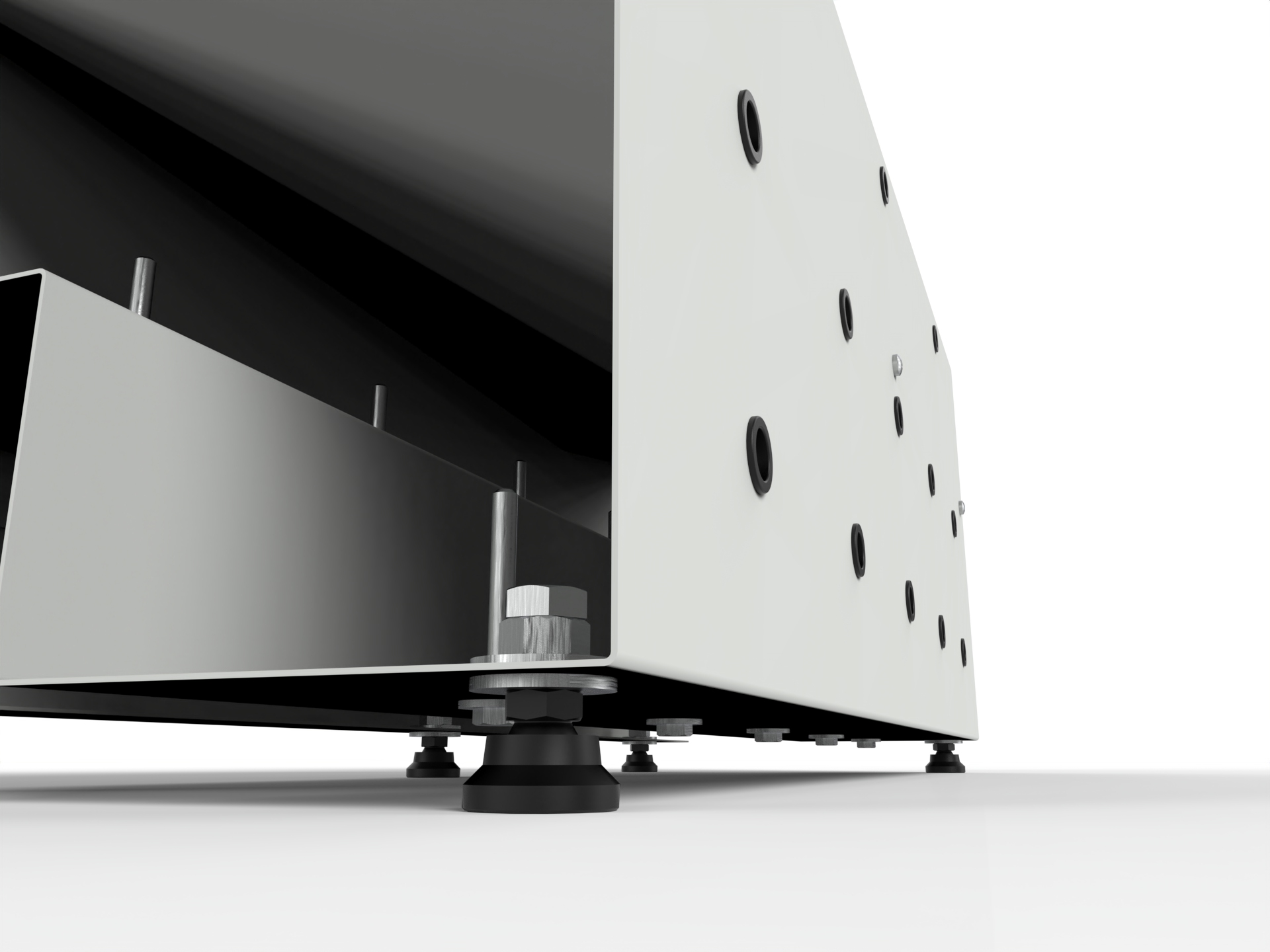

Its solid weight of 8 kg and 1.5 mm sheet-steel construction, combined with adjustable non-slip feet, ensure stable positioning. The dispenser remains in place on the worktop even during rapid cable unwinding.

Key information at a glance

Capacity 10 inside (Ø up to 110 mm) + 3 on the top shelf
Operator use Unwinding and cutting without removing the spool from the dispenser
Placement On the worktop or on an upper bench shelf – without reducing the working area
Stability Adjustable levelling feet and integrated carrying handles
Construction Powder-coated steel with an impact- and abrasion-resistant finish
Model DPR-19014, manufactured by JABAMA in Poland

More views from the assembly line

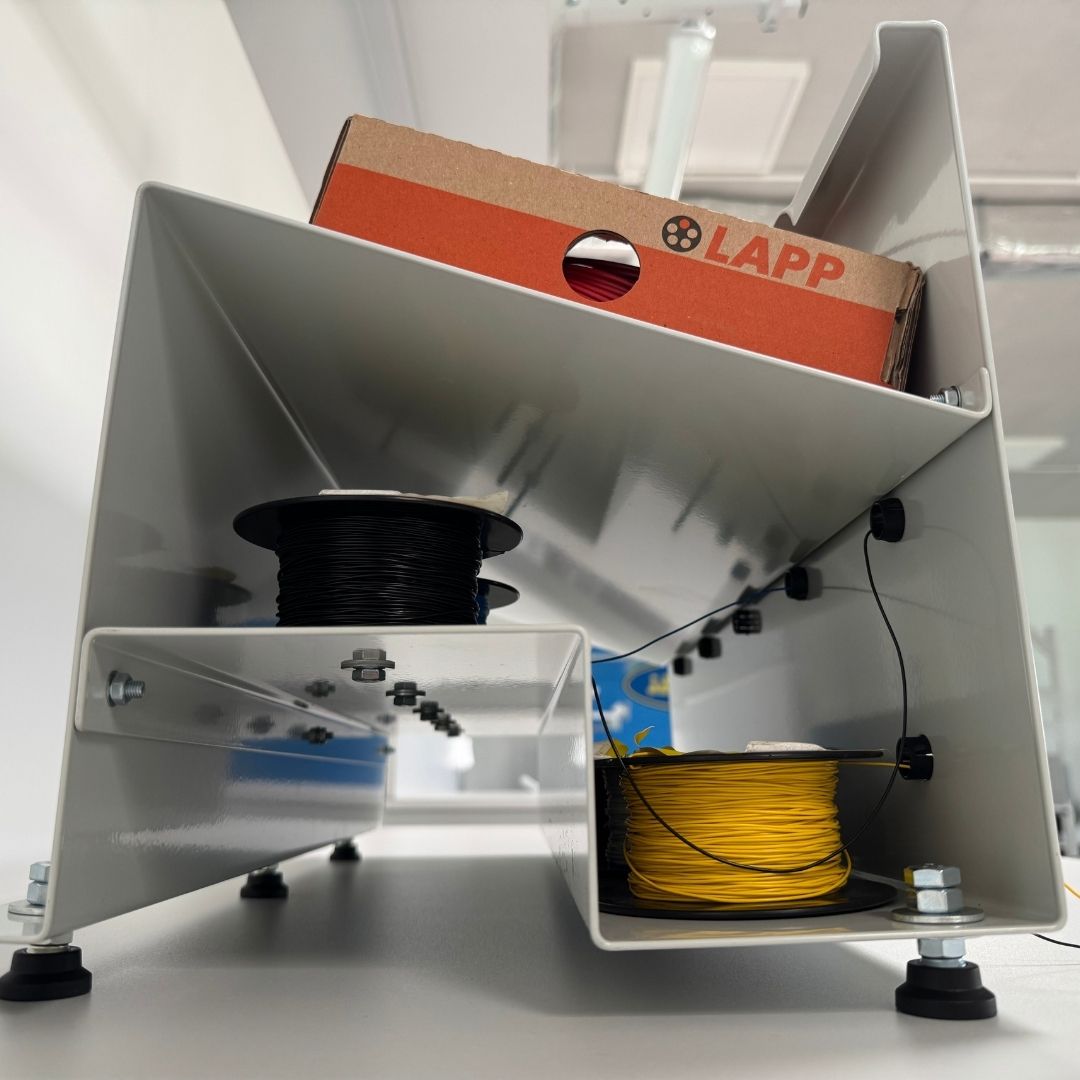

Assembly wires routed through the front outlet holes of the JABAMA dispenser

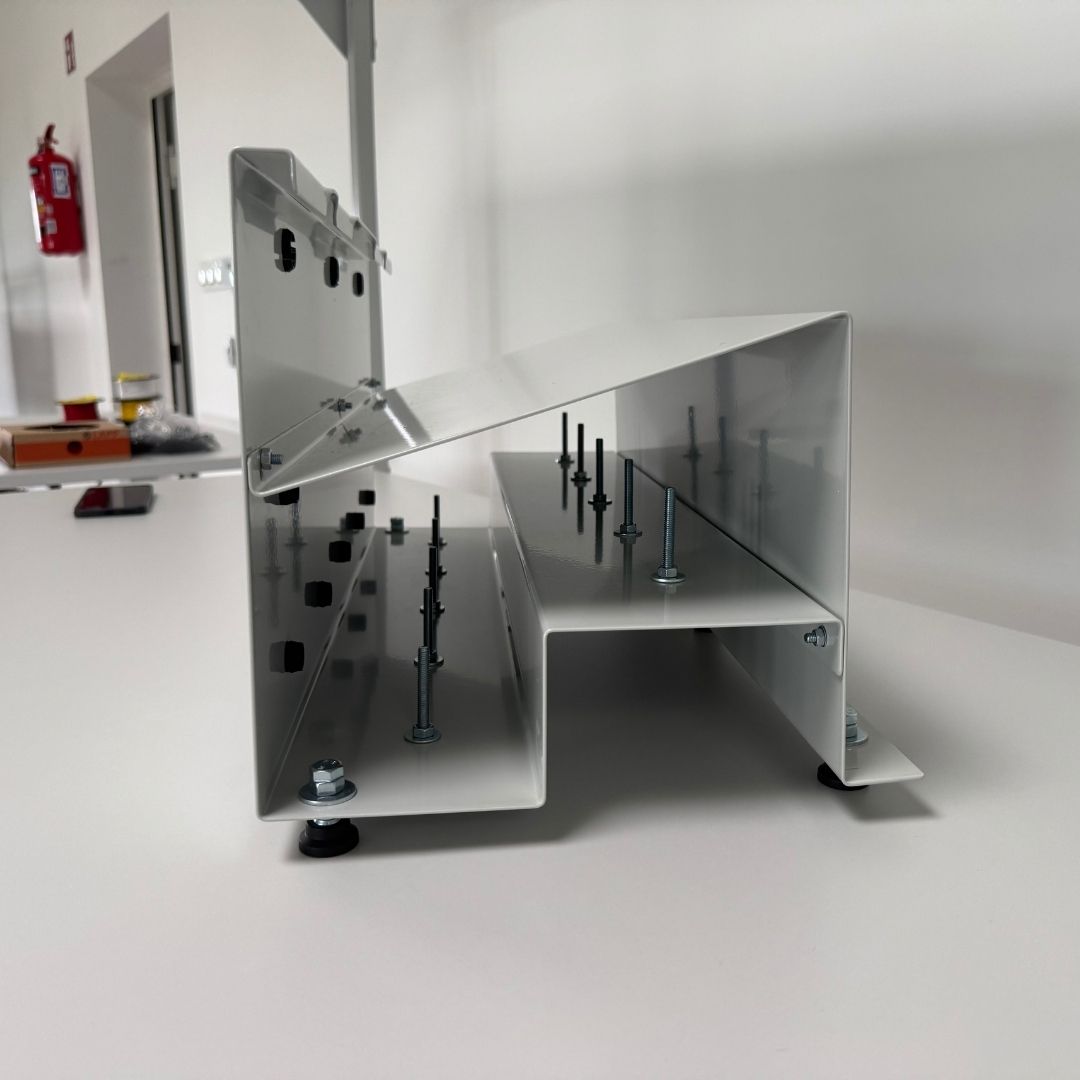

Dedicated workstation with a JABAMA cable dispenser

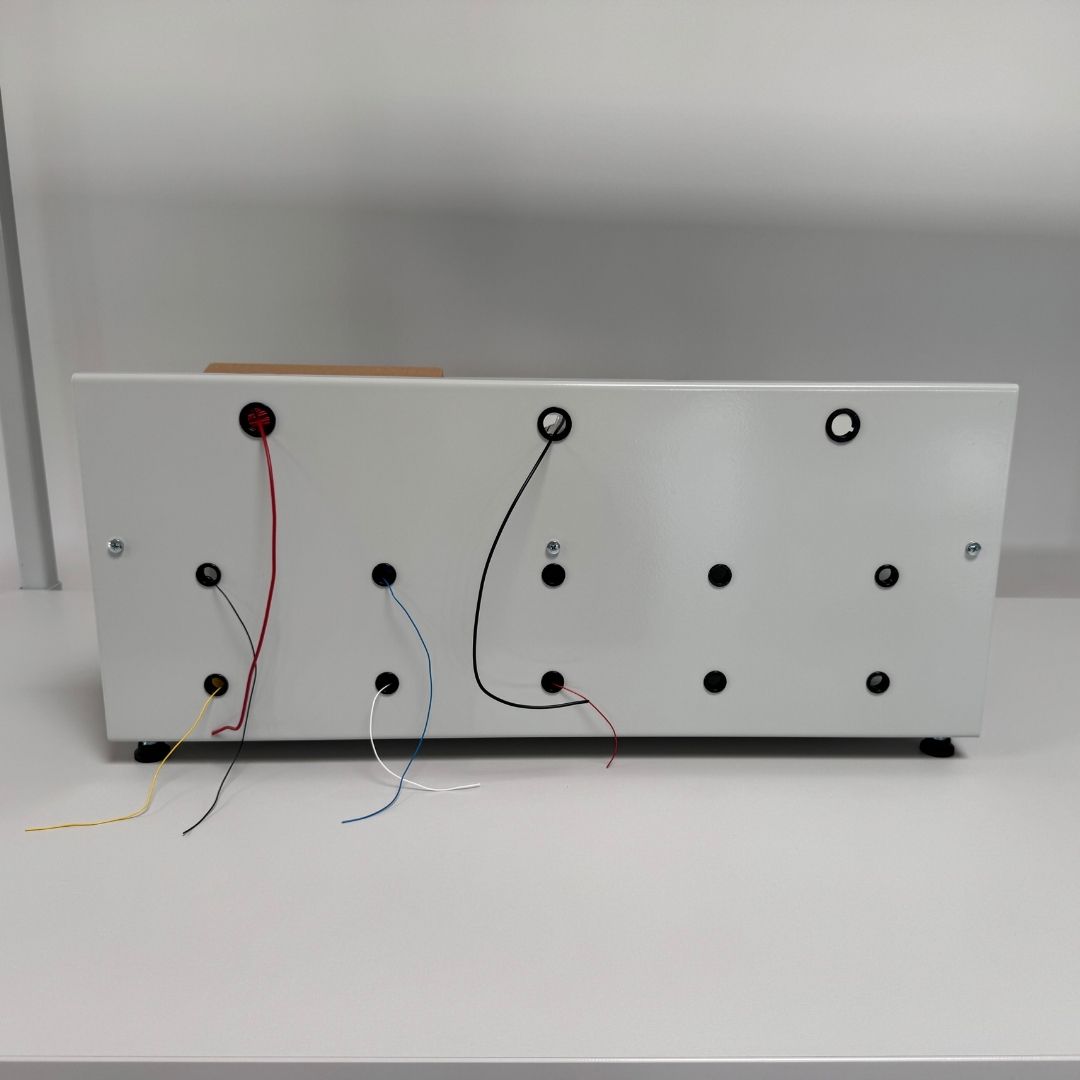

Top shelf of the DPR-19014 dispenser with additional cable boxes

Looking for customised assembly workstation equipment? As a Polish manufacturer, we design and manufacture steel structures tailored to individual production processes. Contact our technical department to discuss your requirements.



Frequently asked questions

What spool sizes fit in the dispenser? The external diameter of the spool is the deciding factor. Inside the housing, each support rod accommodates spools with a diameter of up to 110 mm, with space for up to ten spools at the same time. Larger cable packs measuring up to 200 × 200 mm can be placed on the top shelf, which provides three positions. Before purchasing, it is advisable to measure the cable packs most frequently used at the workstation.
Where is the best place to position the dispenser at the workstation? Its shallow depth allows it to be positioned at the back of the worktop, or equally well on the upper shelf of an assembly bench—without reducing the operator’s working area at all. The structure remains highly stable: its own weight and levelling feet keep the dispenser in place even during fast, dynamic wire unwinding. Integrated side cut-outs make it possible to move it to another workstation without assistance.
Is the dispenser suitable for multi-shift operation? The housing is made of structural steel and protected by an impact- and abrasion-resistant powder coating, making it suitable for everyday use in production and service environments. It contains no consumable parts requiring periodic replacement; maintenance is limited to cleaning the housing.
Is it available in another RAL colour or in an ESD version? The dispenser is manufactured at the JABAMA facility in Poland, so colour modifications and special versions are assessed individually. Please contact our sales department—we will confirm the scope of changes, lead time and terms for orders covering equipment for several workstations at once.

Technical data

Material S235 steel, powder-coated, RAL 7035 colour
Weight 8 kg
Sheet thickness 1.5 mm
Dimensions (W × D × H) 640 × 242 × 282 mm
