Logicdata Controller for Jabama lifting columns and electric actuators
0
Description

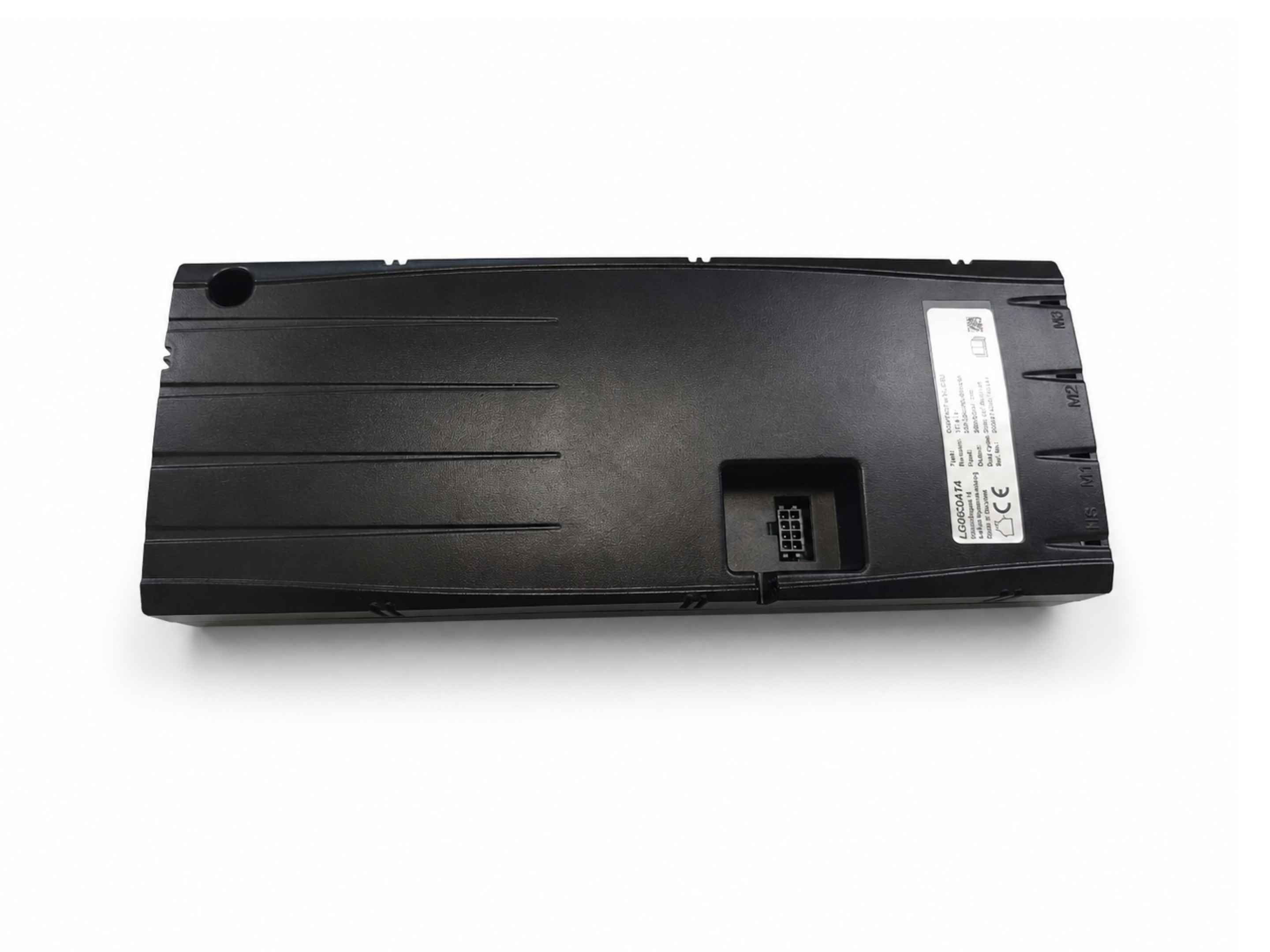

COMPACT Logicdata controller for JABAMA lifting columns and electric actuators
The COMPACT control unit from the renowned manufacturer Logicdata is designed to control electric actuators, including Jabama lifting columns. The device is programmed to be compatible only with the dedicated motors and handset available in the JABAMA product range.
Note: The unit may only be used for its intended purpose, such as controlling the electric height or tilt adjustment of the tabletop. Its primary function is up-and-down adjustment using an additional handset.

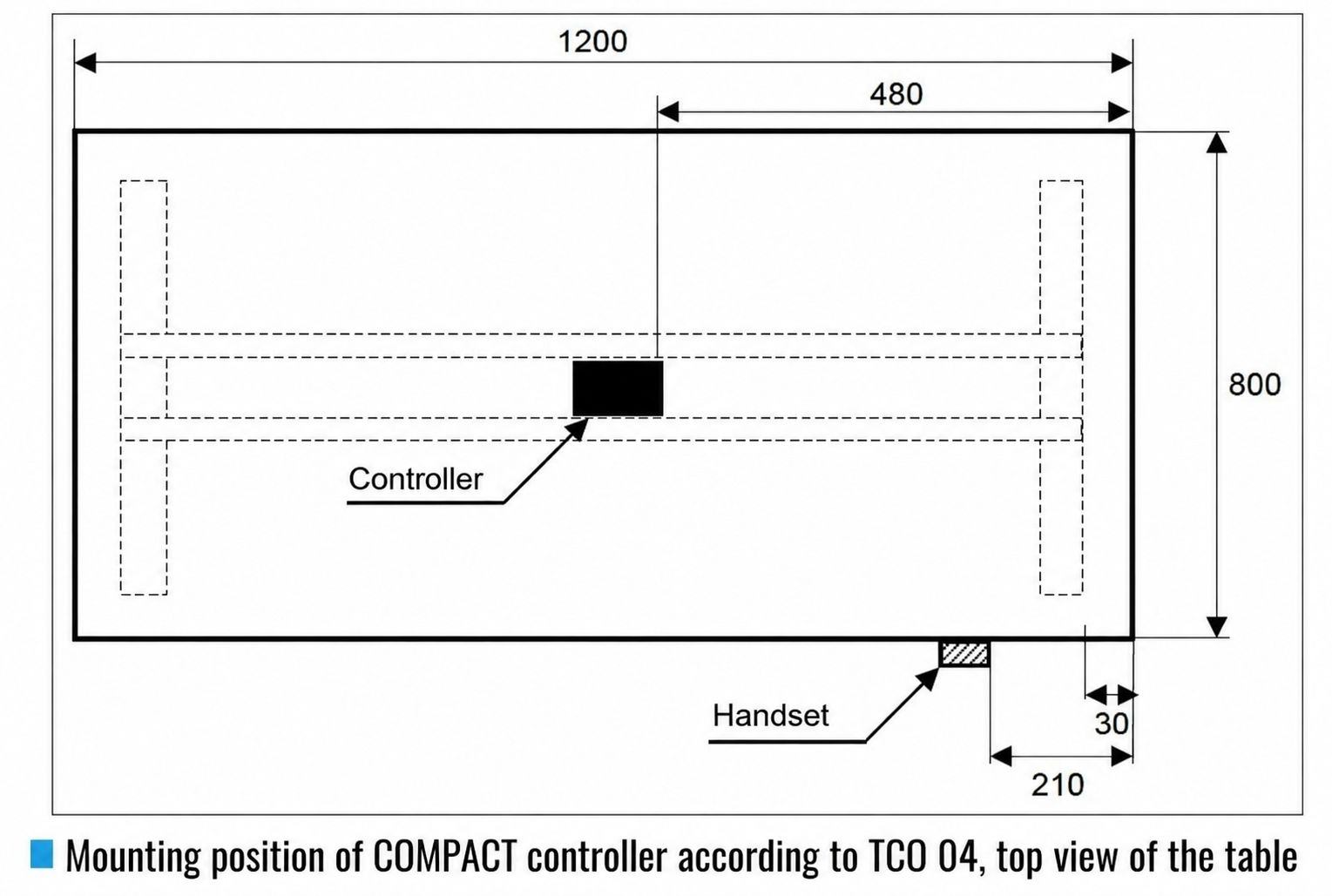

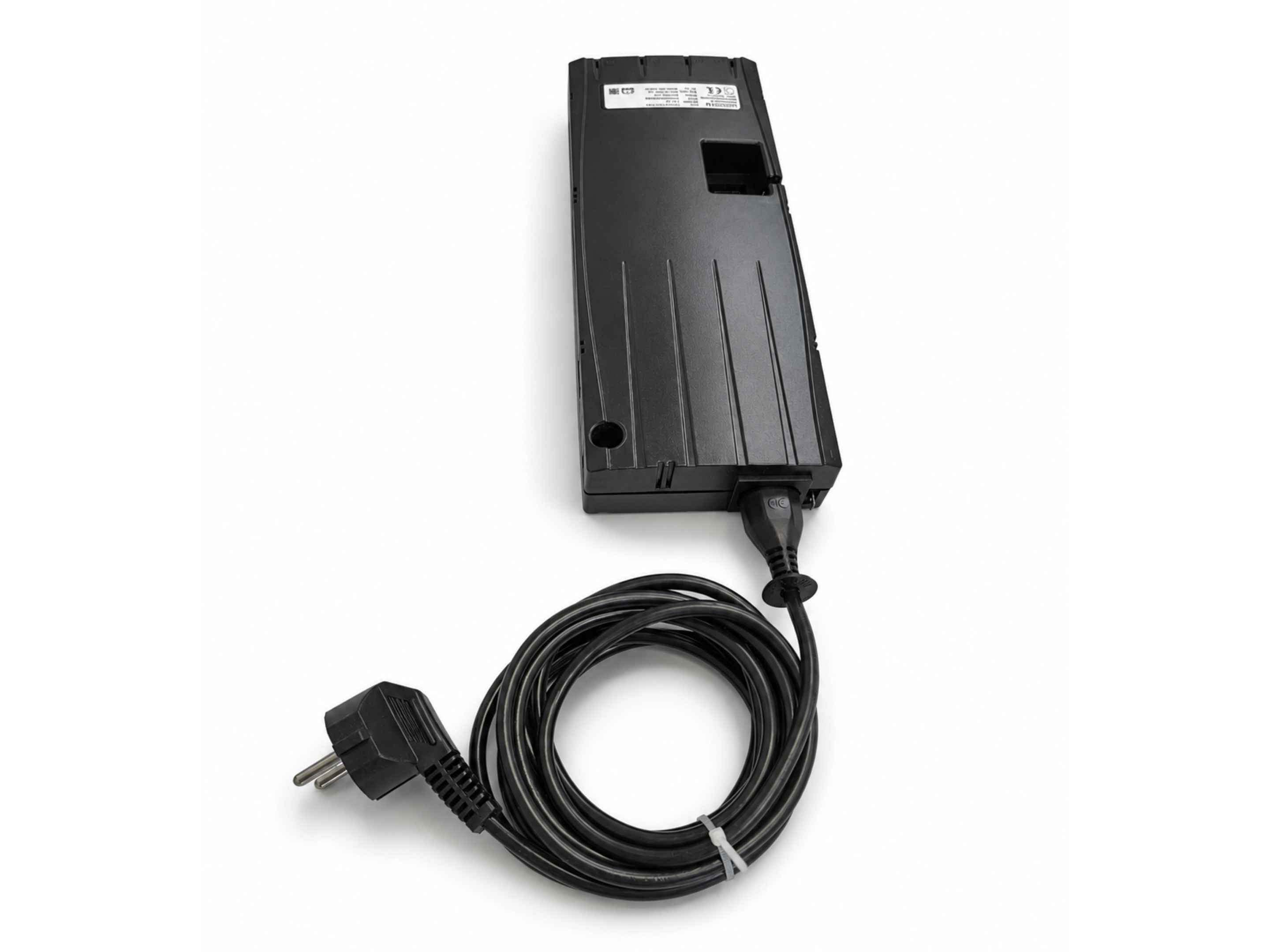

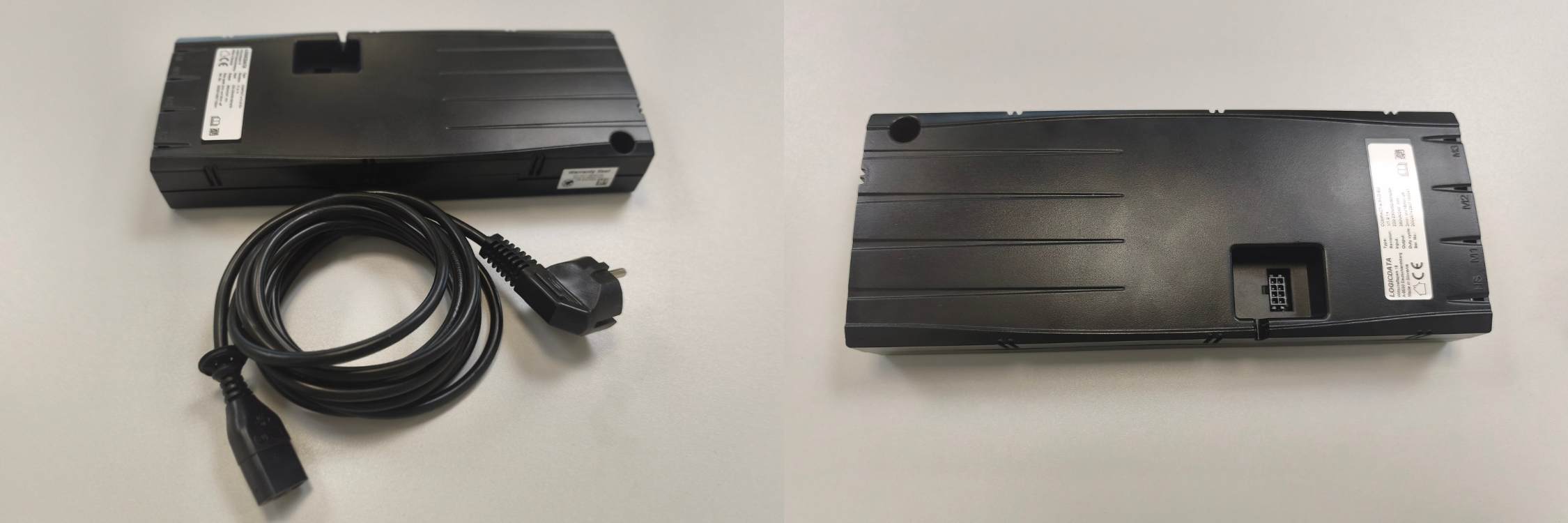

When you purchase this product, you receive:
-
a COMPACT power/control unit from Logicdata,
-
a power cable,
-
a detailed user manual.

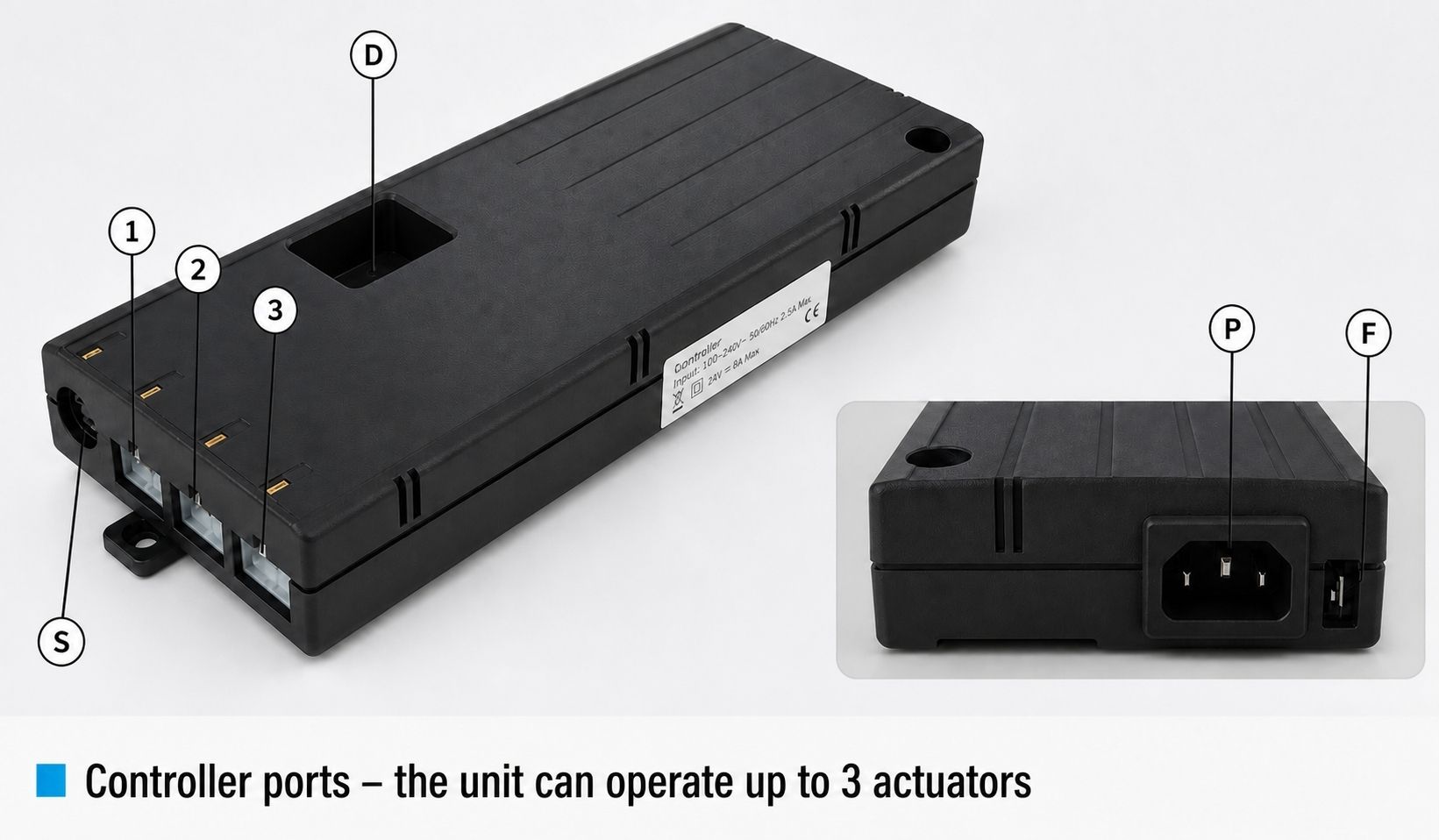

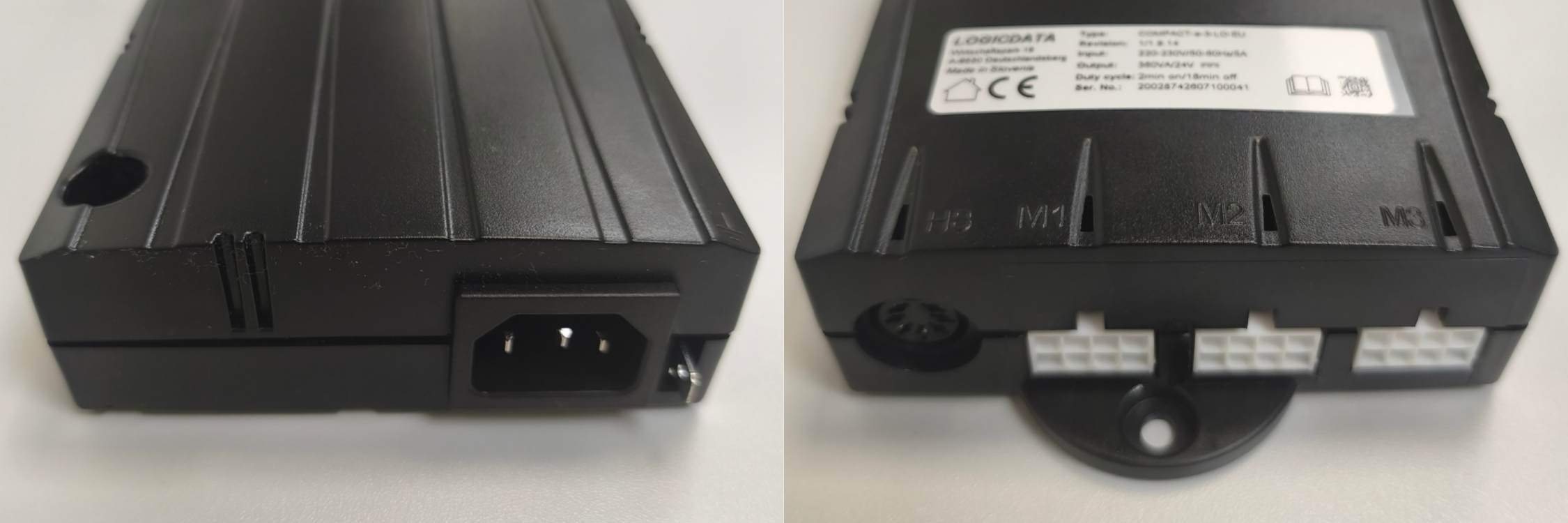

The COMPACT control unit can operate from one to three actuators and has the following ports:
1 – Socket for actuator no. 1
2 – Socket for actuator no. 2
3 – Socket for actuator no. 3
S – Handset socket
P – Mains power socket
F – Functional earth, cable lug for grounding the desk frame (6.3 × 0.8 mm terminal)
D – DATA logic socket for sensors and cascading
Power cable 230 V 2.5 A, 3 m – product features:
Connector: female C5 (3‑pin) / universal plug (DIN49441)
Rated current: 2.5 A
Cable length: 3 m
Colour: black, robust and flexible
Compliance: CE, OVE, KEMA‑KEUR, CEBEC, VDE
Operating temperature: from -30°C to +80°C
Polish manufacturer
Files to download:
Technical data
| Supply voltage | EU: 207–254.4 V / 50 Hz; US: 90–127 V / 50–60 Hz |
| Tolerances | According to DIN ISO 2768-1 c |
| Standby power consumption, main supply (typical) | <0.6 W |
| Operating voltage | 5 VDC ±10%, 250 mA for internal and external electronics and Hall sensors |
| Actuator current measurement accuracy | 20% at 100% output voltage and 4–8 A per actuator |
| Optimum ambient temperature | 0 to 30°C |
| Relative humidity during operation | 5–85% (non-condensing) |
| Storage and transport temperature | -40 to 85°C |
| Relative humidity during storage | 5–90% (non-condensing) |
| Protection class | I (with earth terminal) |
| Dimensions | (L × W × H) 264 × 103 × 37 mm |
| Switching cycles | Total currents for all actuator channels: High-power cycle: 20 s UP: 17.5 A @ 20 V, 350 W; 20 s DOWN: 6.5 A @ 33 V, 214.5 W; pause: 9 min. Normal cycle 1/9: 30 s UP: 14 A @ 24 V, 336 W; 30 s DOWN: 6.5 A @ 33 V, 214.5 W; pause: 9 min. Normal cycle 2/18: 2 |
| Max. current per actuator channel | 8 A (maximum total current limited according to the values shown above) |
| Typical weight | 598 g |
