Logicdata Remote
Availability:
average amount
Dispatched within:
5 days
Rating:
0
0
Vendor:
Product code:
3-0020-0050-00030
Description

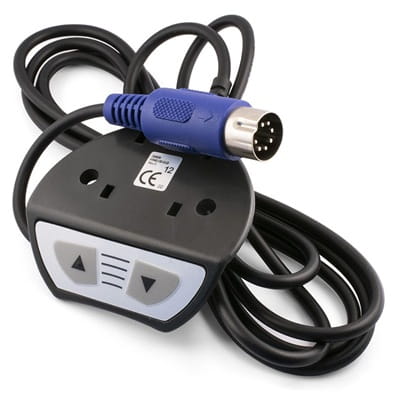

Logicdata HSM-OD-2-LD Remote Control
An economical and functional hand-held remote control enabling height adjustment in the up-down range, compatible with the Compact controller and with JABAMA electric lifting columns and electric actuators.
Easy to mount, e.g., under a table or desk top.
Large buttons make it easy to use, even while wearing gloves, and the compact and reliable construction increases resistance to damage, ensuring years of use.
Remote control dimensions in millimeters:
Remote control presentation on JABAMA tables:
Files to download:
Technical data
| Supply voltage | 5VDC ± 10% |
| Rated switching current | 50 mA |
| Life cycle (switching cycles) | 10,000 |
| Ambient temperature range | 0 – 50°C |
| Cable length | 1800 mm ± 50 mm |
| Dimensions (length x width x height) | 54.8 mm x 66.7 mm x 17 mm (without mounting plate) |
| Weight | 0.06 kg (with cable) |
