SMW measuring table 2200x1200 mm with calipers guide

SMW-1222-10853 measuring table with a movable guide for mounting calipers, a monitor holder and a computer shelf

The SMW-1222-10853 table is suitable for workshops where the ability to accurately measure larger elements is required. The movable rail on the guides allows you to mount calipers (which are not part of the set) and adjust their position to the dimensions of the object. The 25 mm thick melamine chipboard top is covered with stainless steel, which protects it from damage related to the movement of measured parts. The table structure is made of 40x40x2 mm steel profiles, powder coated in light gray RAL 7035. The load capacity of the top is approx. 200 kg.

Essential features of SMW-1222-10853 measuring table

• table top 2200x1200 mm (2204x1204 mm with ABS veneer), made of melamine-coated chipboard 25 mm thick, additionally covered with stainless steel sheet for increased resistance, height from the floor approx. 806 mm
• sturdy frame made of 40x40x2 mm steel profiles, powder-coated in light grey RAL 7035

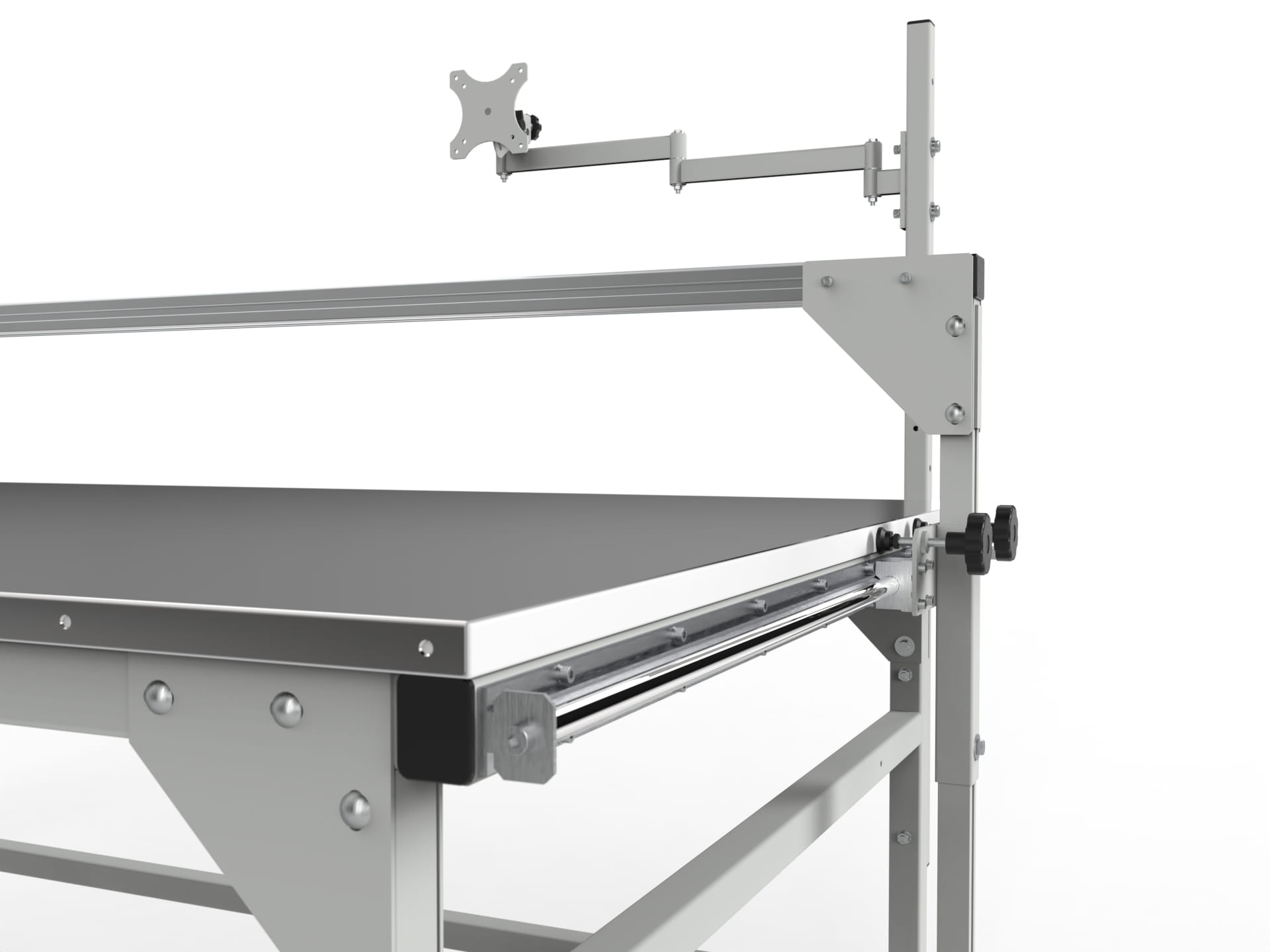

• double RM2 arm with a clamp for mounting monitors, both arms are 260 mm long and movable through 330 degrees, total load capacity approx. 10 kg

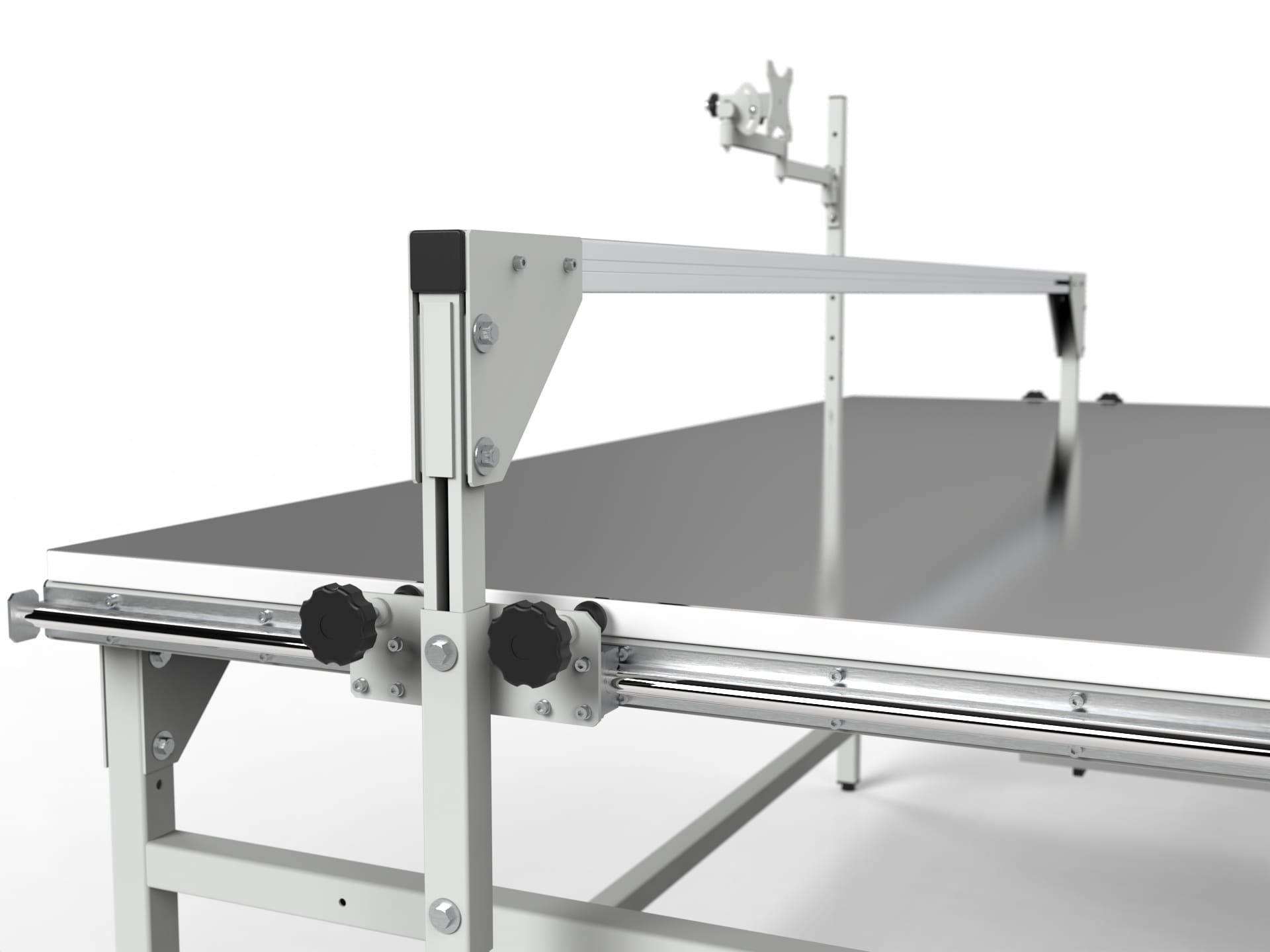

• calipers rail with a groove for hammer nuts, based on two guides, distance from the bottom of the rail to the table top 207 mm
• leveling feet included, enabling efficient adjustment in the range of approx. 30 mm

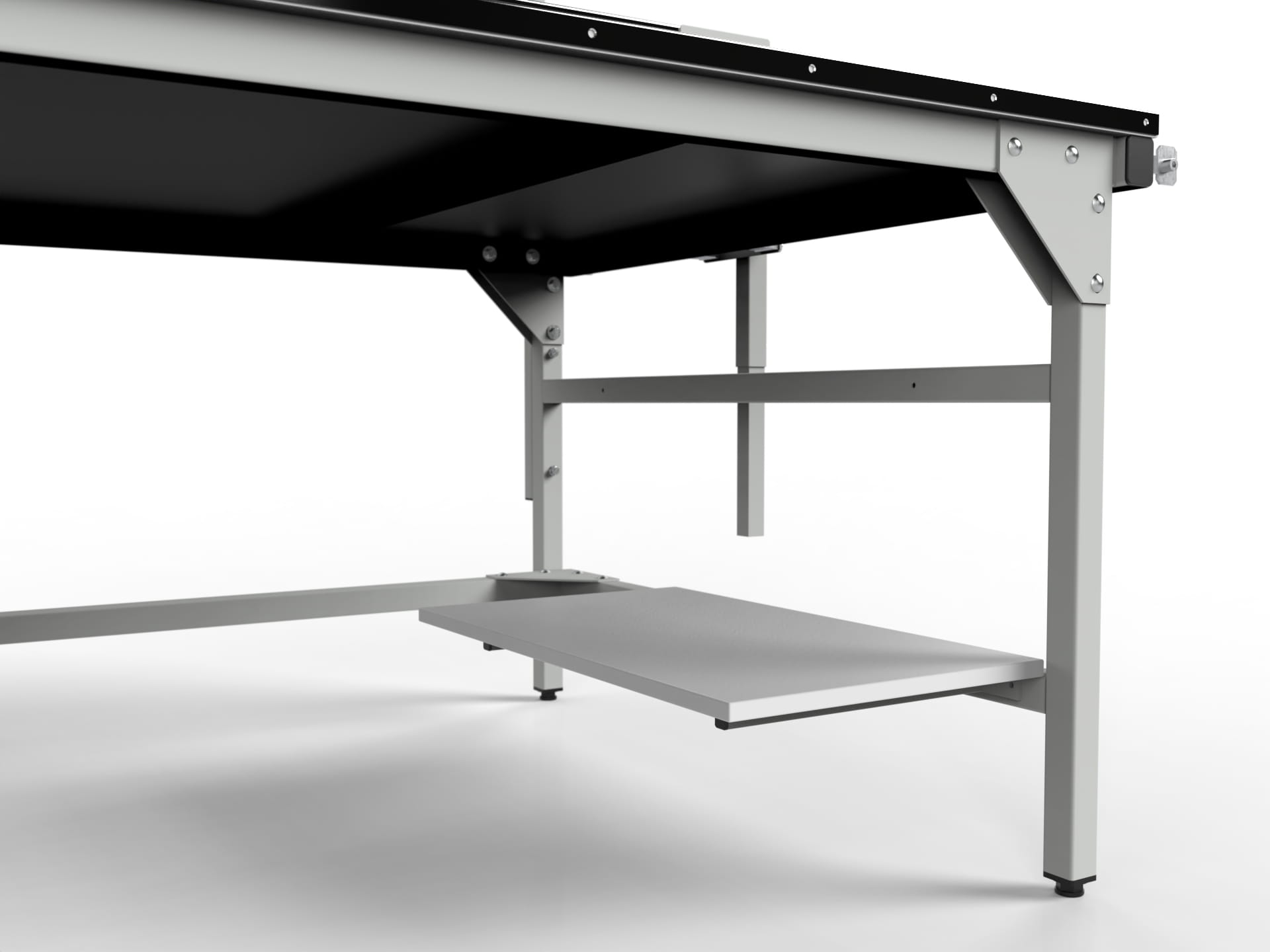

• PC shelf 690x400 mm, height from the floor 240 mm
• table load capacity 200 kg

Modular design - possibility of adding equipment:

SMW Jabama workshop tables are based on a modular design - their base is a solid frame with a top, which can be equipped with numerous additional components, such as:

• tool cabinets, perforated panels, balancer handles that help maintain order and increase the effective surface of the workstation
• upper and lower standard or inclined shelves, shelves on arms
• PC accessories such as monitor holders and computer shelves, power strips and cable channels
• central lighting
• storage containers for sorting parts and small elements

Thanks to various accessories, you can easily create a workstation configuration tailored to your individual needs, increasing work comfort, ergonomics and efficiency.

Warranty and support from Jabama manufacturer experts

Each SMW table is covered by a three-year warranty. Before purchasing and while using the table, you have constant access to support from a team of specialists who will answer any questions, help you adjust the table to your individual needs and provide advice on how to choose the optimal equipment for your workshop. Our offer also includes other workshop furniture
