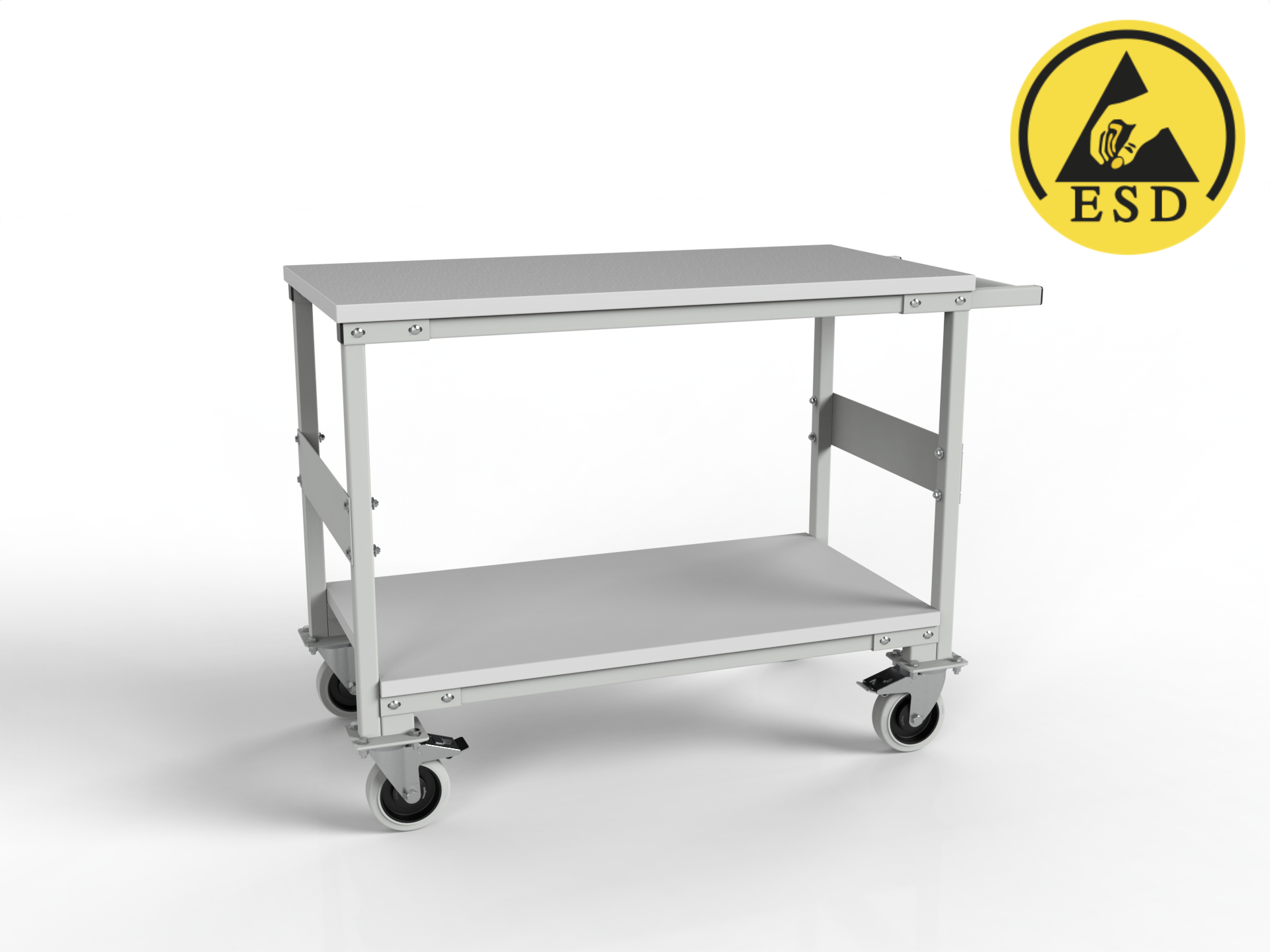

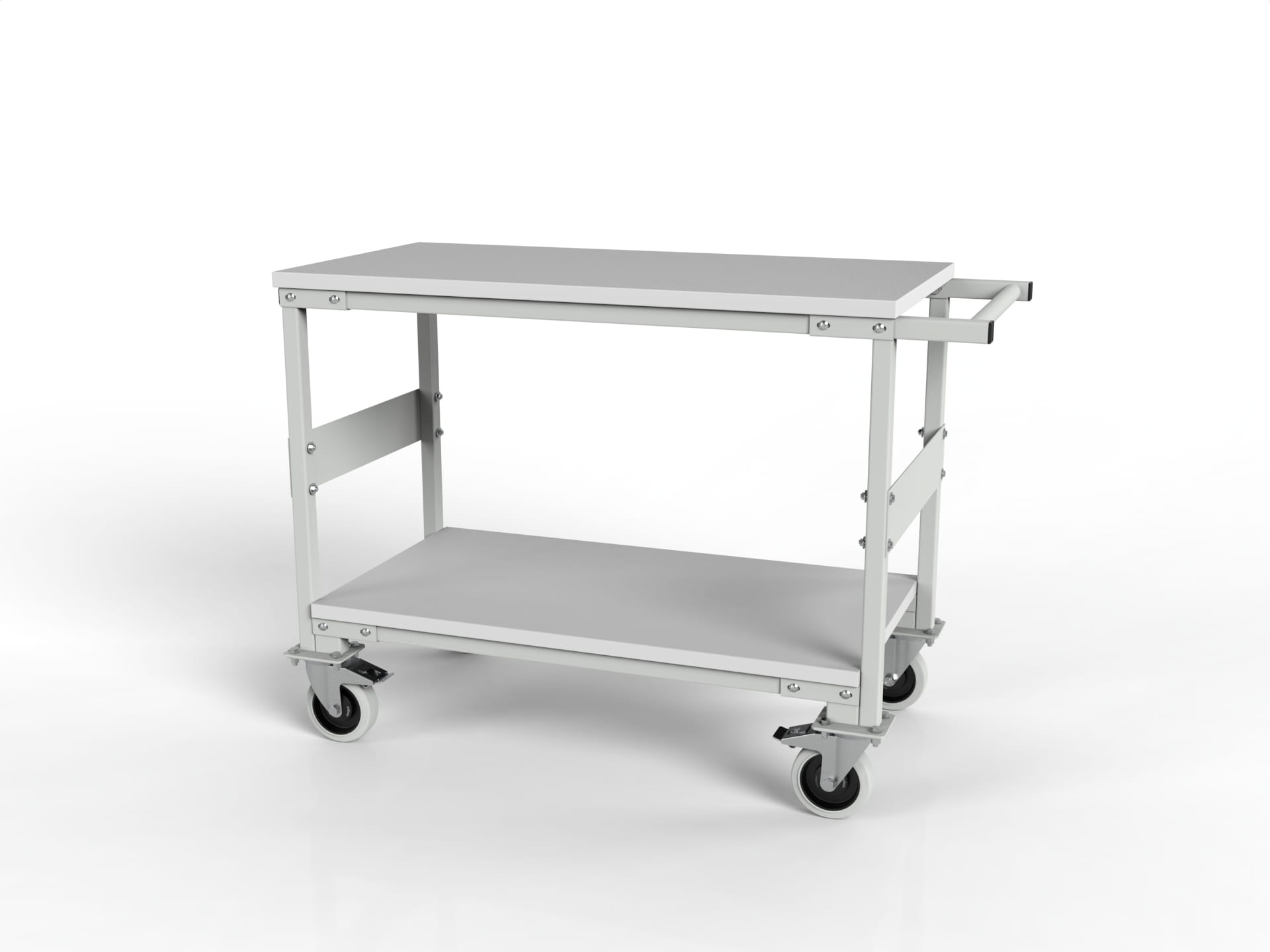

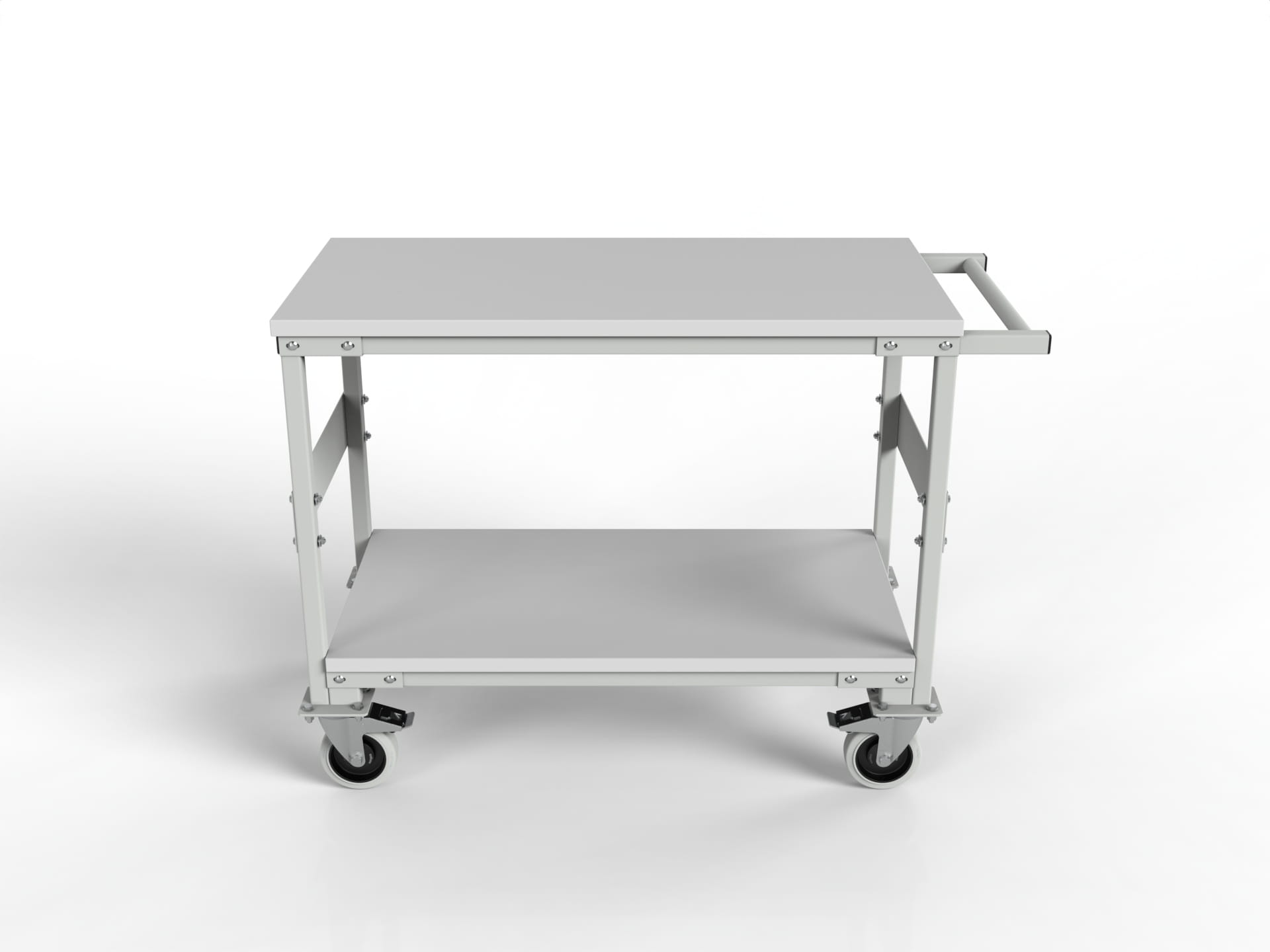

Shelf trolley WE-01-02-ESD

Shelf trolley WE-01-02-ESD

This is a cart designed for transporting materials and components sensitive to electrostatic charges. The shelves are made of conductive melamine board and the frame of the structure is made of steel profiles, painted with conductive paint. Four, anti-static swivel wheels with brakes ensure mobility and safety of the structure. The total load capacity is as much as 200 kg when evenly distributed (100 kg per tabletop). WE-01-02-ESD will be perfect for EPA zones in industrial plants and warehouses.

Specifications of the shelf cart WE-01-02-ESD

• construction made of steel profiles, powder-coated with conductive paint in RAL 7035
• overall dimensions of the cart: 1134 x 504 x 800 mm (length including handle x width x height)
• tops made of conductive melamine board 25 mm thick
• upper top 1000x500 mm (1004x504 mm with ABS veneer)
• lower top 925x500 mm (929x504 mm with ABS veneer)
• clearance between the surface of the lower top and the support of the upper top: 496 mm
• total load capacity: 200 kg when evenly distributed, 100 kg per tabletop
• four 125 mm antistatic wheels, swivel with brakes

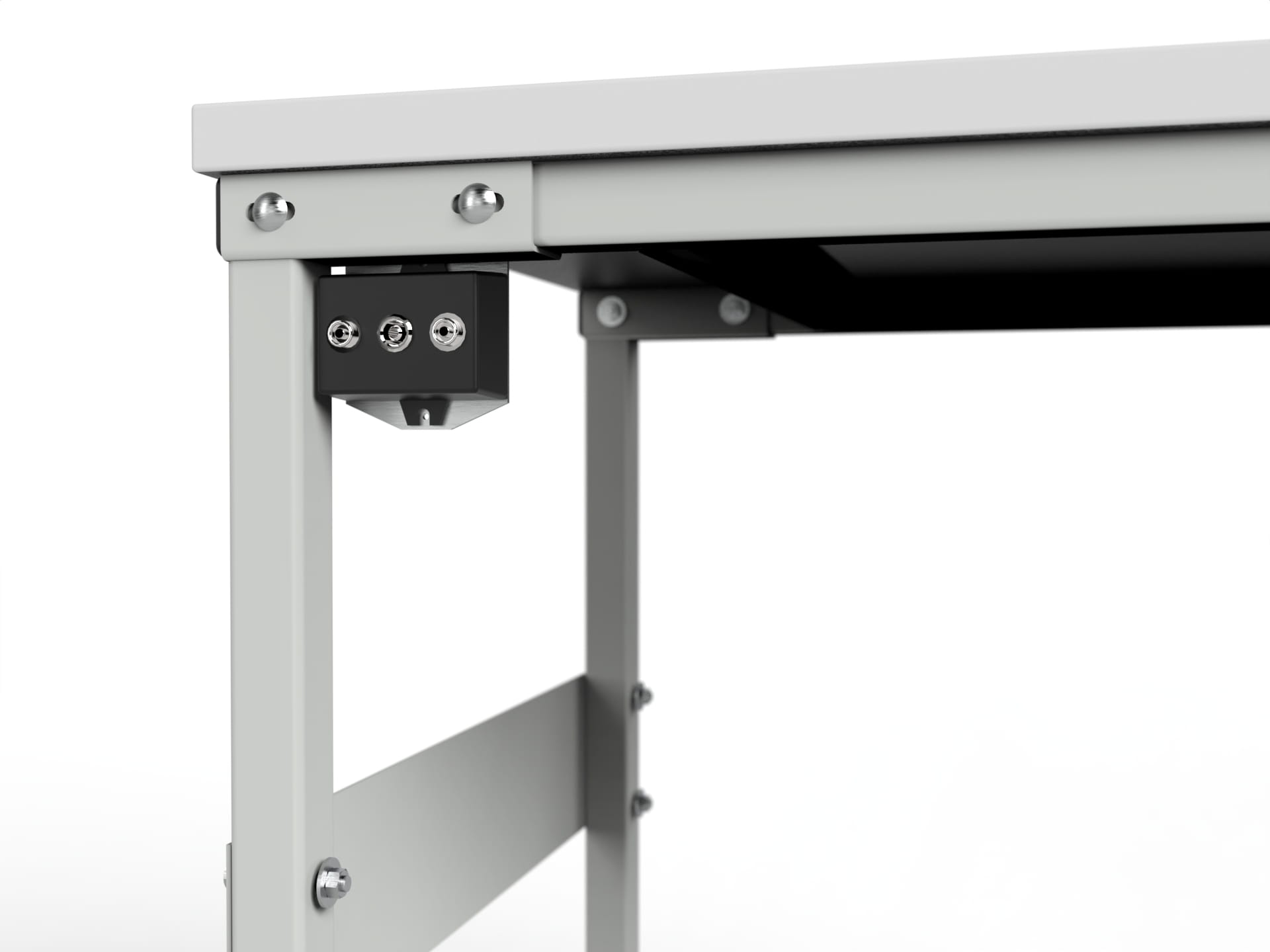

• optional: grounding assembly with two 10 mm latches and one 4 mm banana socket, 1.8 m grounding cable included

ESD equipment from the manufacturer Jabama

The trolleys manufactured by Jabama are a specialist equipment that will be just as well suited for large EPA zones in industrial halls as they are to smaller electronics plants. Made of solid, specially painted steel profiles and damage-resistant, conductive melamine board, combined with antistatic wheels and an optional grounding unit, the equipment manufactured and offered by Jabama stands out in terms of quality and ergonomics on the market. Check also our offer for ESD workstations, control cabinet prefabrication racks and wire trolleys.
