Tilting stand for container emptying PE-1012-SPEC-11399

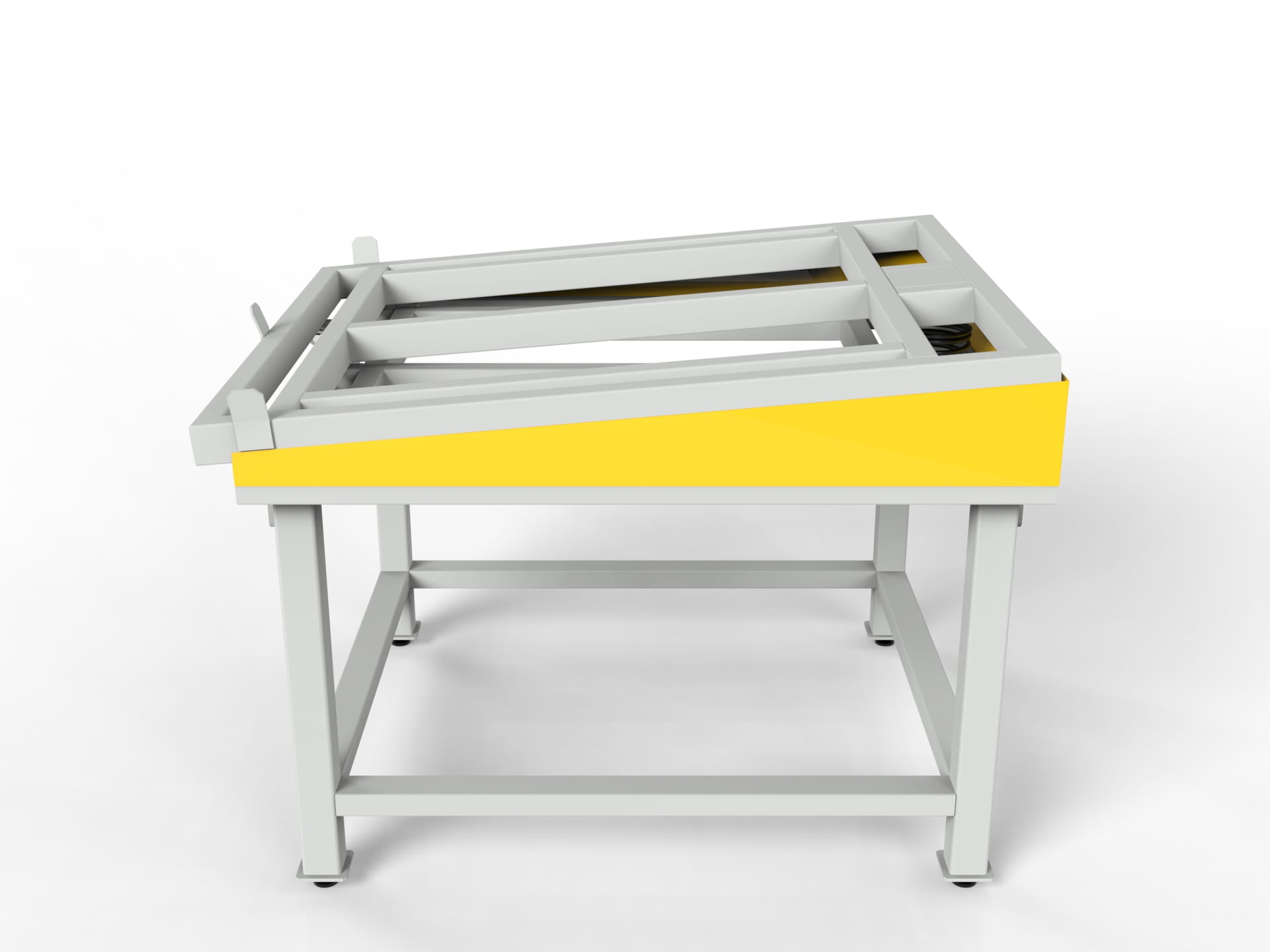

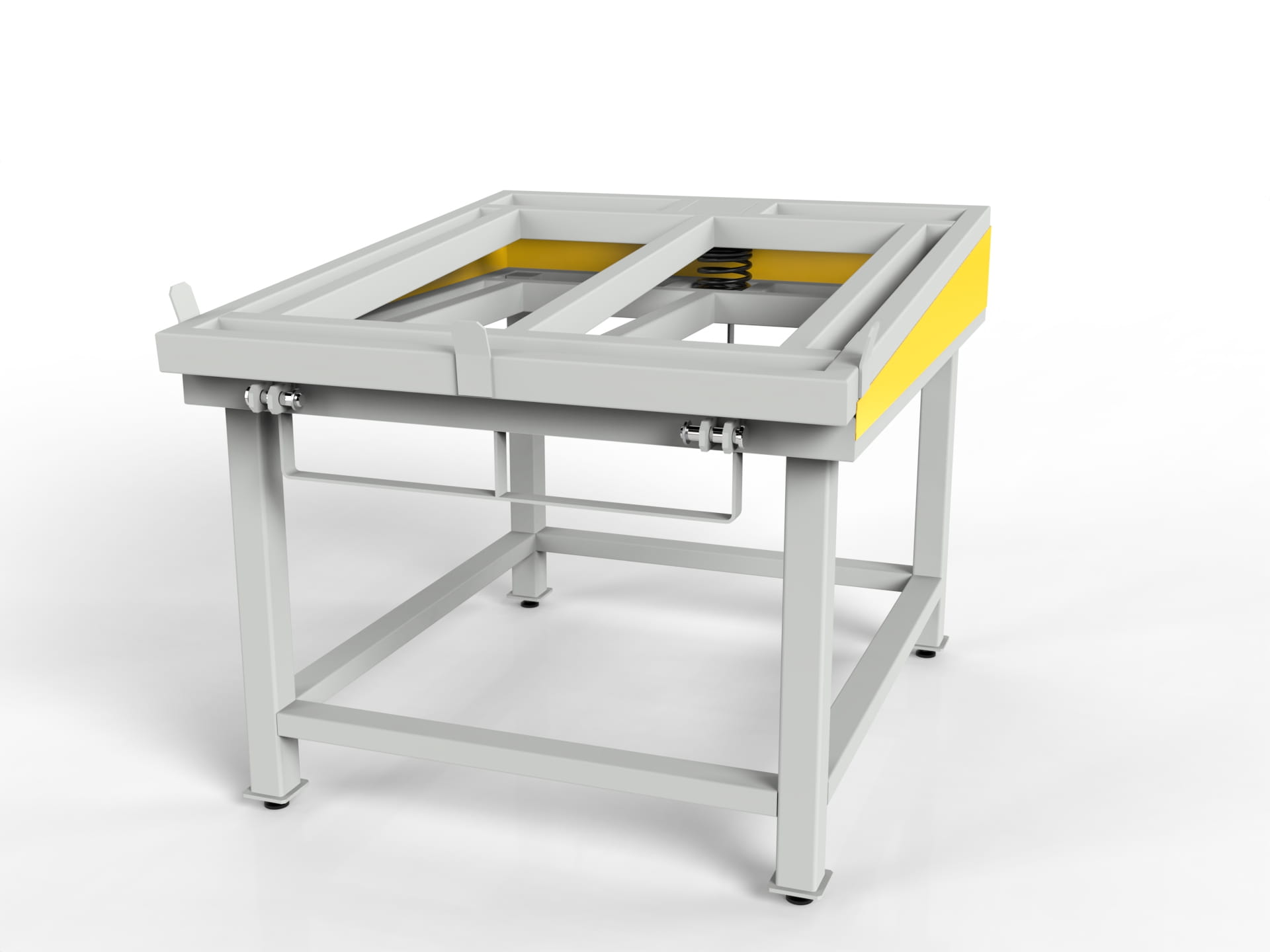

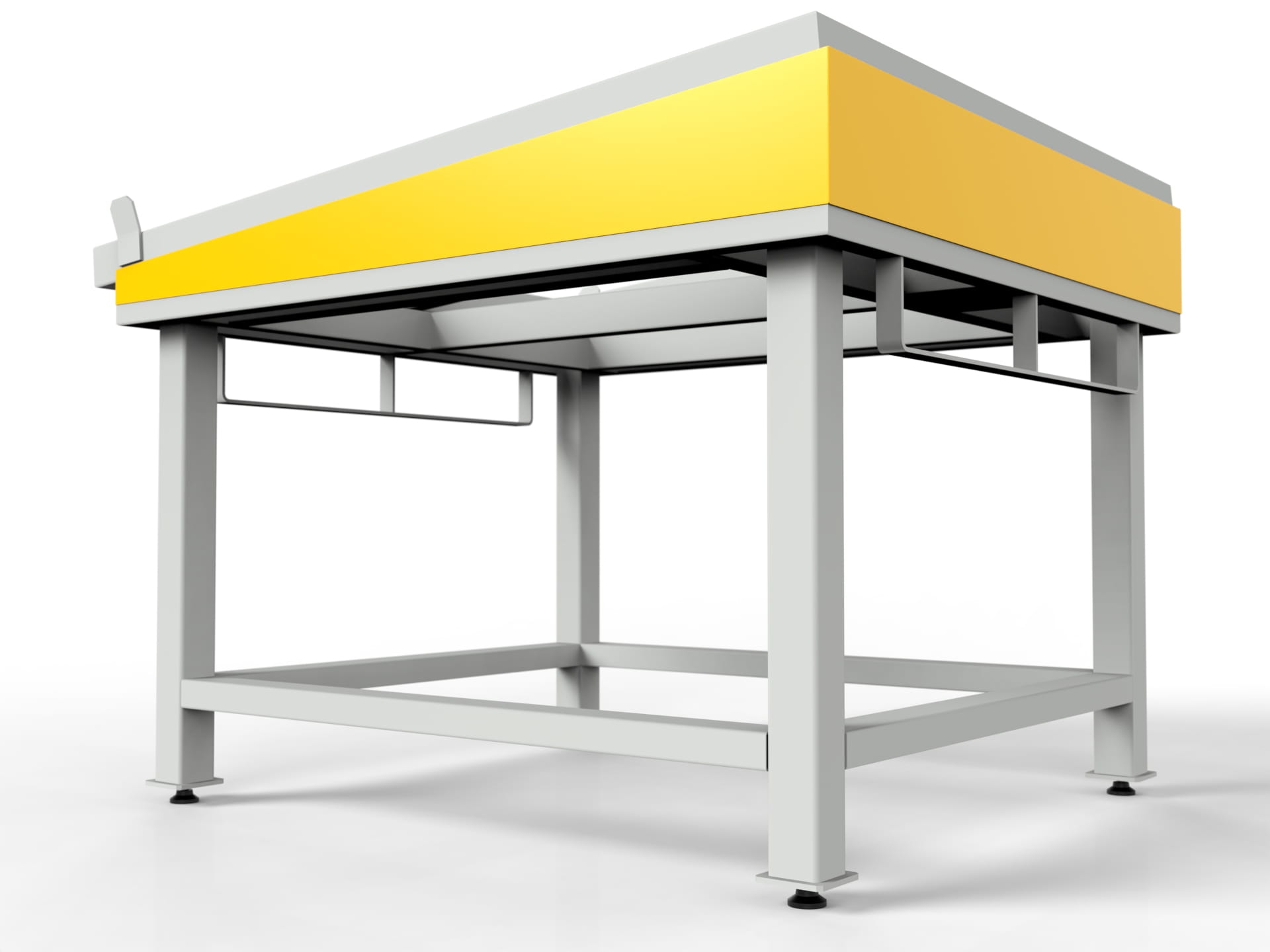

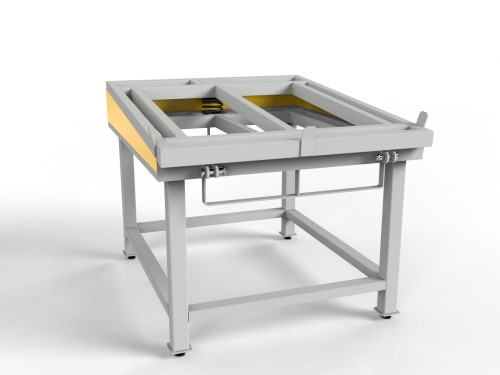

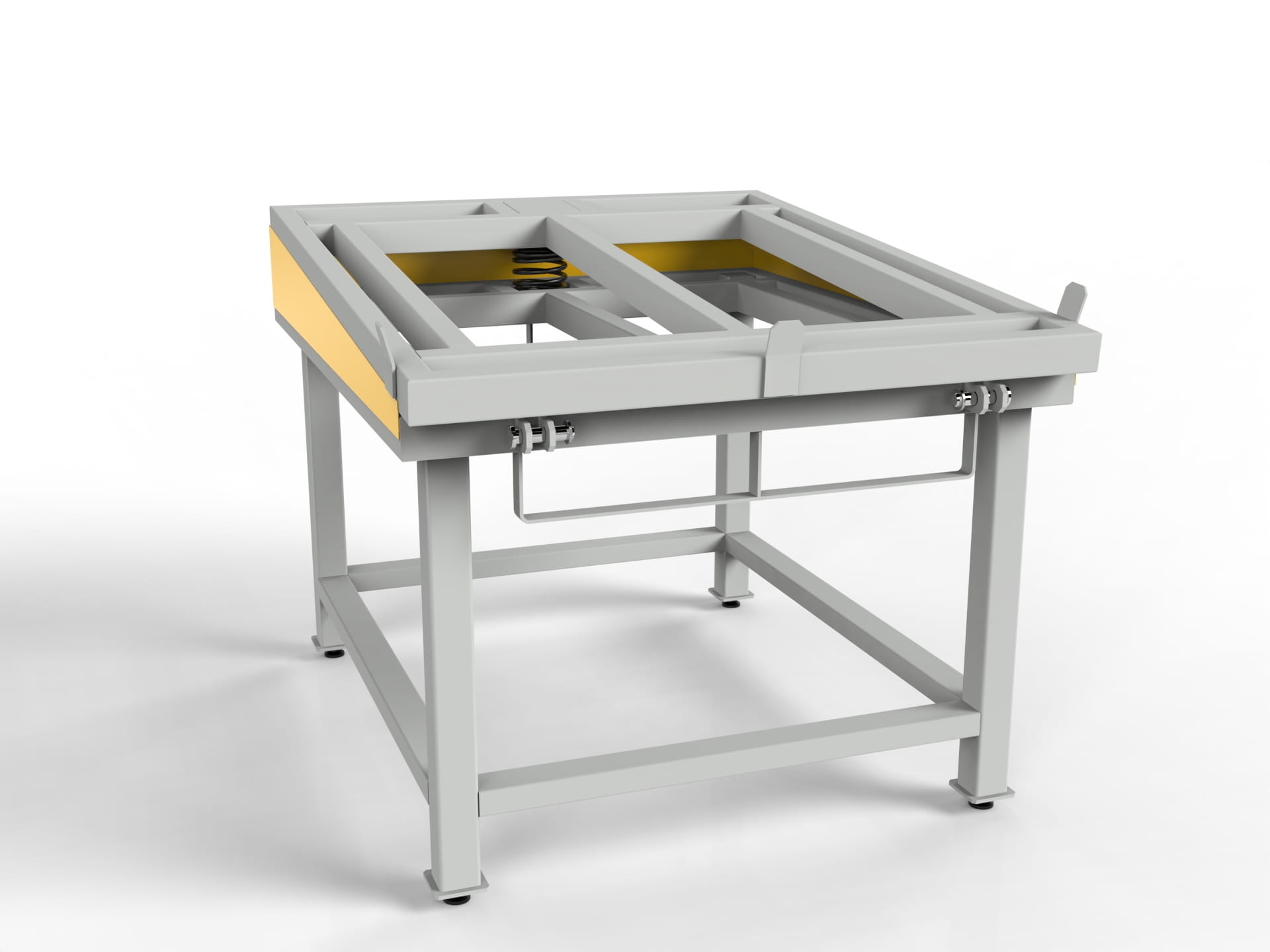

Tilting stand PE-1012-SPEC-11399 on a spring, with protection plates

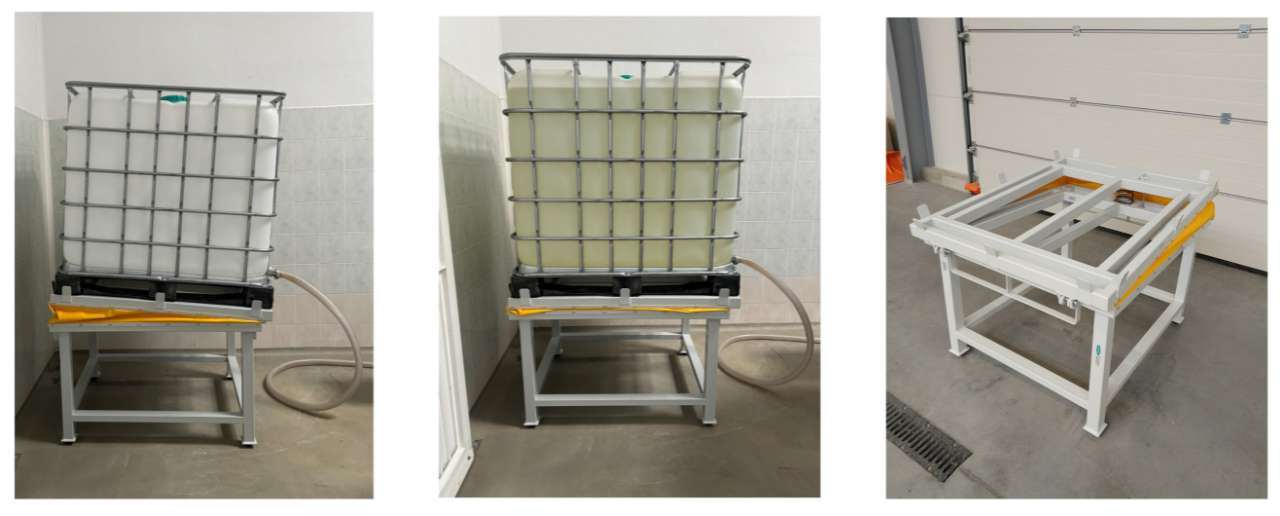

The tilting stand is a specialised solution when liquid tanks need to be fully emptied. Consisting of one fixed and one mobile frame, the platform has a load capacity of up to 1,025 kg and plates to protect the items placed on it. It also has a spring that lifts one side of the working surface when the weight on it drops below 250-300 kg, allowing the contents of the tank to be emptied gradually and effectively. The shorter side has slots for a forklift. Additional protection for the structure is provided by a material cover that prevents inadvertent placement of components between the fixed and moving sections of the frame. Most of the ramps are made of steel profiles powder-coated in light grey RAL 7035.

Features of the tilting stand PE-1012-SPEC-11399

• overall dimensions 1244x1045x840 mm (length x width x height)
• total load capacity 1025 kg
• load securing plates

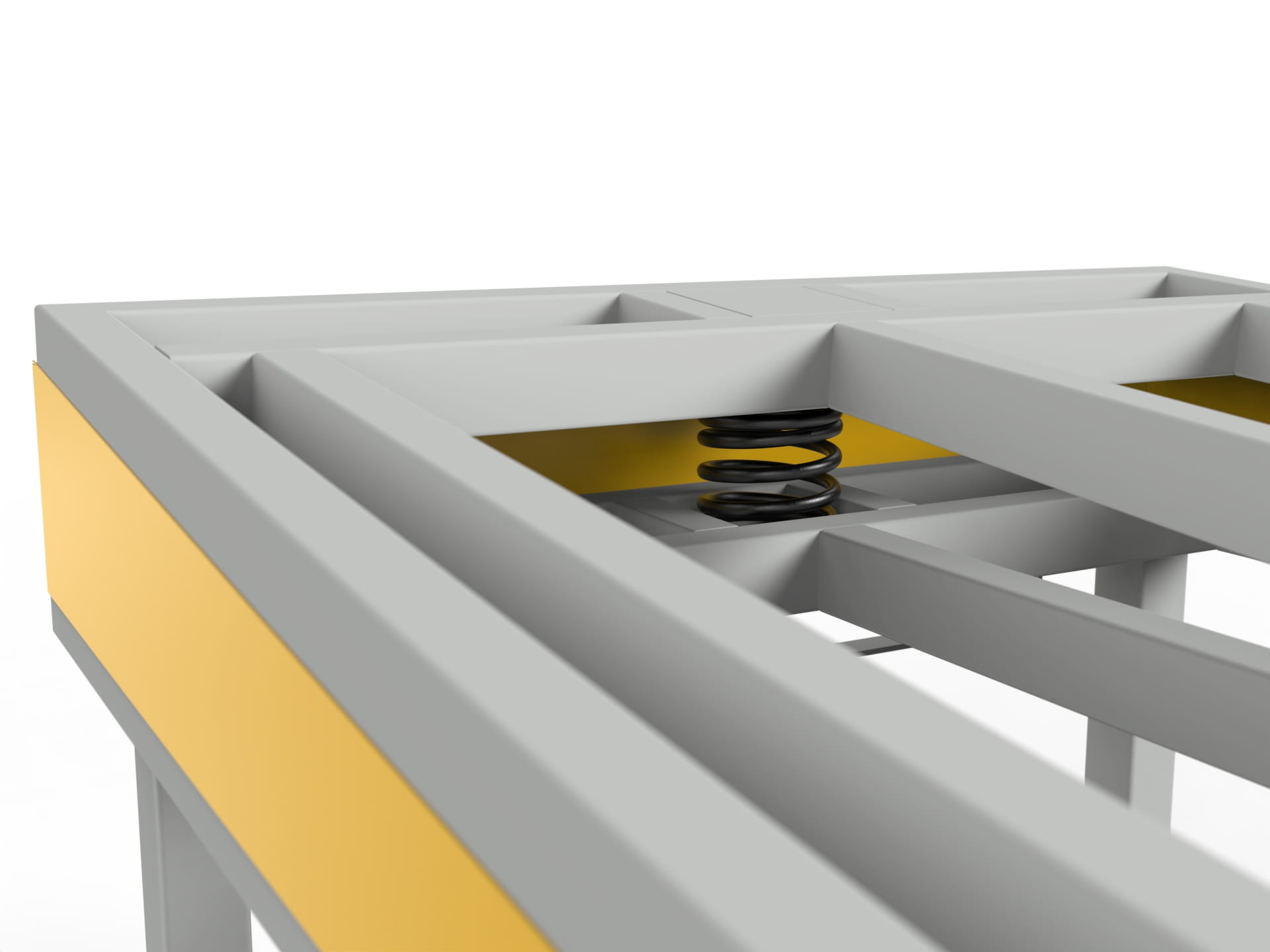

• spring lifting one side of the frame when the load falls below 250-300 kg
• forklift slots on the short side
• material cover to protect some of the frame elements
• made of powder-coated steel profiles in light grey RAL 7035

Wide range of products and guaranteed quality in our online store

The tilting stand is a specialised and ergonomic design for workplaces. The frame, which rises on a spring as the weight falls, makes it possible to tilt the tank placed on it and empty it fully. The material cover makes it difficult for unwanted objects to get between the frame elements. Along with your purchase in our store, you also receive the assistance of our team of experts and access to a wide range of industrial furniture such as packing tables and shelf racks, as well as attractive volume discounts.
