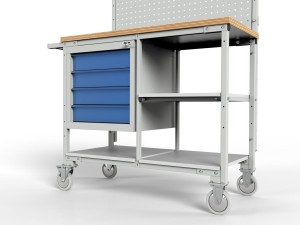

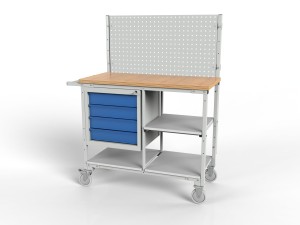

Tool trolley WN-14703

Workshop trolley WN-14703

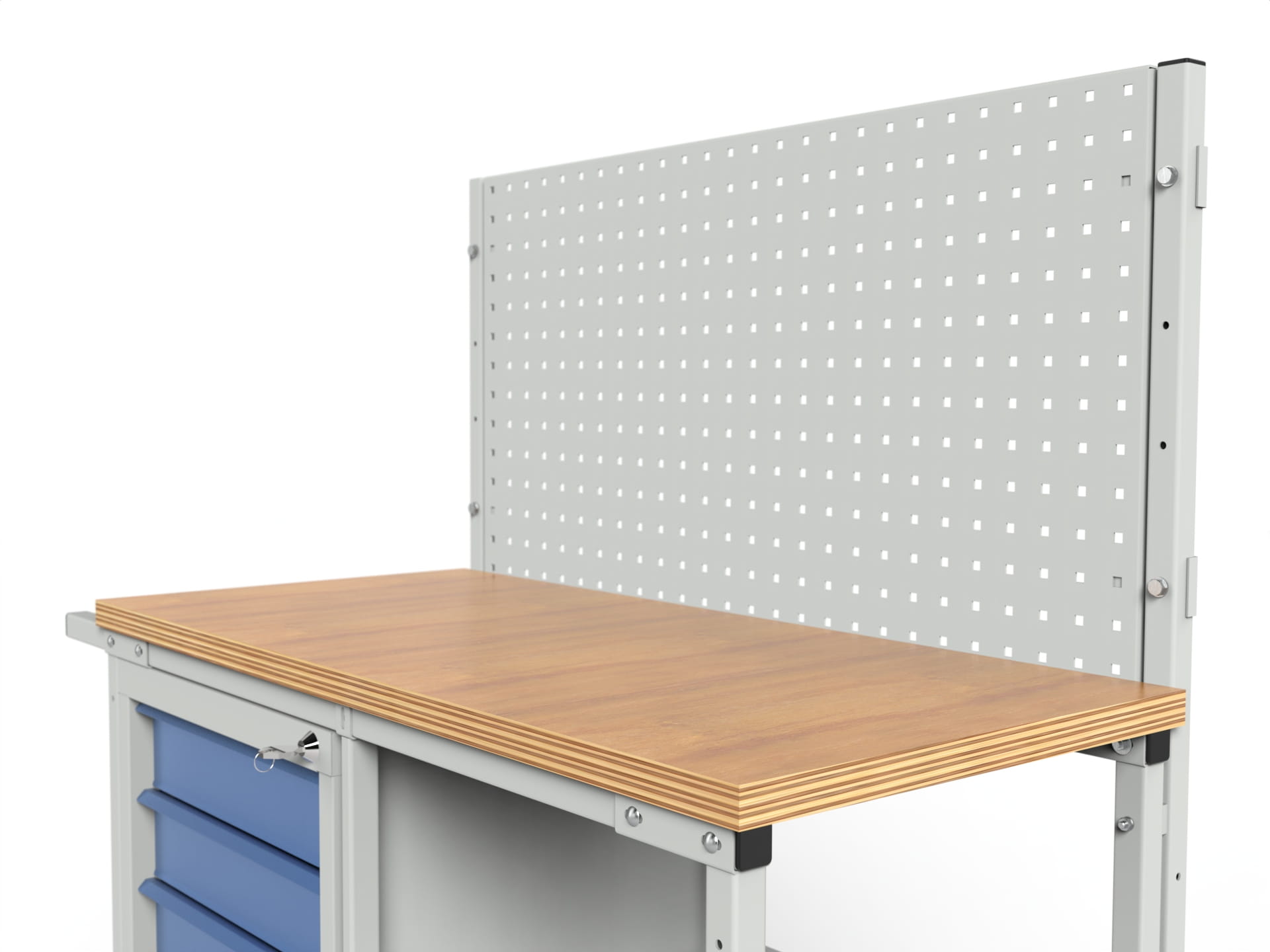

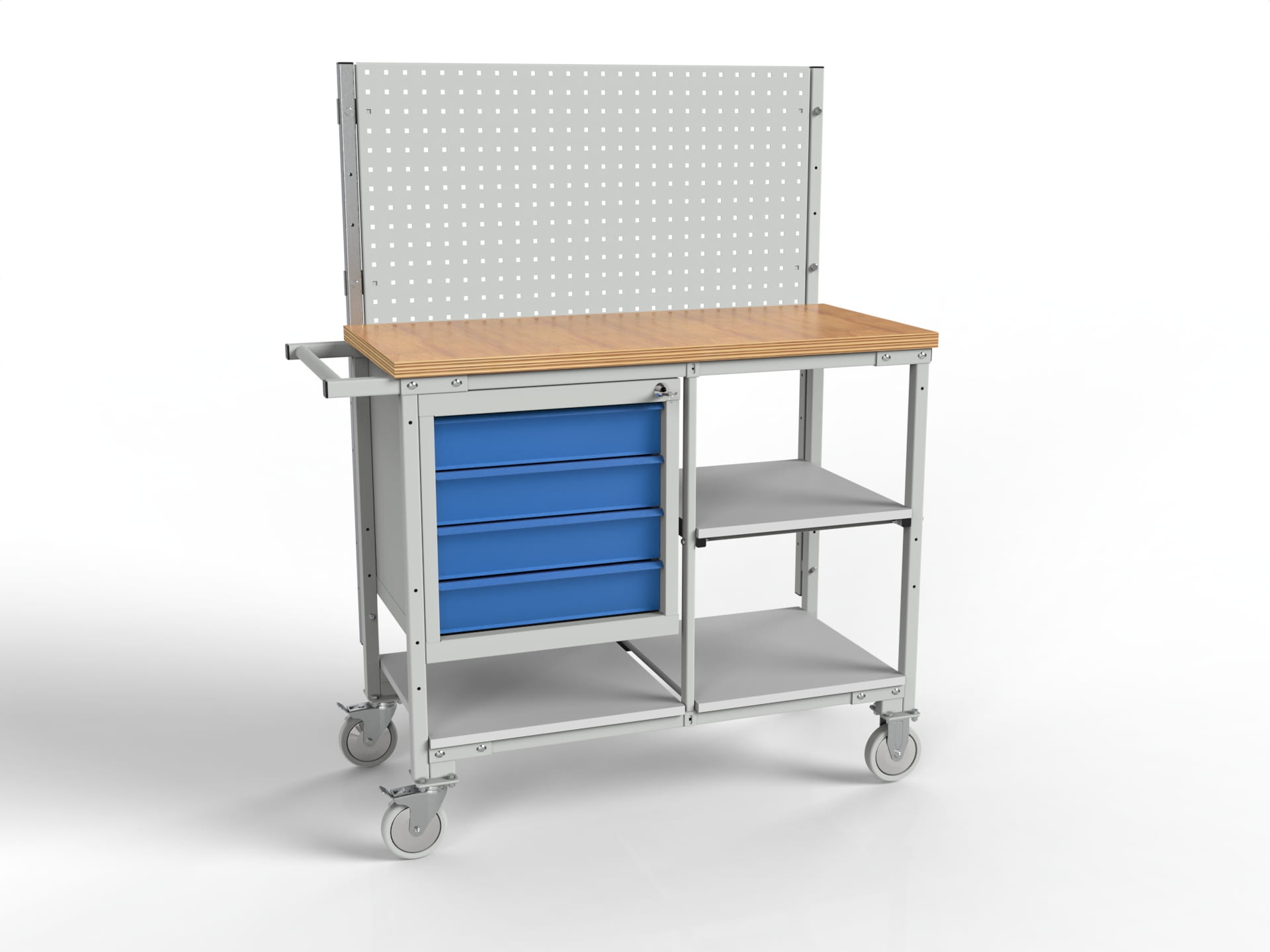

A versatile design which is a development version of Jabama's WN series of trolleys. The top is an aesthetically pleasing and durable 30 mm thick hardwood plywood with a clear lacquer finish; directly above it is a perforated wall which makes it possible to fit a wide range of additional equipment - from tool holders and storage containers to power strips and monitor arms. The under-counter space has been arranged with a tool cabinet with four pull-out drawers (also available with three drawers or a shelf in the centre) - lockable with a central lock - and three shelves made of laminated board. The entire unit is based on a stable construction made of powder-coated steel profiles and four castors - two swivel with a brake and two guides; additional functionality is provided by a handle for easier steering. WN-14703 has been designed as a versatile trolley for storing and transporting large quantities of various elements - tools, assembly parts, bits, paper, etc., which is why it can be used in various industrial workshops, production plants, service workshops or even in garages.

Characteristics of the WN-14703 trolley

• overall dimensions: 1473 x 1206 x 553 mm (height x length x width)
• frame made of powder-coated steel profiles in RAL 7035 (light grey)
• top made of sturdy 30 mm clear-coated hardwood plywood, 1086x506 mm in size, top surface 950 mm from the ground
• total load capacity: 250 kg when evenly distributed
• tool cabinet depending on the variant: with three or four centrally locked drawers or with a shelf inside and lockable door
• perforated panel 520 mm high (from the tabletop surface) and 987 mm wide, 9 mm square holes in a 38 mm grid, made of powder-coated steel
• four 125 mm diameter wheels: two swivel with brake, two fixed
• two shelves on the right-hand side, made of melamine board, 18 mm thick, with dimensions 500x460 mm, maximum height of objects placed on the lower shelf - 315 mm, on the higher shelf - 290 mm
• shelf under the tool cabinet, made of melamine board, 18 mm thick, with dimensions 500x500 mm, maximum height of objects placed on it: 140 mm

JABAMA trolleys - ergonomics and mobility

Workshop trolleys manufactured by JABAMA provide first-class workmanship, backed by a three-year warranty. They will contribute to a significant improvement in mobility and productivity, streamlining the transport of tools, materials and assembly components wherever they are needed at any given time. The different variants available will allow you to tailor a model to your individual needs and maximise your comfort. Our range also includes platform trolleys, shelf trolleys, carton trolleys or cable and wire trolleys.
