Transporting cart
5
Description
JABAMA transport trolleys set the new high quality and good workmenship standards among similiar products. Thanks to being extremely durable, practical and ergonomic, they enable many years of trouble-free work in warehouses, logistic centers and all kinds of industry. We offer trolleys for various purposes, with an option to highly customize.

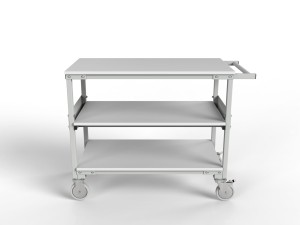

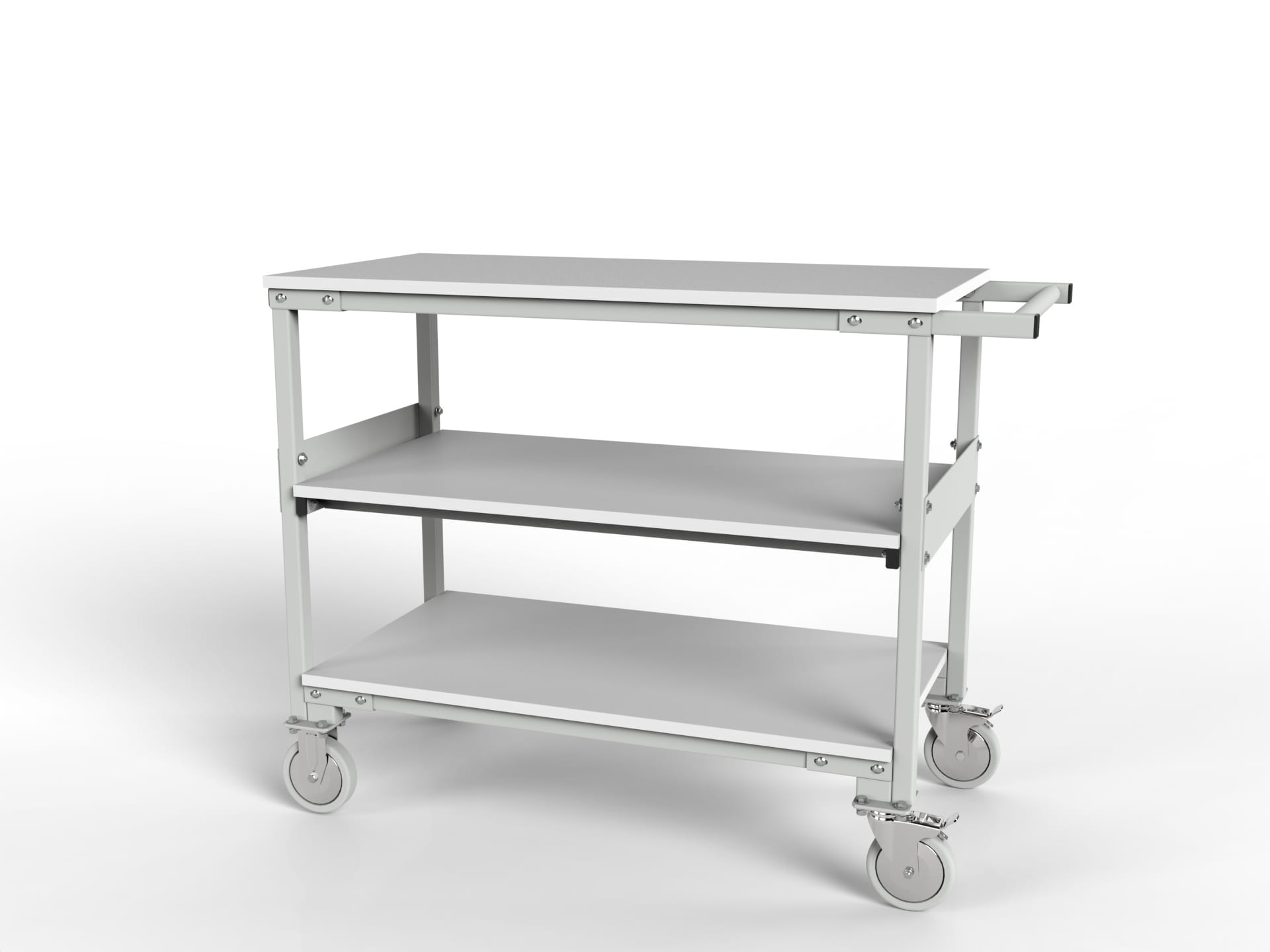

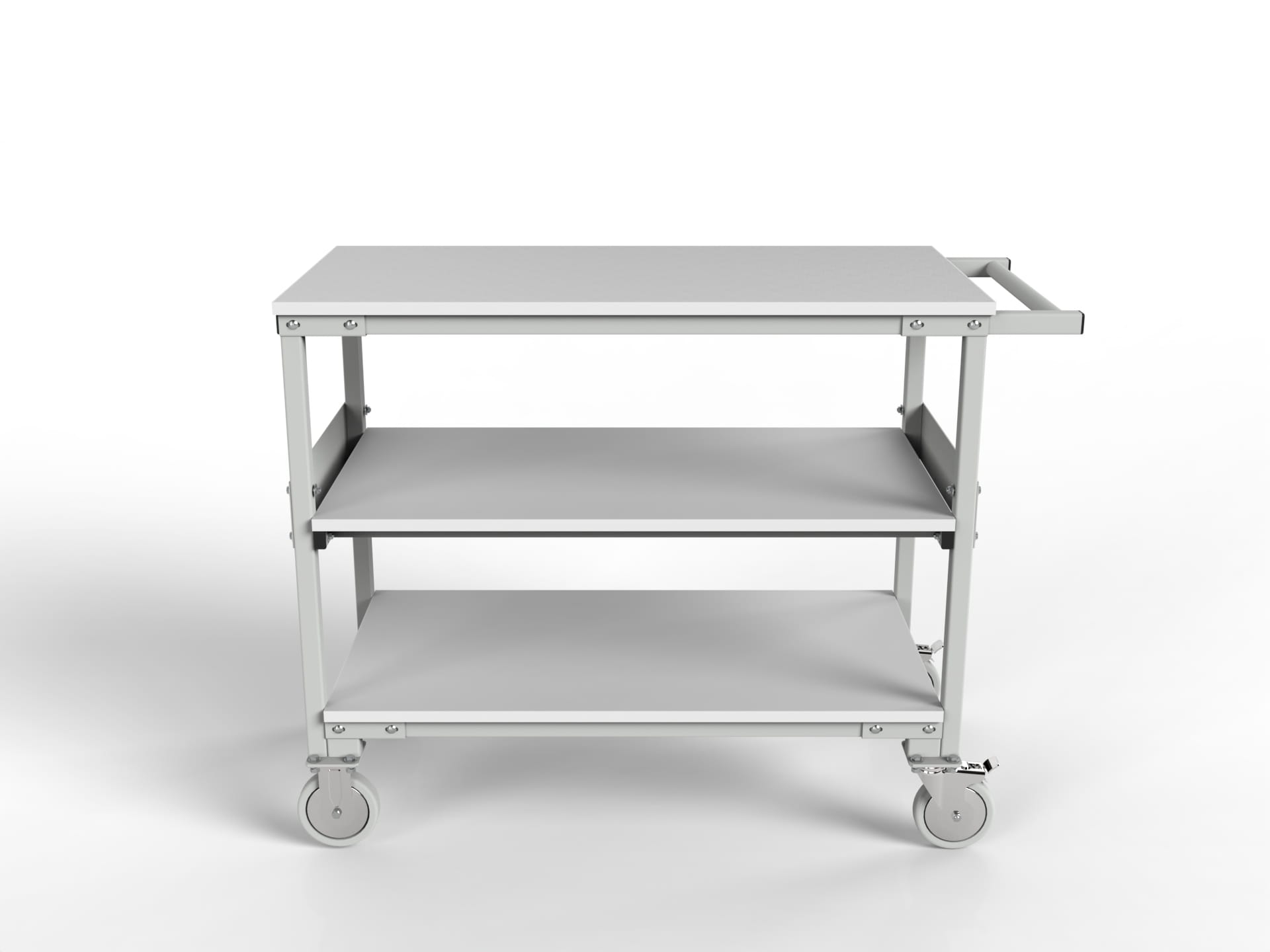

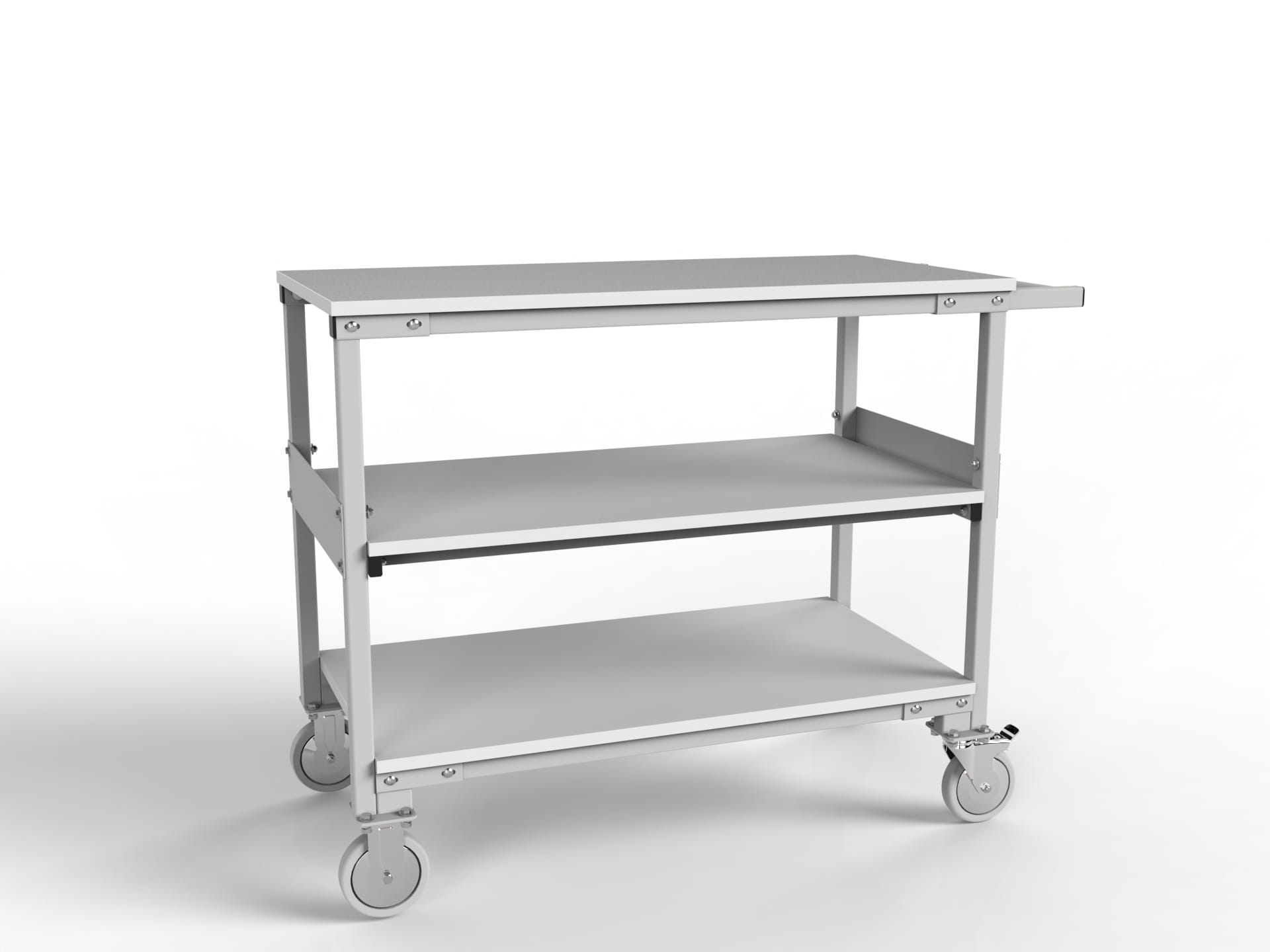

WE-01-03 TROLLEY WITH 3 SHELVES
1) Solid steel construction, powder coated in light grey colour RAL7035.

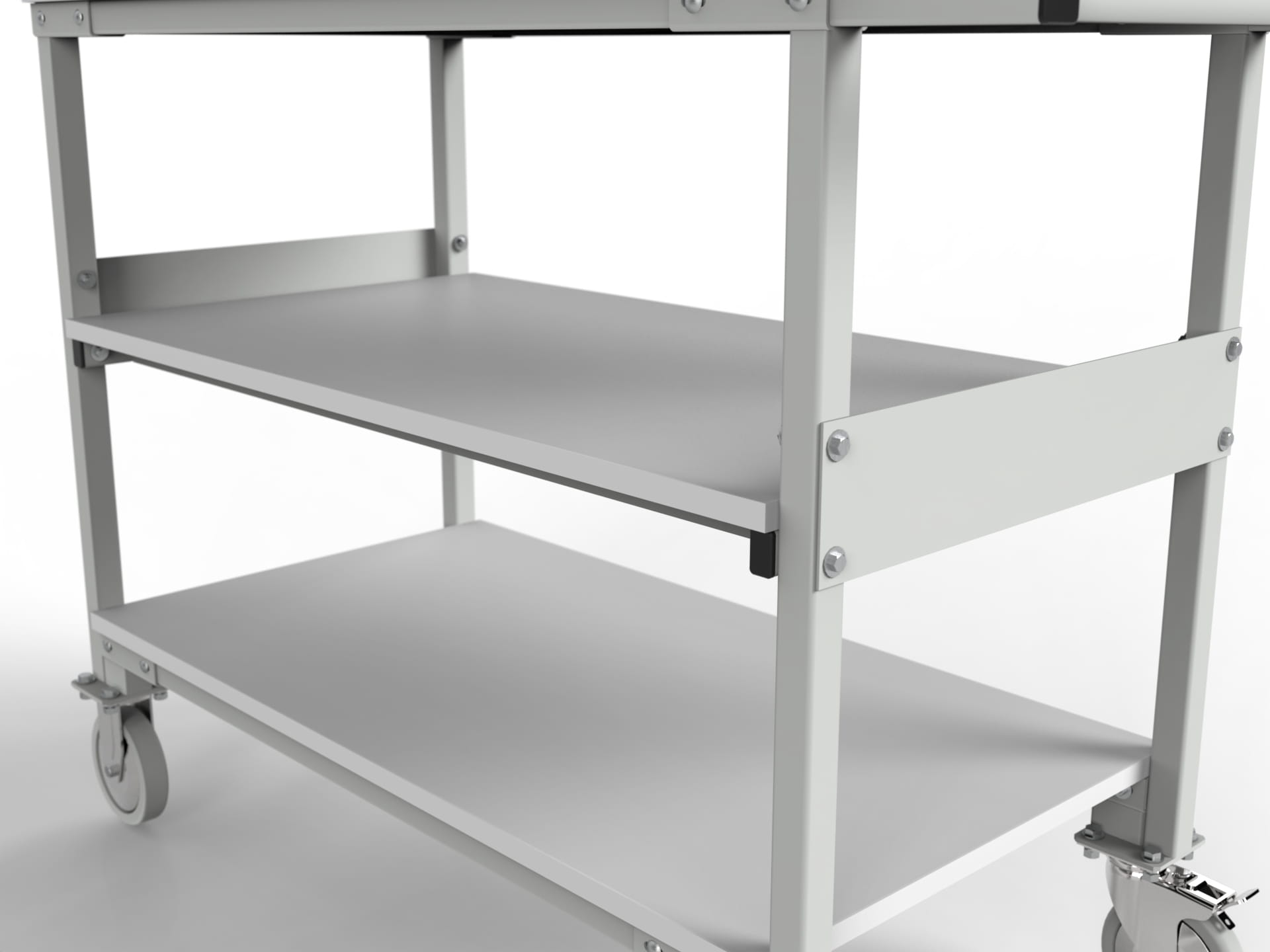

2) Three shelves made of laminated chipboard 18 mm thick, veneered with 2 mm ABS, all in light grey colour. The height of the upper shelf is 863 mm, middle 528 mm and lower shelf 195 mm. The spaces between shelves are 281 mm (upper/middle) and 255 mm (middle/lower).
3) Upper shelf dimensions are 1004x504 mm with veneer, middle and lower shelf 934x504 mm. Total dimensions of the trolley with a handle 1130x863x504 mm. Trolley can be also made in customized dimensions,

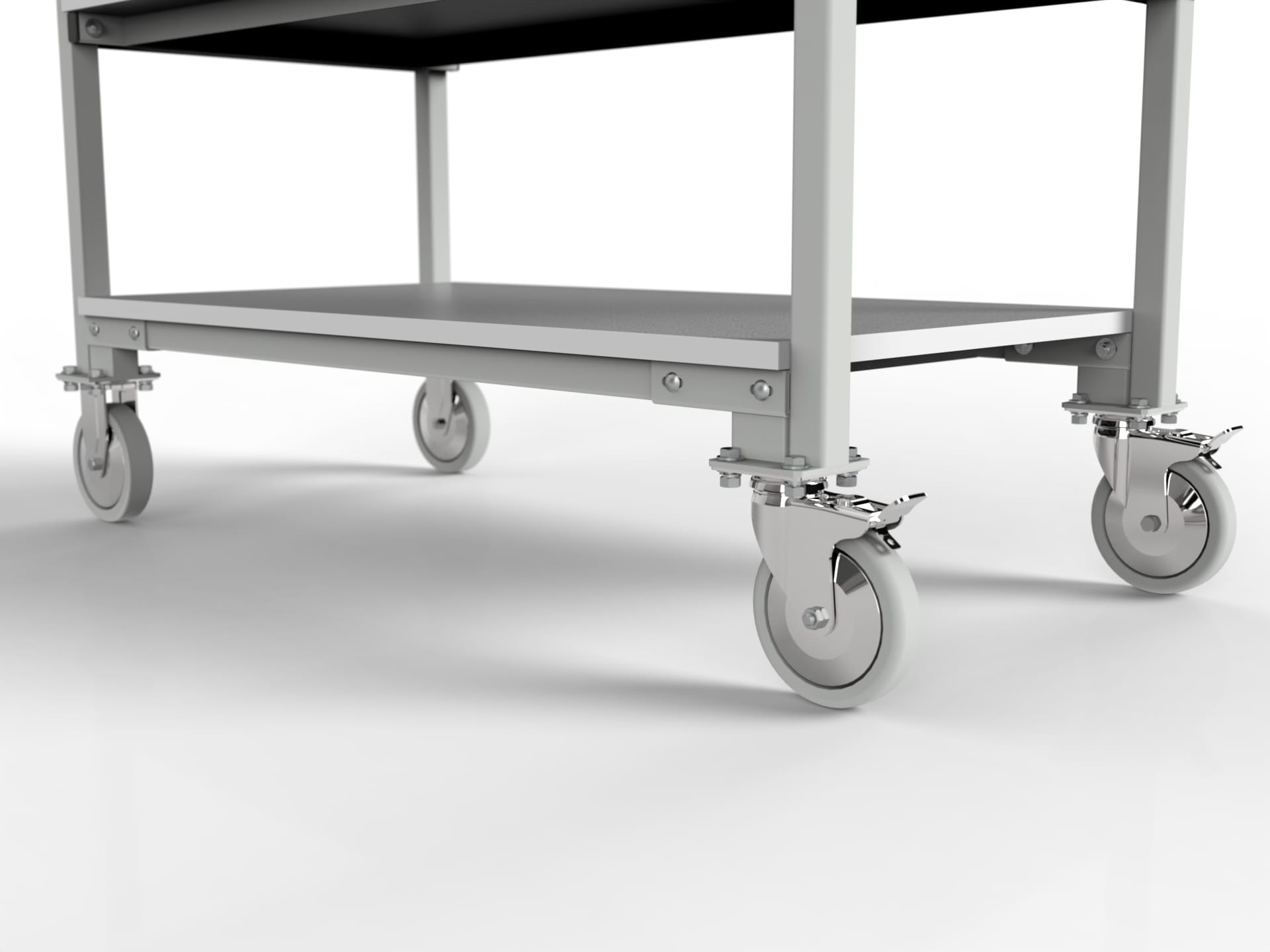

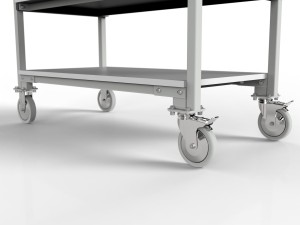

4) Wheels 125 mm with plain bearing. Two fixed guide wheels and two swivel wheels with break. On demand trolley will be equipped with four swivel wheels.
5) The weight of the trolley is 40 kg and the maximum load is 200 kg.
