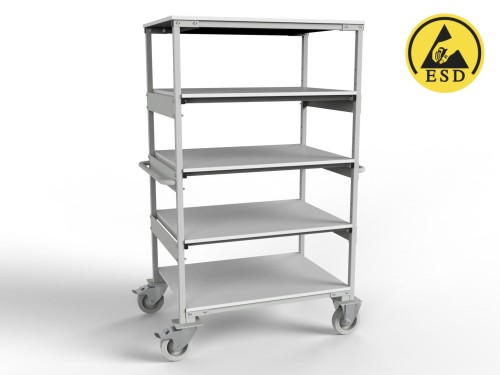

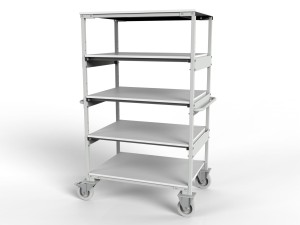

WE-05-ESD cart with 5 shelves

WE-05-ESD transport cart with five shelves

The WE-05 trolley is made using technology that prevents damage caused by electrostatic charges - the metal elements of the frame are painted with conductive powder paint (light gray - RAL 7035) and the tops are cut from conductive melamine board. Four shelves measuring 925x700 mm and a larger top provide large storage space for transporting sensitive elements and components, additional functionality is also provided by the possibility of two-stage adjustment of the three middle shelves combined with the total load capacity of the trolley with even distribution at the level of 300 kg. Mobility is provided by four antistatic 125 mm wheels - two guiding and two swivel with brakes.

The most important features of the WE-05-ESD cart

• steel structure painted with conductive powder paint in light grey RAL 7035
• shelf tops made of conductive melamine board P2 ESA ESD (IEC 61340-5-1) with a thickness of 25 mm

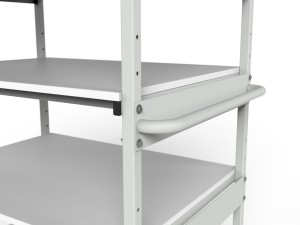

• total dimensions of the trolley with handles: 1184x776x1700 mm (length x depth x height)
• dimensions of the upper top: 1000x700 mm, dimensions of the remaining shelves: 925x700 mm

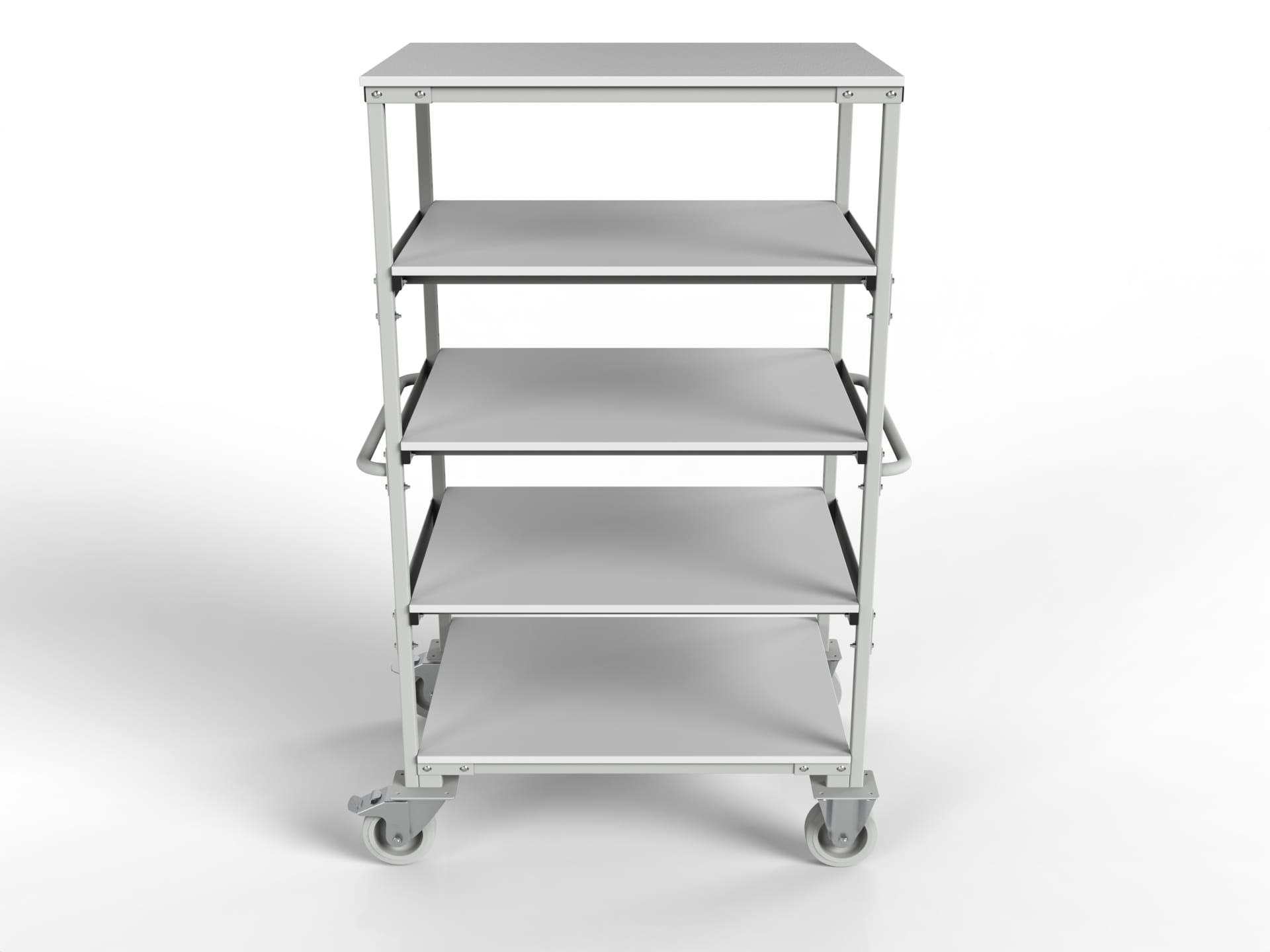

• height of individual tops: 1706 mm, 1351 mm, 996 mm, 641 mm and 286 mm
• three middle shelves have the possibility of two-stage, step-by-step height adjustment upwards every 70 mm

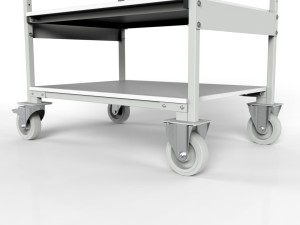

• four antistatic wheels with a diameter of 125 mm, two guiding and two swivel with brakes
• total trolley load capacity: 300 kg when evenly distributed

ESD equipment from the manufacturer Jabama

The trolleys manufactured by Jabama are a specialist equipment that will be just as well suited for large EPA zones in industrial halls as they are to smaller electronics plants. Made of solid, specially painted steel profiles and damage-resistant, conductive melamine board, combined with antistatic wheels and an optional grounding unit, the equipment manufactured and offered by Jabama stands out in terms of quality and ergonomics on the market. Check also our offer for ESD workstations, control cabinet prefabrication racks and wire trolleys.
