Workshop trolley WN-14704

Workshop trolley WN-14704

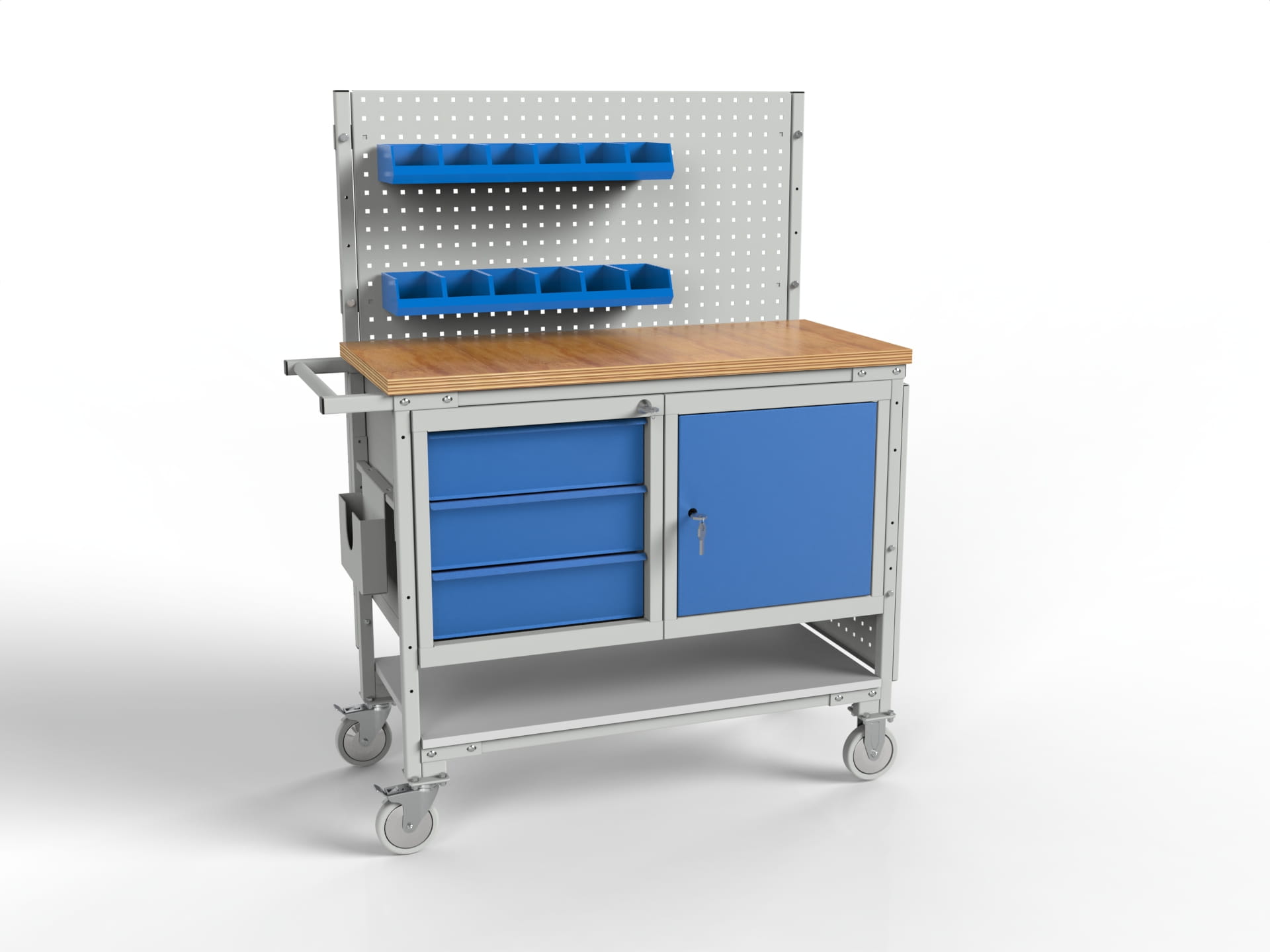

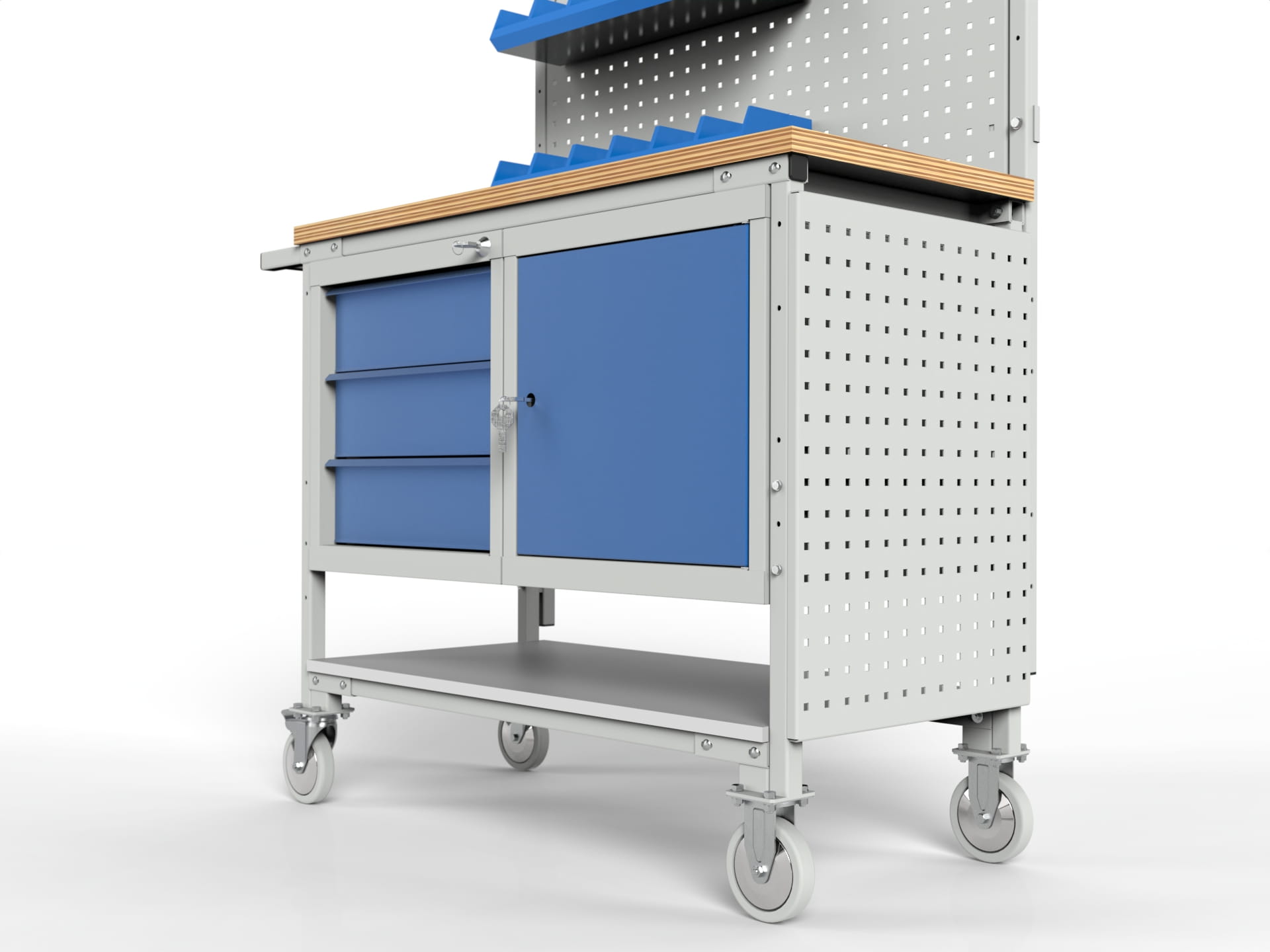

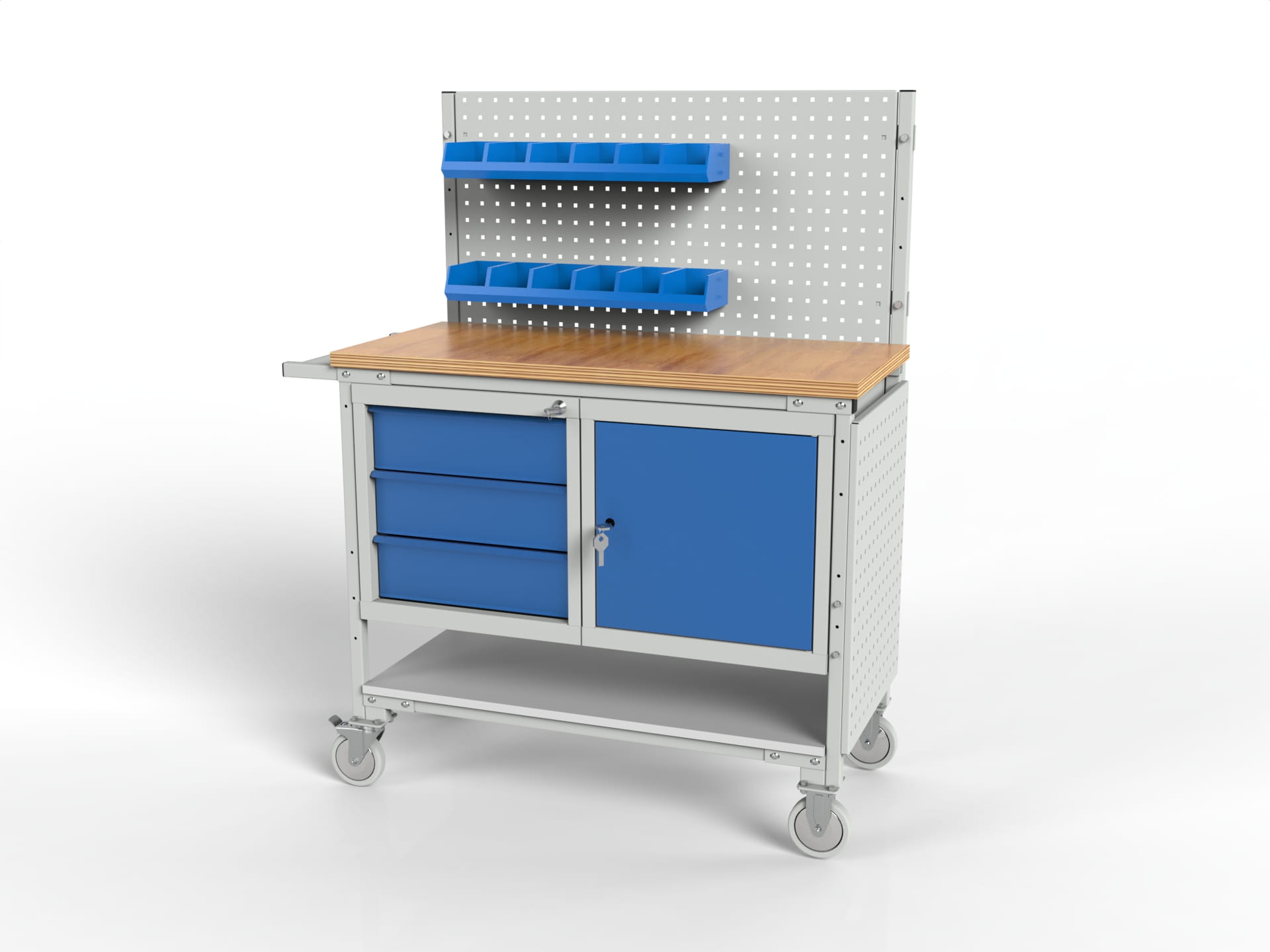

Modular and mobile, the WN-14704 is a perfect solution for workshops, warehouses, production halls, service workshops and garages. The top, made of aesthetically pleasing and durable hardwood plywood, allows even more demanding work to be carried out on it, and the perforated wall above it with up to two possible sets of storage bins allows additional tool holders, for example, to be fitted and the required mounting elements or bits to be stored. Underneath the top are two tool cabinets, the contents of which depend on your preferences - they can be fitted with three or four pull-out drawers with central locking, or a cabinet with a shelf and door. There is also a melamine board shelf underneath and another perforated panel in the side of the trolley, which can be used for paper holders, for example, or further storage for tools and materials needed. There is also a document storage compartment underneath the guide handle.

Important features of the WN-14704 workshop trolley

• overall dimensions: 1468 x 1218 x 553 mm (height x length x width)
• top made of solid 30 mm hardwood plywood, painted with clear varnish, 1090x506 mm, top surface at 950 mm from the ground
• total load capacity: 250 kg when evenly distributed
• two tool cabinets available in three variants:
  • with 3 centrally locked drawers
  • with 4 centrally locked drawers
  • with an internal shelf, locked behind doors

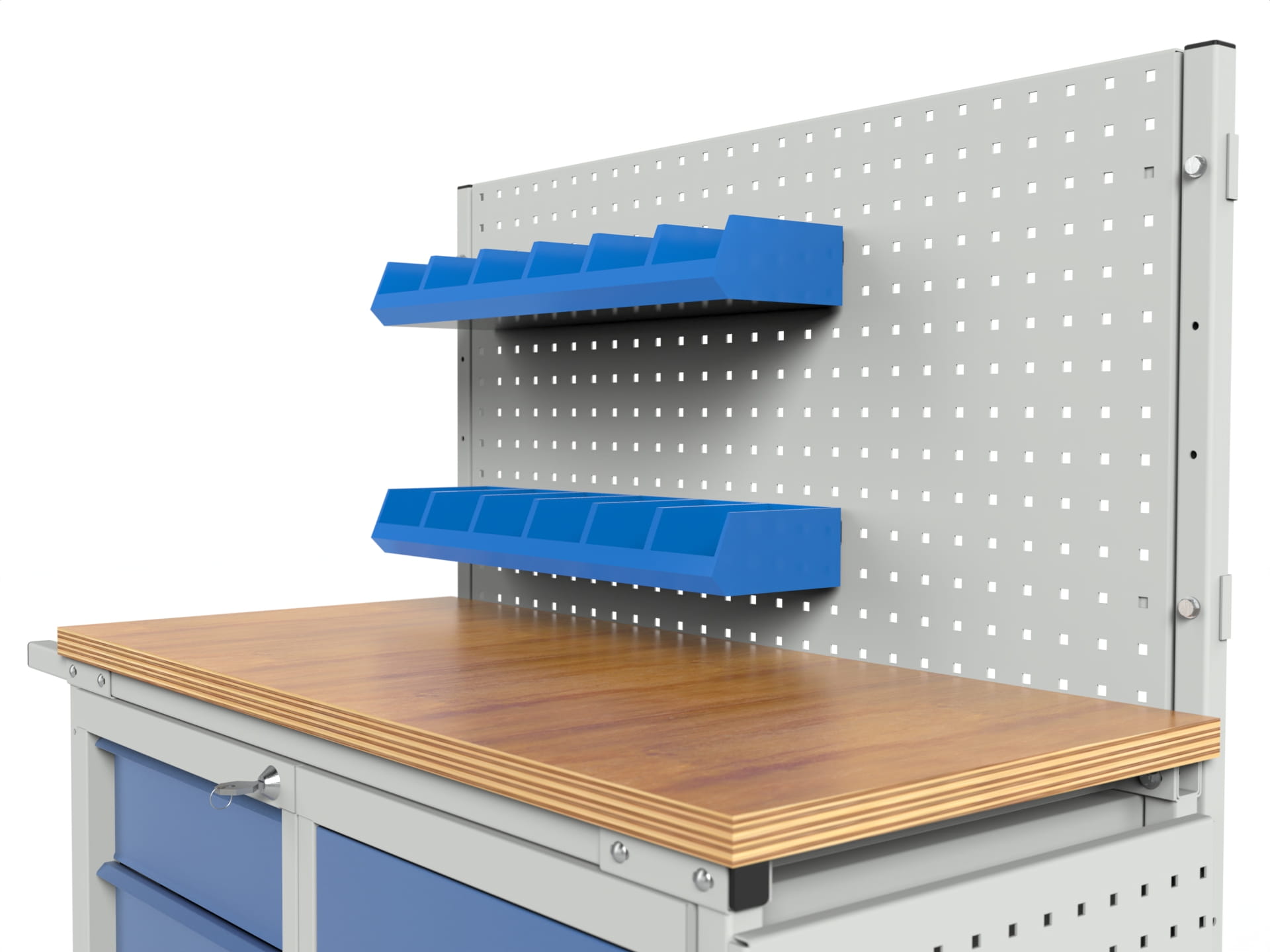

• perforated panel 520 mm high (from the tabletop surface) and 990 mm wide, square holes 9 mm in 38 mm grid, made of powder-coated steel sheet
• side perforated panel 482 mm wide and 682 mm high, square holes 9 mm in 38 mm grid, made of powder-coated steel sheet
• bottom shelf made of melamine board 18 mm, dimensions 1000x500 mm, clearance between shelf surface and cabinets 145 mm

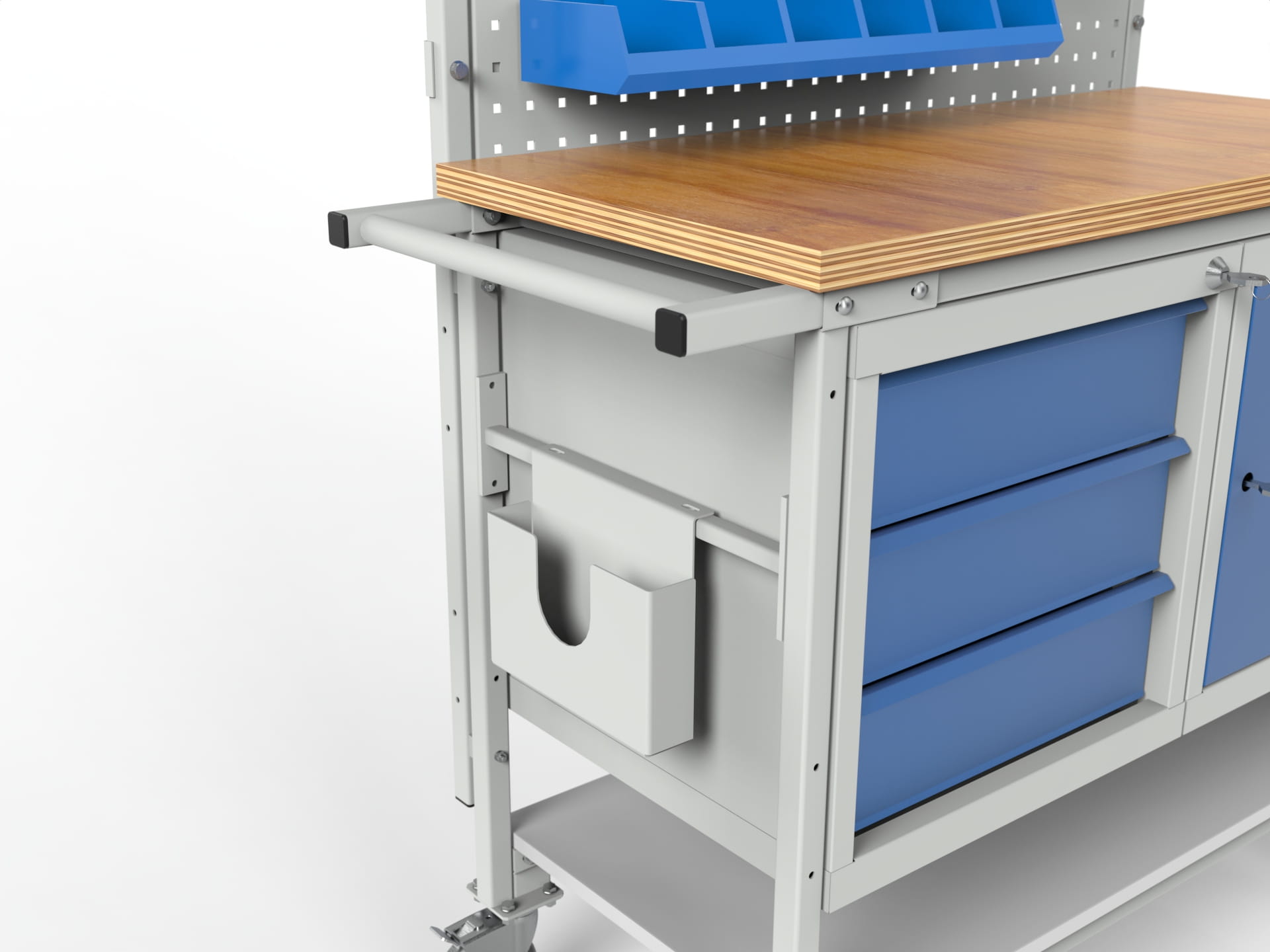

• A4 document holder on the side of the trolley
• four castors with diameter 125 mm: two swivelling with brake, two fixed
• optional: up to two sets of six R2 containers placed on rails screwed to the upper perforated wall, internal dimensions of a single container: 90 x 137 x 70 mm (width x depth x height)

JABAMA trolleys - ergonomics and mobility

Workshop trolleys manufactured by JABAMA provide first-class workmanship, backed by a three-year warranty. They will contribute to a significant improvement in mobility and productivity, streamlining the transport of tools, materials and assembly components wherever they are needed at any given time. The different variants available will allow you to tailor a model to your individual needs and maximise your comfort. Our range also includes platform trolleys, shelf trolleys, carton trolleys or cable and wire trolleys.
