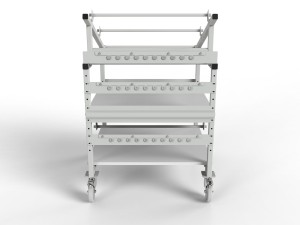

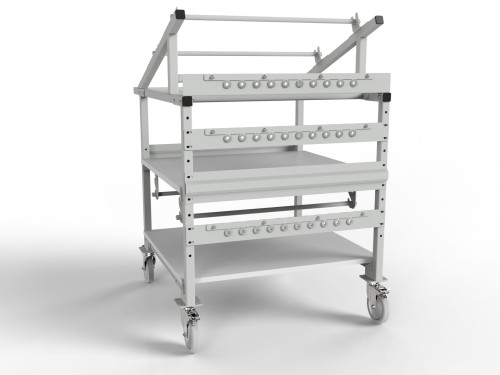

Cable and wire trolley WE-0706-SPEC-14760 1109x878x780

Cable and wire trolley WE-0706-SPEC-14760 1109x878x780 mm with four spool bars

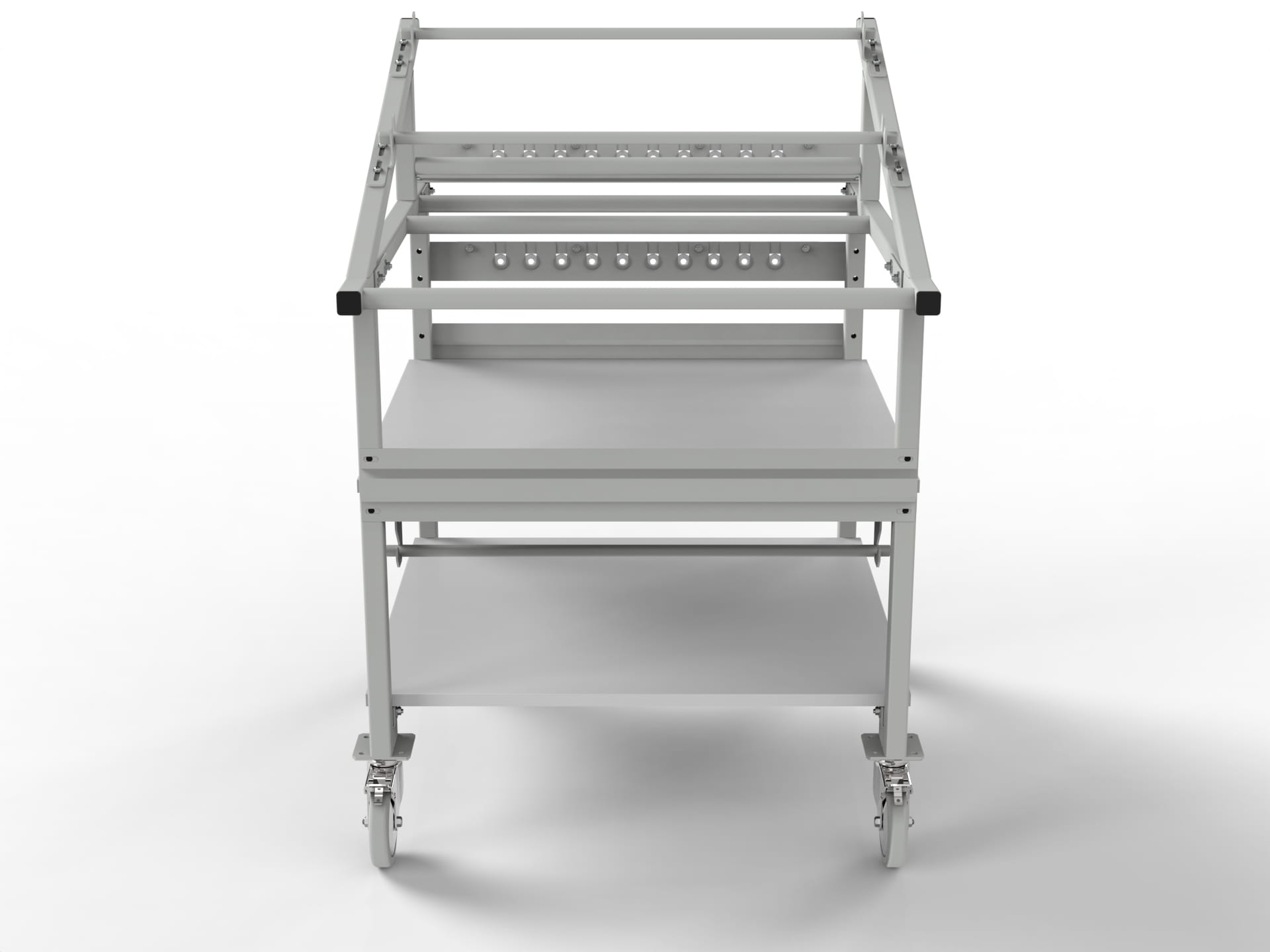

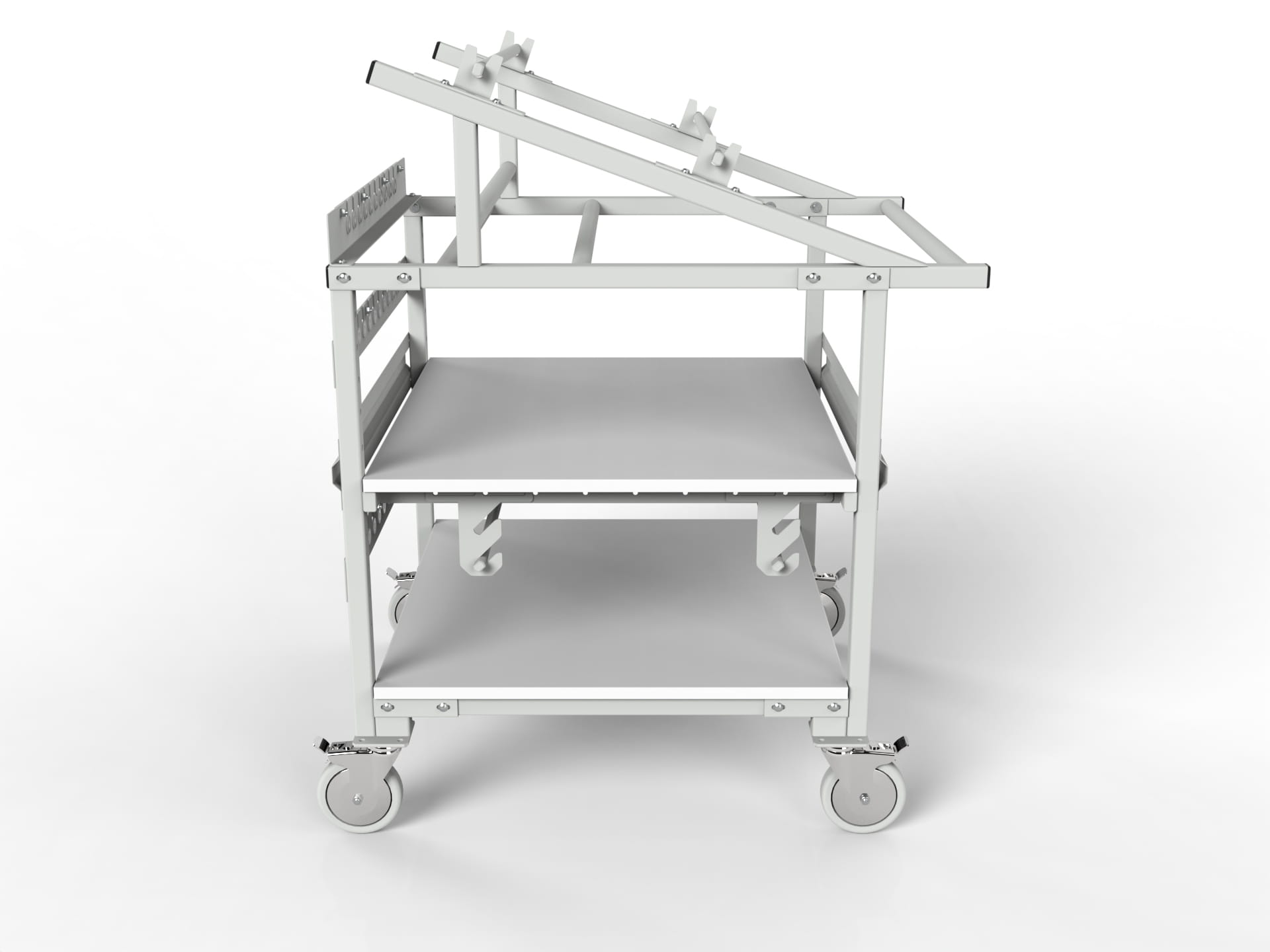

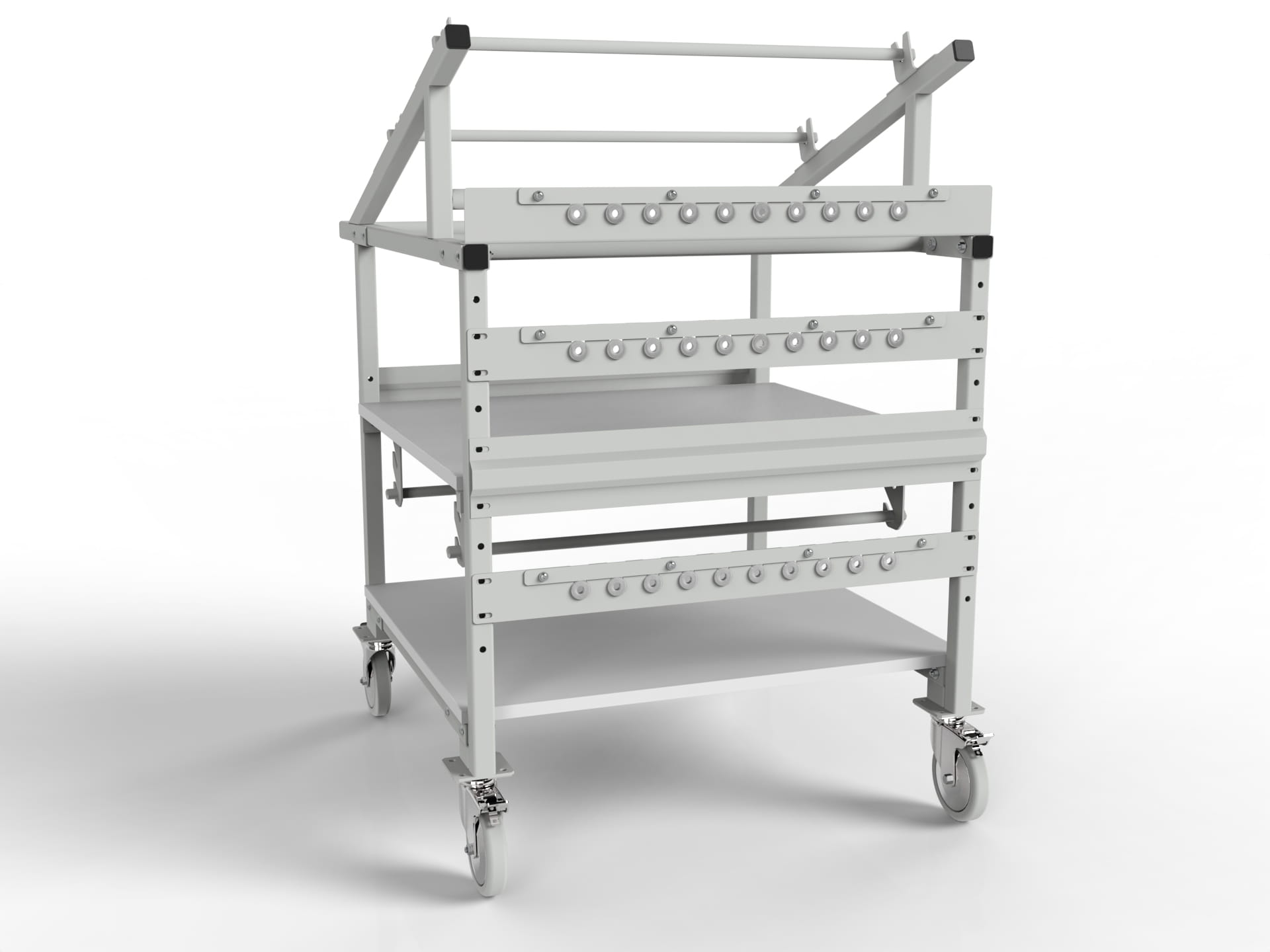

The mobile trolley with two shelves is set on four swivel castors with brakes. The cable spools are placed on four bars, which in turn are seated on brackets at the top and bottom of the structure. Each bar can accommodate five standard spools. Three tubes are welded below the top bars to facilitate cable separation and routing, and behind them - at different heights - are three plates with holes. Each has ten holes fi 10 mm, surrounded by plastic to prevent the cables from damaging the edges. The entire structure is made mostly of steel profiles and powder-coated in RAL 7035. The load capacity of the model is 200 kg when evenly distributed.

Characteristics of a cable and wire trolley WE-0706-SPEC-14760 1109x878x780 mm

• ergonomic overall dimensions 1109x878x780 mm (height x length x width)
• frame made of powder-coated steel in light gray RAL 7035
• two shelves made of melamine-coated chipboard measuring 754x679x18 mm

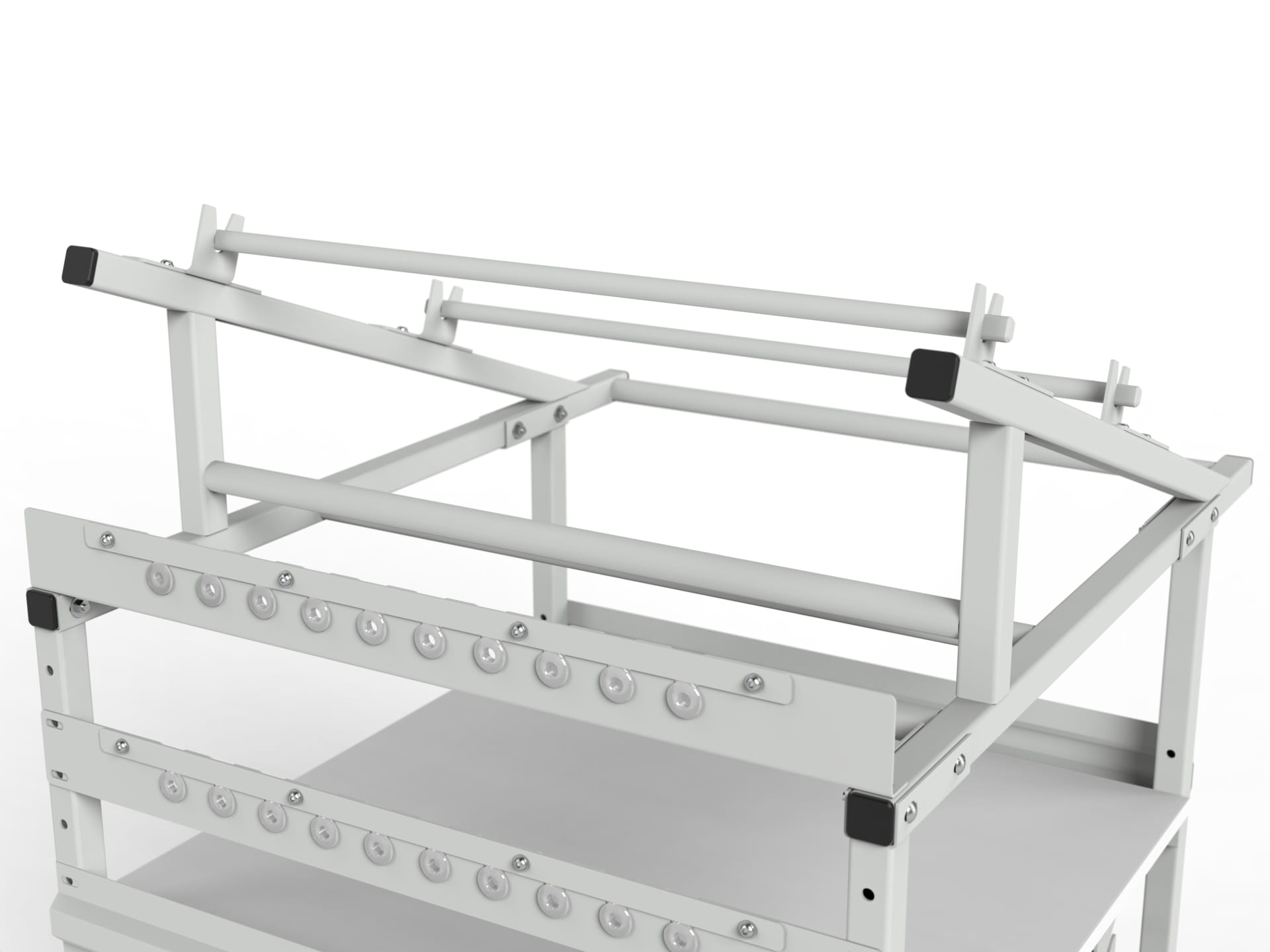

• four 17,2 mm diameter non-rotating bars holding five spools each placed on four pairs of handles
• three welded tubes below the top handles for easy cable routing

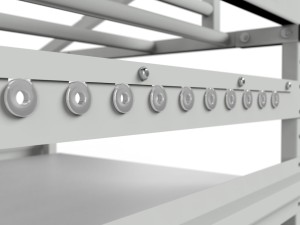

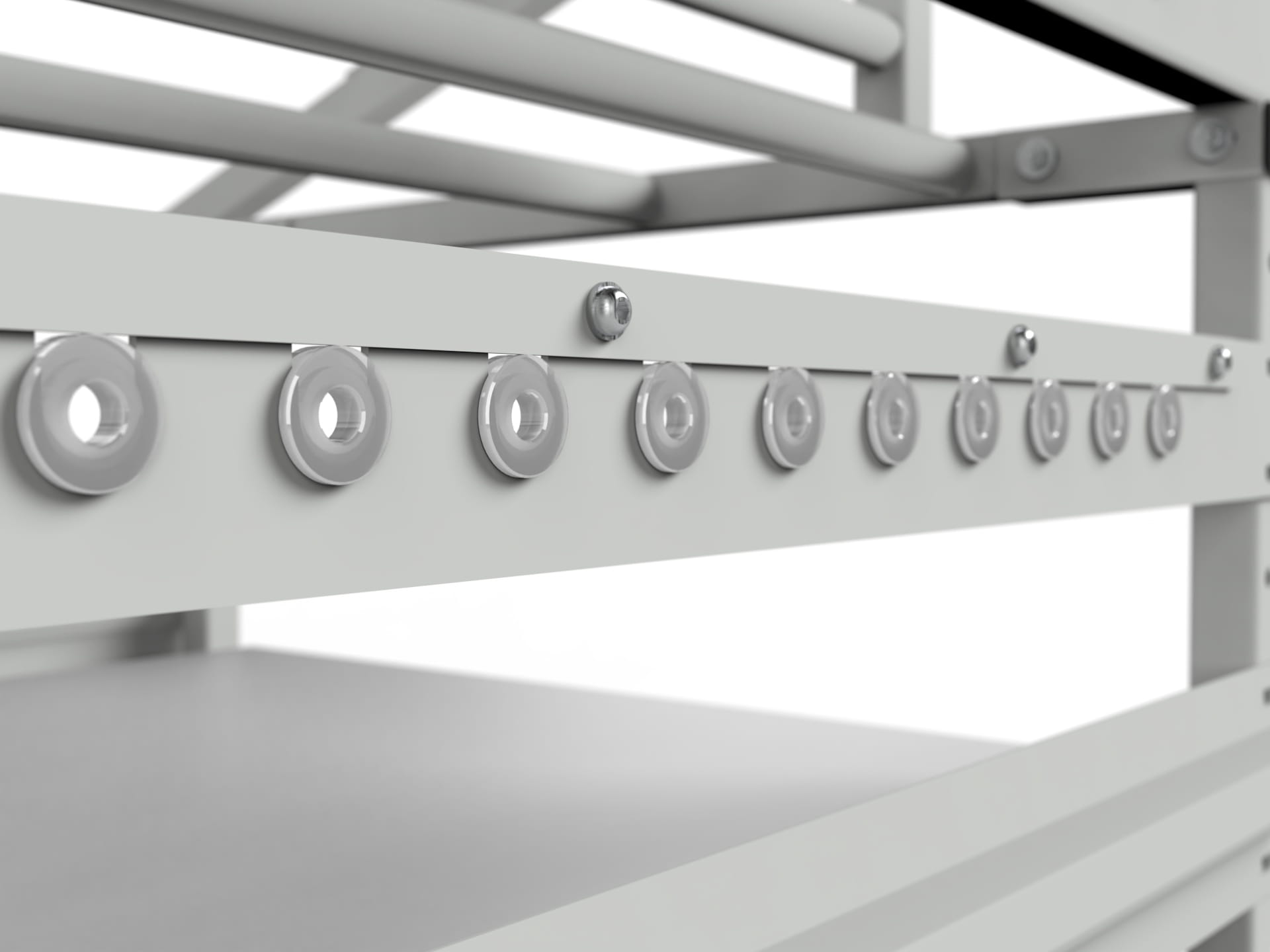

• three plates with ten holes each for more convenient separation and routing of the cables
• 10 mm diameter holes lined with plastic to prevent damage to the cables

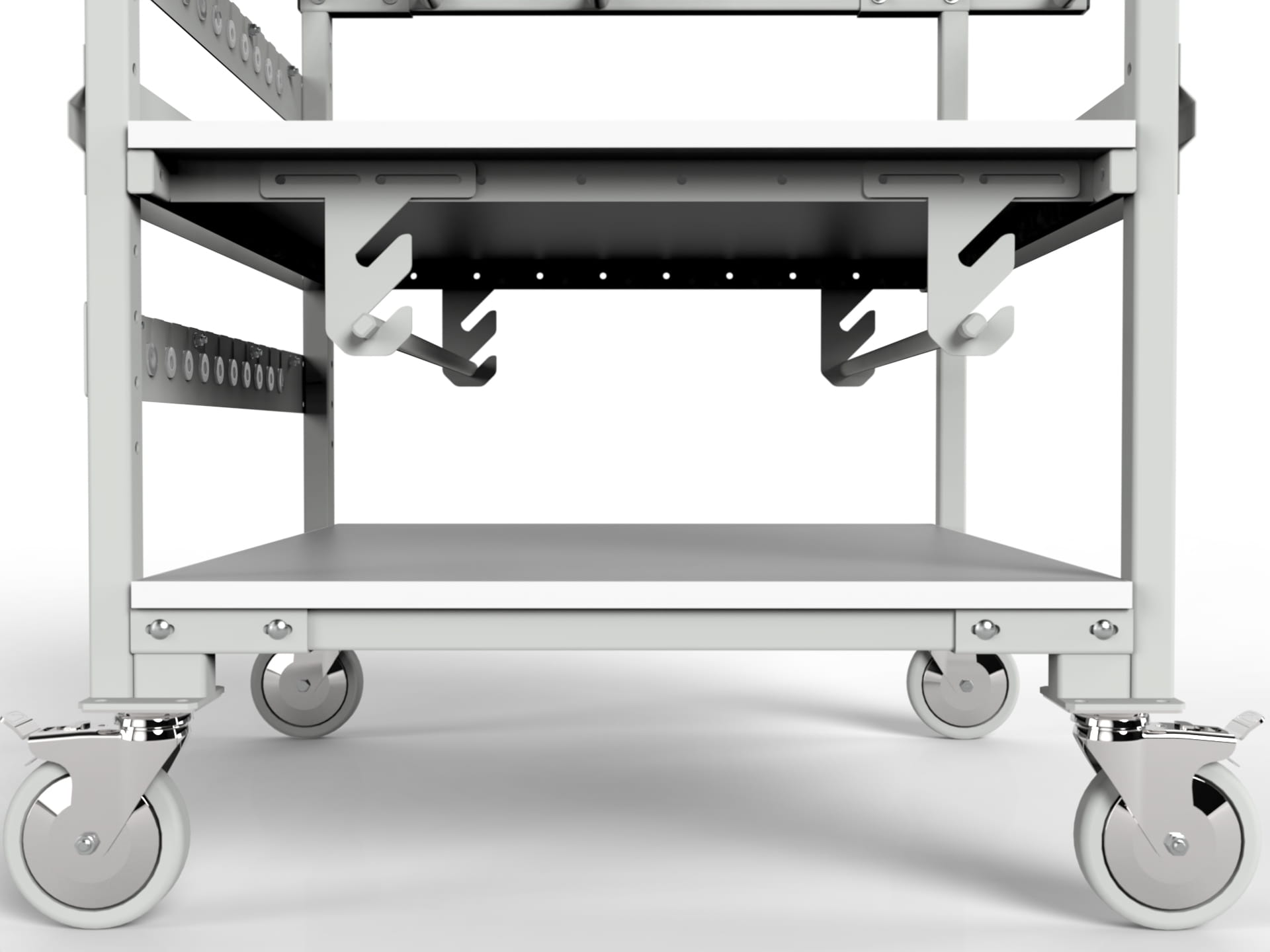

• four 125 mm diameter swivel castors with brakes
• total load capacity when evenly distributed: 200 kg

Wide range of products and guaranteed quality in our online shop

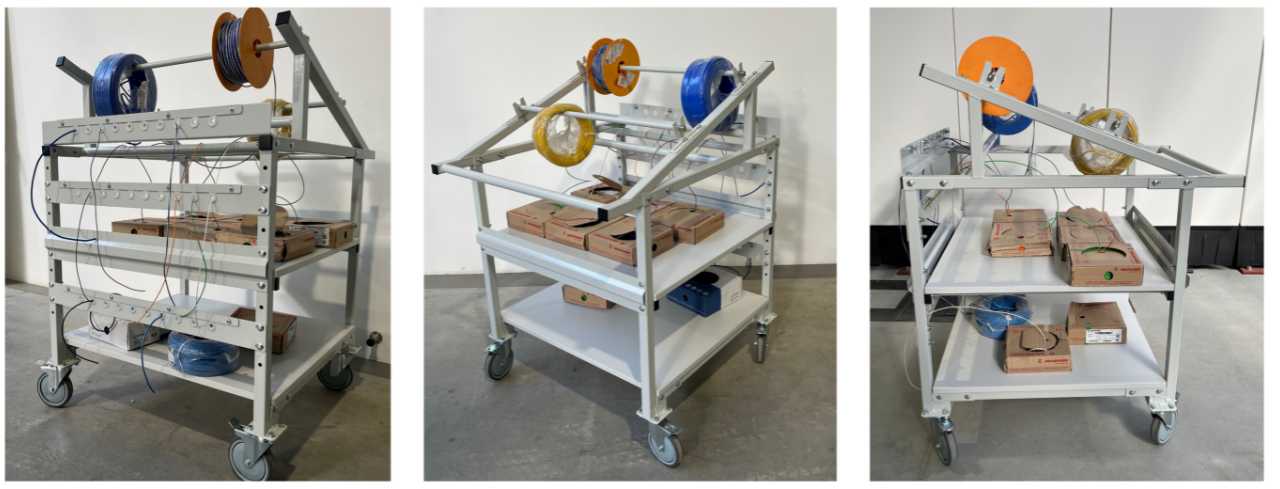

The cable and wire trolley is a versatile and ergonomic design for workplaces. Thanks to the removable bars, cable spools can be changed almost instantly, and the welded tubes and plates with holes allow convenient and efficient separation and routing of cables to eliminate clutter. Chipboard shelves allow spare cables and tools to be carried along with the trolley. Together with your purchase in our shop, you also receive the assistance of our expert team and access to a wide range of industrial furniture such as workbenches, wardrobe cabinets and electric panel assembly racks  as well as attractive volume discounts.
