Rack for prefabrication of control cabinets with up to 55° inclination

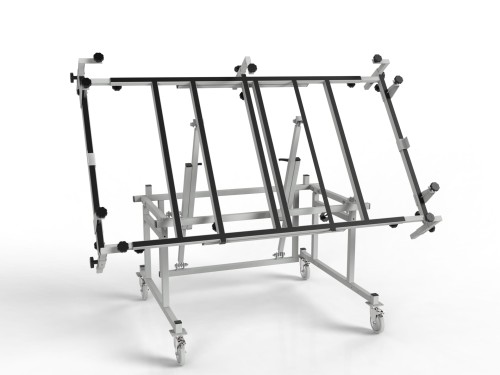

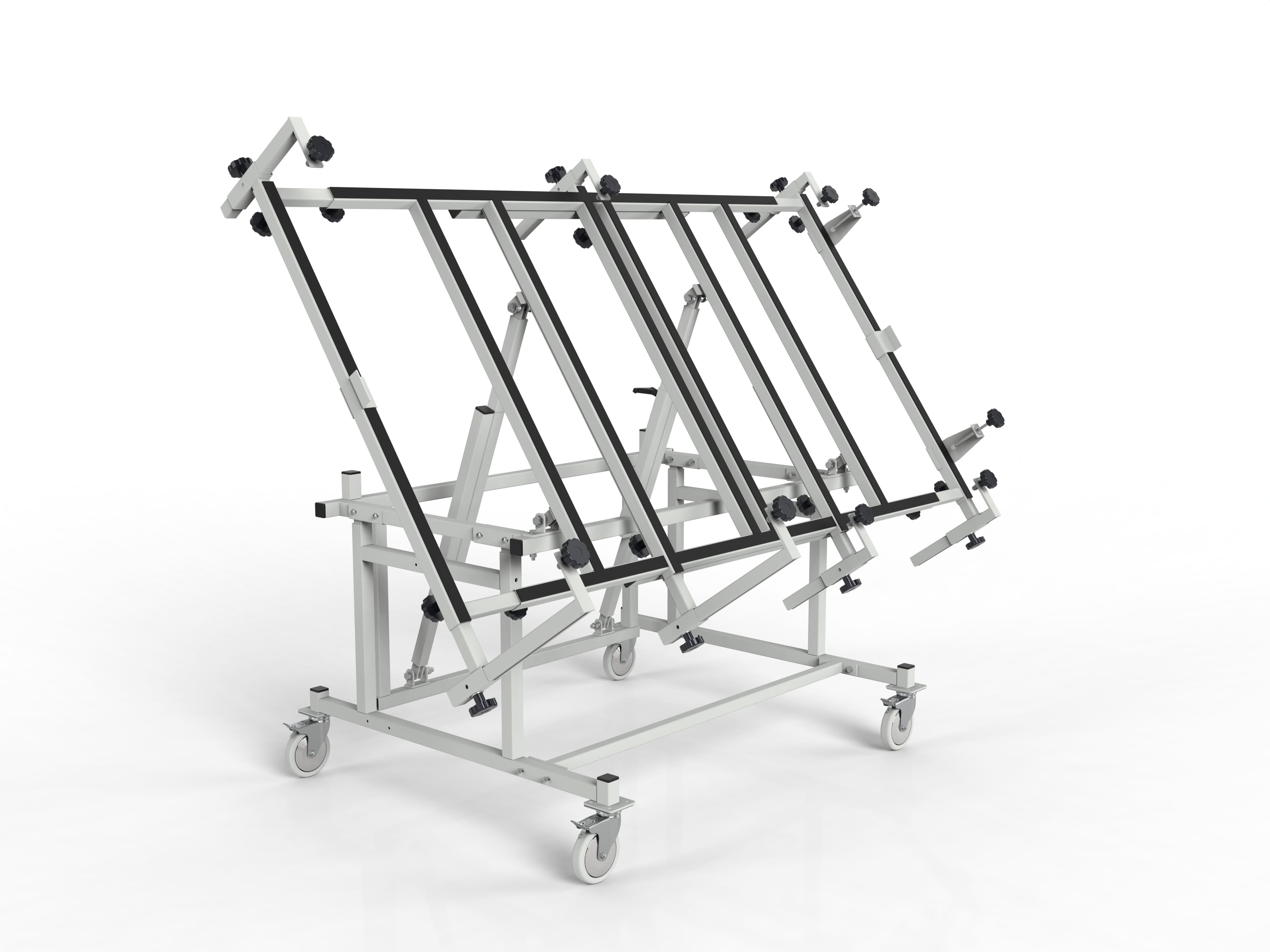

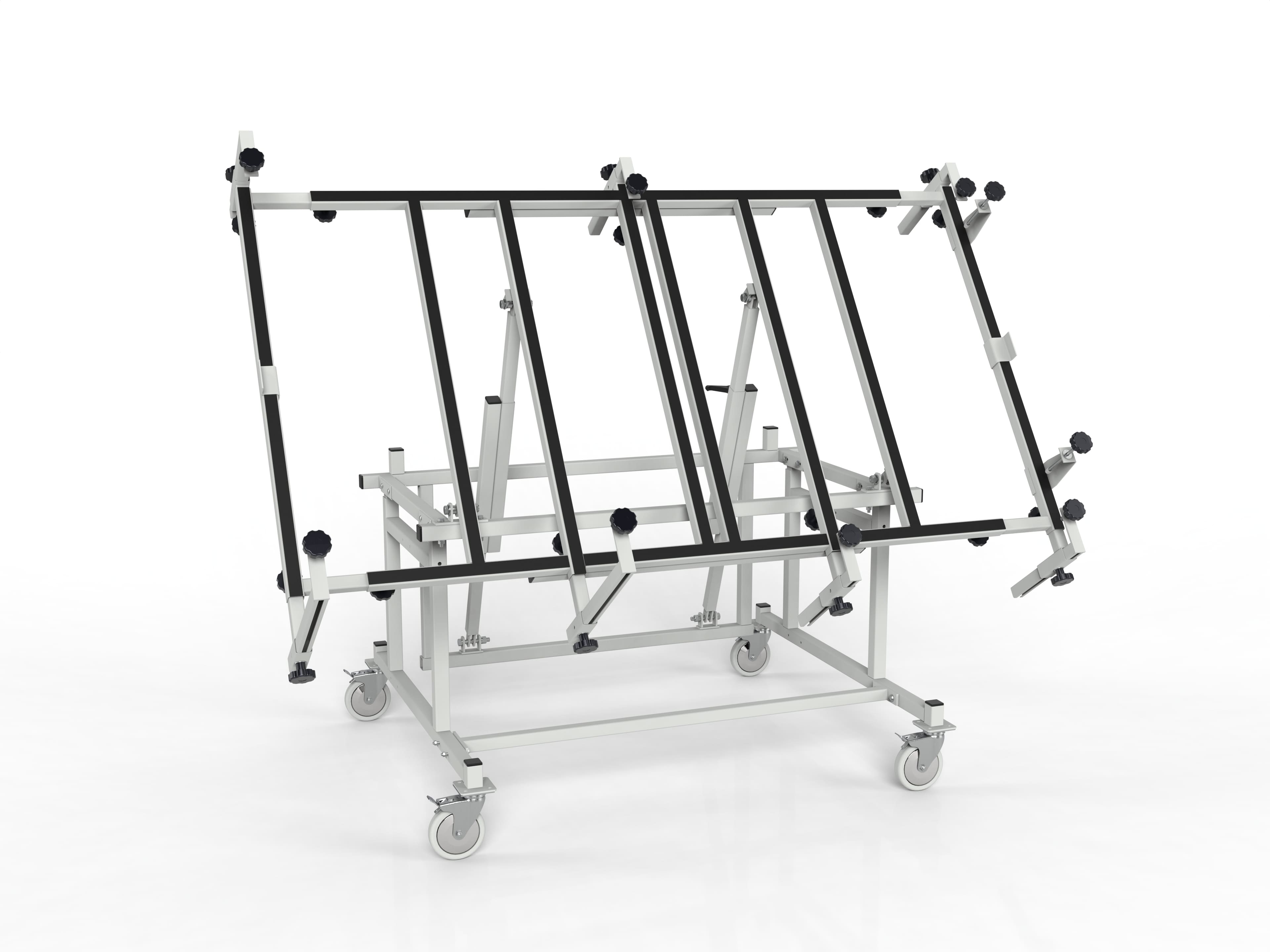

Rack for prefabrication of control cabinets and wire harnesses with up to 55° inclination SMR-SPEC-03084

A specialised assembly station designed for the efficient mounting of control cabinet panels, electrical cabinets and for the production of wire harnesses. The station features flexible manual configuration of the work surface thanks to a system for adjusting the height of the frame and the tilt angle of the work area. It is also distinguished by the possibility of adjusting the size of the operating frame to the size of the mounted enclosure, making it possible to assemble various panels from all cabinet manufacturers. The high level of ergonomics improves worker's comfort and guarantees easy access to all sections of the mounted assembly board or cabinet. Therefore, the use of the SMR-SPEC-03084 table by professionals significantly improves work efficiency and production processes related to prefabrication by up to several dozen percent.

The control cabinet prefabrication stations manufactured by Jabama are reliable and made of welded and powder-coated steel profiles, which gives them a high maximum load capacity. The work surface itself is covered with rubber to protect the workbench and the components being assembled. The adjustment mechanisms guarantee ergonomics, and the set of swivel industrial wheels allows the workbench to be easily moved and shifted. The workstation is safe to use.

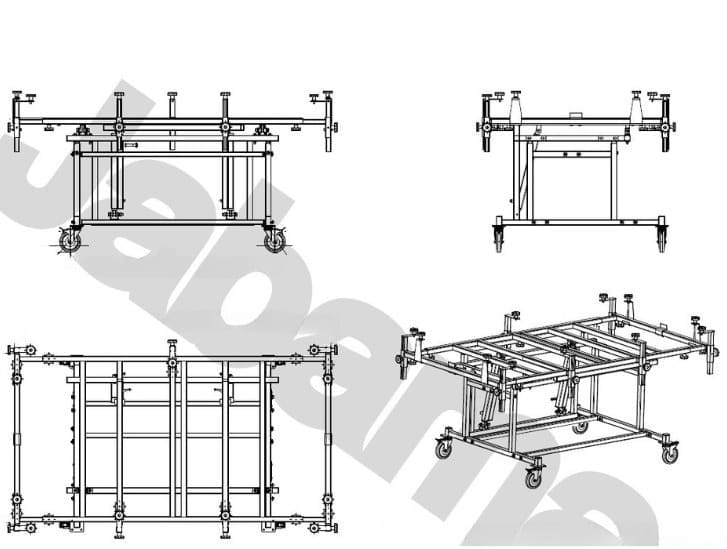

Technical data of the SMR-SPEC-03084 control cabinet prefabrication rack

• reliable and stable construction made of welded steel profiles with a system of appropriate reinforcements and crossbars stiffening the table
• elements powder coated with high-quality light grey RAL7035 paint - prevents corrosion and easy scratching of metal elements
• the permissible load capacity in a horizontal position is 200 kg, and 150 kg when tilted

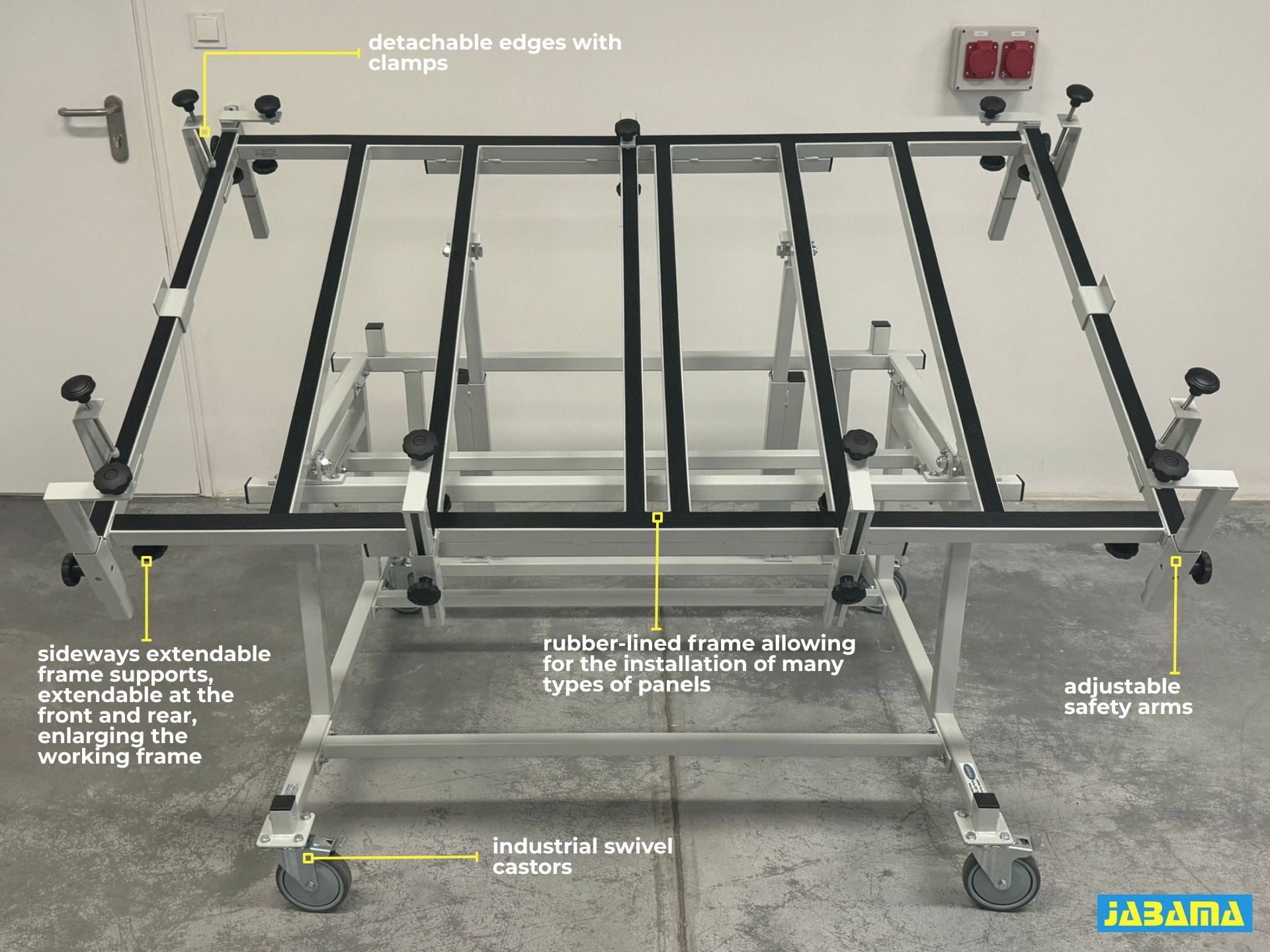

• universal extendable working frame with support spacing allowing for the installation of various panels and cabinets. Extendable side edges, front and rear arms with extendable clamps.
• the base dimensions of the frame are 1025 x 1645 mm (width x length), with the frame extended, the maximum dimensions are 1715 x 2050 mm (width x length)
• additional side stops made of sheet metal and fastening arms with clamps
• a set of 7 removable arms with clamps with smooth height adjustment allows for mounting elements up to 170 mm in height - a practical system for fastening mounted elements
• smooth workstation height adjustment in the range of 800-1150 mm
• working frame tilt adjustment system in the range of 0-55° using practical knobs
• set of 4 industrial swivel castors (2 with brakes) with a diameter of 125 mm
• working frame profiles covered with 2 mm grooved rubber to protect the surface of the frame and mounted elements from damage

Where can Jabama workbenches for prefabrication of cabinets and production of wire harnesses be used?

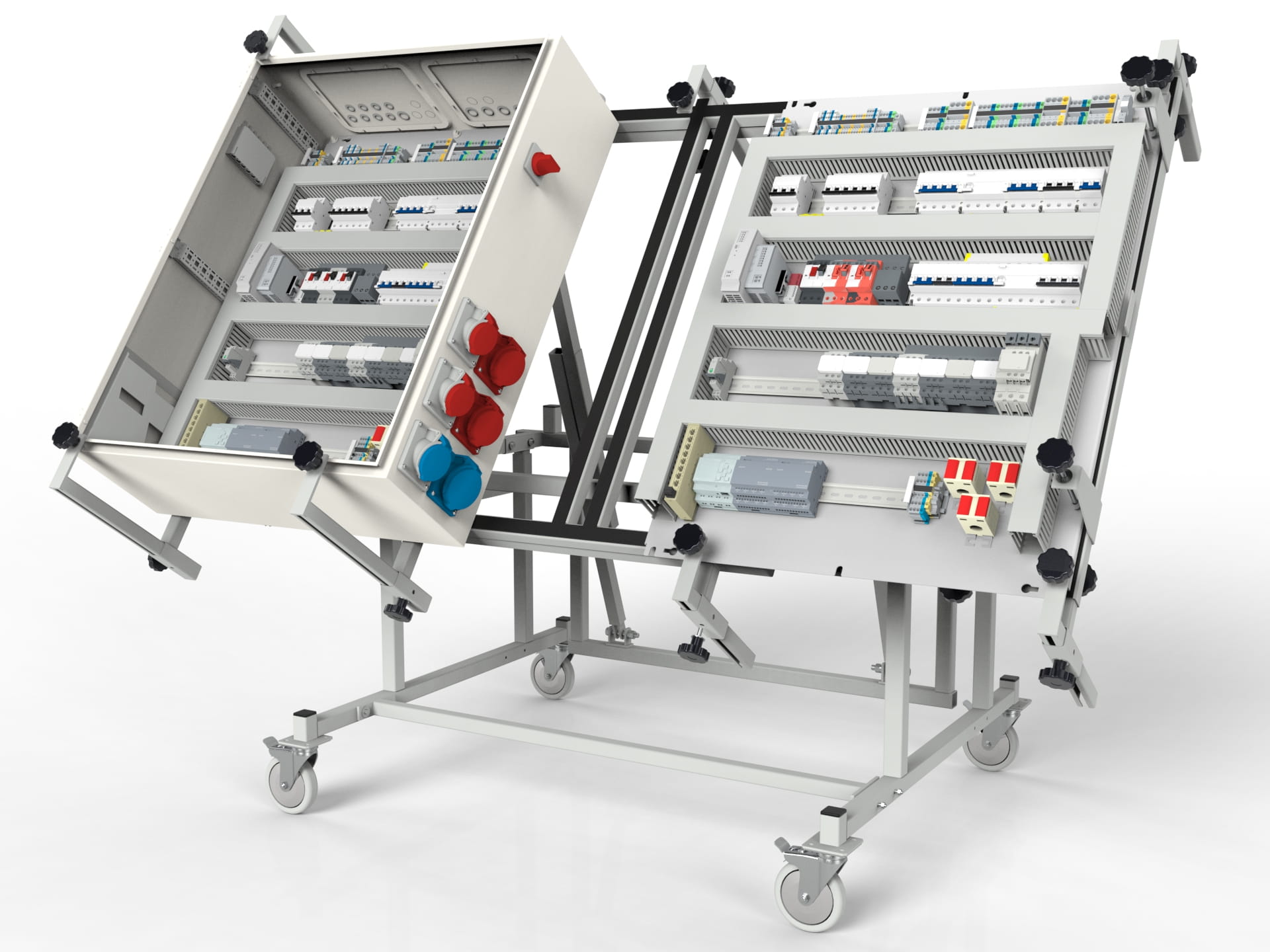

Assembly tables with manual adjustment of height, tilt and working area spacing are an economical solution for professionals involved in the prefabrication of control and electrical cabinets, companies involved in automation, robotics and industrial machine construction, the automotive, aviation and armament industries, and more. It is an excellent solution wherever PLC controllers, wiring and other processes related to the assembly of electronic and electrical equipment are carried out. Jabama tables were extensively consulted with companies in the industry during the design stage, making them extremely practical. Thanks to their universal and robust design, they are suitable for workshops, laboratories, studios, assembly halls and factories.

Ergonomic and efficient prefabrication of control cabinets

1. Adjust the height of the workstation to the user's height and the type of assembly board thanks to smooth adjustment.

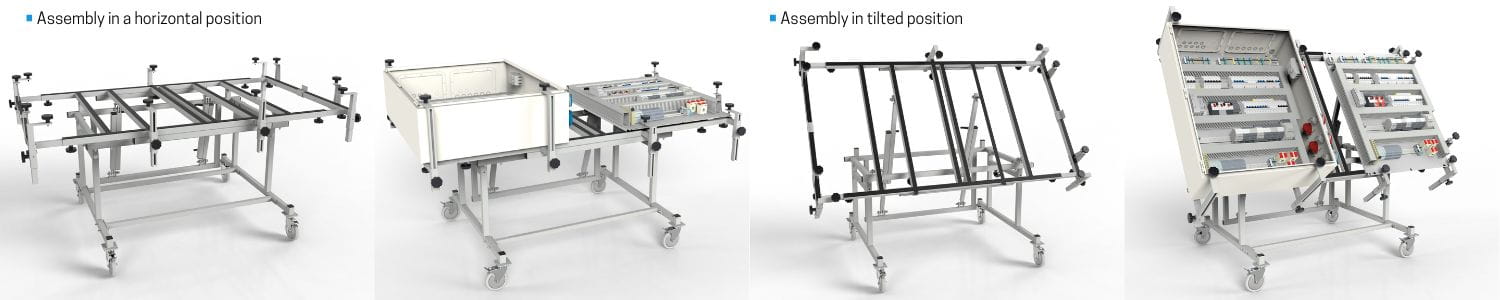

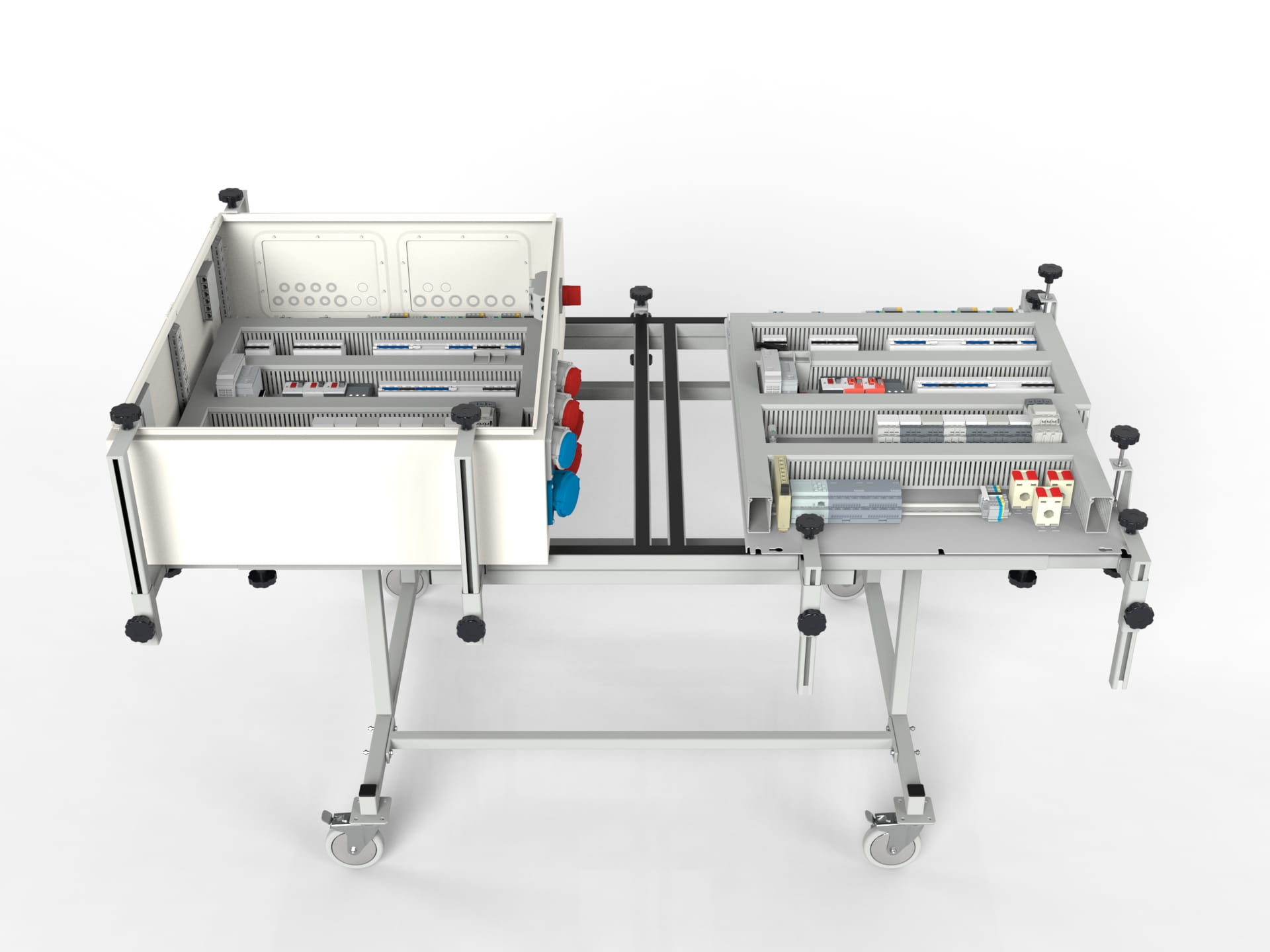

2. Mount in a horizontal position or adjust the angle of the work surface up to 55 degrees.
3. Extend the universal work frame to the sides, adjust the front and rear arms of the table by pulling out the profiles with mounting clamps. To secure the mounted boards more firmly, use additional side stops with clamps. If they are not needed, you can quickly remove them.
4. Securely fasten the assembly board or cabinet with limiters and extendable clamps. Mount elements up to 170 mm high (up to 100 mm without unscrewing the side limiters).
5. Freely rotate the frame during installation and move it from place to place.

The frame and arms with clamps can be easily adjusted thanks to the knob system.

More equipment for prefabricating control cabinets

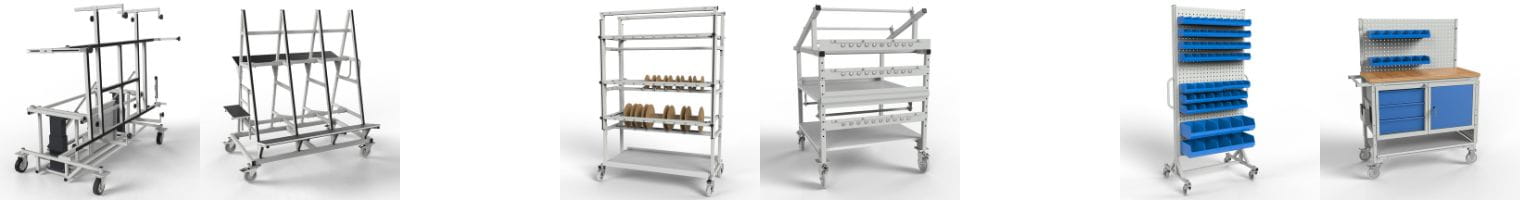

Jabama offers a comprehensive range of specialist equipment for the prefabrication of control cabinets, including other types of electric board assembly stations with manual height and tilt adjustment, as well as workbenches with electric height and tilt adjustment for maximum comfort and efficiency. We also manufacture and sell cable trolleys and racks to improve cabinet wiring, trolleys and racks for assembly board and enclosure components, mobile tool walls, workshop trolleys, assembly tables with tilting tops and standard workbenches. With our equipment, you will significantly improve the prefabrication of control cabinets and switchgear. All our products are designed and manufactured in Poland by Jabama.
