ESD Workbench ESD Table with shelf
Description
The basic, universal SM table made in the ESD version intended, among others, for the electronics industry. All used components provide protection against electrostatic discharge. ESD SM tables are an excellent base for further modifications, by installing additional elements from our assortment. We also offer tables in various sizes. In order to find the right table model, please contact our expirienced technical and sales consultants (email: marketing@jabama.pl).

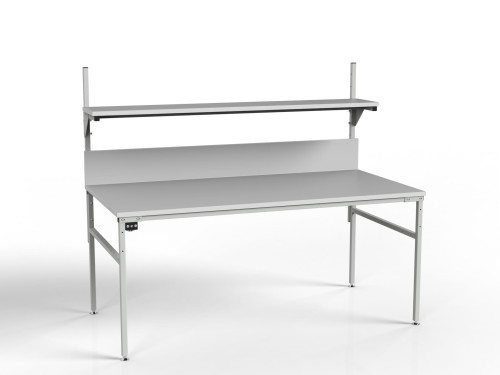

ESD SMP WORKBENCH WITH SHELF
1) Workbench on solid and durable steel construction, powder coated with conductive paints (ESD) in light grey colour RAL7035,
2) Table top made of 25 mm thick laminated conductive chipboard (ESD),
3) Shelf on a steel construction at 300 or 400 mm height above table top. Shelf 300 mm wide and table length, made of conductive chipboard (ESD) 25 mm thick,
4) Workbench equipped with metal levelling feet, discharging electrostatic charges to the ground,
5) Rear wall (200 mm high) with adjustable height,
6) Grounding box with two 10 mm latches, 4 mm banana socket and 1,8 m grounding wire,
7) Thanks to the quality of materials and precise workmanship, the maximum table load capacity is 300 kg,
8) Many additions that allow to create an optimally configured product.
ADDITIONAL EQUIPMENT
We want our products to be as modular as possible. hence the possibility of chosing a wide range of additional equipment for the workbenches. If a particular table model does not have an alement that you need (e.g. additional shelf), we are able to include your needs in the project. In case of any doubts, we encourage you to contact our sales department. Below is a list of an exemplary additional equipment.
1. ACAR power strips with surge suppressor on five sockets and 3 or 5 m cable.
2. ZPAS aluminium power strips.
3. Computer shelf 300 mm wide.
4. Keyboard drawer 300x700 mm.
5. Central lighting 2x36 W.
6. Balancer holder.
7. Monitor holder.
WORKBENCHES WITH DIFFERENT DIMENSIONS (other dimensions on request)
Model | Length | Width | Height | Top thickness |
ESD SMP-0712 | 1200 | 700 | 800 | 25 |
ESD SMP-0715 | 1500 | 700 | 800 | 25 |
ESD SMP-0718 | 1800 | 700 | 800 | 25 |
ESD SMP-0912 | 1200 | 900 | 800 | 25 |
ESD SMP-0915 | 1500 | 900 | 800 | 25 |
ESD SMP-0918 | 1800 | 900 | 800 | 25 |
