ESD workstation with cabinet, lighting and shelf

The basic, universal SM table made in the ESD version intended, among others, for the electronics industry. All used components provide protection against electrostatic discharge. ESD SM tables are an excellent base for further modifications, by installing additional elements from our assortment. We also offer tables in various sizes. In order to find the right table model, please contact our expirienced technical and sales consultants (email: marketing@jabama.pl).

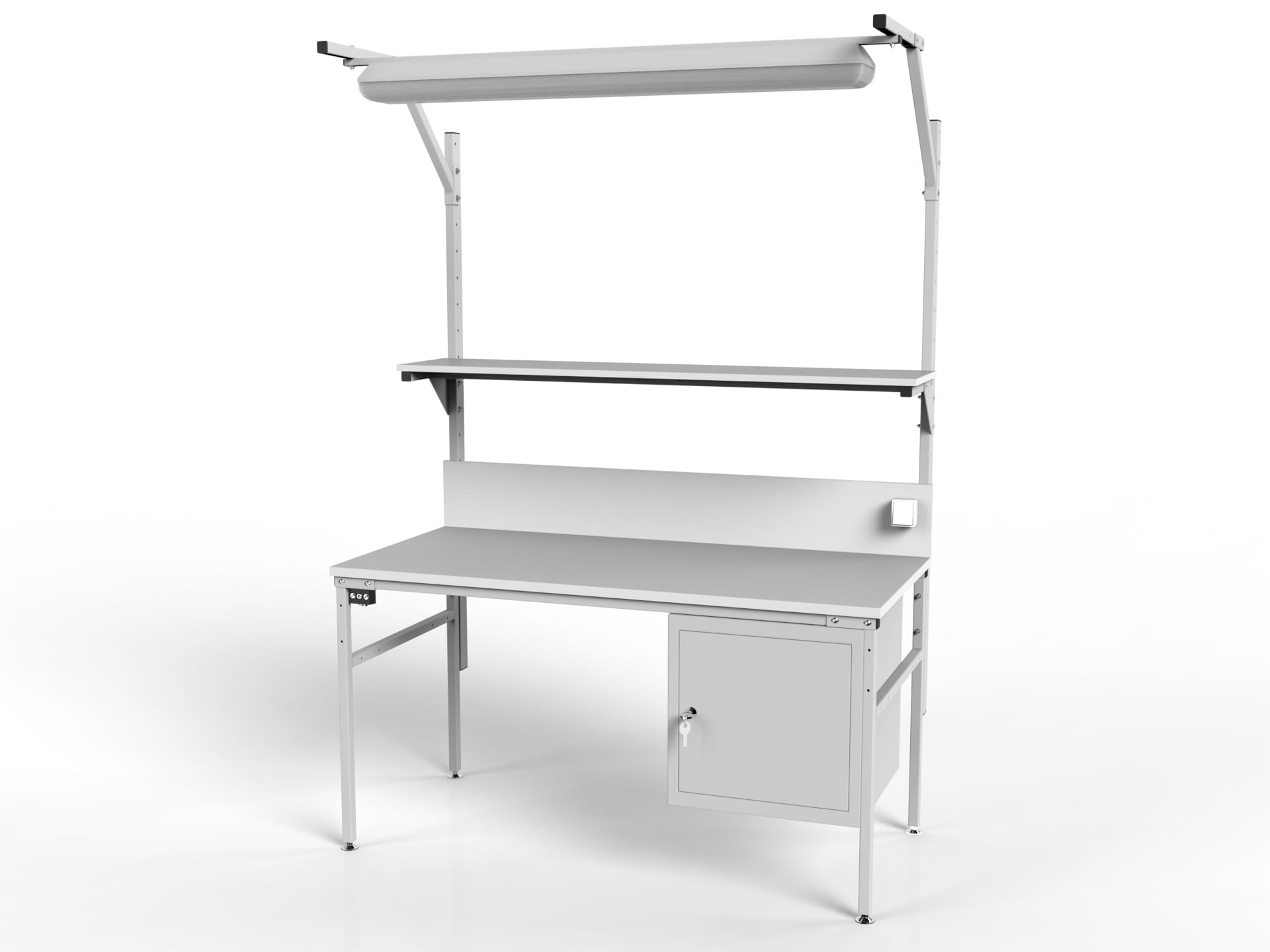

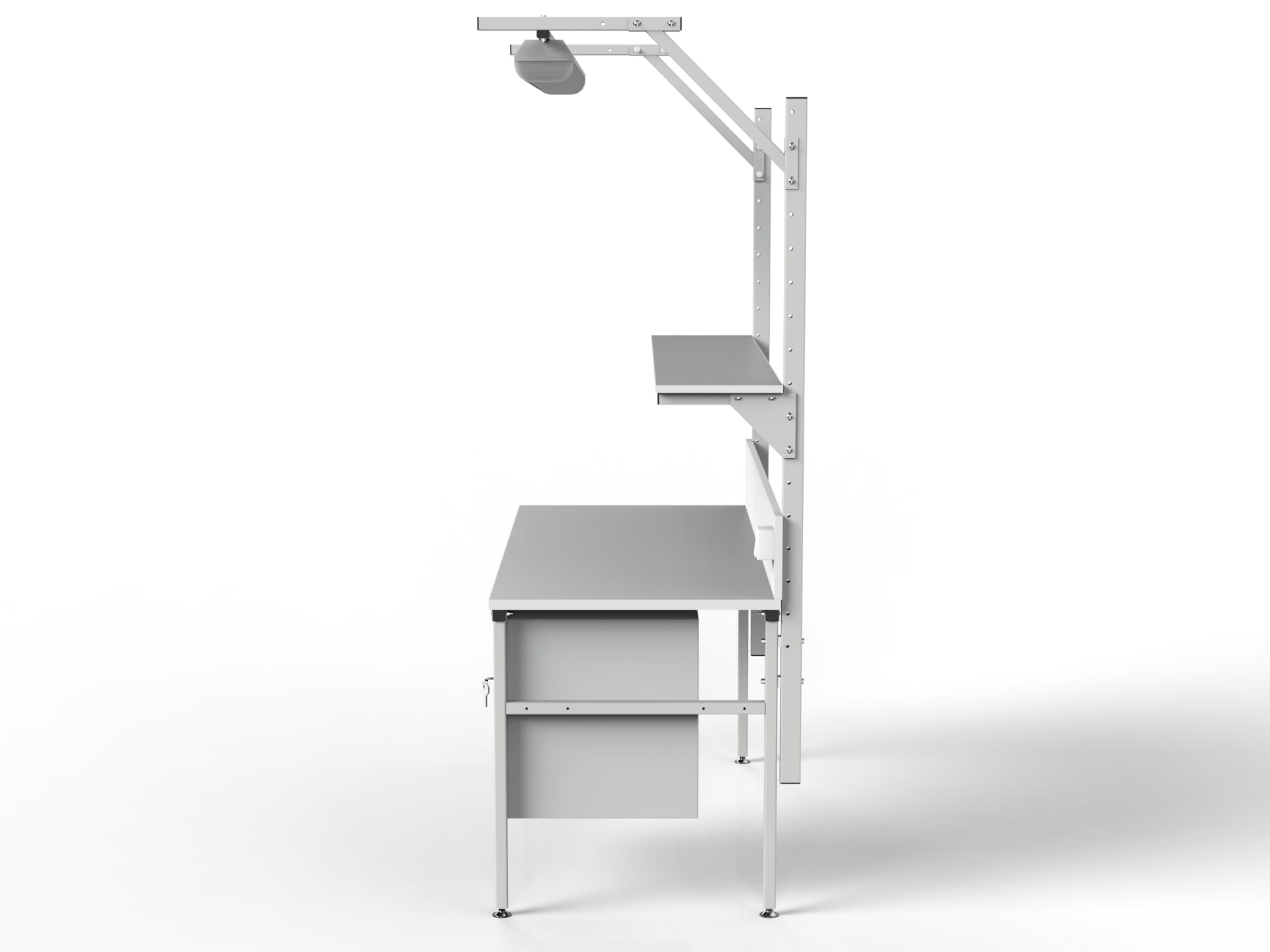

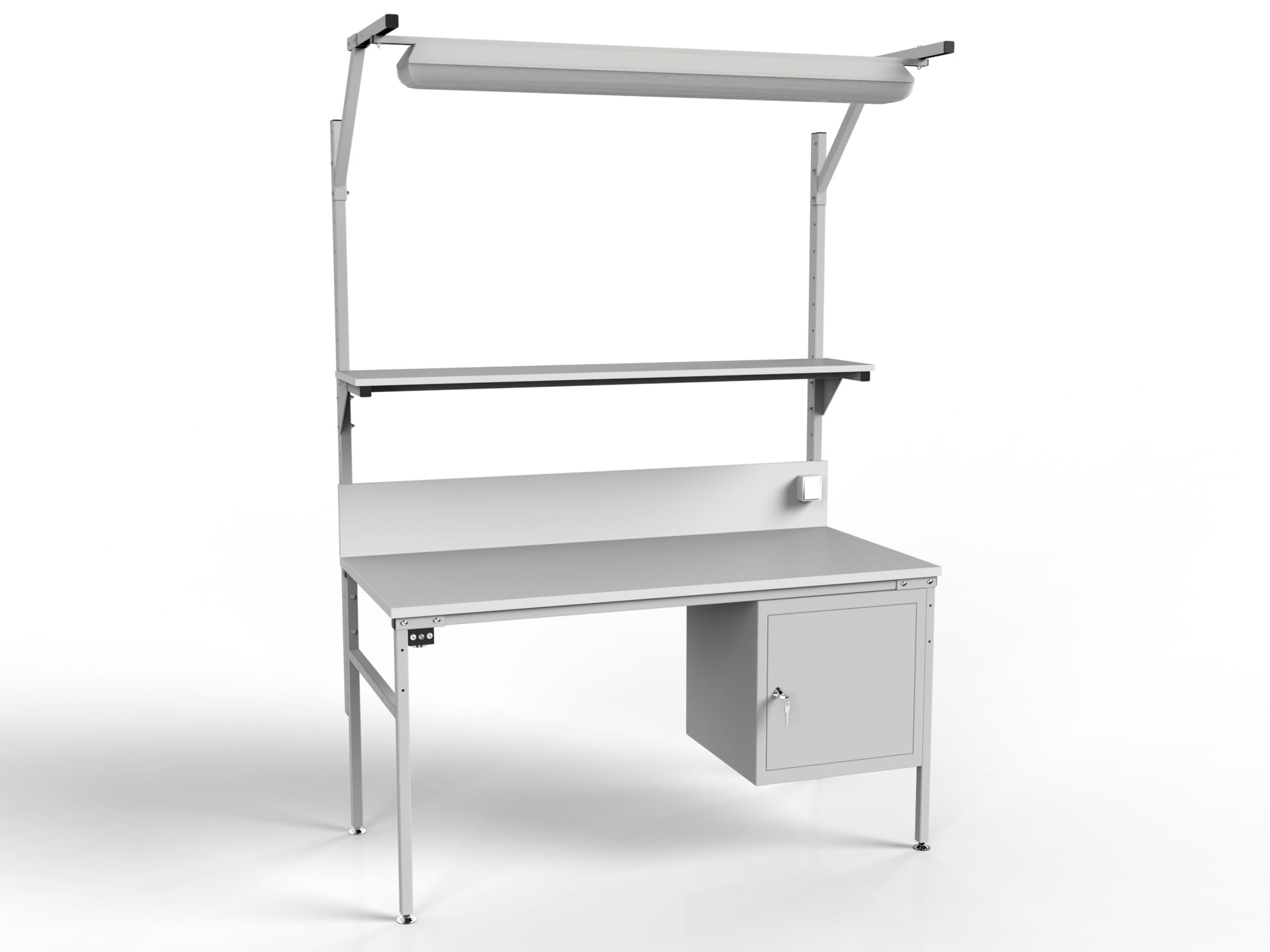

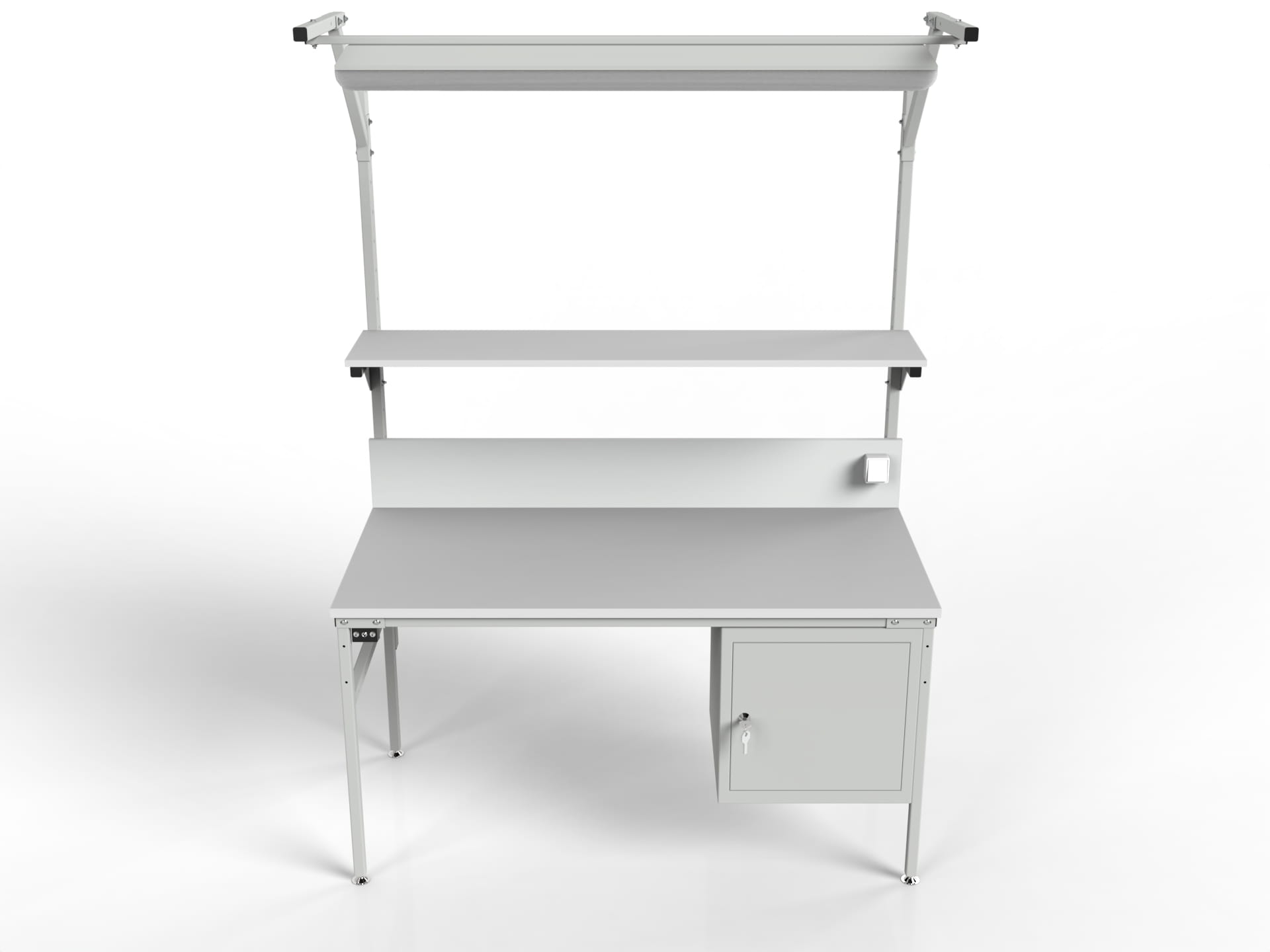

ESD SMPCK WORKBENCH WITH SHELF, CABINET AND LIGHTING

1) Workbench on solid and durable steel construction, powder coated with conductive paints (ESD) in light grey colour RAL7035,

2) Table top made of 25 mm thick laminated conductive chipboard (ESD),

3) Shelf on a steel construction adjustable in increments of 80 mm. Shelf 300 mm wide and table length, made of conductive chipboard (ESD) 25 mm thick,

4) Central LED 30W lighting in a dustproof, hardbreaking frame on steel construction. Height adjustable in increments of 80 mm, max. 2200 mm from the ground. Switch normally installed on the rear wall,

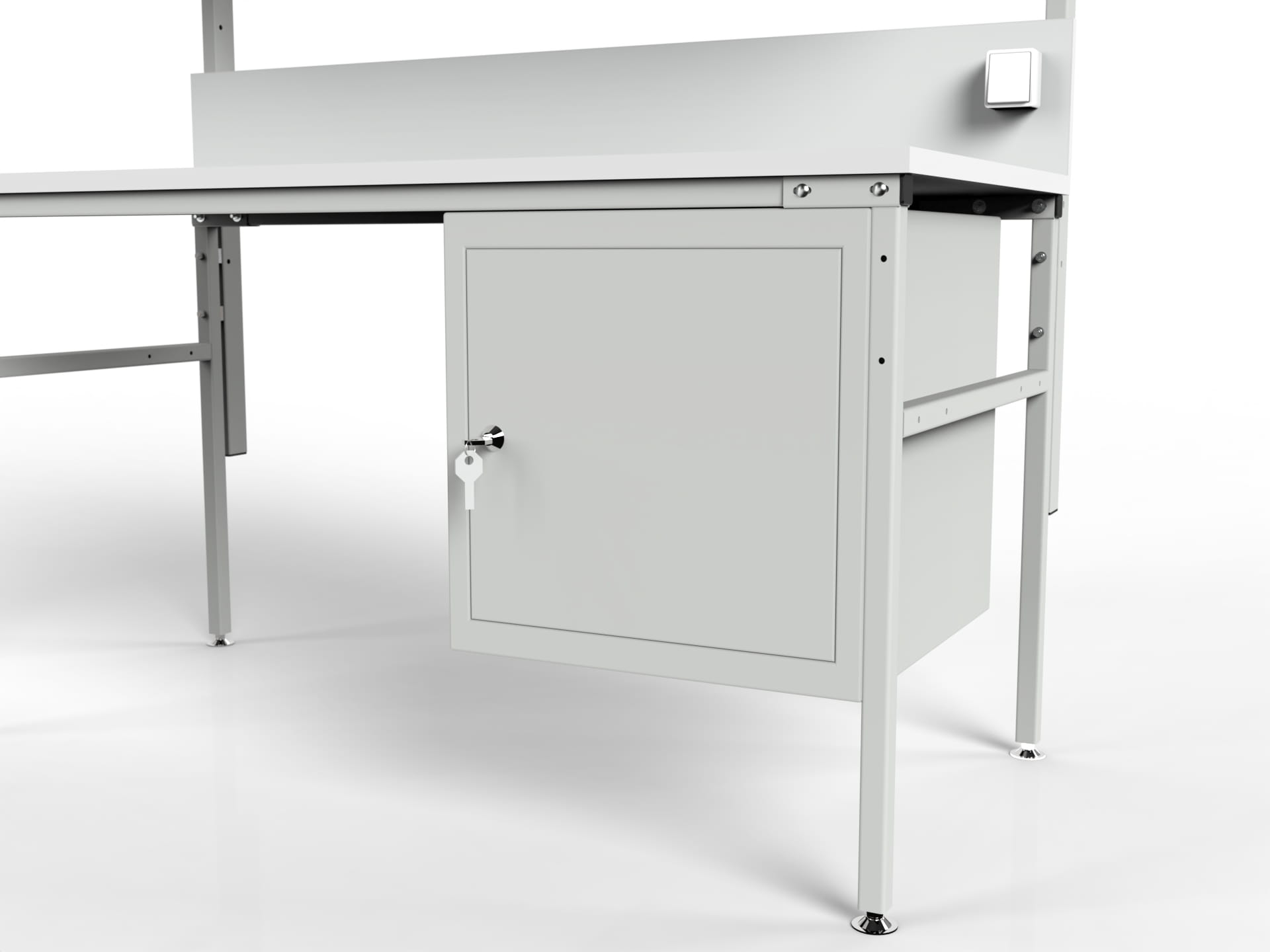

5) Cabinet with dimensions 500x500x500 mm with a shelf inside, closed with a lock. Cabinet powder coated with ESD conductive paint in light grey colour RAL7035. Can be placed on the left or right side of the workbench,

6) Workbench equipped with metal levelling feet, discharging electrostatic charges to the ground,

7) Rear wall 200 mm high (with adjustable height),

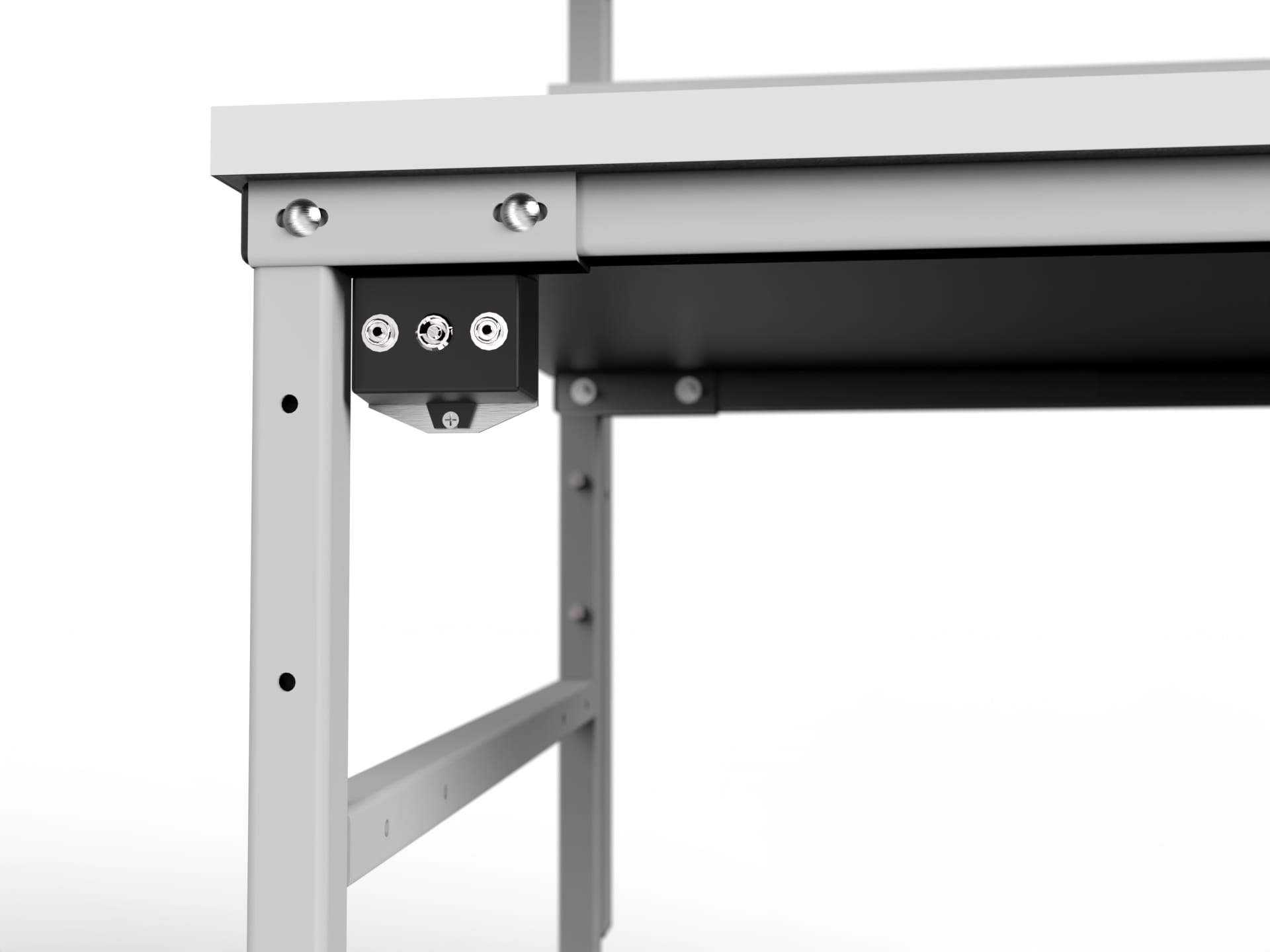

8) Grounding box with two 10 mm latches, 4 mm banana socket and 1,8 m grounding wire,

9) Thanks to the quality of materials and precise workmanship, the maximum table load capacity is 300 kg,

ADDITIONAL EQUIPMENT

We want our products to be as modular as possible. hence the possibility of chosing a wide range of additional equipment for the workbenches. If a particular table model does not have an alement that you need (e.g. additional shelf), we are able to include your needs in the project. In case of any doubts, we encourage you to contact our sales department. Below is a list of an exemplary additional equipment.

1. ACAR power strips with surge suppressor on five sockets and 5 m cable.
2. ZPAS aluminium power strips.
3. Computer shelf 300 mm wide.
4. Keyboard drawer 300x700 mm.
5. Central LED lighting
6. Balancer holder.
7. Monitor holder.

WORKBENCHES WITH DIFFERENT DIMENSIONS (other dimensions on request)
