Large ESD assembly table with two cabinets

Availability: Zapytaj o cenę
Price: €0.00 0.00
Net price: €0.00
quantity szt.
add to wish list
Rating: 5
Vendor: JABAMA
Product code: 251 MJ428_2020

Description

The basic, universal SM table made in the ESD version intended, among others, for the electronics industry. All used components provide protection against electrostatic discharge. ESD SM tables are an excellent base for further modifications, by installing additional elements from our assortment. We also offer tables in various sizes. In order to find the right table model, please contact our expirienced technical and sales consultants (email: marketing@jabama.pl).

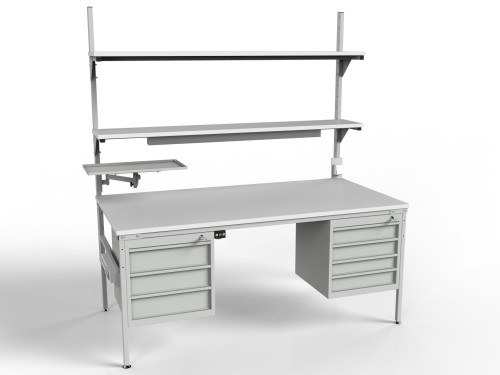

ESD SM2P WORKBENCH WITH SHELF AND CABINETS

1) Workbench on solid and durable steel construction, powder coated with conductive paints (ESD) in light grey colour RAL7035,

2) Table top made of 25 mm thick laminated conductive chipboard (ESD),

3) Workbench equipped with a container 500x500x500 or a single drawer with a central lock, optionally:

- Cabinet K with a shelf inside
- Cabinet K1 with 3 drawers 125 mm deep (visible on visualization)
- Cabinet K2 with 4 drawers 75 mm deep (visible on visualization)
- Drawer K6 with 45 kg capacity


4) Two shelfs on a steel construction adjustable in increments of 80 mm. Shelf 300 mm wide and table length, made of conductive chipboard (ESD) 25 mm thick,

5) Undershelf LED lighting 54 W,

6) Shelf with dimensions 300x600 with double arm, with an angle adjustment.

7) Workbench equipped with metal levelling feet, discharging electrostatic charges to the ground,

8) Grounding box with two 10 mm latches, 4 mm banana socket and 1,8 m grounding wire,

9) Thanks to the quality of materials and precise workmanship, the maximum table load capacity is 300 kg,



ADDITIONAL EQUIPMENT

We want our products to be as modular as possible. hence the possibility of chosing a wide range of additional equipment for the workbenches. If a particular table model does not have an alement that you need (e.g. additional shelf), we are able to include your needs in the project. In case of any doubts, we encourage you to contact our sales department. Below is a list of an exemplary additional equipment.


1. ACAR power strips with surge suppressor on five sockets and 3 or 5 m cable.
2. ZPAS aluminium power strips.
3. Computer shelf 300 mm wide.
4. Keyboard drawer 300x700 mm.
5. Balancer holder.
6. Monitor holder.



WORKBENCHES WITH DIFFERENT DIMENSIONS (other dimensions on request)

Model Length Width Height Top thickness
ESD SM2P-0712 1200 700 800 25
ESD SM2P-0715 1500 700 800 25
ESD SM2P-0718 1800 700 800 25
ESD SM2P-0912 1200 900 800 25
ESD SM2P-0915 1500 900 800 25
ESD SM2P-0918 1800 900 800 25
