Table unit ZSMWPC-2326, available in standard and ESD versions

Table unit ZSMWPC-2326, available in standard and ESD versions

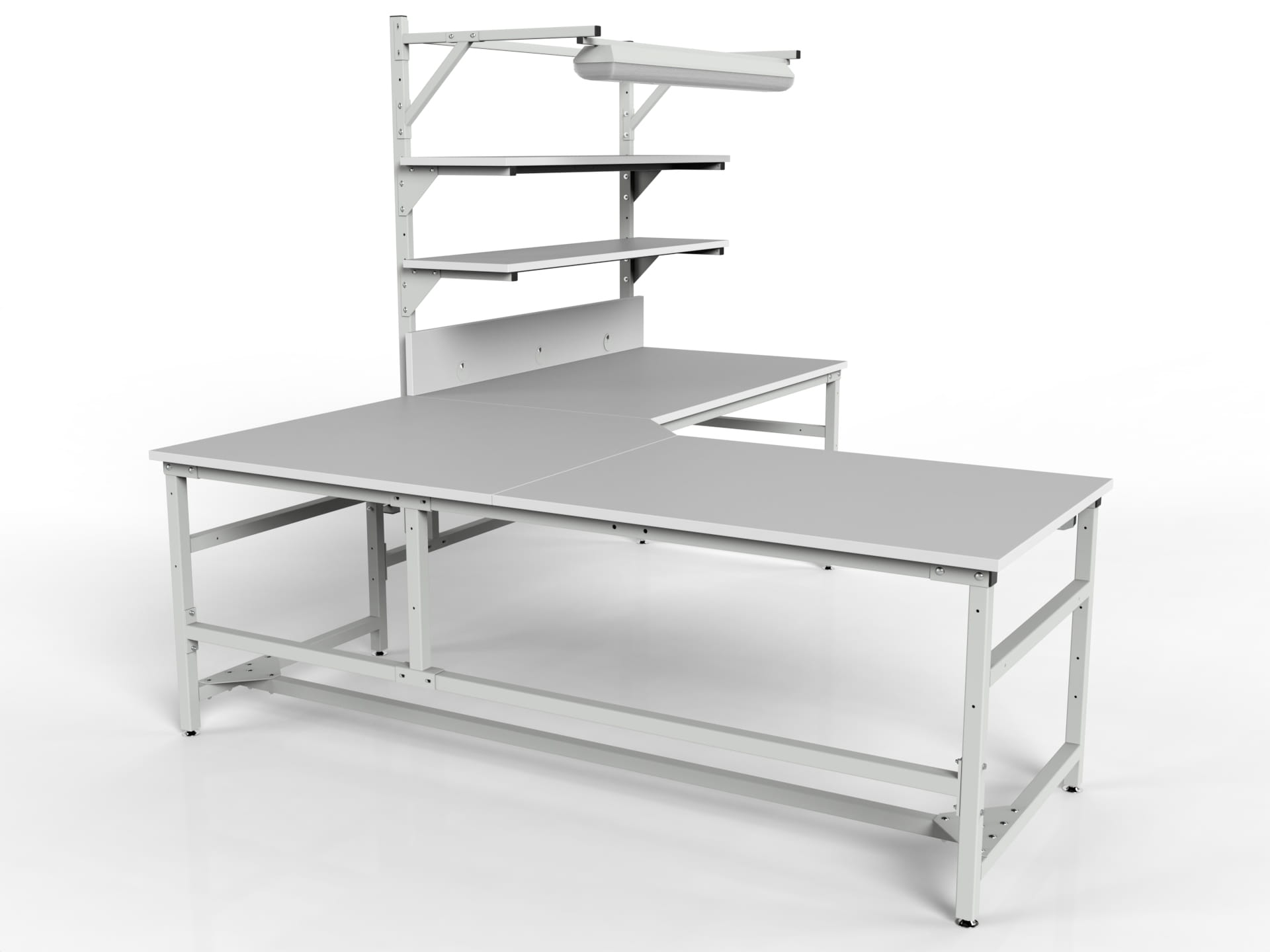

The visualization presents the ESD version of the table.

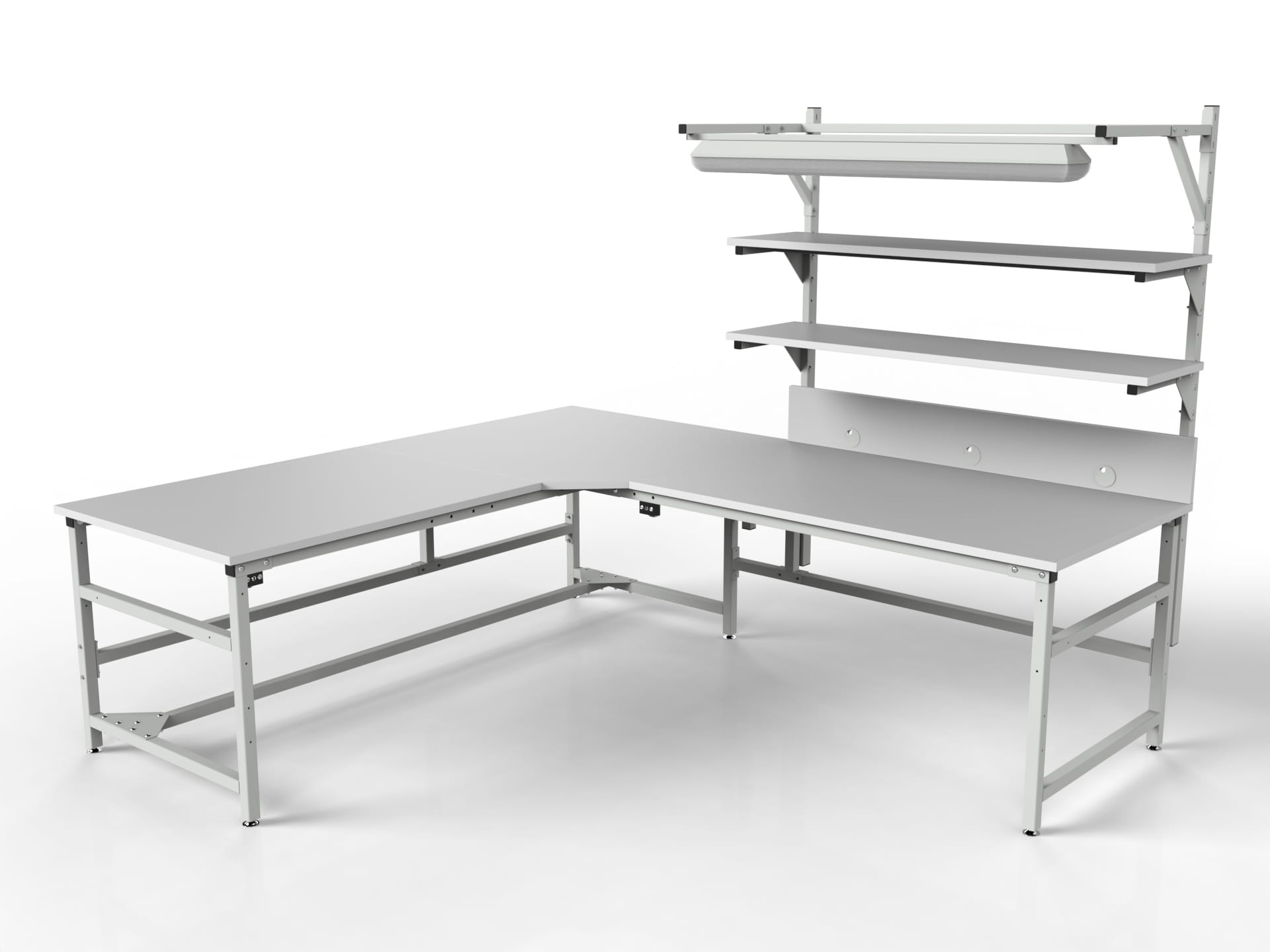

The special corner table combination SMWPC-0915 and SMW-0920. The robust steel profile construction ensures a load capacity of 300 kg, and the powder coating in the aesthetic RAL7035 colour prevents abrasion and corrosion (special conductive lacquer is used in the ESD version). The tabletop is made of sturdy melamine-coated board 25 mm thick with ABS veneer - rubber or sheet metal is also available on special request. Behind the rear panel (fitted with cable grommets) is a power strip with cable duct, complete with 11 plug sockets and 5 m cable, differential switch and fuse. Additional functionality is provided by two height-adjustable shelves above the tabletop and 26W LED lighting. The ZMSWPC-2326 is an excellent choice for workshops, industrial halls or even home garages, it allows better use of corner spaces and improves ergonomics by providing quick access to assembly parts and tools. The available ESD (electrostatic conductive) version extends the area of application to plants involved in the manufacture and assembly of sensitive electronics, switch cabinets, etc.

Characteristics of the ZSMWPC-2326 table set

• dimensions: combination of tables measuring 1500x900 mm and 1200x900 mm with a corner extension with a cut corner 1100x1100 mm
• construction made of steel profiles 40x40x2 mm powder coated in RAL7035 (ESD version uses conductive varnish)
• tabletop load capacity 300 kg evenly distributed
• fixed tabletop height - 800 mm
• tabletop made of durable melamine board 25 mm thick (ESD version uses conductive board)
• rear wall of the main table equipped with three cable grommets

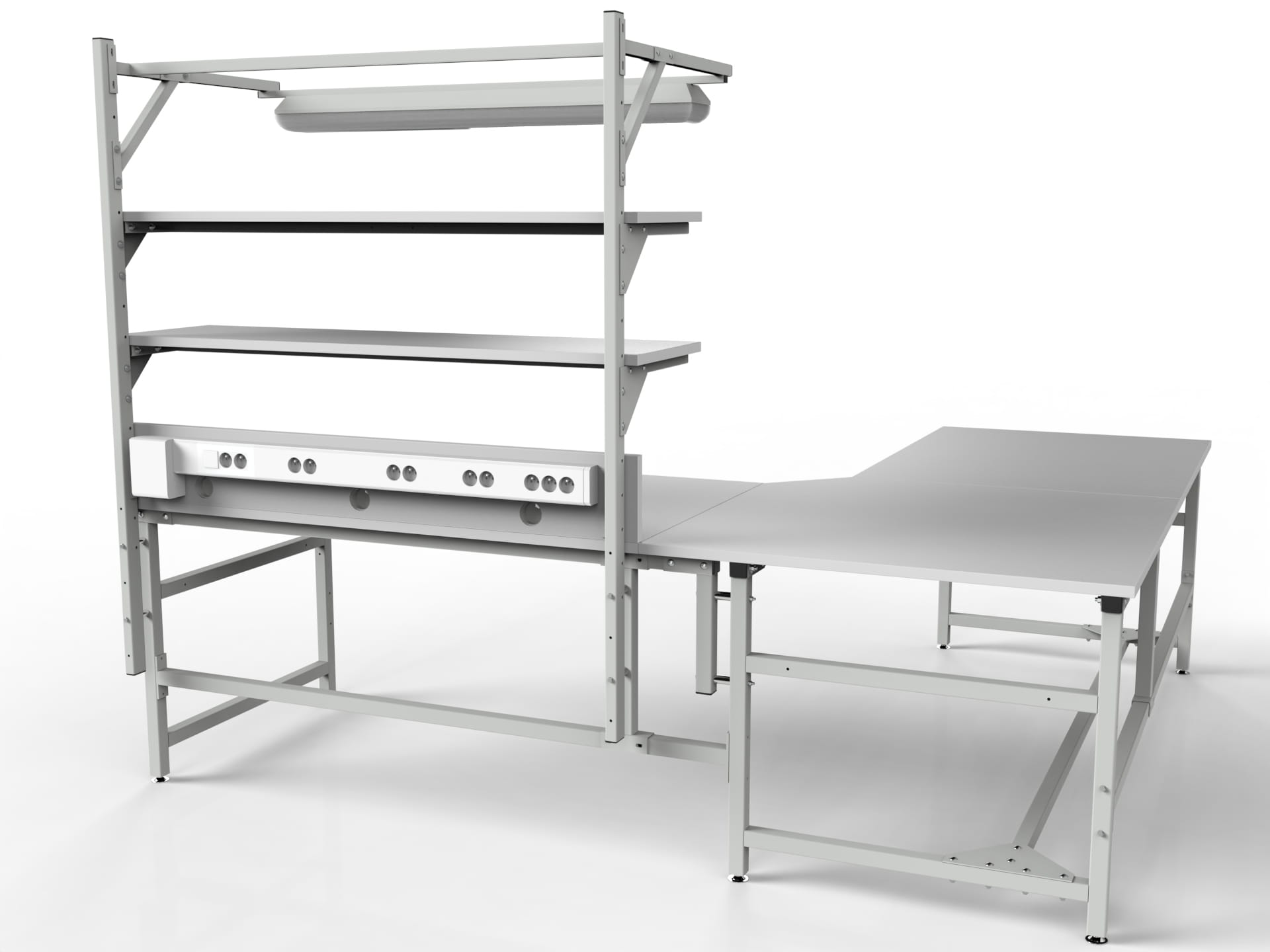

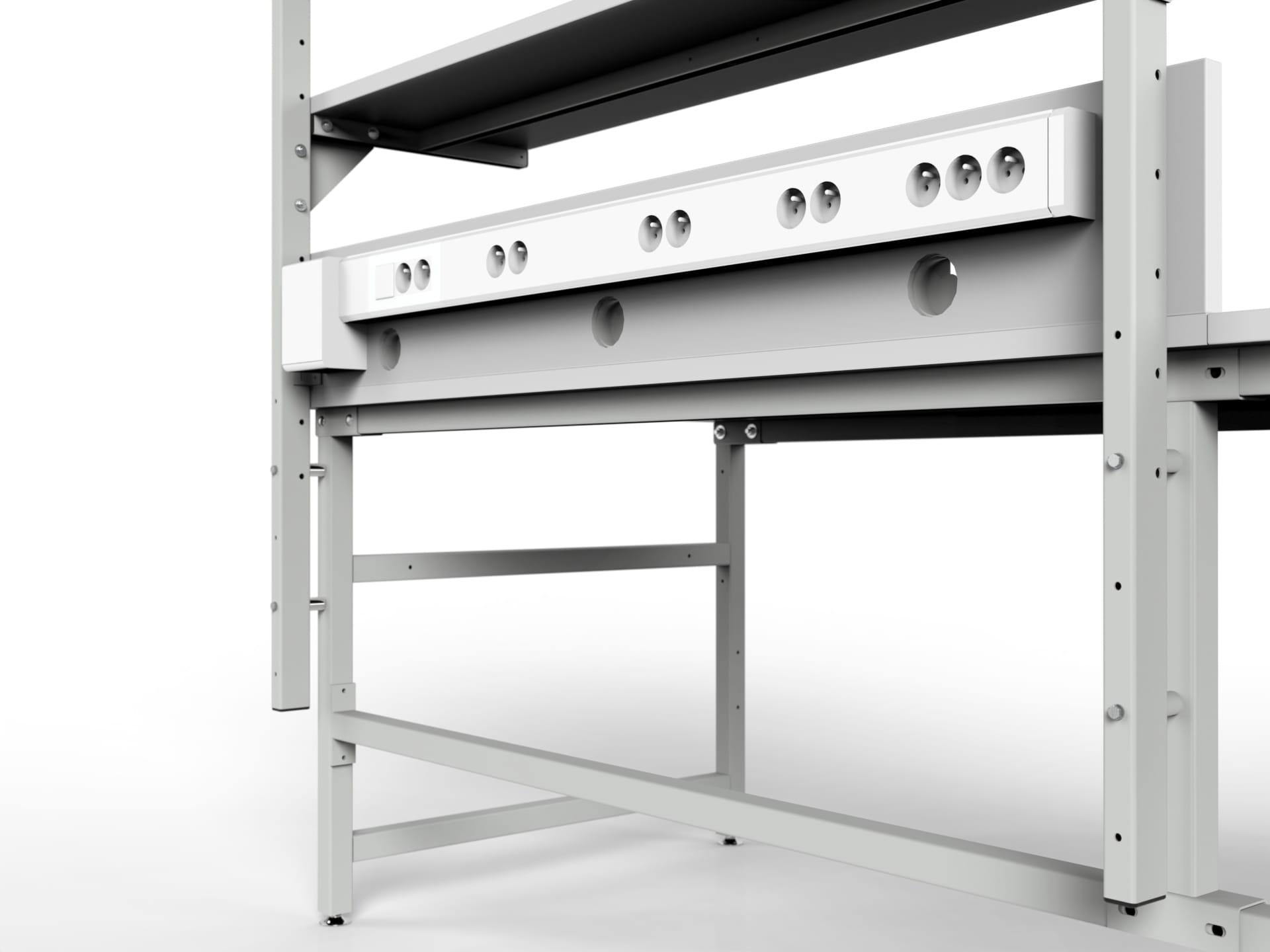

• power strip with cable cord placed at the back of the wall - equipped with 11 sockets, 5 m power cord, differential switch and a fuse

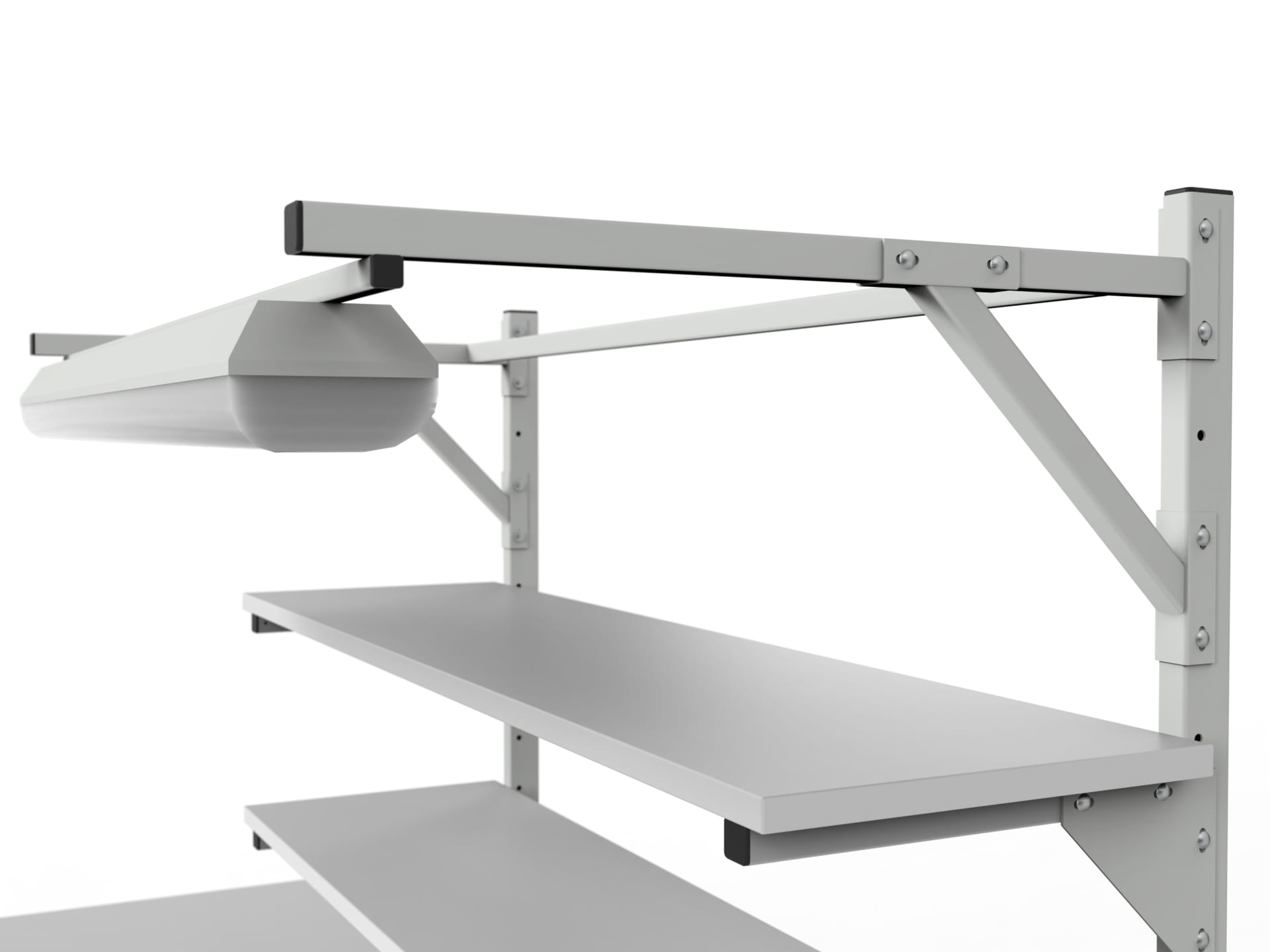

• central LED lighting 26W, height adjustable in steps - up to 1980 mm from the ground

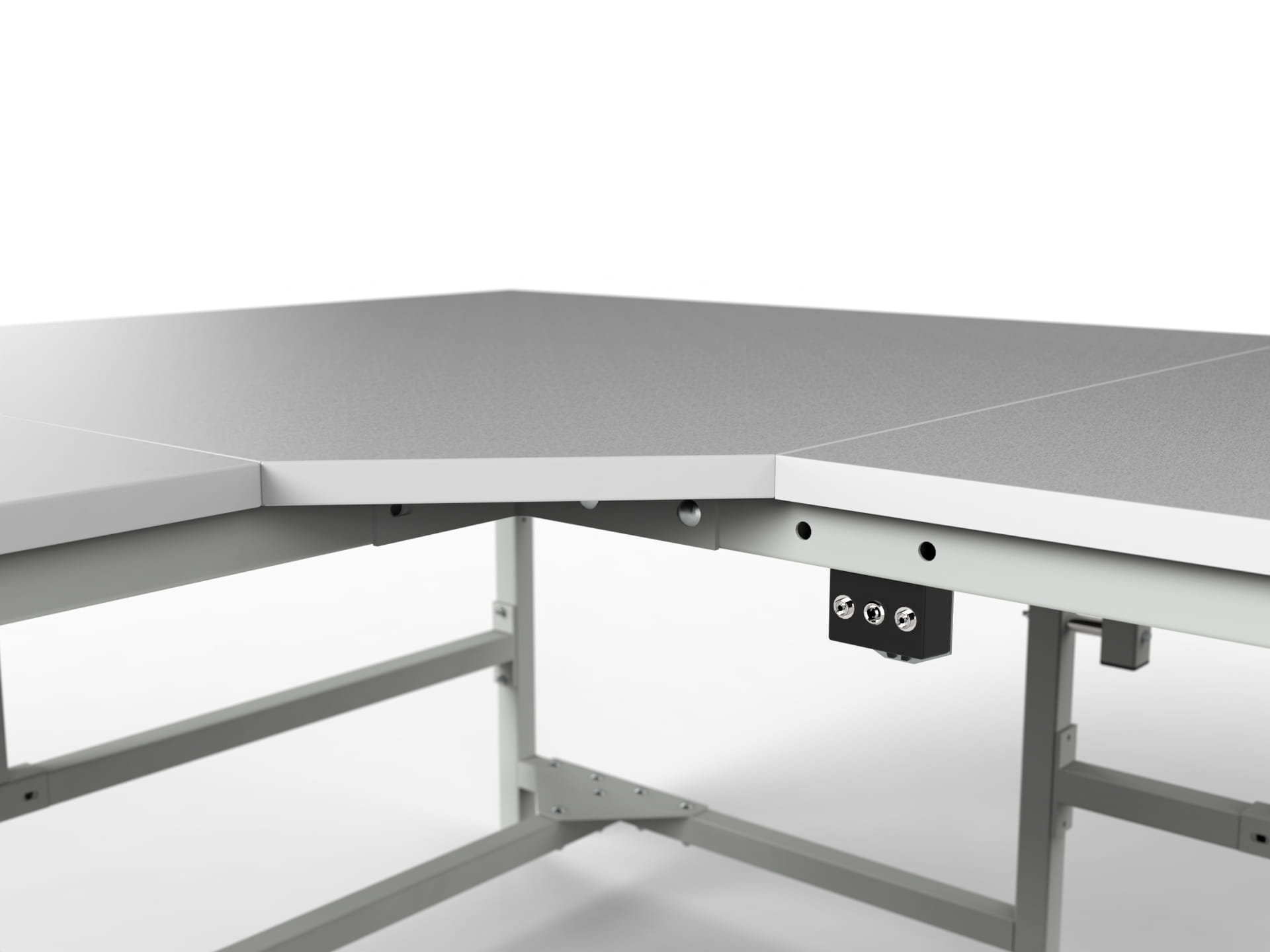

• ESD version: 2 grounding units, each with two 10 mm latches and one 4 mm banana socket, 1.8 mm grounding wires included
• levelling feet (conductive in ESD version)

Warranty and expert support from manufacturer Jabama

Each Jabama workbench is covered by a three-year warranty. Before purchasing and while using the table, you have constant access to support from our team of experts who will answer all your questions, help you match the table to your needs and provide advice on how to optimally equip your workshop. Our offer also includes other workshop furniture such as cabinets, tool trolleys, or shelving units.
