ESD Trolley WE-01-02-ESD-SPEC-18915 for Storage Containers
0
Description
Specialized ESD transport carts · code WE-01-02-ESD-SPEC-18915

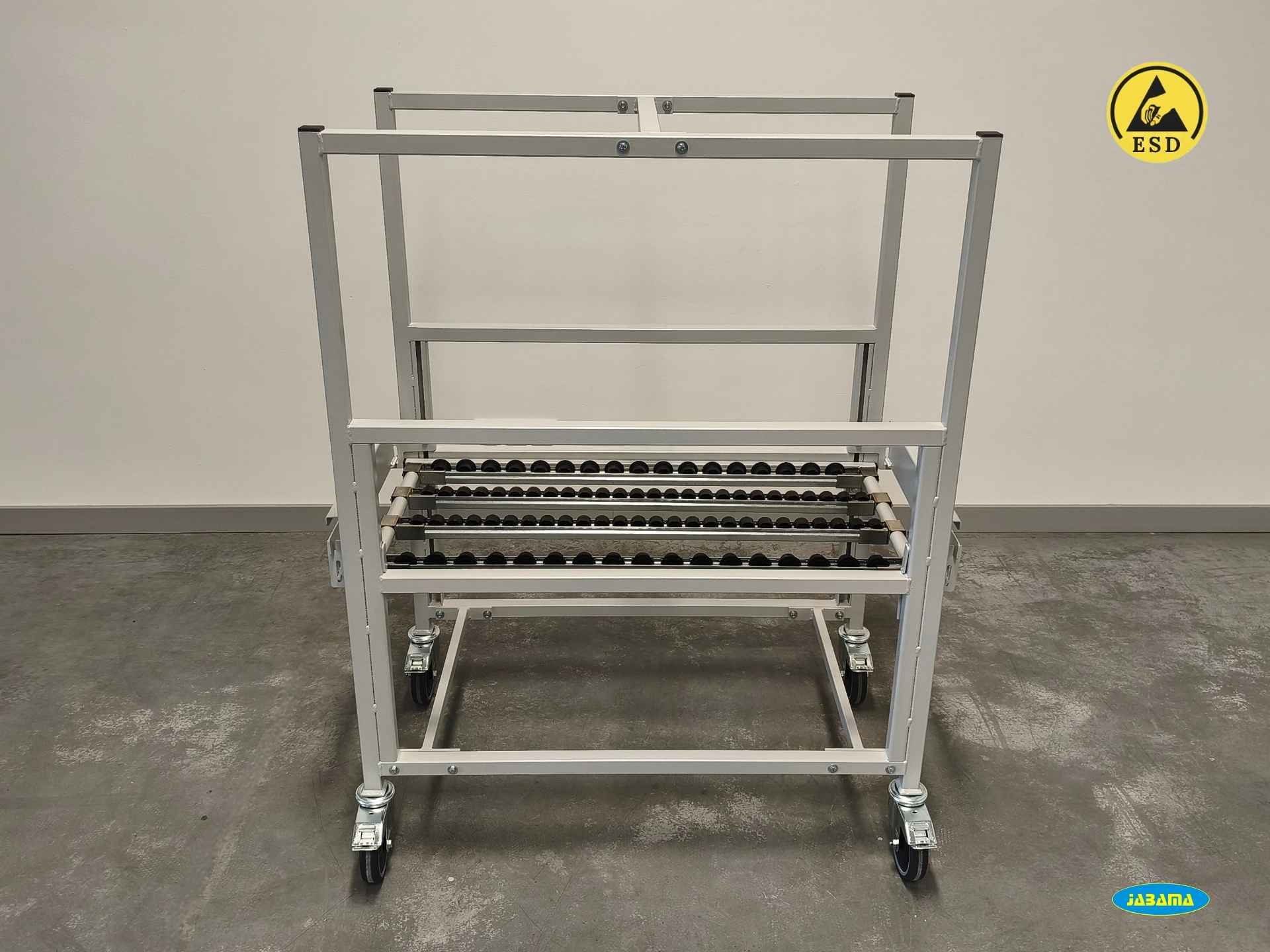

ESD Cart WE-01-02-ESD-SPEC-18915 for storage bins

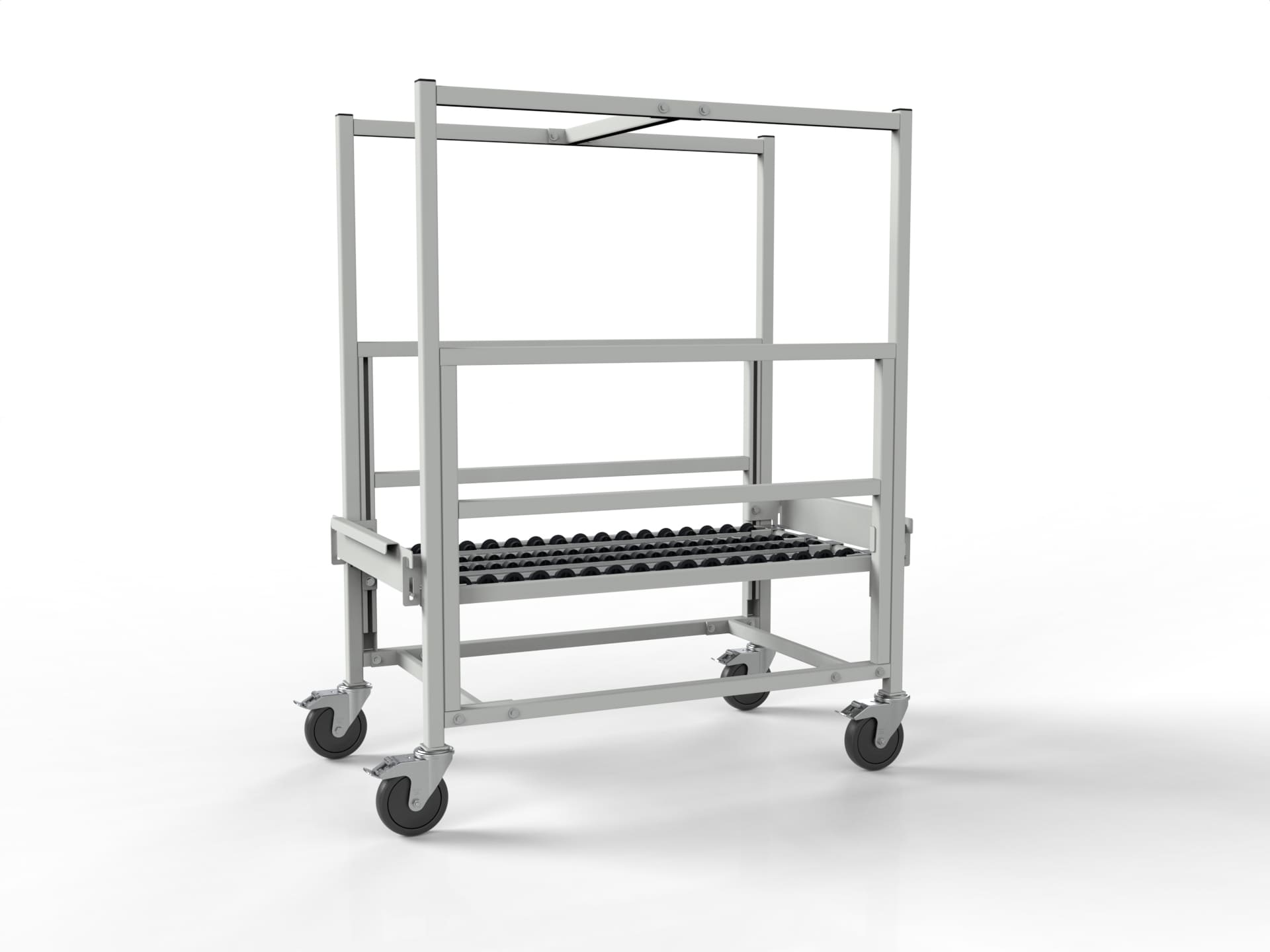

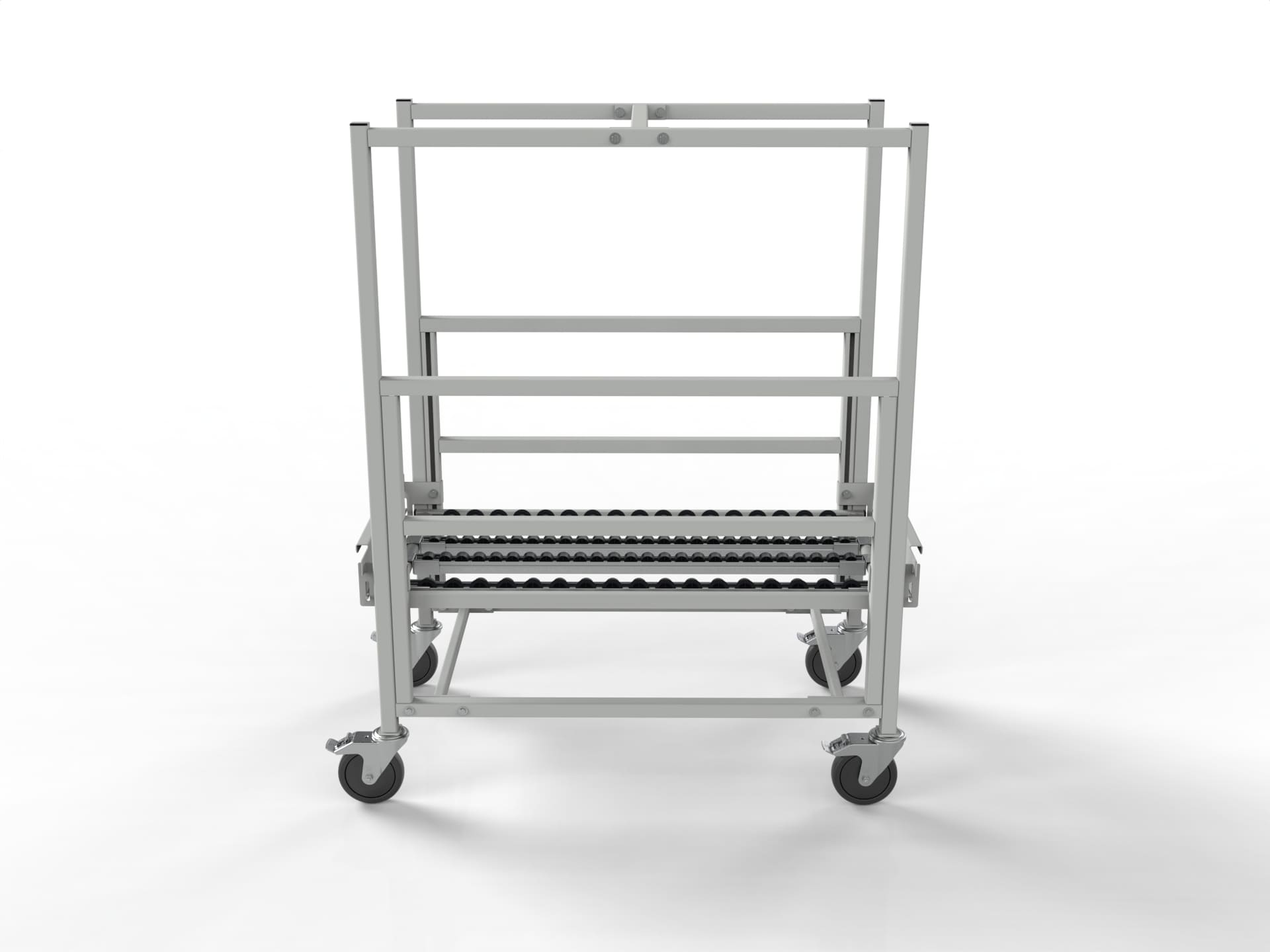

The WE-01-02-ESD-SPEC-18915 transport cart is designed for the safe and ergonomic transport of two storage bins (dimensions 563 x 380 x 400 mm). Equipped with a horizontal shelf featuring ESD roller tracks and a security locking system, it ensures antistatic protection and working comfort.
| 100 kg maximum load capacity | 380–630 mm smooth shelf height adjustment | ESD Protection antistatic paint and conductive elements | Ø 125 mm 4 swivel ESD castors with brakes |
Recommended application and advantages
The WE-01-02-ESD-SPEC-18915 cart is intended for EPA (ESD Protection Area) zones in electronics, assembly, and warehouse plants. It enables efficient movement of sensitive components enclosed in transport containers without the risk of electrostatic discharge damage.

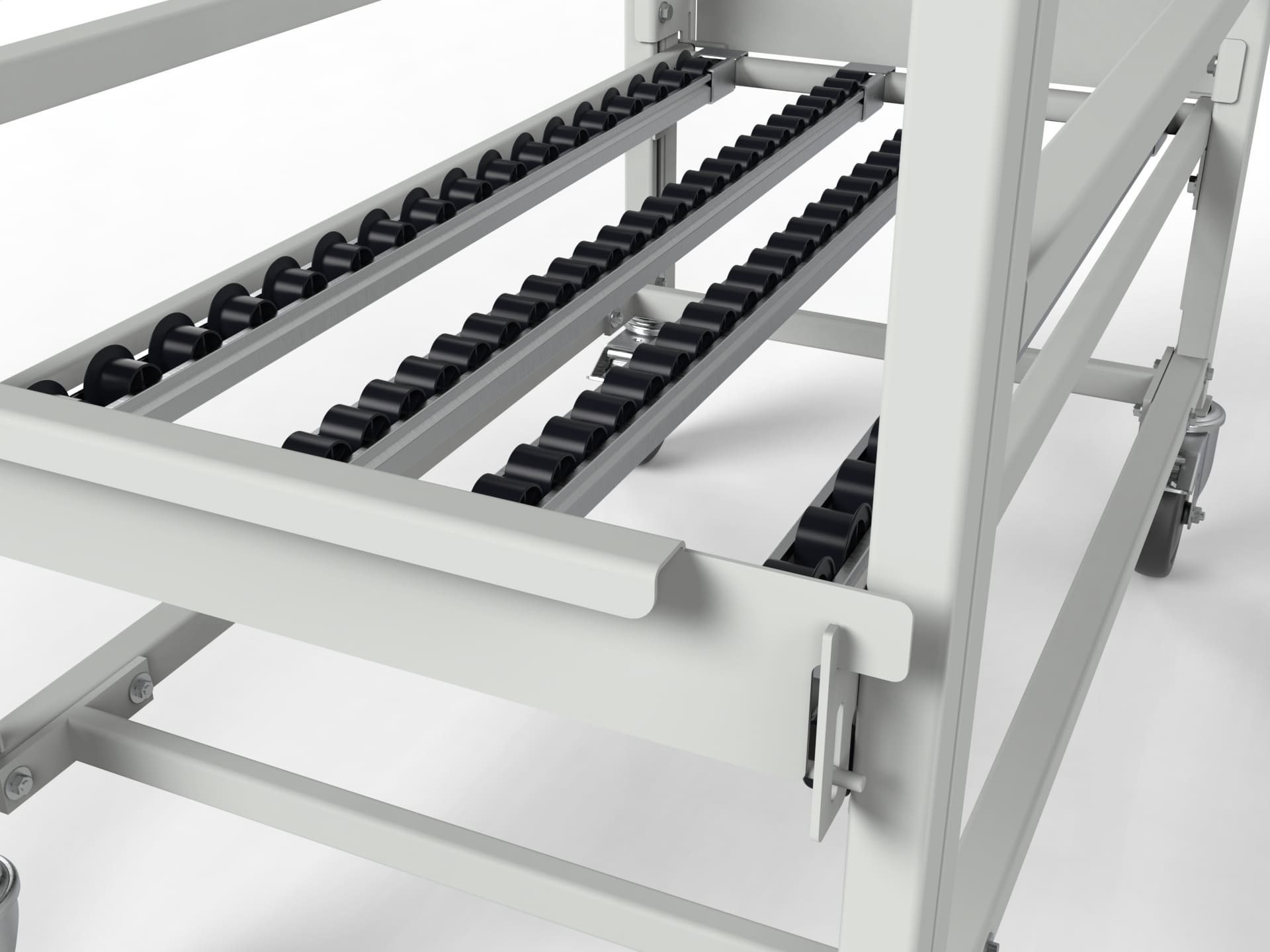

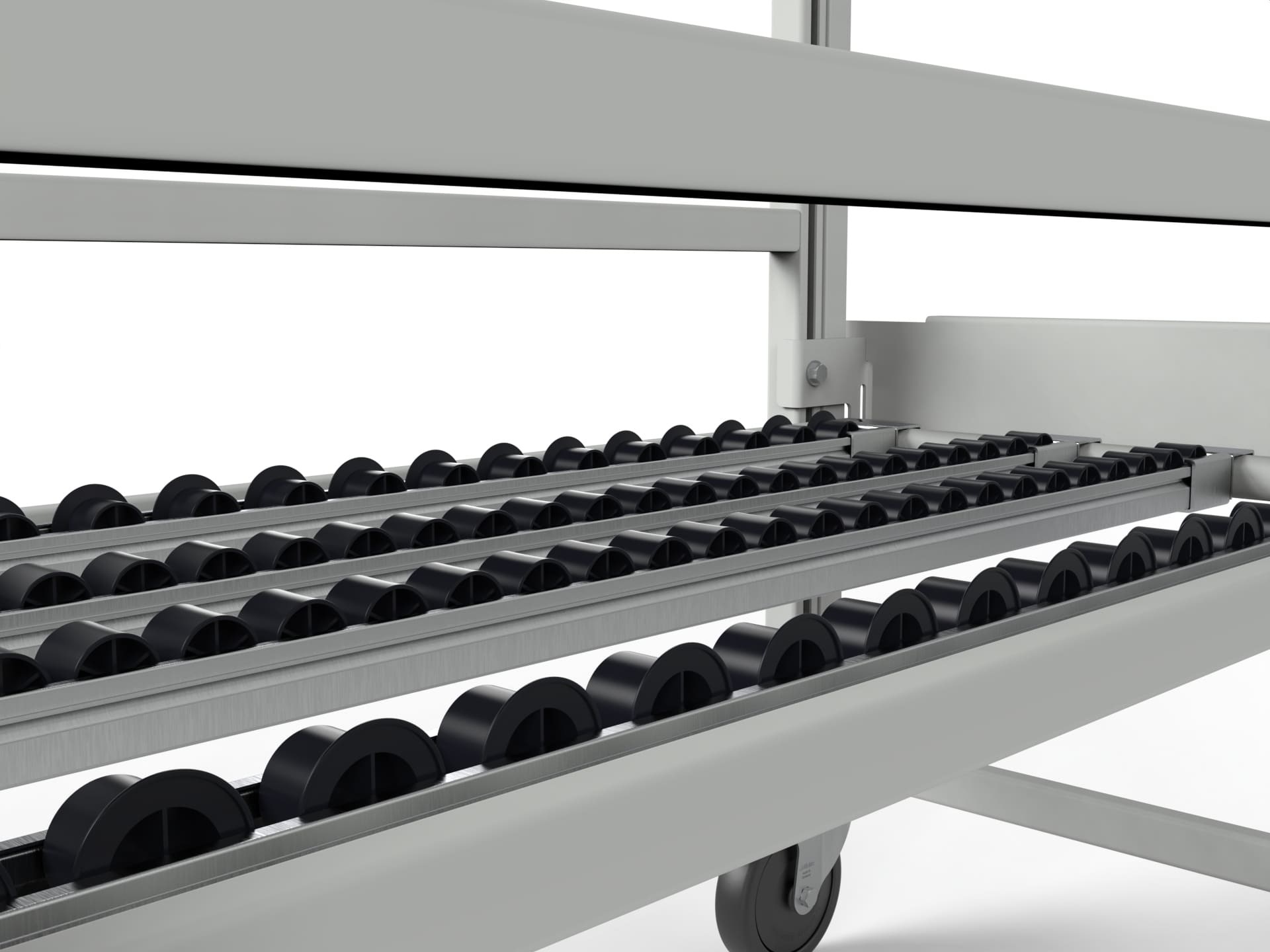

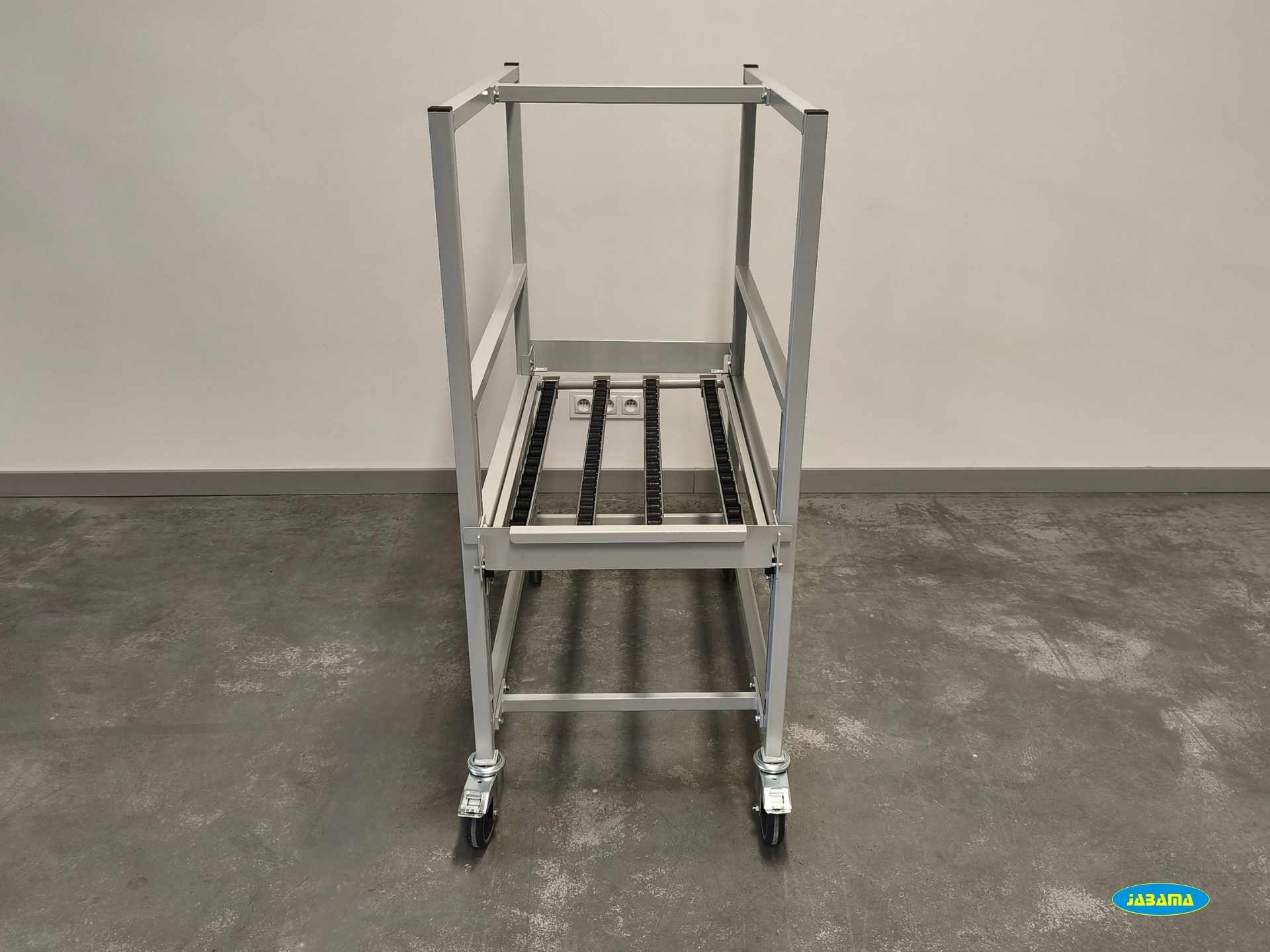

The working shelf rests on 4 ESD roller tracks, with the outer rollers featuring raised edges to stabilize container movement. Side safety barriers approximately 80 mm high protect against accidental load sliding and are easy to operate – they can be opened and closed with one hand.
Overall dimensions and fit

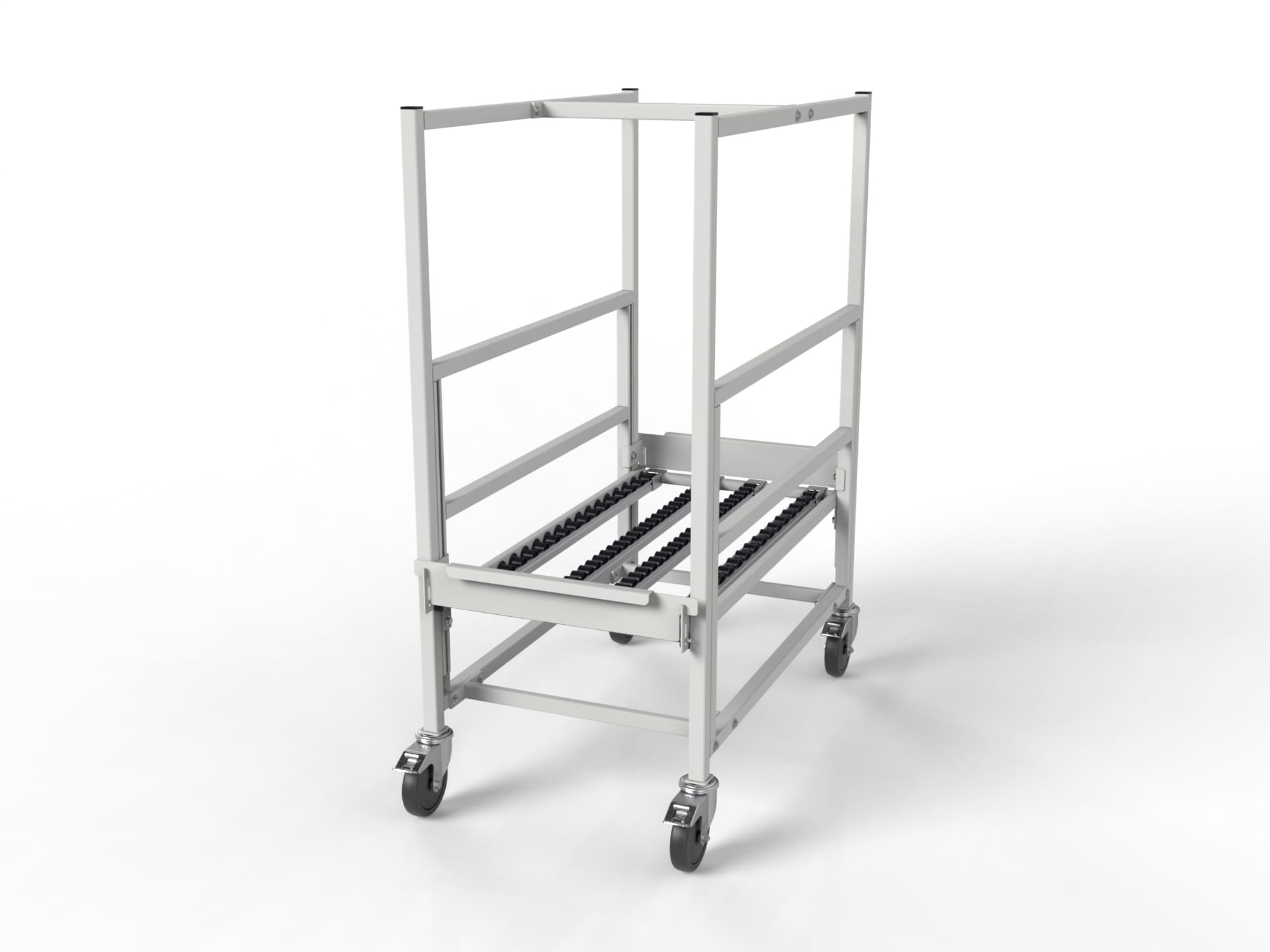

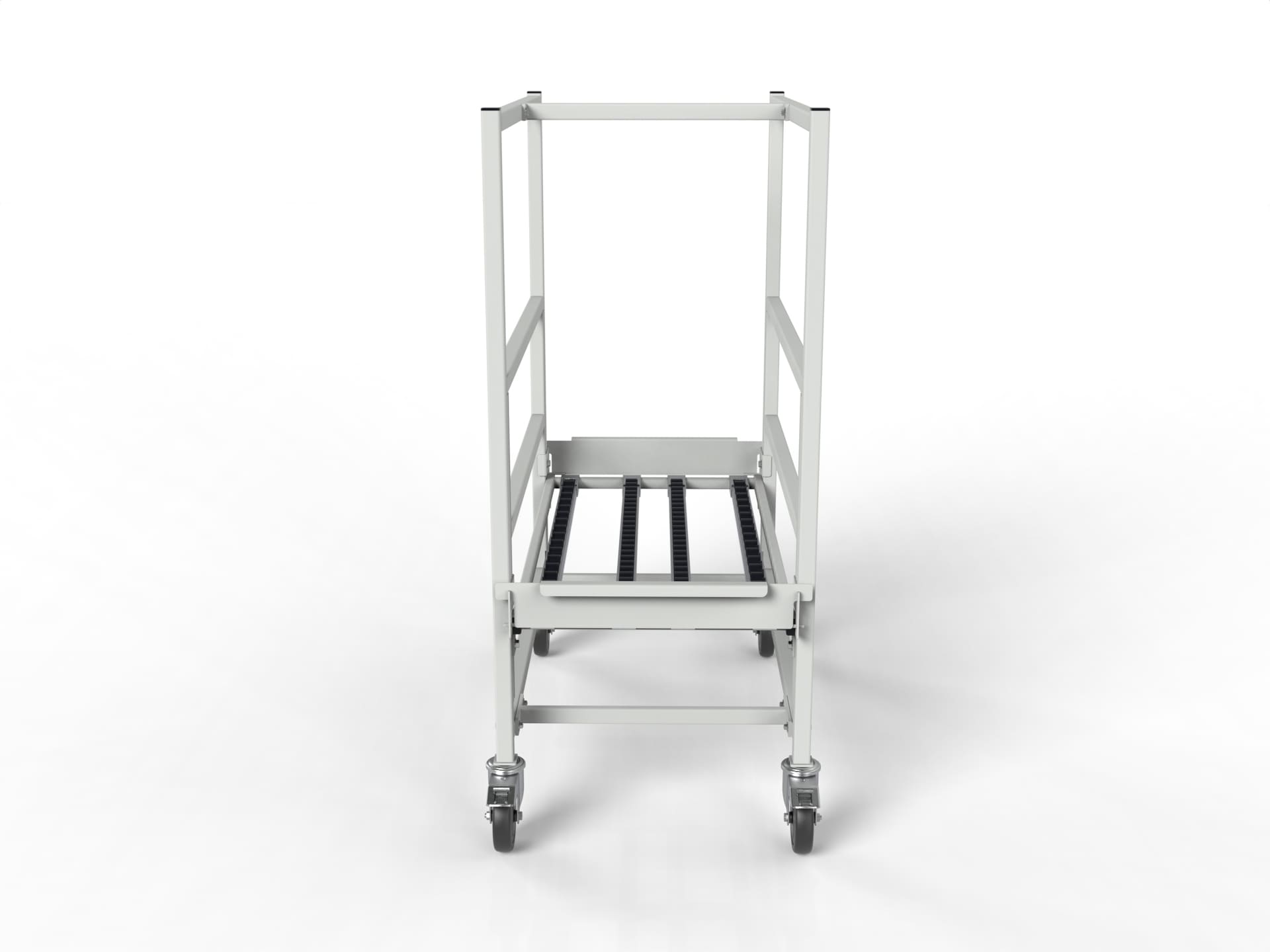

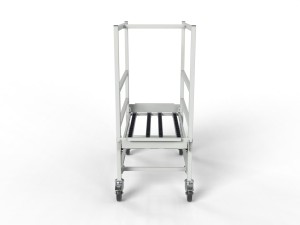

The compact design measuring 1272 mm in height, 1054 mm in width, and 591 mm in depth works perfectly in tight production lines and cleanroom corridors. 360-degree swivel castors ensure exceptional maneuverability.
ESD Construction and full ergonomic adjustment
The cart frame is made of stable steel profiles coated with light gray (RAL 7035) antistatic conductive powder paint. All 4 castors with a diameter of 125 mm are made of antistatic material; each castor swivels and is equipped with an individual brake, providing maneuverability and secure parking lock.
Both the suspension height of the horizontal roller shelf and the mounting radius of the safety locks are subject to stepless, smooth adjustment within the range of from 380 mm to 630 mm from the floor.
JABAMA Polish Manufacturing – Dedicated Industrial Solutions
By ordering directly from a Polish manufacturer, you gain a guarantee of durability, compliance with ESD antistatic standards, and the ability to customize parameters to your production line's individual requirements.
Frequently Asked Questions (FAQ)
What bins fit the WE-01-02-ESD-SPEC-18915 cart?
The cart has been dimensionally and structurally optimized for the simultaneous transport of two CAB703.2 storage bins measuring 563 x 380 x 400 mm.
How do the container slip guards work?
The shelf features protective guards approximately 80 mm high on both sides. The locking system is designed so that the operator can smoothly lock or release the load using only one hand.
Does the entire cart protect against electrostatic discharges?
Yes, the entire steel structure is coated with conductive antistatic paint (RAL 7035), and the running gear as well as transport rollers are made of charge-dissipative (ESD) materials.
