Jabama JK05-3930 Electric Lifting Column
5
Description
Jabama JK05-3930 Electric Lifting Column
A modern two-part lifting column that enables easy height adjustment of furniture and industrial equipment. It significantly increases the ergonomics of various types of worktables, desks, platforms, roller conveyors, cabinet assemblies, monitor stands, and many other elements. In designing our electric columns, we have used the highest quality parts and materials. The durable construction and high lifting force mean that our columns perform well in industrial applications and enable quick integration with professional equipment in factories, workshops, warehouses, and offices.
Ergonomic Extension, High Load Capacity
The JK05-3930 column model enables a column extension of 390 mm while maintaining a lifting force of 3000N. These parameters have been adjusted to ensure ergonomic height adjustment of various types of workstations and auxiliary equipment. Thanks to this, the columns provide precise height adjustment according to needs.
Efficient and Matched Motor
We have devoted considerable time to selecting the right motor that provides adequate pushing force as well as quiet and comfortable operation, taking into account the other parameters of the column. The lifting mechanism used has made it possible to select a lifting speed ideal for professional conditions, considering maximum load: 6.2 mm/s.
Durable and Rigid Housing

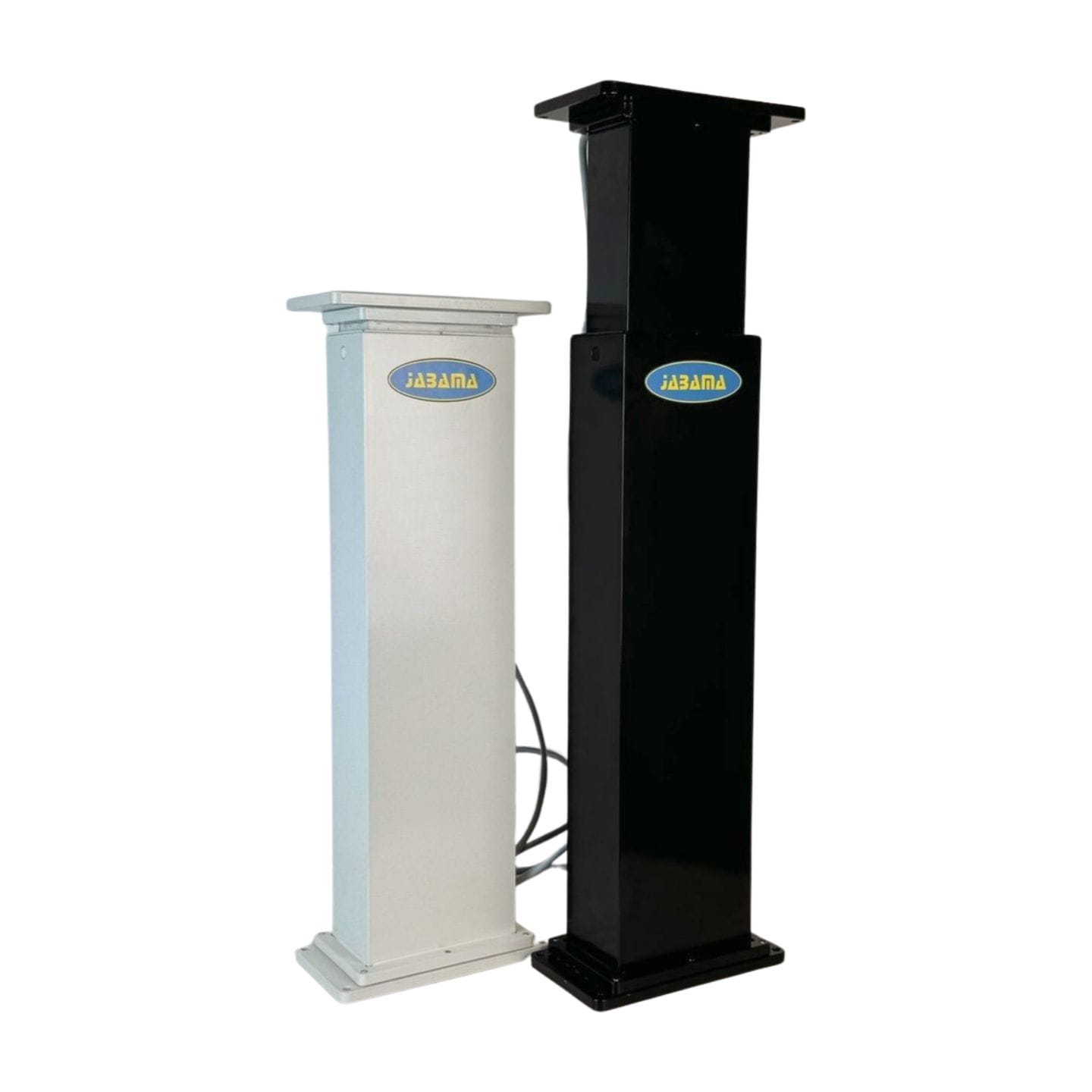

The lifting mechanism is enclosed in a practical aluminum profile, powder-coated in black or light gray. The high-quality aluminum housing provides protection for sensitive components and resistance to damage. The absence of protruding motor elements makes the column slimmer and more aesthetic, and most importantly, takes up less space - making it easier to install and adapt to the lifted structure.
Where Are JK05-3930 Lifting Columns Used?
JK05-3930 lifting columns have been designed for versatile applications in various fields, such as:
- Industry: the columns work well as an element for height adjustment of worktables, workshop tables, assembly tables, and other workstations as well as transport trolleys, lifts, platforms, and frames on production lines and conveyor belts
- Office: as a structural element of adjustable desks and conference tables
- Medical equipment: operating tables, medical devices and apparatus, medical and dental chairs
- Kitchen: adjustable kitchen cabinets, built-in elements, kitchen islands, kitchen tables
Lifting Columns: Made in Poland with Attention to Detail
Our columns have been entirely designed and manufactured in Poland. For many years, we have been designing electrically adjustable worktables for industry, and we have used our experience to bring to market a solid product that meets the highest quality requirements and which we use without hesitation in manufacturing our electrically adjustable tables. By purchasing the JK05-3930 column, you gain a proven product, service, and after-sales support provided in Poland, as well as fast delivery.
The implementation of Jabama lifting columns was preceded by long and meticulous research and development work conducted by our team of designers. We carried out many demanding tests to ultimately bring a high-quality product to market. Production takes place entirely at our main production facility, where we prepare profiles, electrical components, motors, and other elements. We also conduct thorough quality control tests to ensure that customers receive a working and functional product from us.
The columns require a Logicdata controller and a simple Logicdata remote control to operate. Each controller synchronously operates up to 3 columns. Such a set can be controlled with a basic remote. Controlling more than two columns (maximum 6 in synchronous operation) requires two controllers and an additional cable to connect the controllers in cascade using the LOG-CBL-HT-SYNC-500 cable. One remote will be sufficient.
Soon (Q3 2026), dedicated JABAMA controllers supporting up to 4 columns will be available for sale.
Column production video and photos at JABAMA facility:

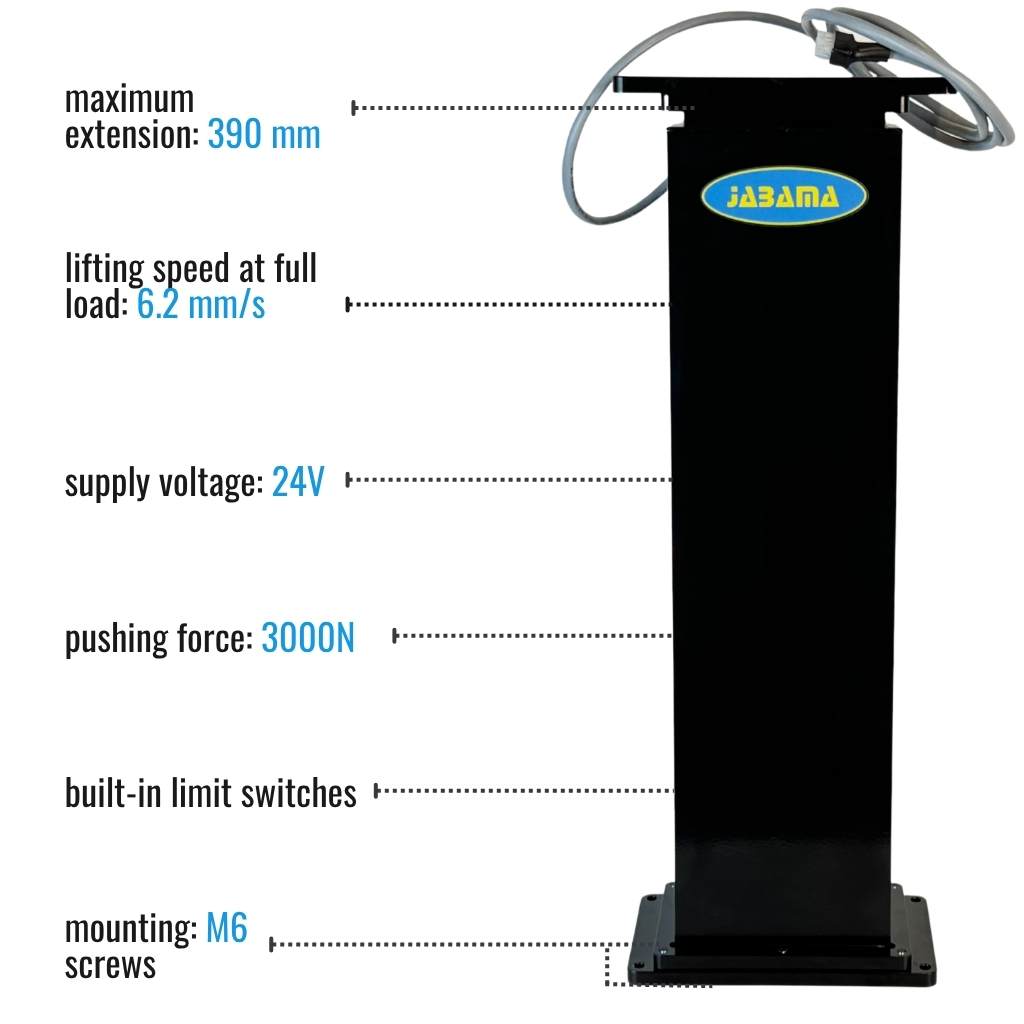

Technical data
| Housing color | black RAL9005 or light gray RAL7035 |
| Operating temperature range | 5°C-40°C |
| Housing material | aluminum |
| Duty cycle | max 20% |
| Upper and lower plate mounting | M6 screws |

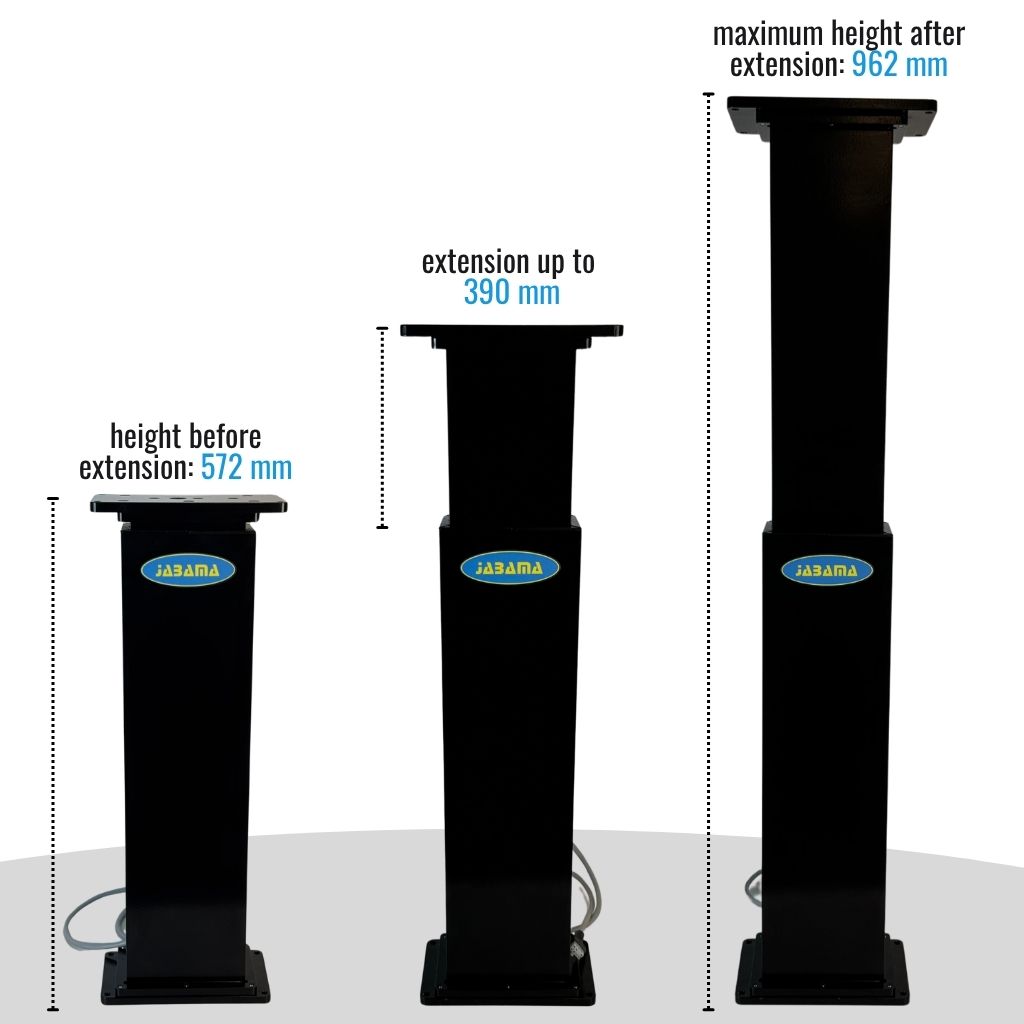

| Column height before extension | 572 mm |
| Maximum column extension | 390 mm |
| Lifting speed at full load | 6.2 mm/s |
| Supply voltage | 24V |
| Maximum pulling force | 2000N |
| Overload protection | integrated with external controller |
| Maximum pushing force | 3000N |
