Unit ZSMRE-0717-120177 for the prefabrication of cabinets and switchboards

ZSMRE-0717-120177 assembly unit for the prefabrication of cabinets and switchboards

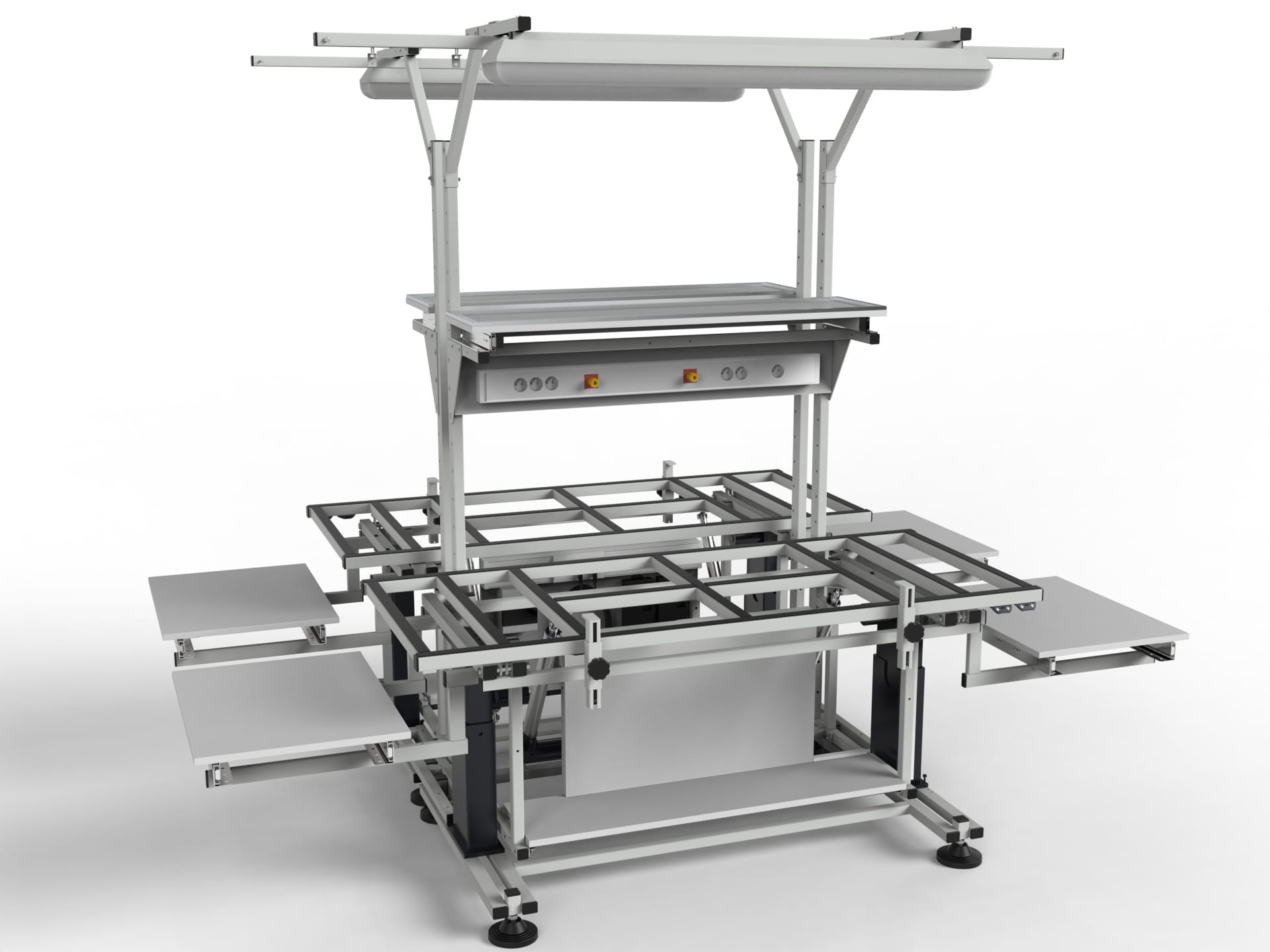

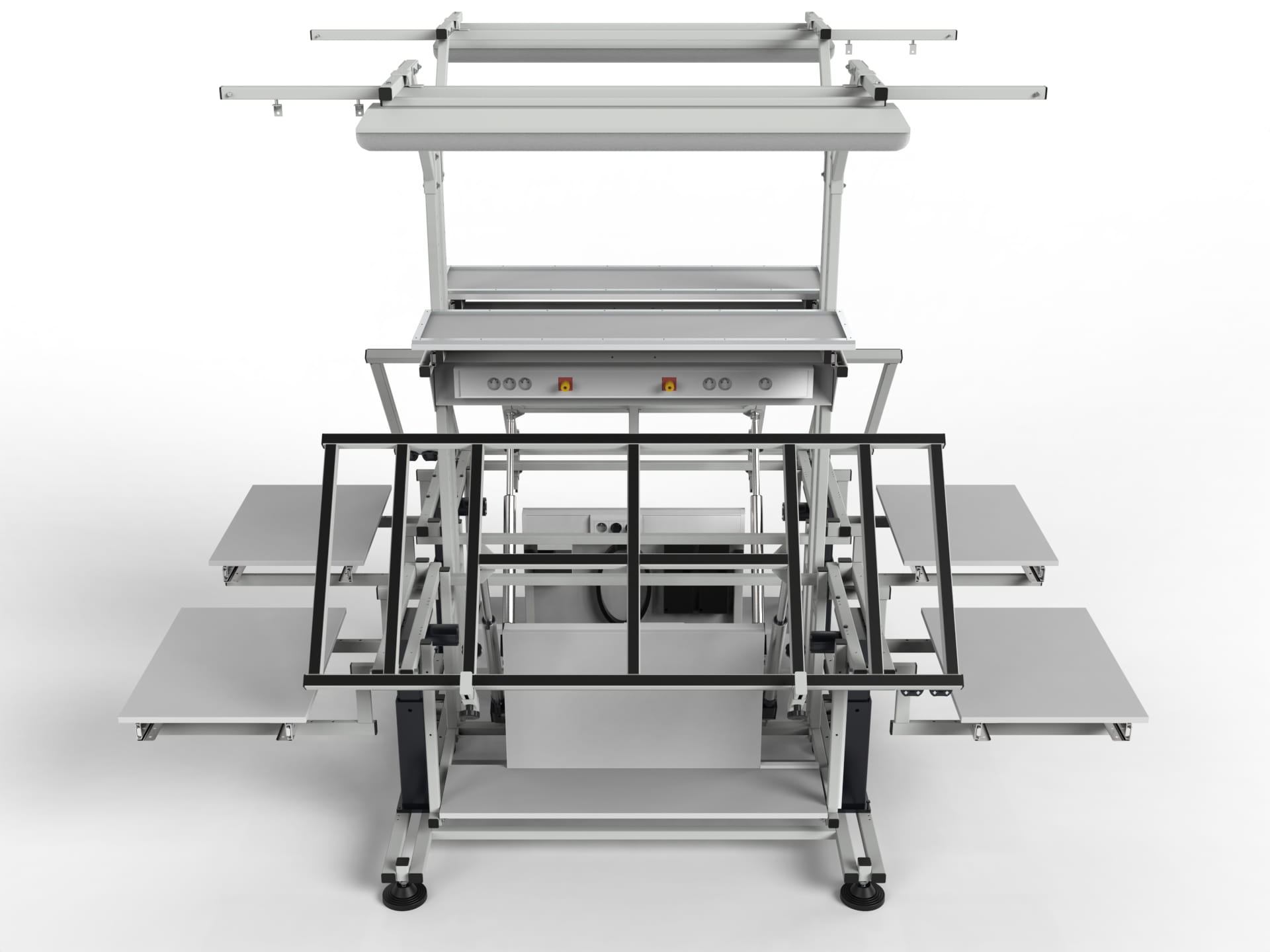

A combination of two identical tables, the ZSMRE is ideal when you want to save space and wire connections. The steel construction is robust and stable, resulting in a load capacity of up to 200 kg per table. Pull-out side and top shelves provide additional storage space for the materials and tools you need, and lighting allows you to work in any conditions. Additional functionality is provided by electric height and tilt adjustment, rubber covering of the work surface, balancer handle and power sockets. All of this makes the ZSMRE ideal for work involving the manufacture of electrical cabinets, panels and switchboards, especially in conjunction with cable trolleys.

Width and depth of set: 2768x2005 mm (with shelves retracted).

Tables cannot be disconnected due to the danger of tipping over.

Key features of one table from the ZSMRE set

• based on a steel profile construction, powder-coated in RAL 7035 (light grey)

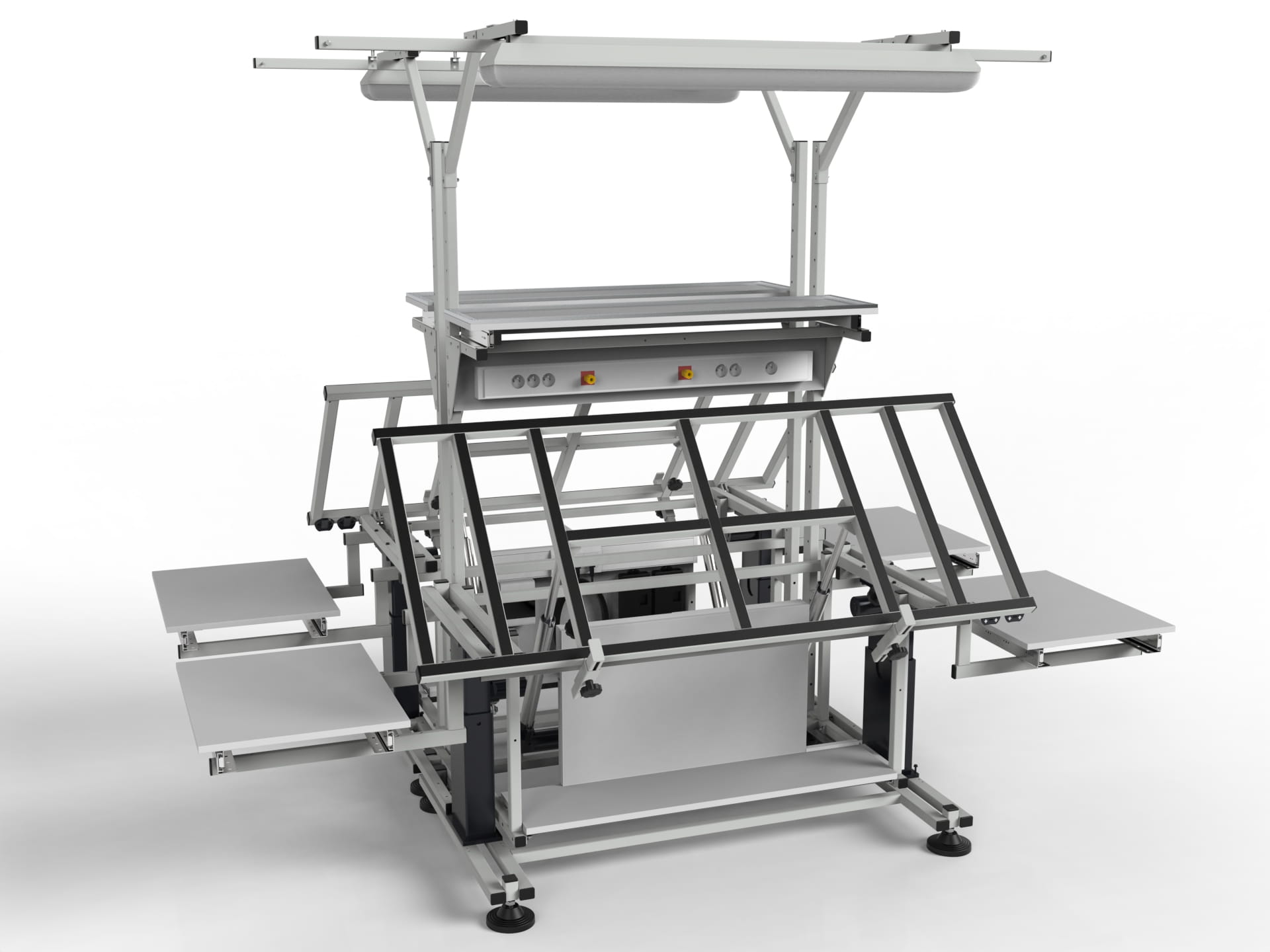

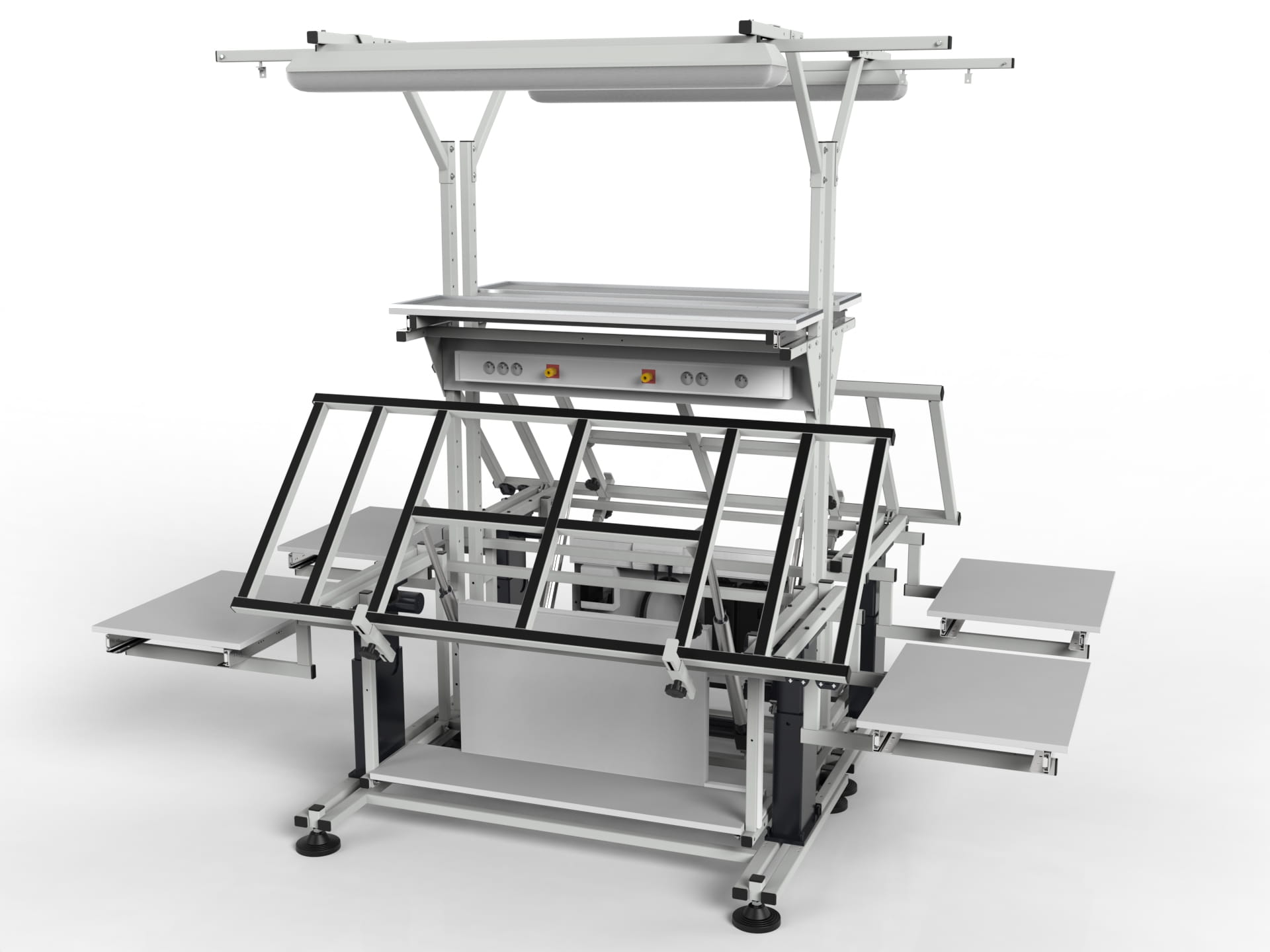

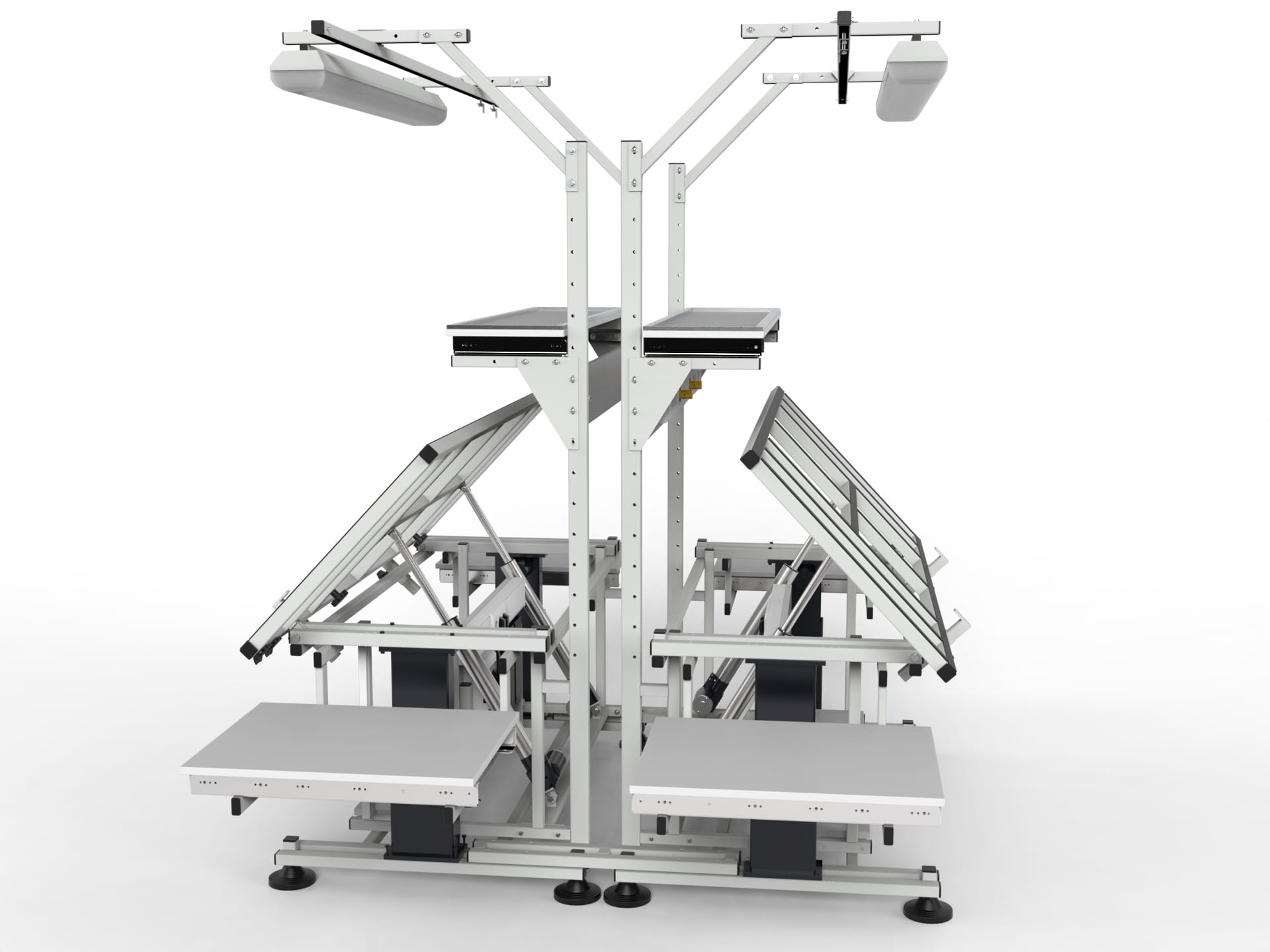

• double adjustment; height from 759 to 1149 mm and angle of inclination 0-70°, adjustable by means of remote controls under the top, depending on the batch, the columns can be in black or grey

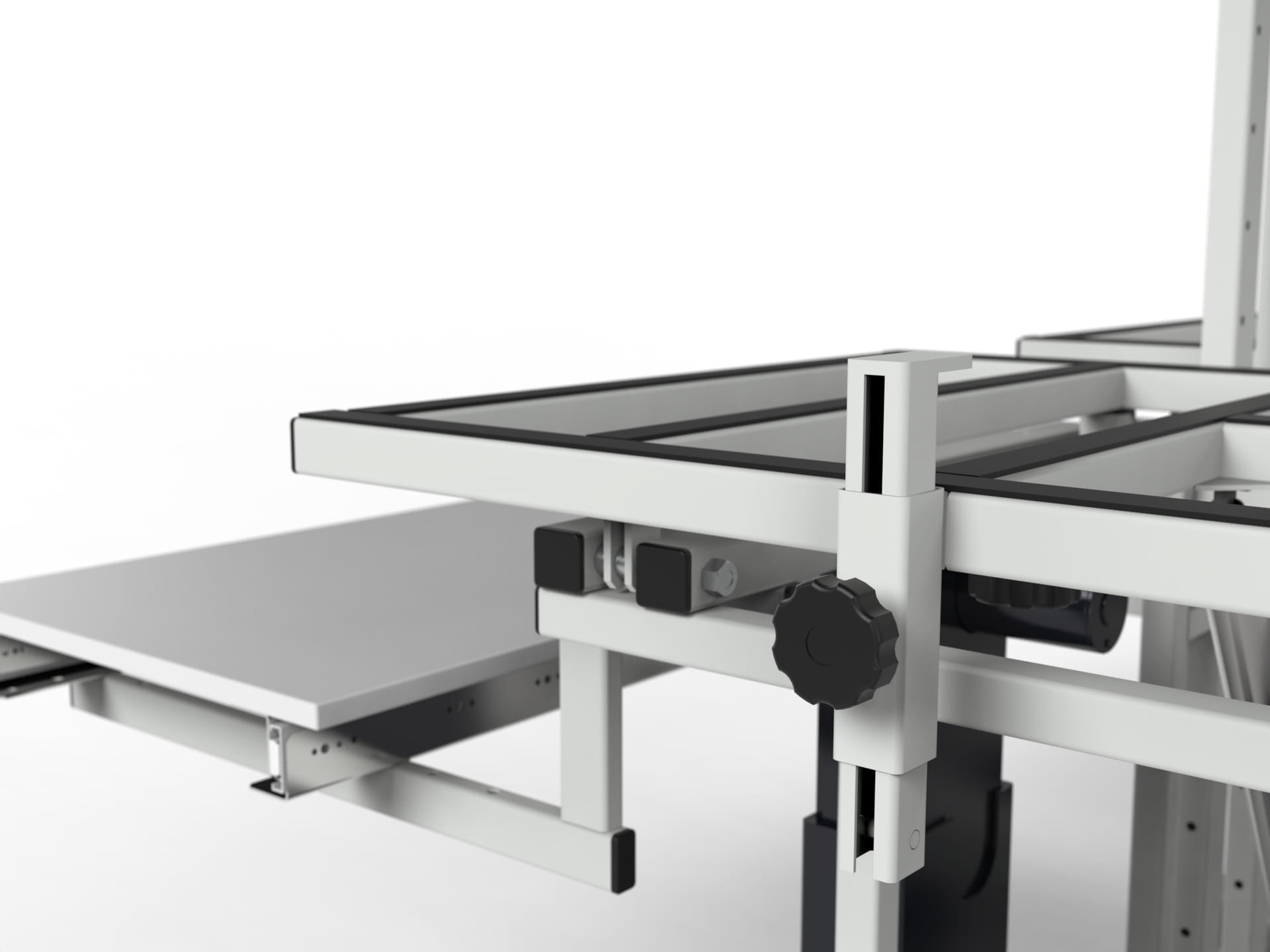

• working surface 1720x720 mm, covered with corrugated rubber, clamping feet in the lower part of the top to hold items up to 100 mm high
• load capacity of the work surface up to 200 kg when evenly distributed
• three 220V sockets outlet with power switch and controls under the worktop on the inside of the hinged side
• installation with six 220V sockets and two 1/2’ female quick-connectors (one male quick-connector at the rear) - under the top shelf

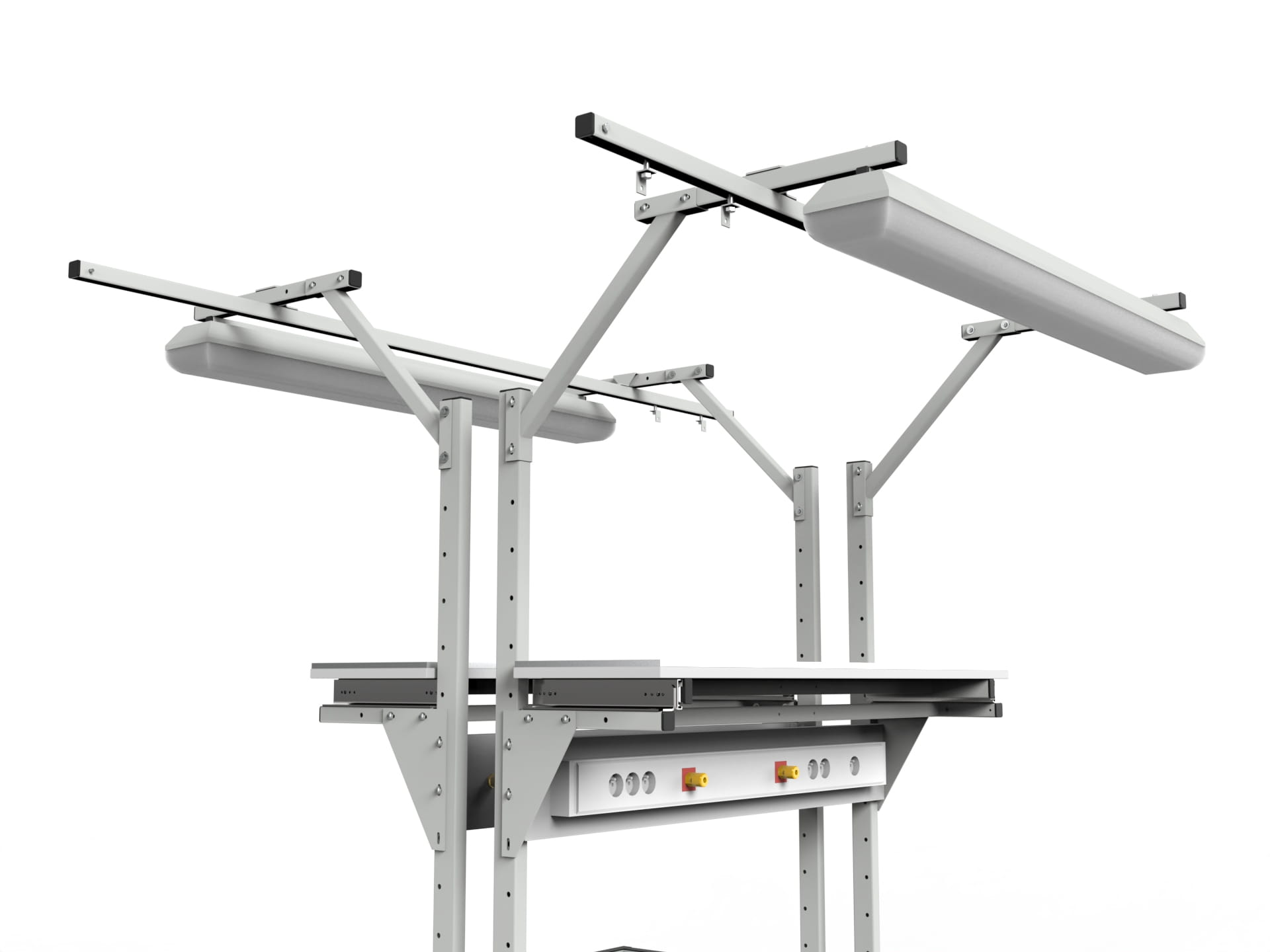

• industrial lighting 26W LED, adjustable in increments of 80 mm

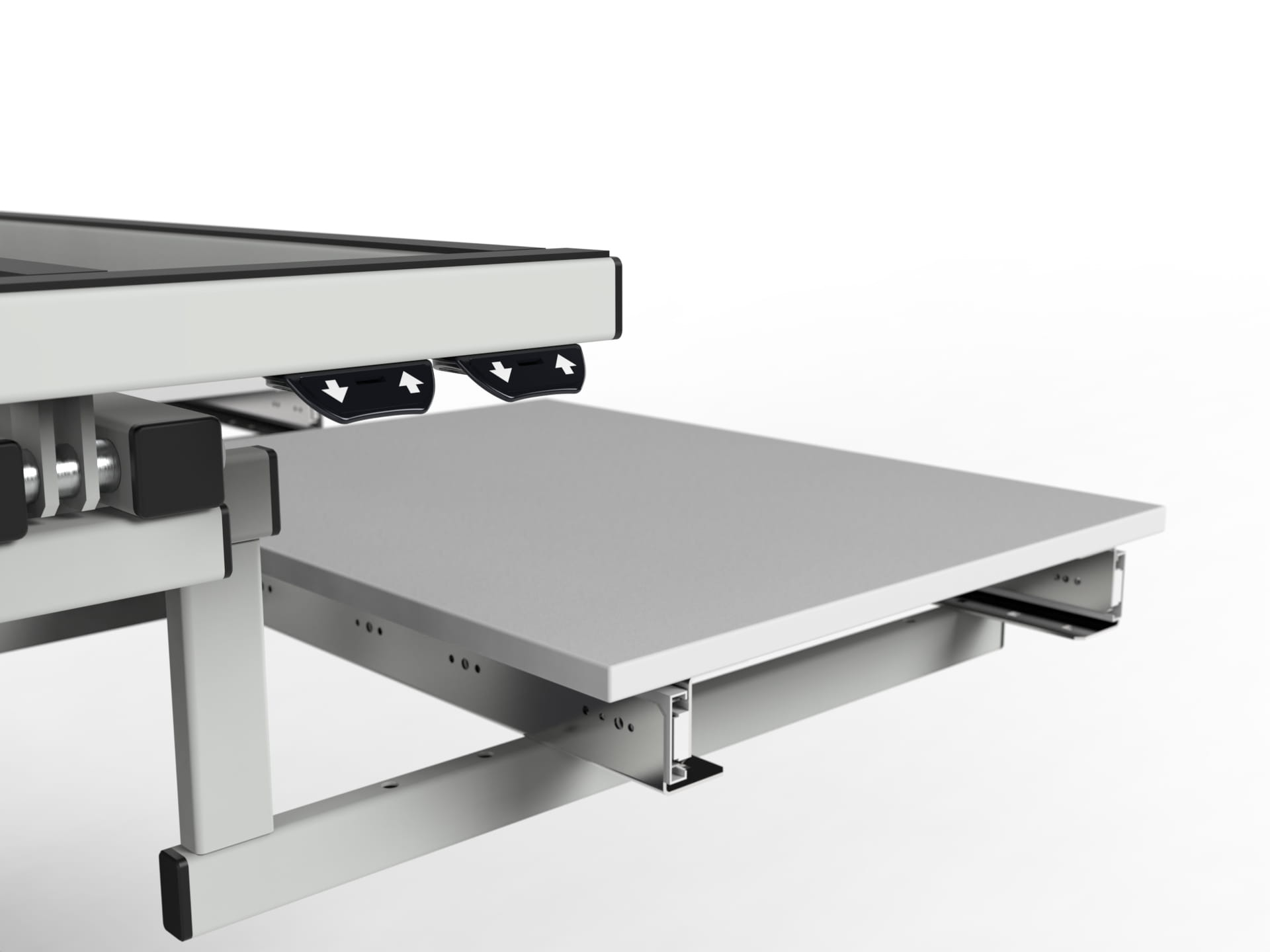

• two pull-out side shelves, load capacity 20 kg

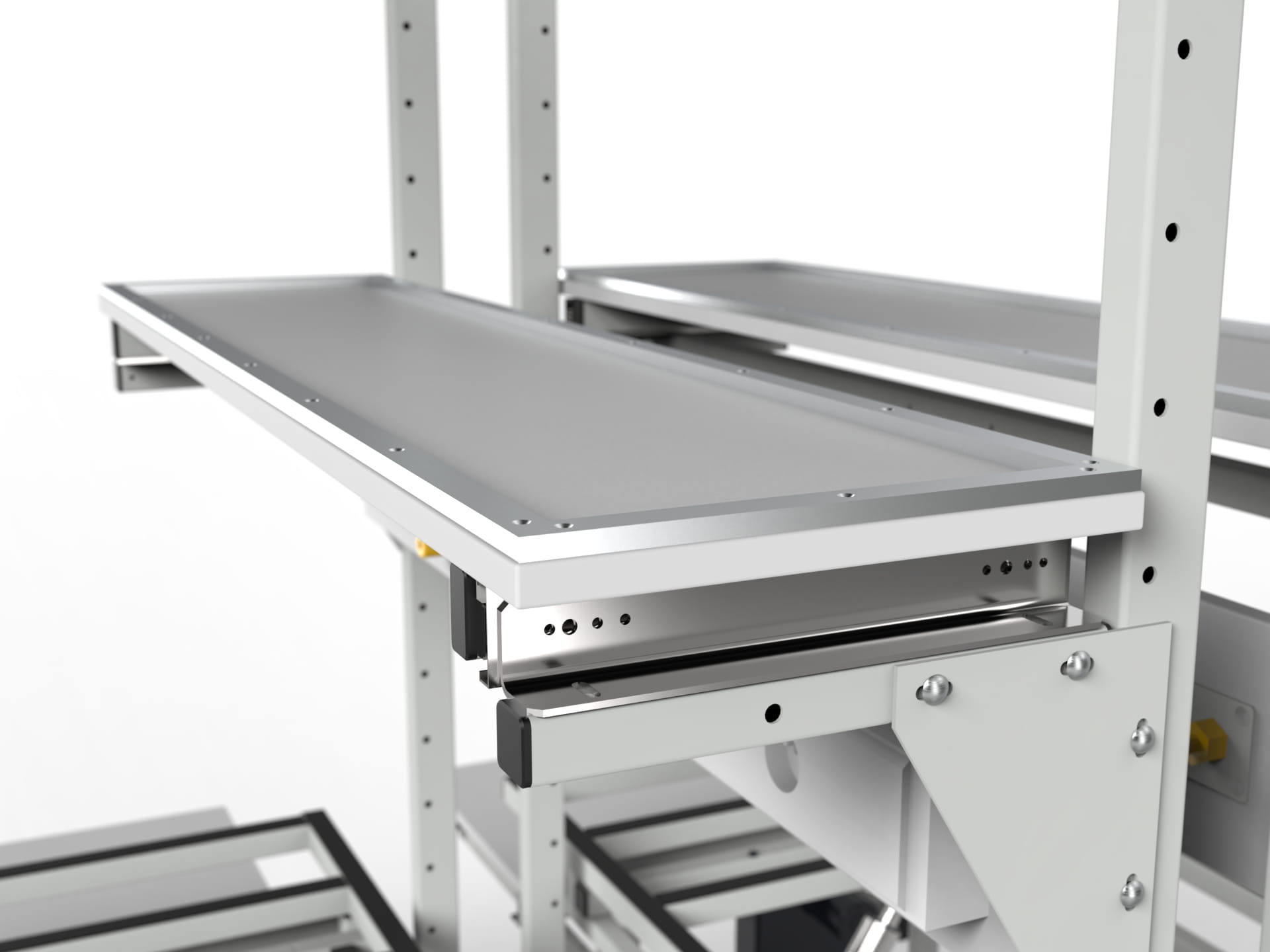

• one pull-out top shelf with rim of aluminium profile to prevent items from slipping off
• one fixed shelf under worktop
• balancer guide
• overall height 2230-2620 mm
• four robust feet with a diameter of 125 mm for greater stability

Ergonomics and efficiency in electric industry from Jabama

Prefabrication of electrical panels, control cabinets or switchboards is specialised work requiring specialised solutions. That's why the racks and tables we offer have been designed from the outset with the challenges of this industry in mind. They will enhance your comfort and safety, and if you can't find a model to suit your needs, our expert team will offer you a tailor-made solution.  In our store you will also find other complementary products such as cable and wire trolleys, transport carts, workshop trolleys, ESD furniture i storage racks.
