Adjustable assembly table with tilting top

Adjustable assembly table with tilting top

In addition to the standard height adjustment of the tabletop, the SMRPC assembly table also has a 0-35 degree angle adjustment of the top. The tilting worktop makes it possible to perform dedicated, precision work on the work station. The adjustment mechanisms used guarantee quick and easy operation. The ergonomic design is additionally equipped with additional elements sliding on a steel frame, such as a shelf, perforated wall and central lighting. The table will find use in plants dealing with electronics, especially in the assembly of cabinets and electrical panels.

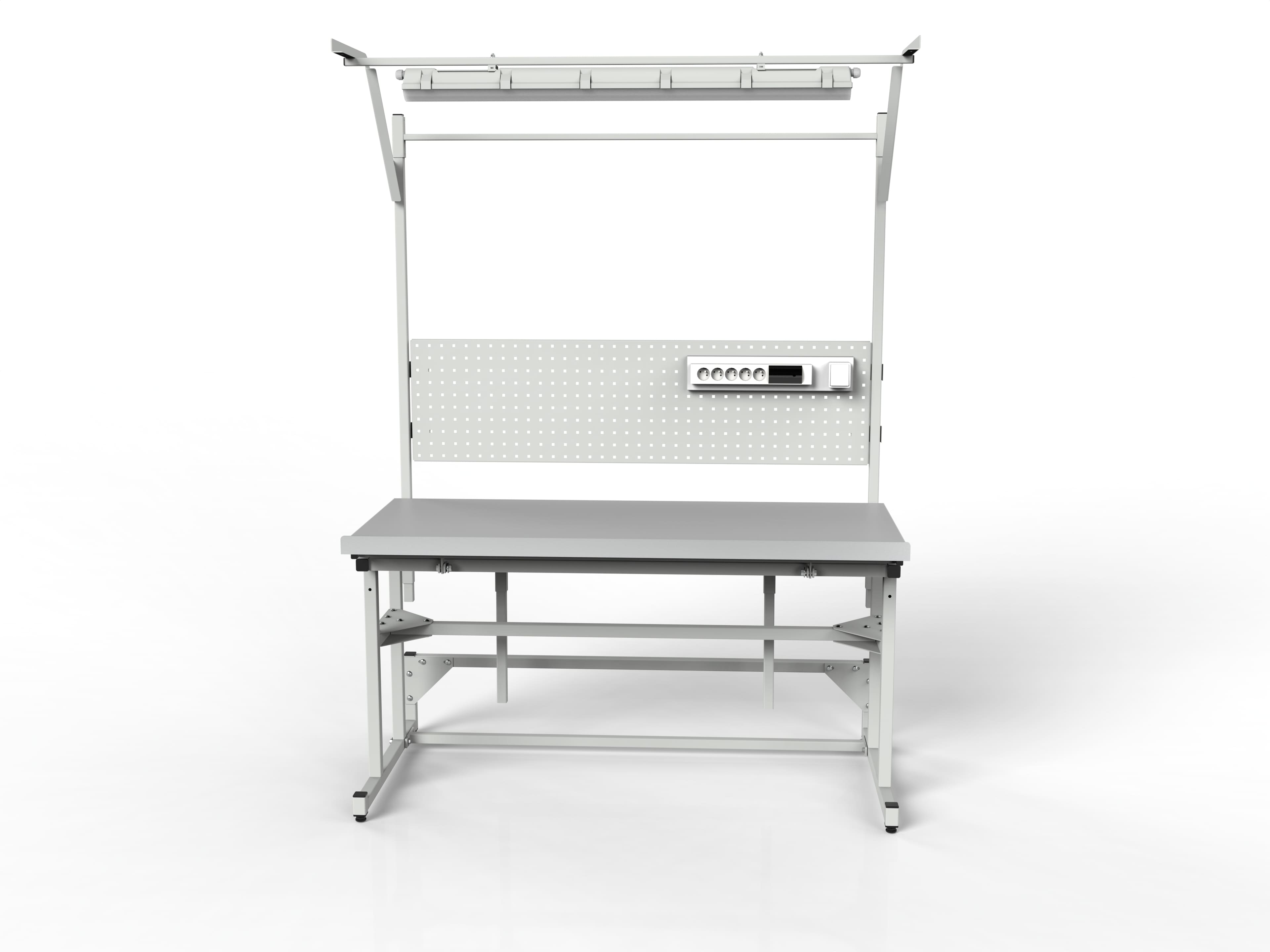

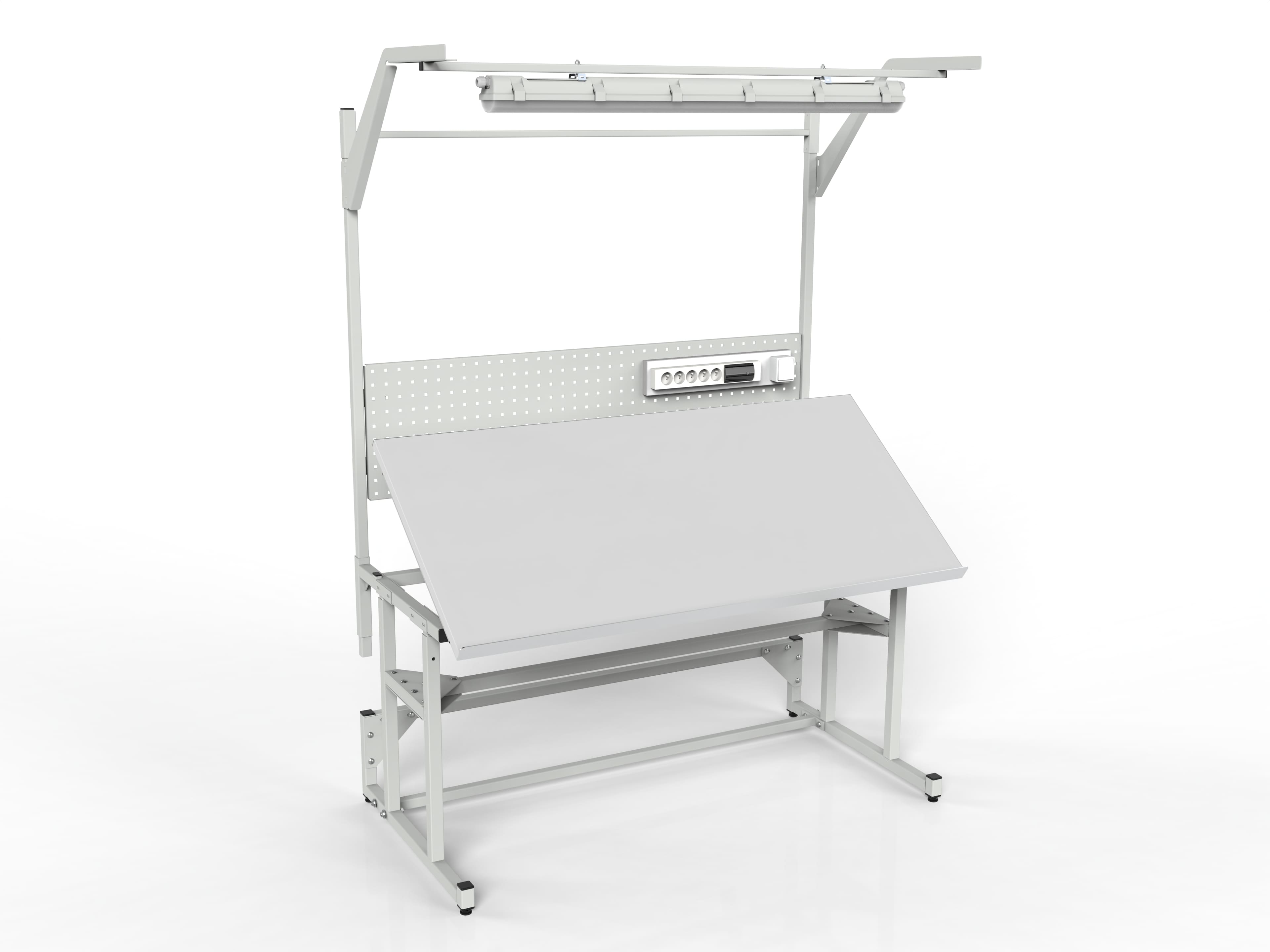

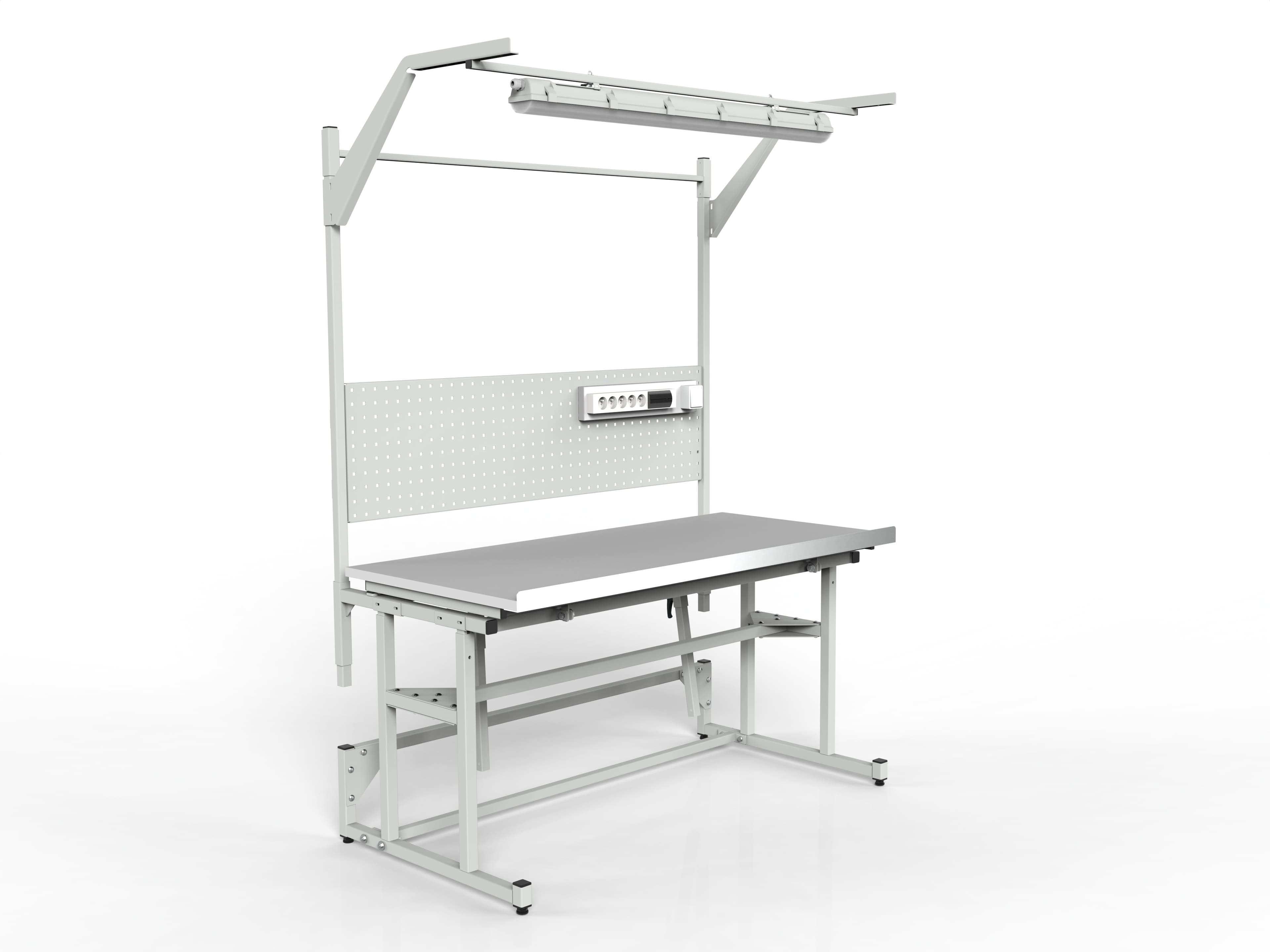

ASSEMBLY TABLE WITH TILTING TOP, MODEL SMRPC, WITH LIGHT, SHELF, PERFORATED WALL AND POWER STRIP

• Assembly table supported by a sturdy and stable metal structure, powder-coated in light gray RAL7035
• The table legs are equipped with leveling feet (adjustable +-30mm)
• The load capacity of the table is 150 kg

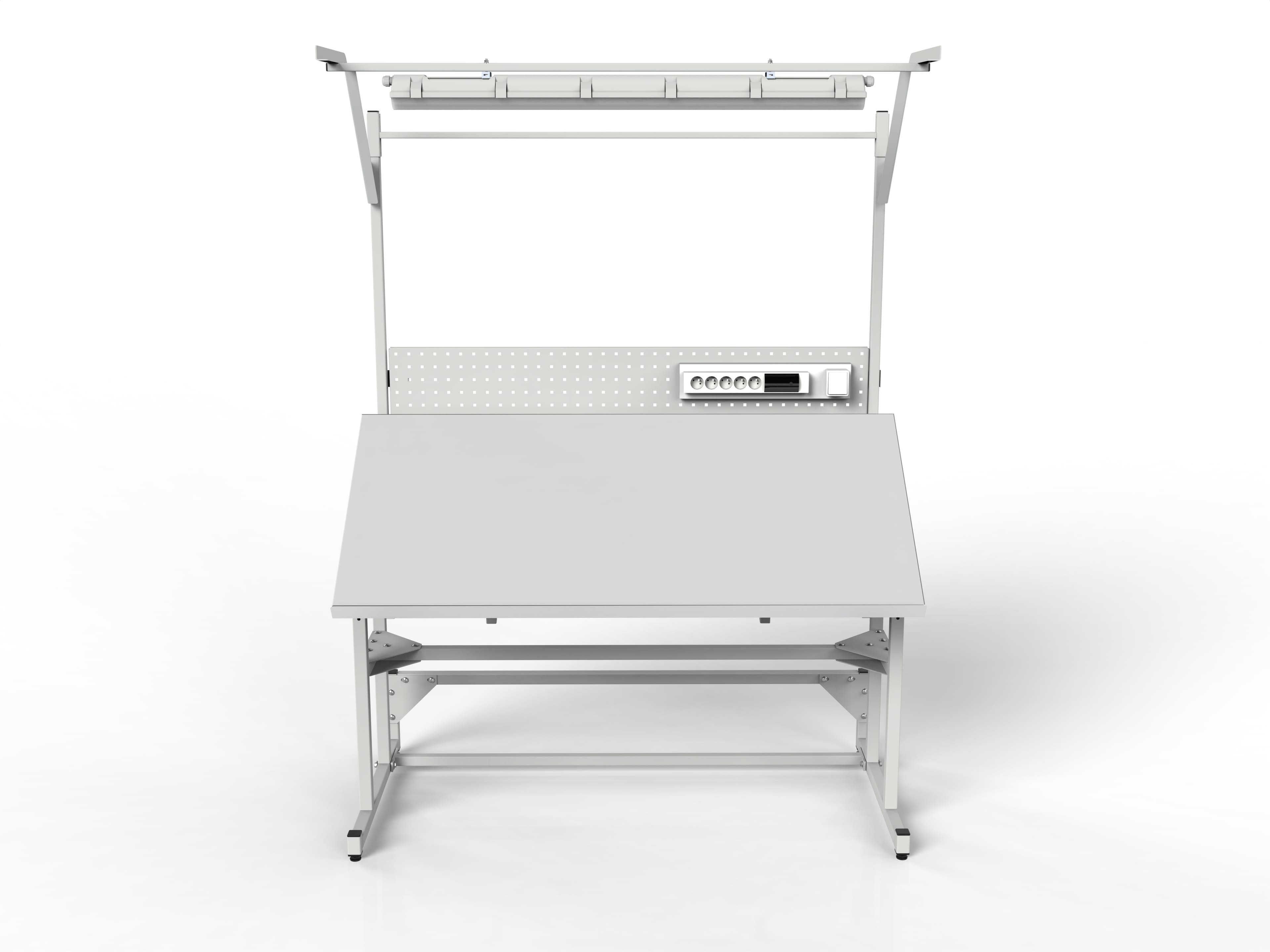

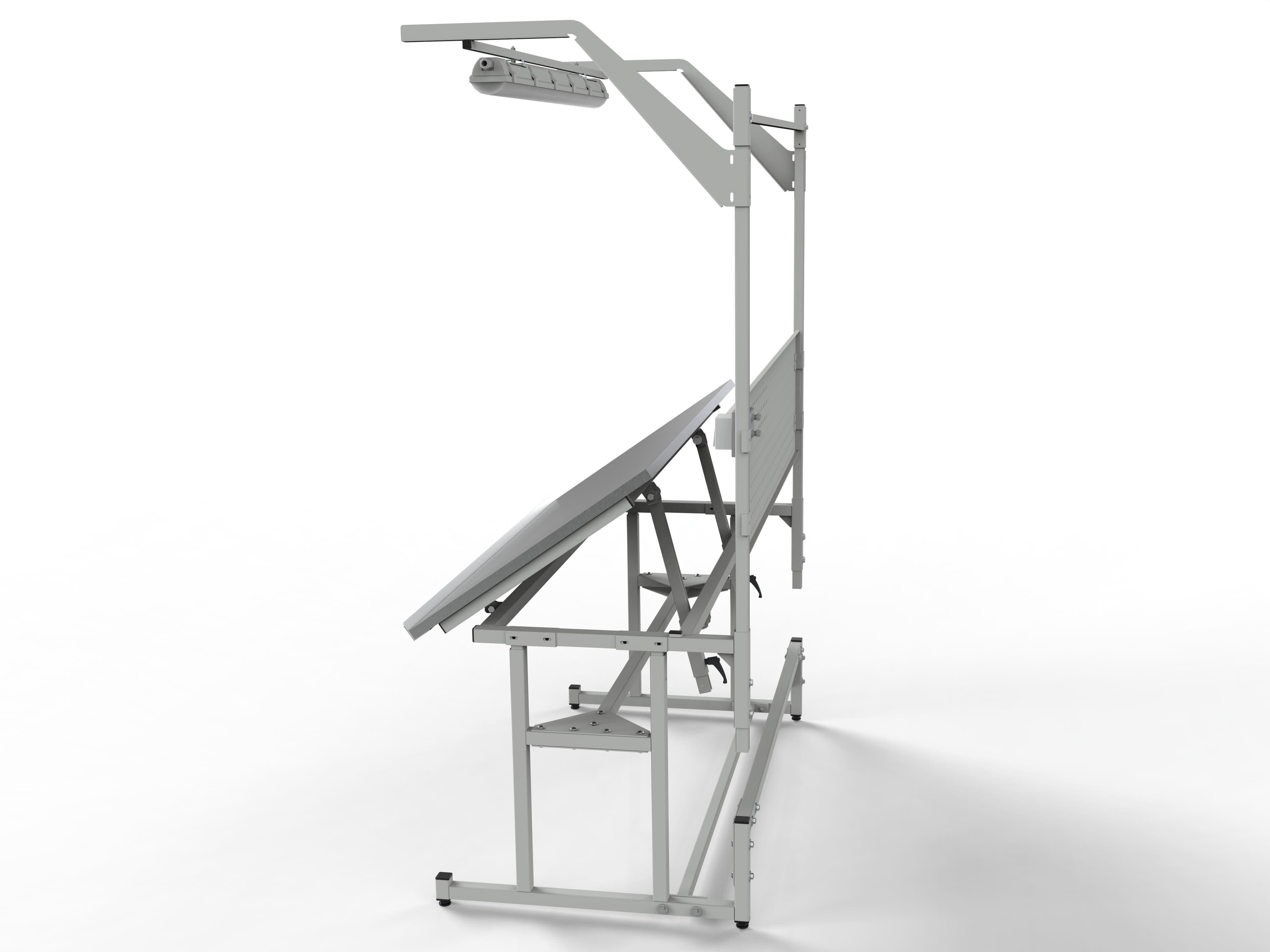

• Smooth height adjustment of the table top in the range of 785-1175 mm on four screws, adjustment of the angle of the top in the range of 0-35 degrees

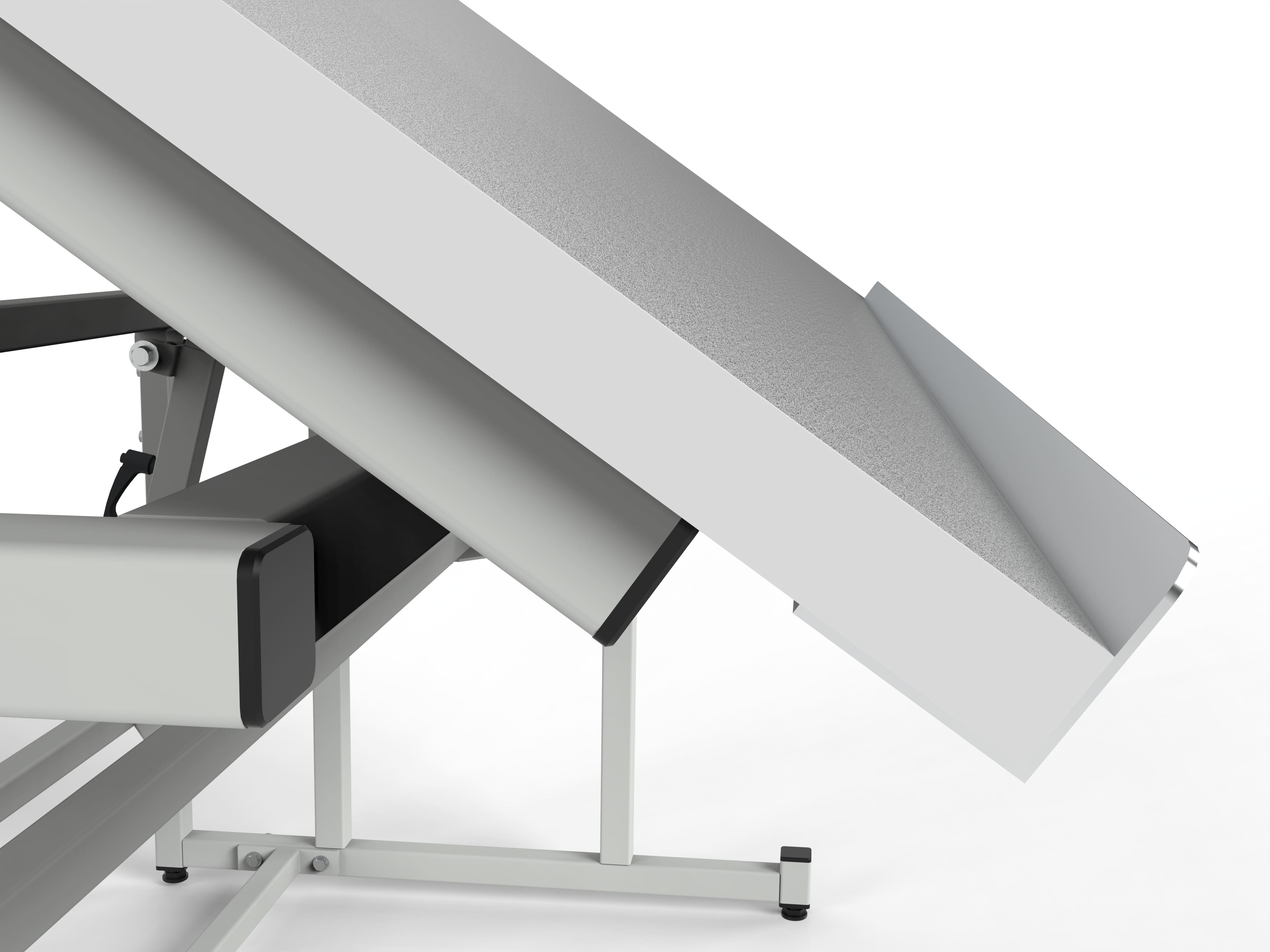

• Tabletop made of 25 mm thick melaminated particle board with 2 mm ABS edge banding, covered on the entire surface with black grooved rubber with a thickness of 3 mm and the edge of the table top protected from the front with an aluminum angle 50x50 mm, protruding above the rubber 20 mm

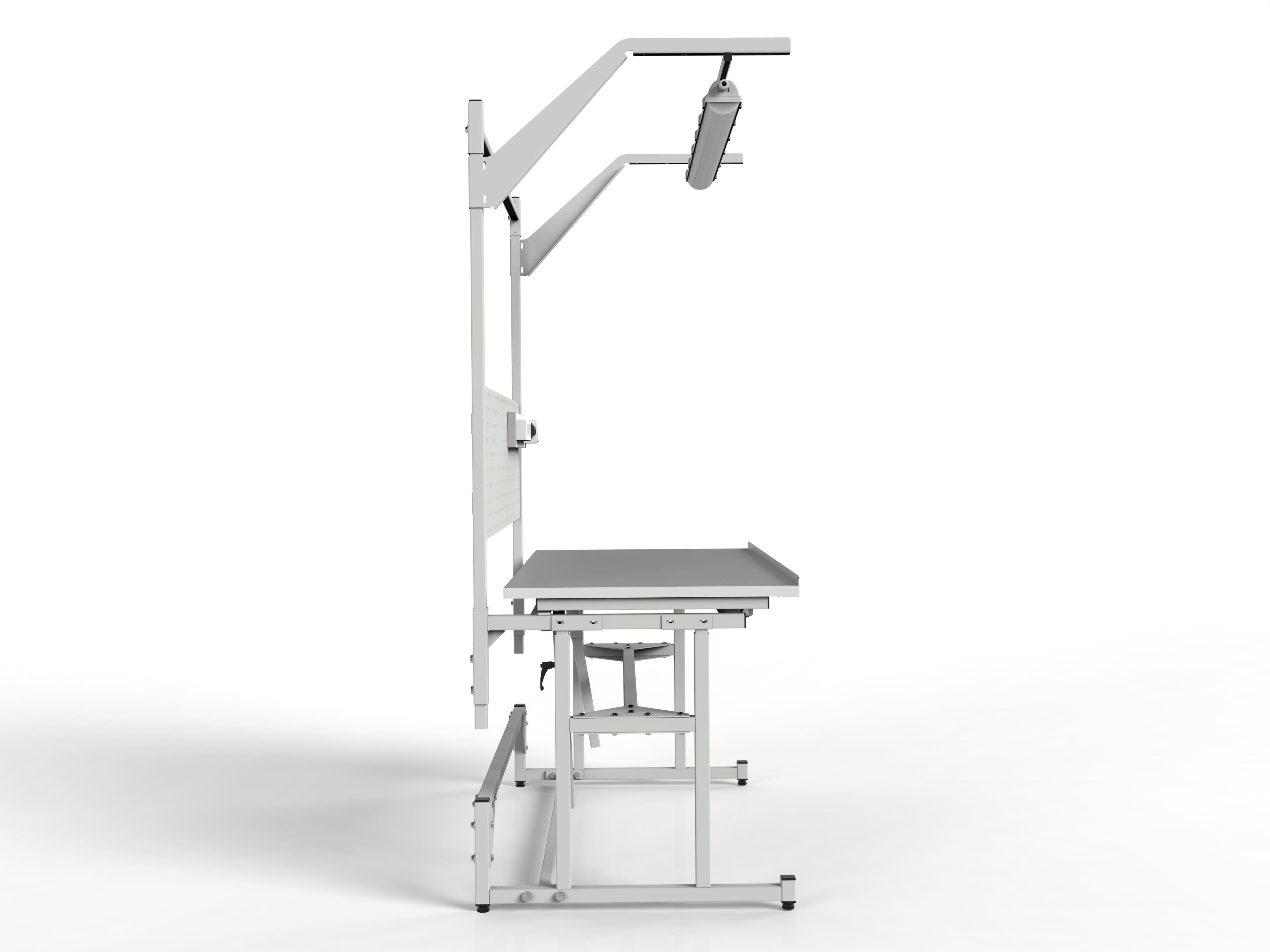

• Central LED lighting 26W, in a dustproof and hard-to-break fixture, placed on a metal structure with height of lighting adjustable max 2200 mm from the floor, switch mounted to the wall as standard (possible change of its position)
• Shelf supported on metal structure, shelf thickness is 18 mm, depth 300 mm and the length of the table, optional adjustment of the shelf at an angle of 45 degrees and height adjustable smoothly on the steel structure
• LZA5 power strip with surge suppressor, circuit breaker and as many as 5 sockets with a grounding pin and a 5 m long cable

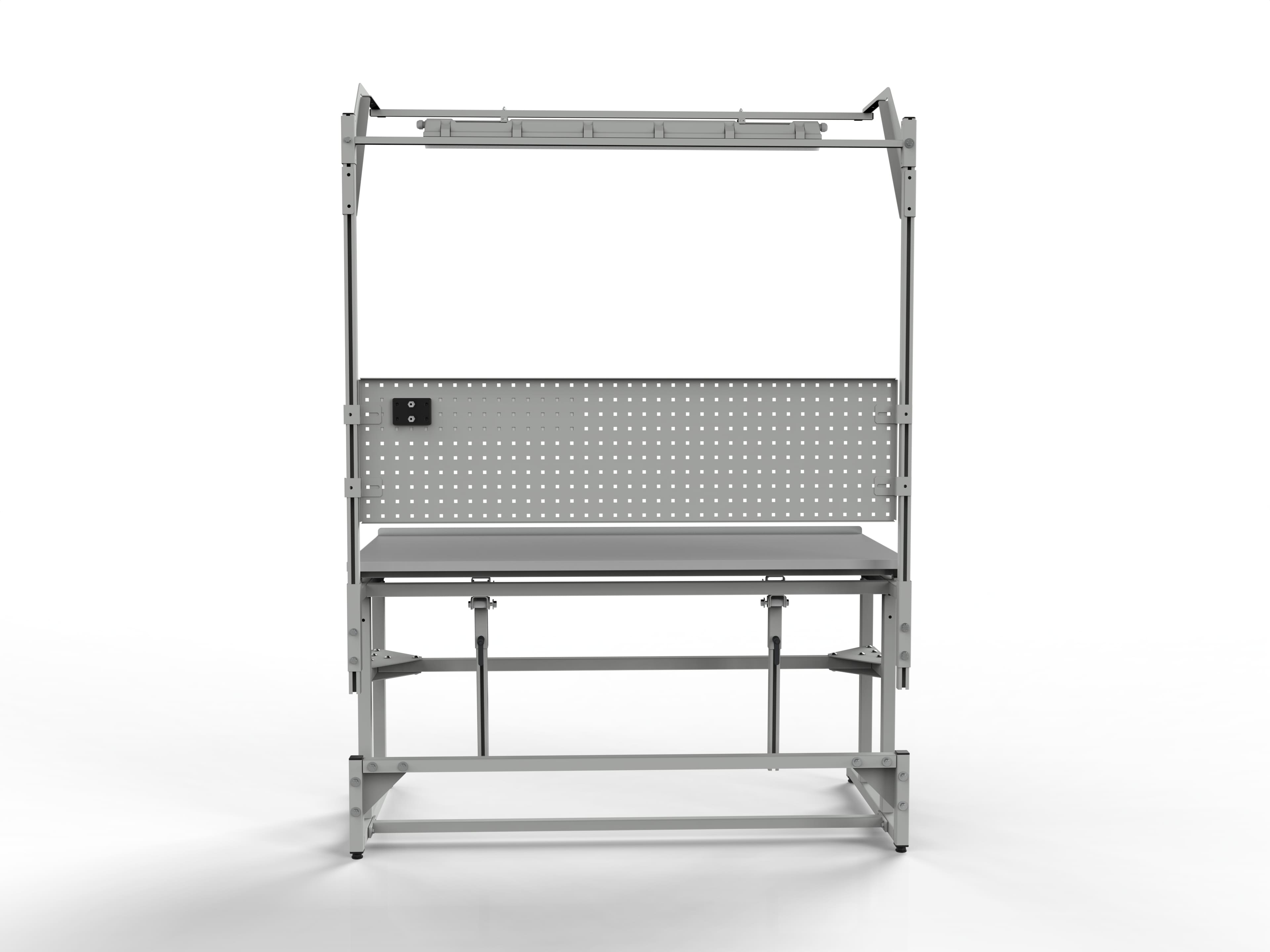

• Perforated wall with a height of 380 mm (holes 9 mm square, raster 38 mm to the center of the holes), made of powder-coated sheet metal with a thickness of 2 mm

Optional equipment

We are committed to making our products as modular as possible. Hence the possibility to choose a wide range of additional equipment for the tables. If a particular table model does not have a feature you care about (such as an additional shelf), we are able to accommodate individual customer requests in the design. If you have any doubts, we encourage you to contact our sales department. Below is a list of examples of additional equipment.

• ZPAS aluminum power strips
• Computer shelf 300 mm wide
• Keyboard drawer 300x700 mm
• Balancer holder

Ergonomics and efficiency in electric industry from Jabama

Prefabrication of electrical panels, control cabinets or switchboards is specialised work requiring specialised solutions. That's why the racks and tables we offer have been designed from the outset with the challenges of this industry in mind. They will enhance your comfort and safety, and if you can't find a model to suit your needs, our expert team will offer you a tailor-made solution.  In our store you will also find other complementary products such as cable and wire trolleys, transport carts, workshop trolleys, ESD furniture i storage racks.

Available dimensions
